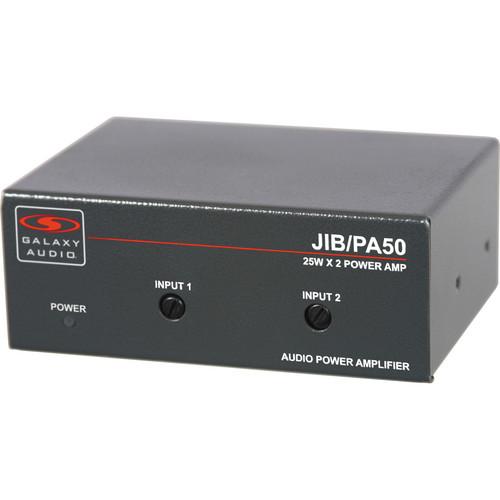

User Manual for Galaxy Audio JIB PA50 Compact Stereo Power Amplifier Click to enlarge the picture
Contents of the user manual for the Galaxy Audio JIB PA50 Compact Stereo
- Product category: Power Amplifiers Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Power Amplifiers
 |
User manual for the Galaxy Audio JIB PA50 Compact Stereo contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

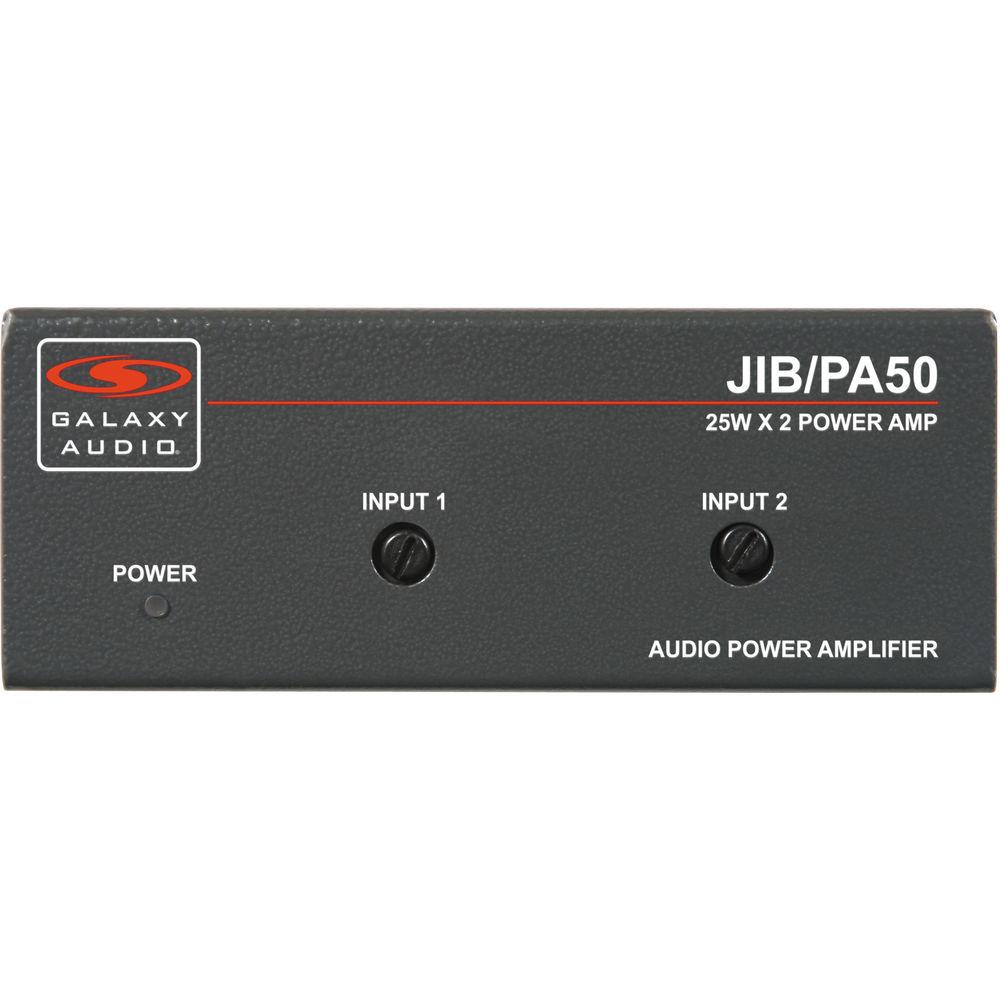

Product description The Galaxy Audio Jacks in the Box JIB/PA50 Compact Power Amplifier (25W RMS/Channel) is a 1/4 rack wide amplifier designed for installed sound reinforcement for educational, industrial, commercial, and pro audio applications. The amplifier operates noiselessly without the use of a fan and offers two channels of class-D amplification at 25W RMS per channel at a 4Ω load.
For I/O, the unit features three stereo inputs, one microphone input, and separate mic and line gain adjustments to enable connecting the amplifier to wireless microphone receivers, projectors, and other sound sources. The unit is Energy-Star certified and will automatically go into standby mode and utilize only 0.8W if no signal is detected for 20 minutes. UPC: 691281600128 In the Box Galaxy Audio JIB/PA50 Compact Stereo Power Amplifier (25W RMS/Channel) Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio JIB PA50 Compact Stereo Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

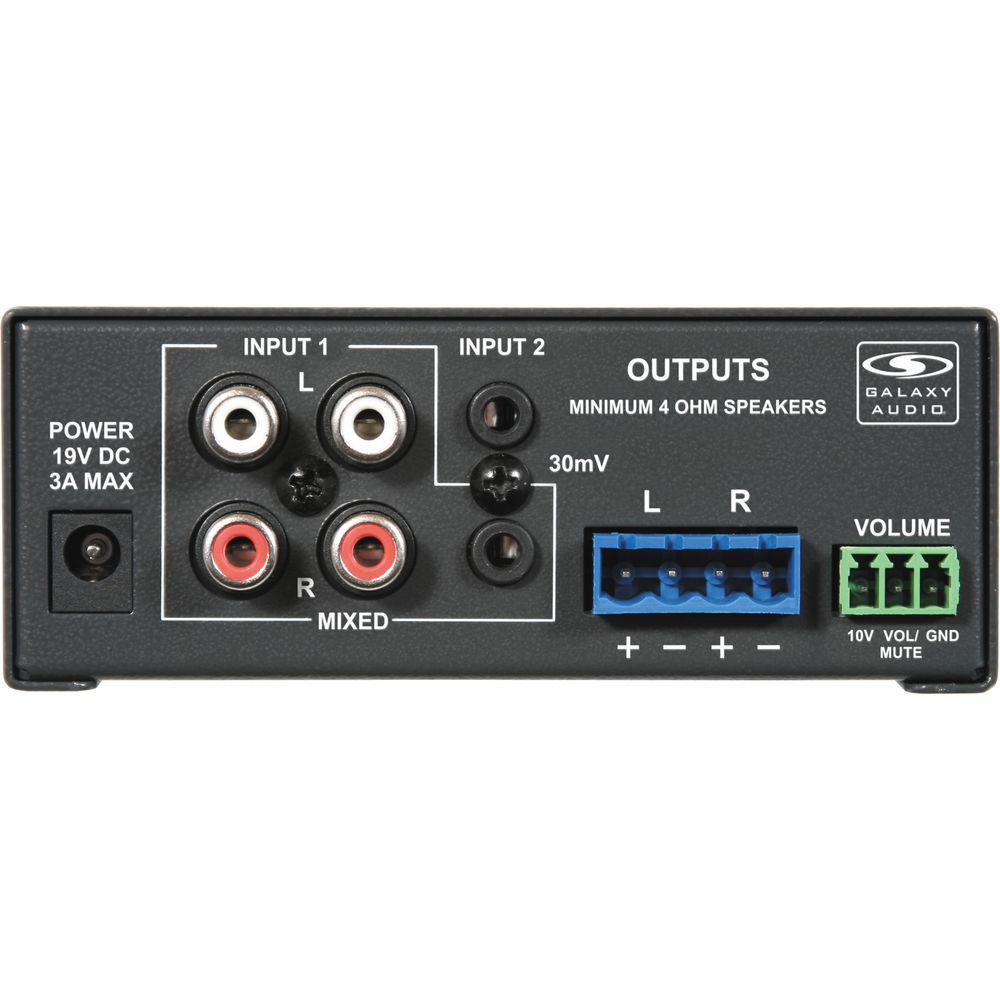

Technical parametersGalaxy Audio JIB/PA50 Specs | Frequency Response | 20 to 20,000 Hz ±1 dB at 1 W | | S/N | > 80 dB from 20 to 20,000 Hz at maximum output | | Audio Inputs | 2x RCA stereo unbalanced pairs
1x 3.5 mm stereo unbalanced mini jack
All inputs mixed together pre-volume control
Balanced 3.5 mm stereo mini jack for sub mic input, mixed evenly to left and right channels post volume control | | Impedance | Line level inputs: >18 kΩ unbalanced
1 sub mic input: >18 kΩ unbalanced | | Nominal Level | Line level inputs: -10 dBV (316 mV)
1 sub mic input: -30 dBV (10 V) at 1% THD | | Maximum Level | Line level inputs: +20 dBV (10 V) at 1% THD
1 sub mic input: +2- dBV (10 V) at 1% THD | | Sensitivity | Line level inputs: -10 dBV (316 mV)
1 sub mic input: -30 dBV (31.6 mV) | | | | Speaker Output | Stereo speaker output on phoenix block connectors optimized for 18 AWG wire | | Amplifier Type | Class D | | Output Power | Continuous power with full load and 1% THD
At 4Ω: 25 W RMS per channel
At 8Ω: 14 W RMS per channel | | Damping Factor | > 30 | | Standby Power | 0.8 W after no input signal is detected for 20 minutes | | Dimensions (W x D x H) | 4.30 x 3.00 x 1.70" (109.0 x 76.0 x 43.0 mm) | | Weight | 0.77 lb (350 g) | | | | Package Weight | 2.76 lb | | Box Dimensions (LxWxH) | 12.0 x 12.0 x 12.0" |
