User Manual for Galaxy Audio NSPA Powered Nano Spot Compact PA Click to enlarge the picture
Contents of the user manual for the Galaxy Audio NSPA Powered Nano Spot
- Product category: Portable PA Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Portable PA Systems
 |
User manual for the Galaxy Audio NSPA Powered Nano Spot contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

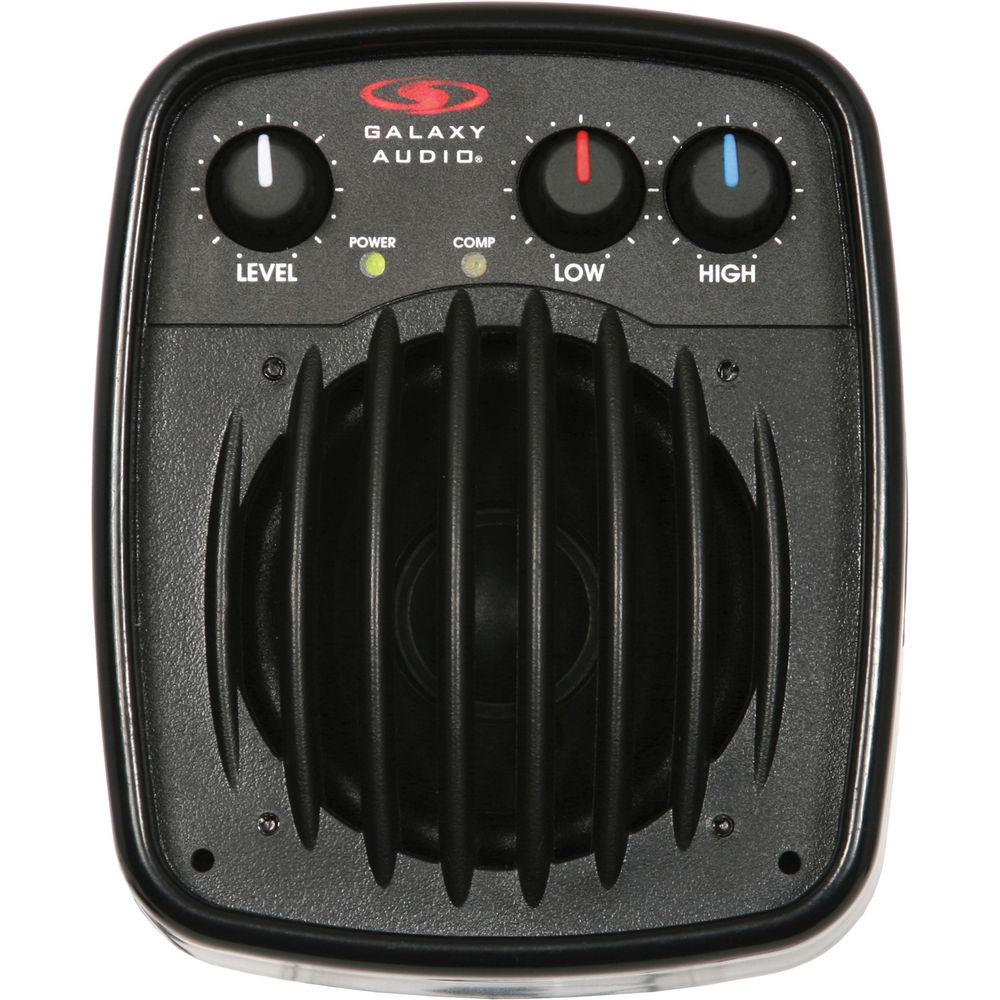

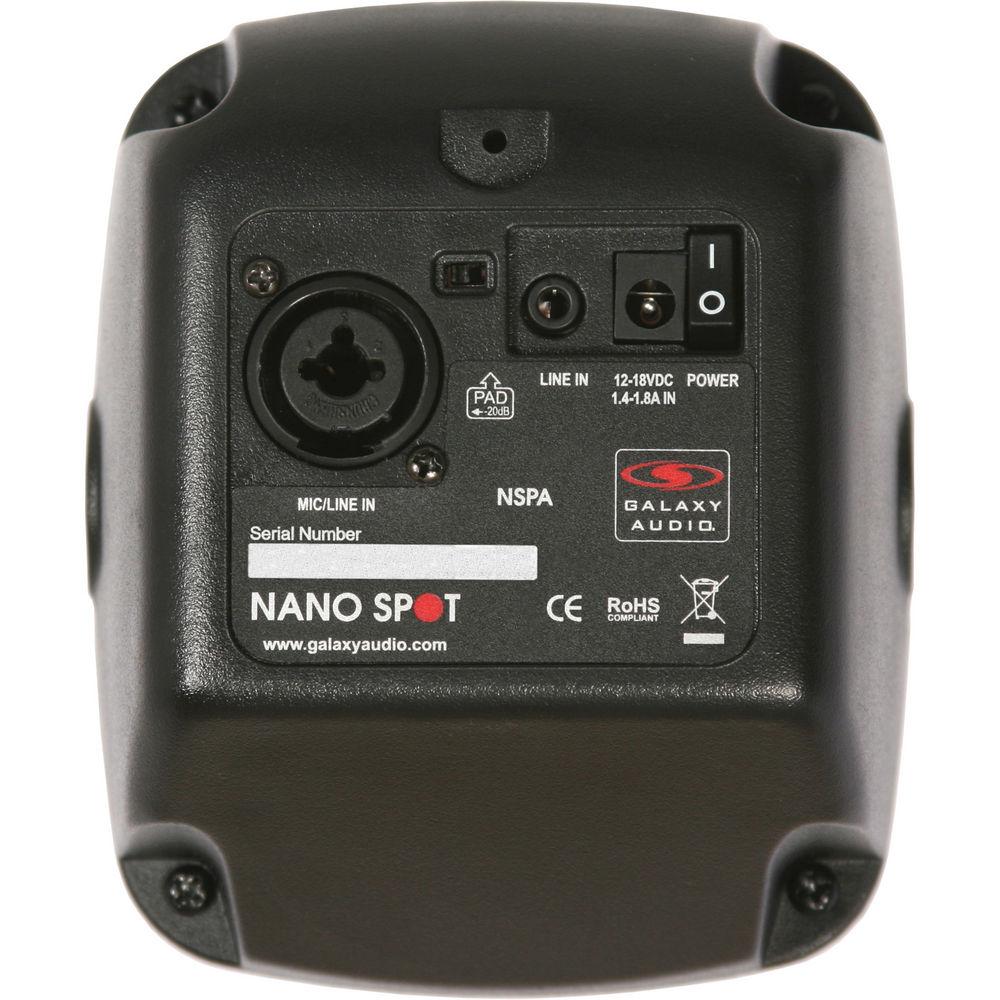

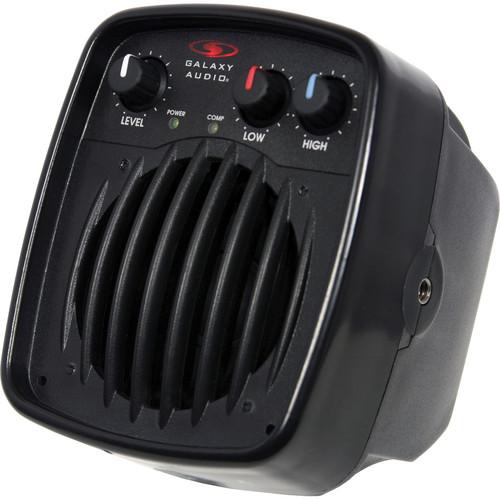

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More tfecvtvetcsrzrzteqawyesuxdxsadbyff The black NSPA Powered Nano Spot from Galaxy Audio features a 3.0" (7.6cm) driver and has 3 inputs on the rear panel: XLR, 1/4", and 1/8" stereo summing. With 24V phantom power, a 20dB pad, and built-in compressor, you can go directly into the Nano Spot from an audio source or microphone.

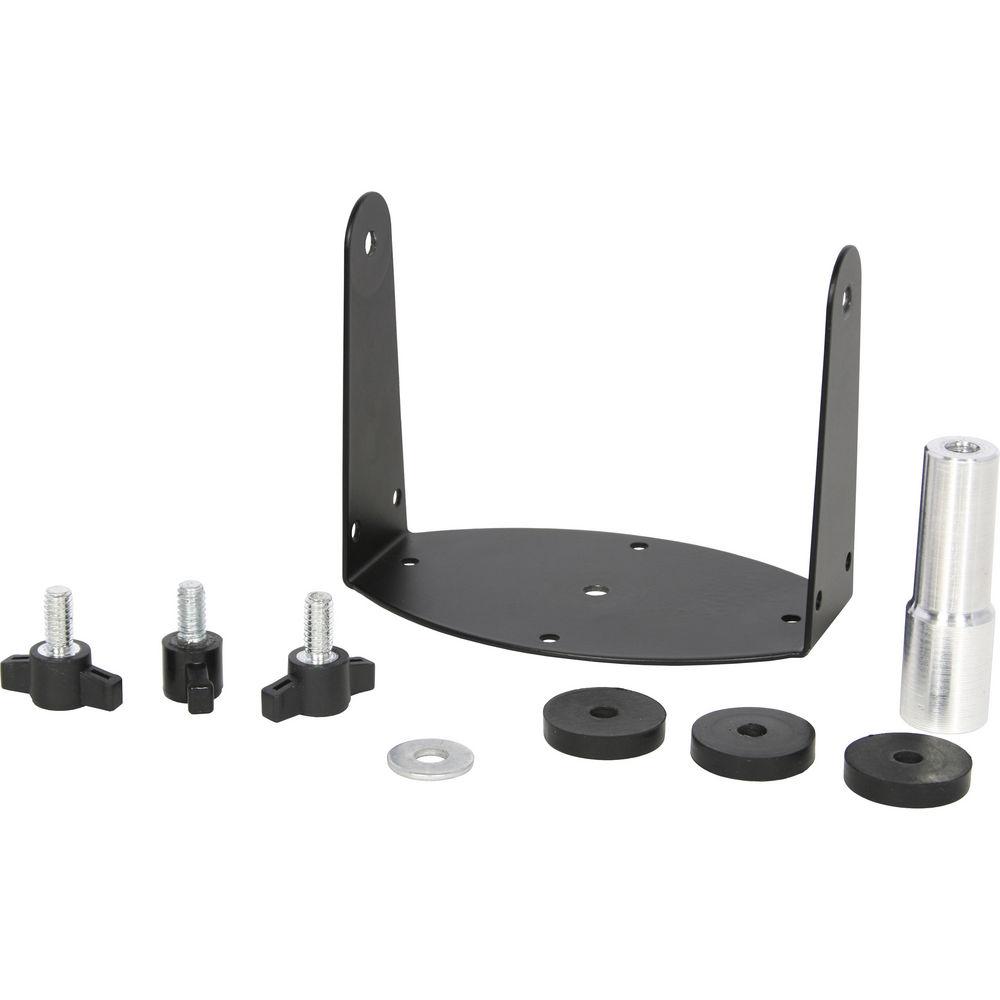

The NSPA Powered Nano Spot can be used in call centers, computer monitoring, on the bar or patio in a restaurant, and many other applications. UPC: 691281104732 In the Box Galaxy Audio NSPA Powered Nano Spot Compact PA Power Supply Stand/Wall Mount with NSPA Bracket Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio NSPA Powered Nano Spot Compact PA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio NSPA Specs | Input | 1x XLR Balanced
1x 1/4" unbalanced
1x 1/8" stereo summing | | Phantom Power | 24 VDC | | Controls | Equalizer, 1 Volume Pot | | Nominal Impedance | 4 Ω | | Power Supply | 18 VDC, 1.75 A | | Built-in Amplifier | 25 W @ 4 Ω | | Speaker | 87.5 dB @ 1 W / 3.2' (1.0 m) | | Frequency Response | 150 Hz to 17 kHz | | Maximum SPL | 101.5 dB | | Enclosure Material | High Density ABS | | LED | Indicator: Power, Compressor & Signal | | Input Impedance | XLR Input: 4.4 k, differential balanced
1/4" Input: 10 k unbalanced
1/8" Input: 22 k balanced (11 k unbalanced) | | Switch | Pad: 20 dB | | Dimensions | 5.00 x 4.25 x 4.50" (127.00 x 108.00 x 114.00 mm) | | Weight | 1.75 lb (0.79 kg) | | | | Package Weight | 3.42 lb | | Box Dimensions (LxWxH) | 9.2 x 6.0 x 5.7" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 74 owners. Add your rating and experience with the product.
