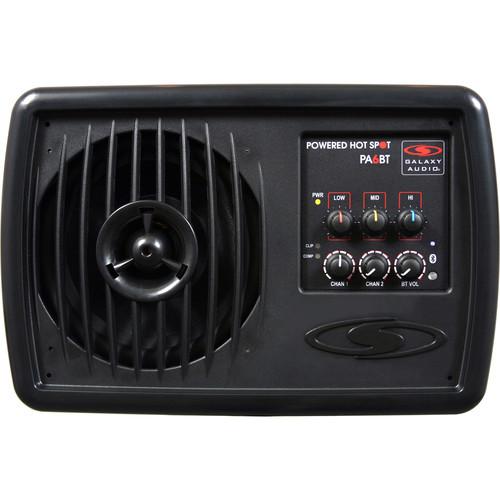

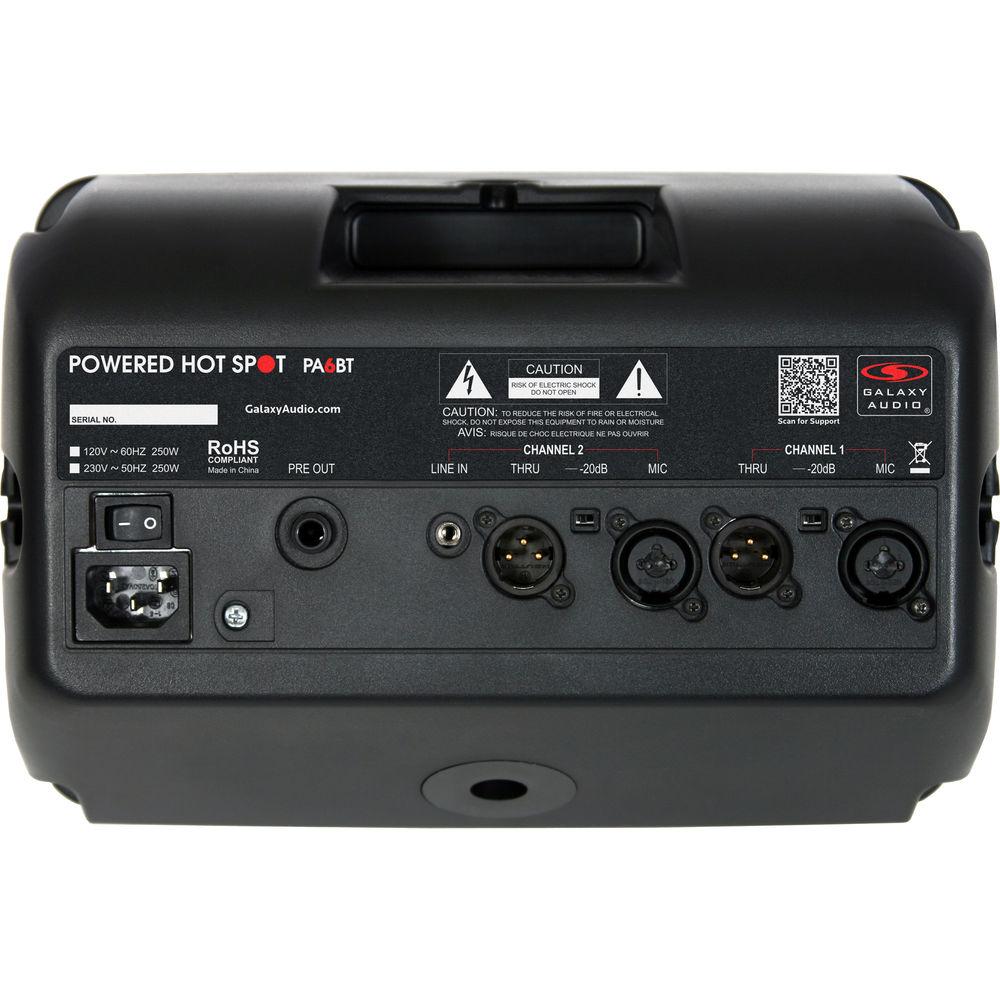

Product description The PA6BT Powered Hot Spot Personal Monitor with Bluetooth from Galaxy Audio is a compact, full-range Bluetooth PA monitor with a 6.5" Neolite Neodymium woofer and a 1.5" tweeter that delivers up to 170W of Class-D amplifier power. It can be used as a stand-alone PA system for small club gigs as well as lectures and A/V presentations. The PA6BT has two channels. Channel one is built with an XLR and 1/4" input and channel two has XLR, 1/4", and 1/8" inputs. The 1/8" input will accept stereo or mono signals from sources such as tape or digital media players as well as line-level instruments. The speaker includes a -20 dB pad switch on each XLR input, a volume control, a Bluetooth button, Bluetooth volume, and a 3-band equalizer. In addition, the PA6BT also features a built-in 18 dB compressor/limiter circuit with compressor and clip LEDs. Designed with an integrated handle, the Hot Spot mounts to most microphone stands and has kept the distinctive shape of the original Hot Spot. Finally, the PA6BT has a wider frequency response than earlier models so full range music, such as keyboards or backing tracks, will come through with solid bass and crisp highs. - 80 Hz to 18 kHz frequency response
- Pass-through on each XLR input

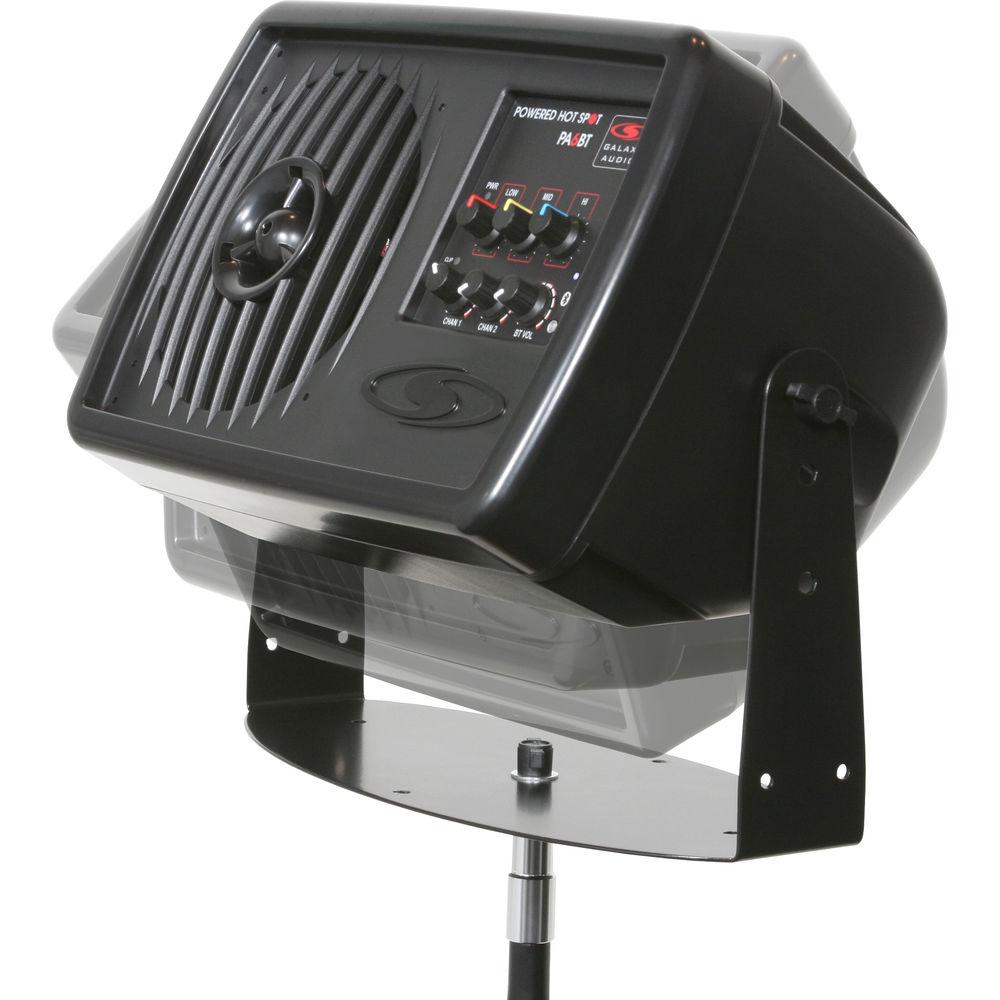

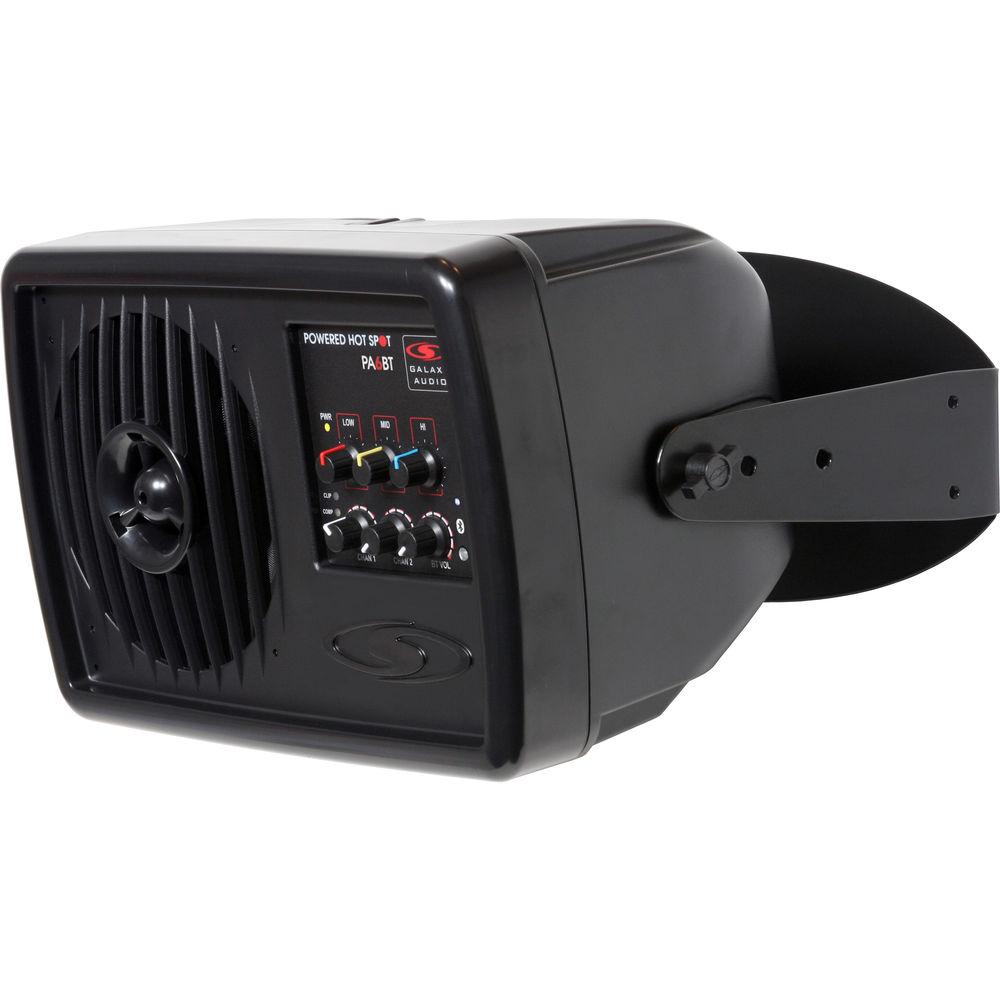

- Mounting point for mic boom and bracket
UPC: 691281007996 In the Box Galaxy Audio PA6BT Powered Hot Spot Personal Monitor with Bluetooth MSA-1 Stand Adapter IEC Power Cable Limited 3-Year Warranty User Manual PDF 631.4kbcytvucqqzvfvtbuesrbd Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio PA6BT Powered Hot Spot Personal Monitor with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio PA6BT Specs | | | Configuration | Active Full-Range | | Total Power Capacity | 170 W Peak (at 4 Ohms) | | System Impedance | 4 Ohms (Nominal) | | | | HF Driver | 1 x 1.5" / 38 mm Titanium Dome Tweeter | | LF Driver | 1 x 6.5" / 16.5 cm Woofer | | Magnet | HF:
Neodymium
LF:
Neodymium | | | | Frequency Response | 80 Hz to 18 kHz | | Maximum SPL | 118 dB | | Speaker Sensitivity | 98 dB | | Protections | Foldback, Short Circuit, Thermal | | | | Audio I/O | 2 x 1/4" Balanced/Unbalanced
2 x XLR Input
1 x 1/8" / 3.5 mm TRS Line Input
2 x XLR Thru/Output
1 x 1/4" Output 1/4" Output is for Preamp Out | | | | EQ | LF Shelf:
±12 dB at 200 Hz
MF Notch/Peak:
±12 dB at 2 kHz
HF Shelf:
±12 dB at 10 kHz | | | | AC Input Power | 120 VAC, 60 Hz | | | | Mounting | Bracket Point
1 x Mic Stand Socket | | Handles | 1 | | Construction Material | Styrene | | Dimensions | 7.8 x 11.8 x 6.8" / 197.0 x 298.0 x 171.0 mm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 14.1 x 9.9 x 8.8" |
