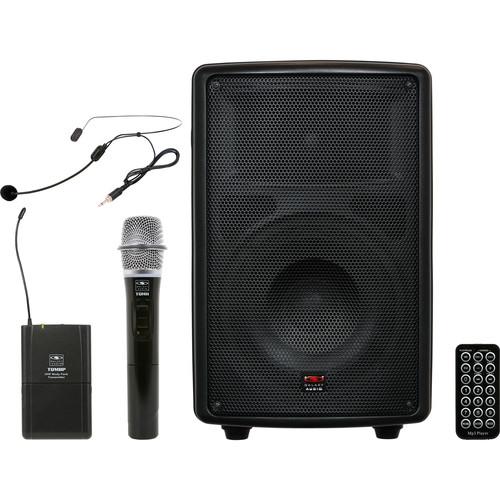

User Manual for Galaxy Audio TQ8-24HSN Traveler Quest 8" Speaker with Wireless Handheld and Headset Microphones Click to enlarge the picture
Contents of the user manual for the Galaxy Audio TQ8-24HSN Traveler Quest 8"
- Product category: Portable PA Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Portable PA Systems
 |
User manual for the Galaxy Audio TQ8-24HSN Traveler Quest 8" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

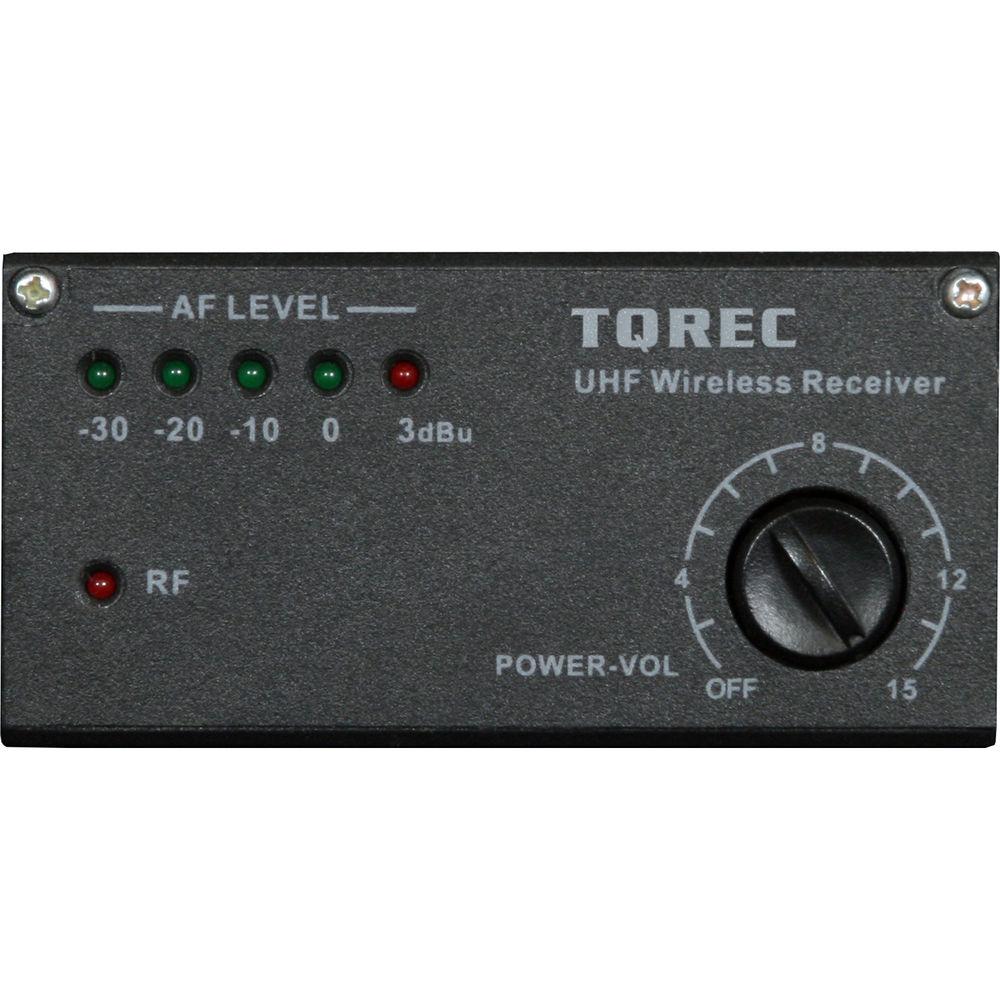

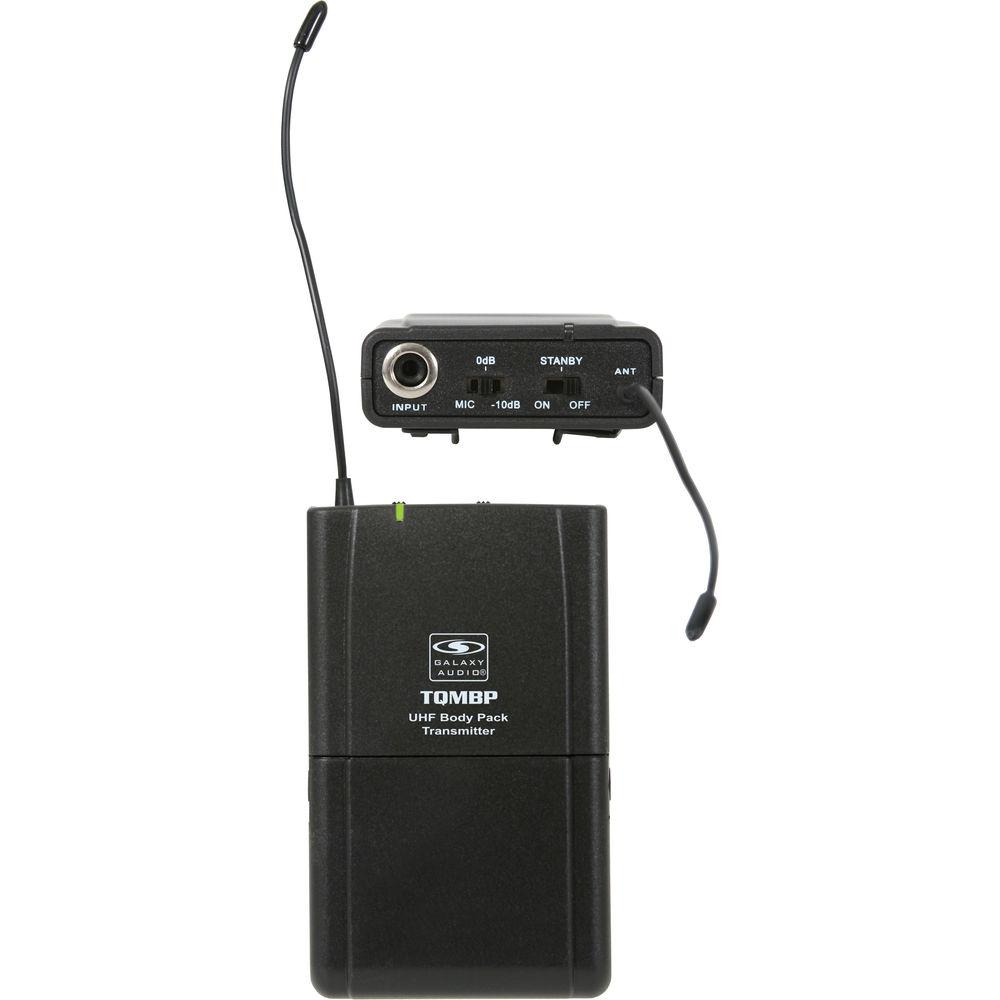

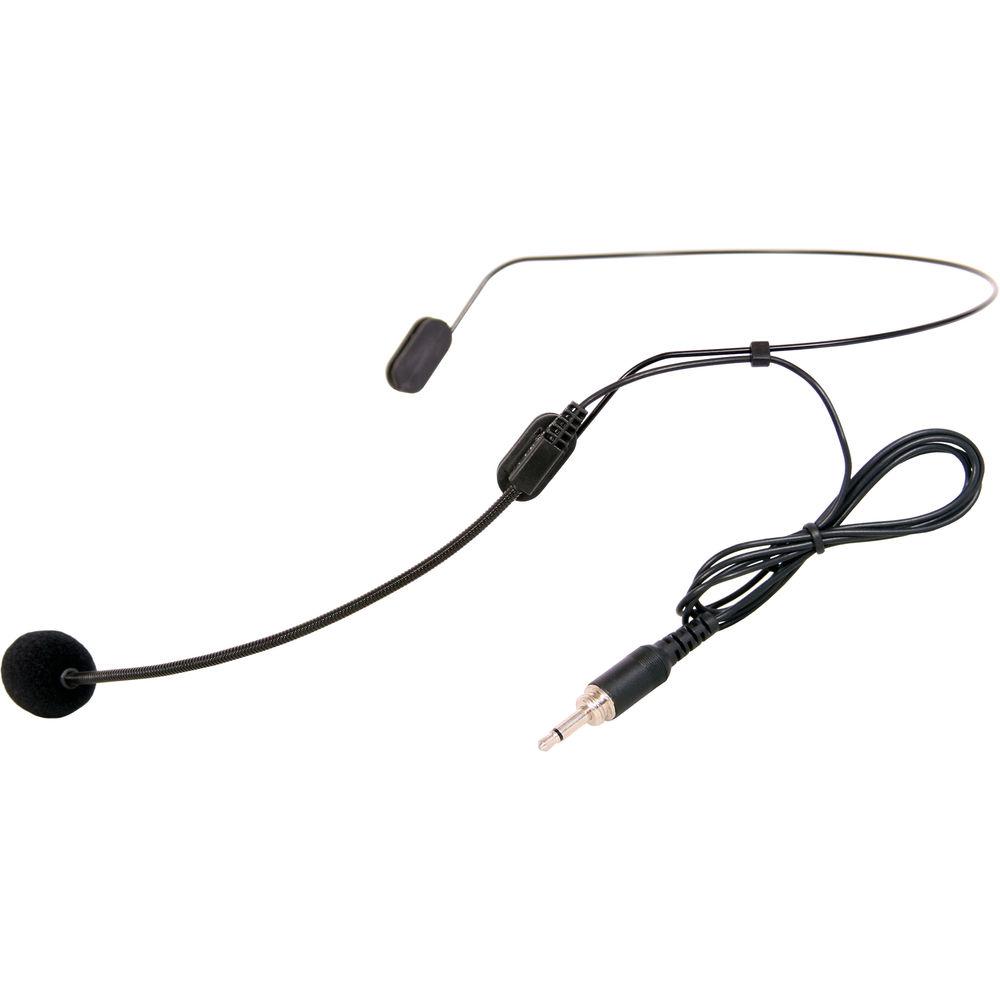

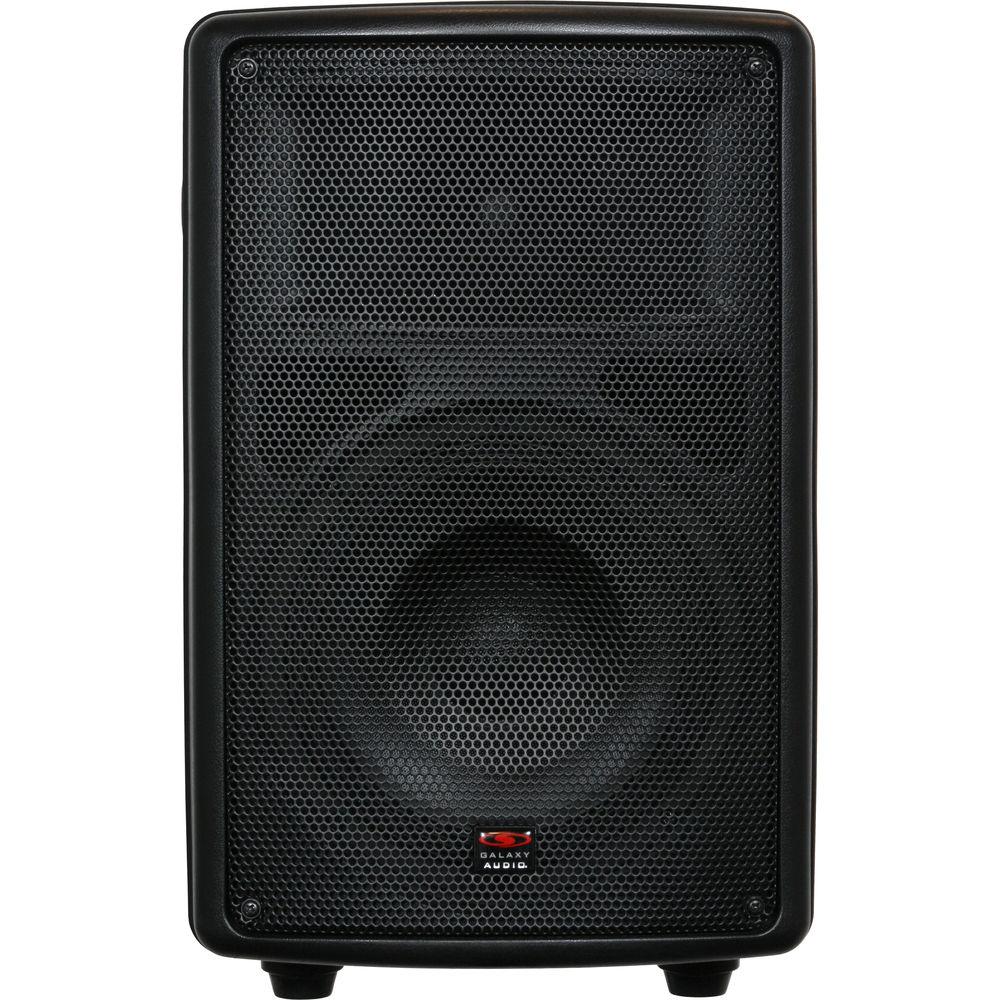

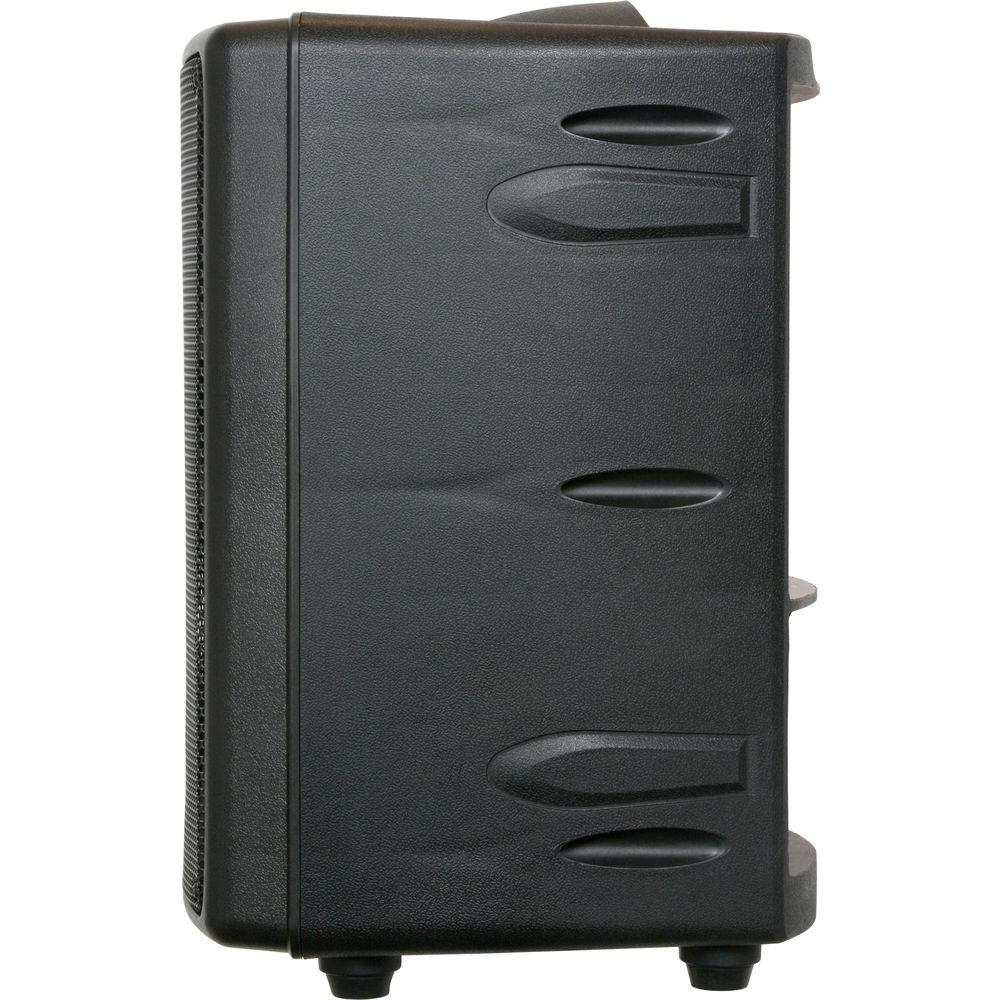

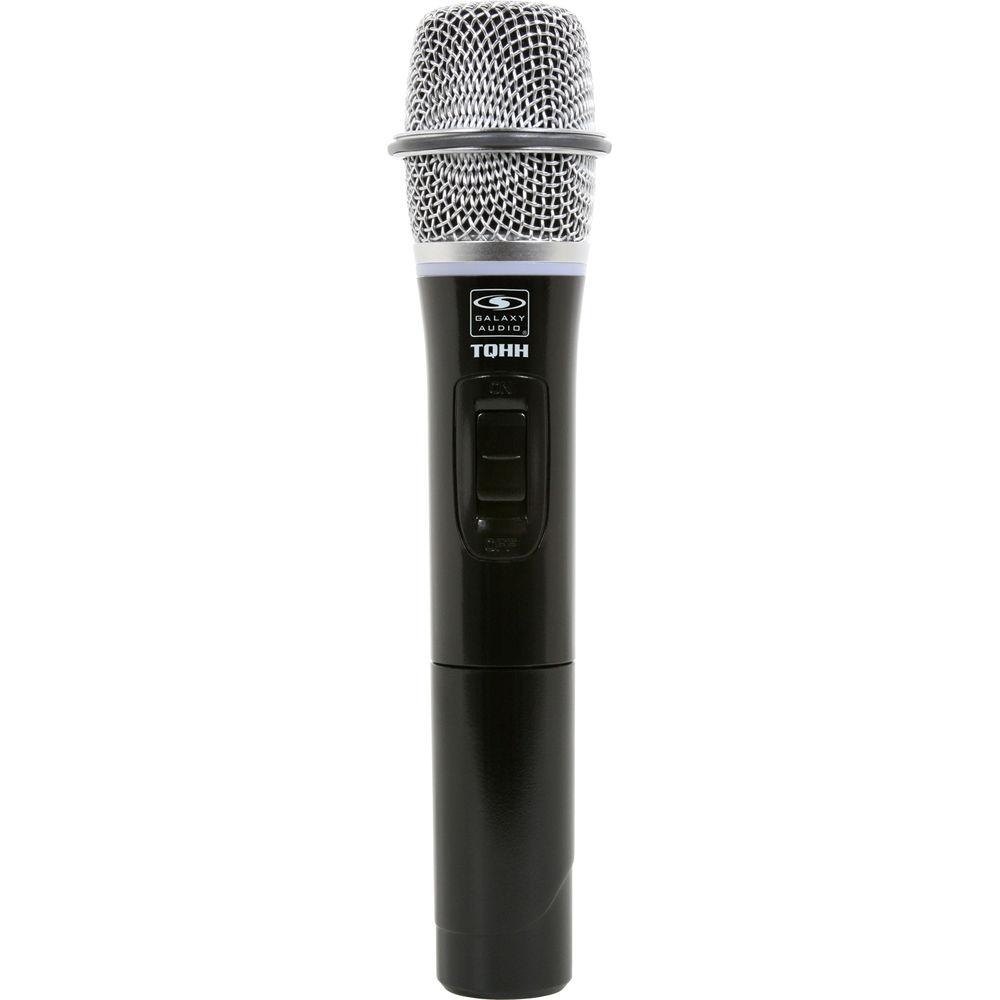

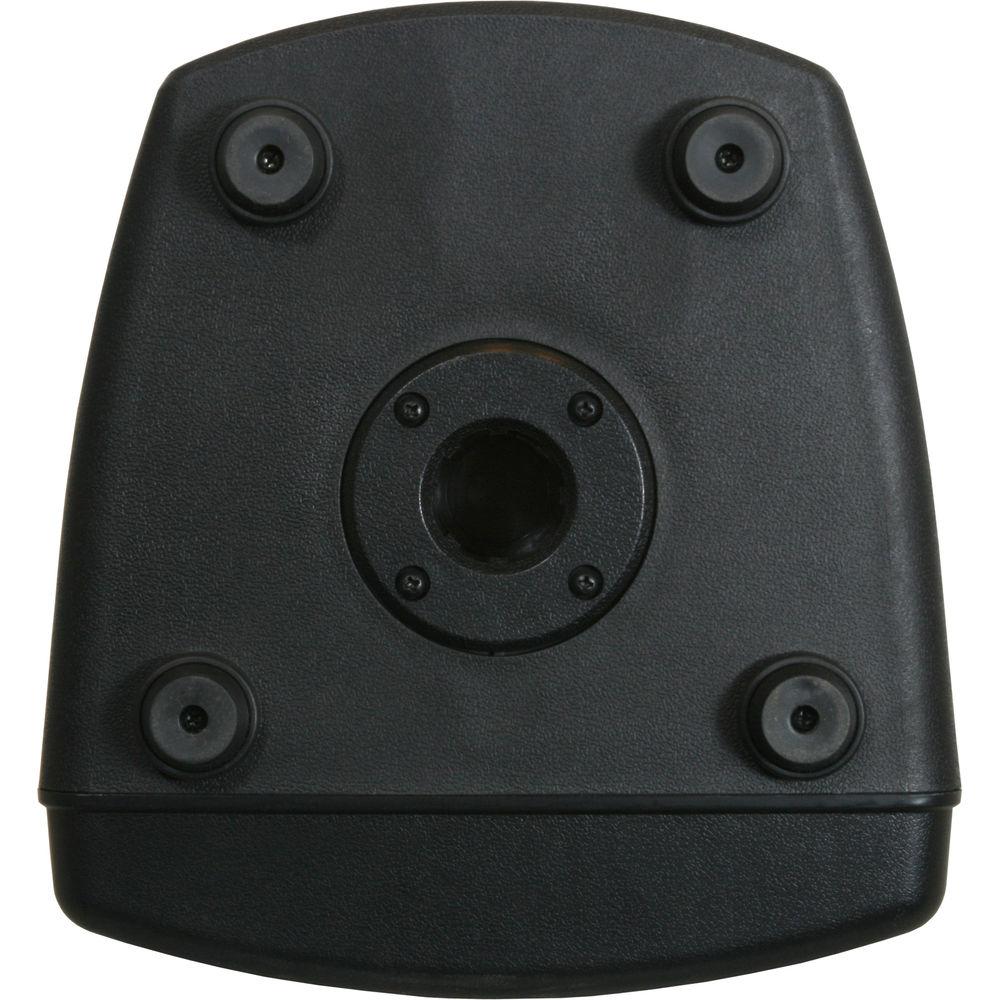

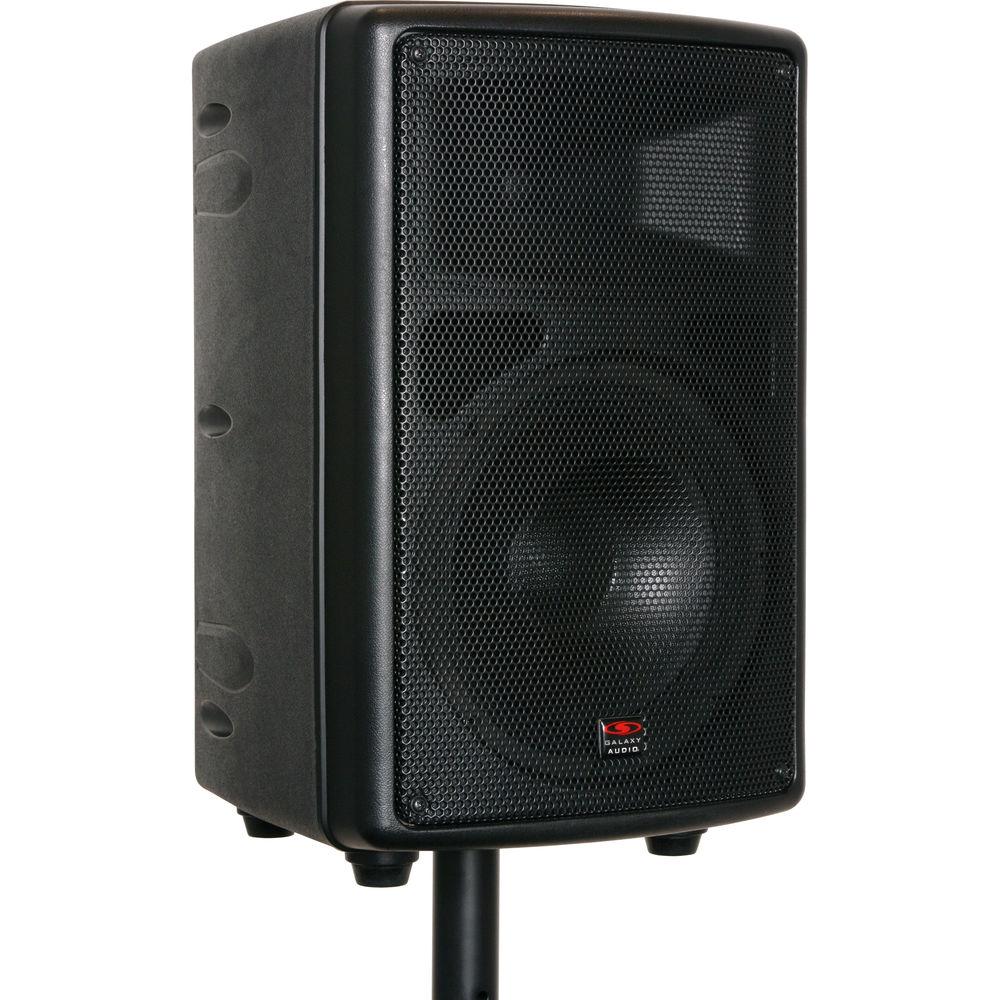

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The TQ8-24HSN Traveler Quest 8" Speaker with Wireless Handheld and Headset Microphones from Galaxy Audio is a portable, lightweight, "all-in-one" PA system. Running on AC or battery power, and configured with two wireless receivers, a handheld and a headset mics, the TQ8 can be used in schools, houses of worship, corporate functions, fairgrounds, and other live-sound applications.Featuring a 150W amplifier with an 8" woofer, 1" horn, two XLR-1/4" combo inputs, each with their own volume control, and one RCA or 3.5mm AUX input, the speaker has a 3-band EQ with master volume control and a built-in media player with Bluetooth. You can play audio from an SD card, USB drive, or from a Bluetooth enabled device. The TQ8 has a built-in integrated handle for easy transportation and a 1-3/8" speaker-pole mount is provided for secure mounting.With the voice priority button, it can reduce the volume of the media player, Bluetooth, and line-level input when it receives a signal from a wireless or a wired handheld microphone, which either can be plugged into the unit or as an installed wireless system; this feature can be turned on or off. Finally, the TQ8 is an "all-in-one" portable PA that offers quality audio and reliable performance. A remote control is also included for the MP3 player. In the Box Galaxy Audio TQ8-24HSN Traveler Quest 8" Speaker with Wireless Handheld and Headset Microphones TQ8 Traveler Quest 8 Battery Powered 8" Speaker with Built-In Bluetooth 2 x TQREC Single-Channel UHF Receiver Module for Travel Quest 8 TQHH Wireless Handheld Microphone Transmitter for Travel Quest 8 TQMBP Bodypack Transmitter for Travel Quest 8 HS13-UBK Headset Microphone MP3 Remote Limited 3-Year Waranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio TQ8-24HSN Traveler Quest 8" Speaker with Wireless Handheld and Headset Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio TQ8-24HSN Specs | | | Frequencies | N2 517.550 MHz
N4 521.850 MHz | | Output | 150 W | | Maximum SPL | 105 dB | | Frequency Response | 70 Hz to 18 kHz ±3 dB | | Battery | 12 V, 2.8 Ah
2 x (lead-acid) rechargeable batteries | | Battery Operation Times | 24+ hours | | Battery Charging Time | 7 to 8 hours | | Woofer Diameter | 8" / 203 mm LF woofer | | Tweeter Diameter | 1" / 25.4 mm horn | | Sensitivity | Input dependent | | Audio Input | 2 x XLR-1/4" combo mic/line in
RCA
1/8" / 3.5 mm stereo-aux input

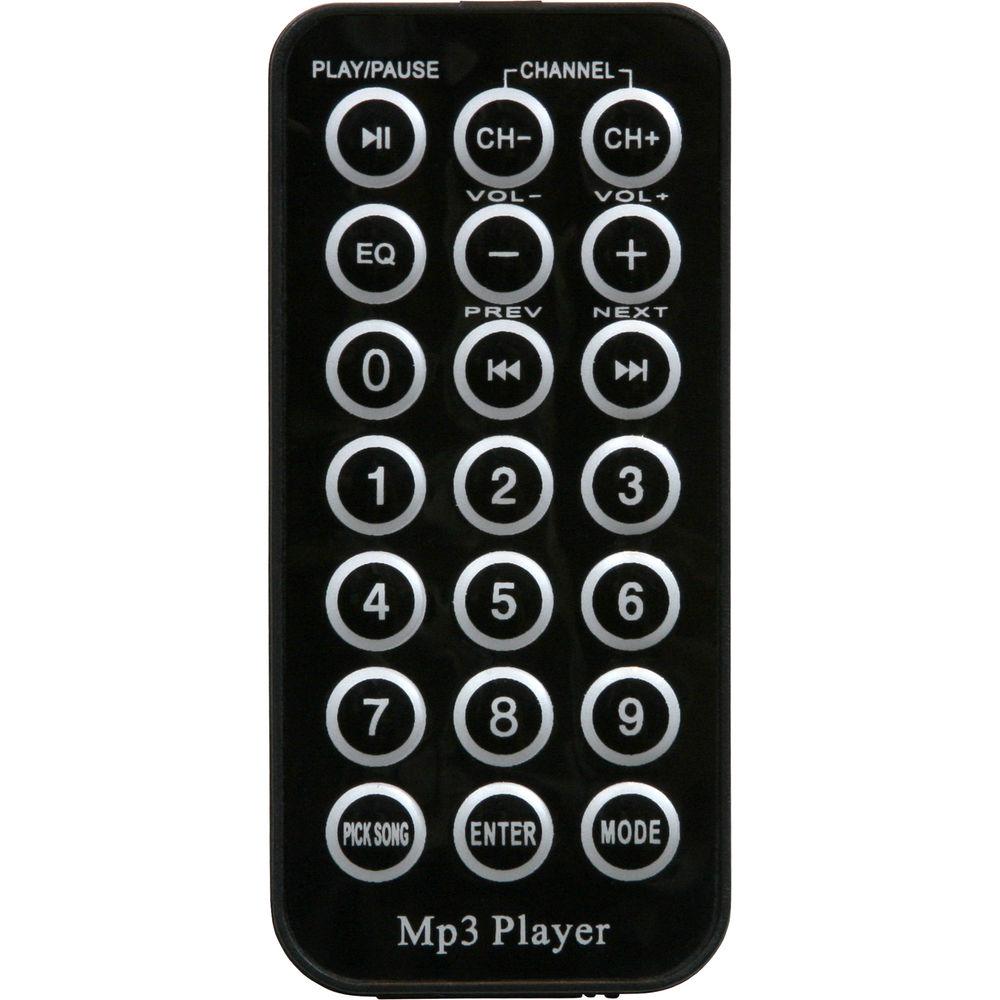

Bluetooth, SD, and USB | | Equalizer | Low, mid, and high | | Indicators | Charging meter LED, signal/limiter, mic on | | Power Requirements | 32 VDC, 2 A (universal 100-240 VAC 50/60 Hz power supply included) | | Antenna | Built-in antenna | | Master Controls | Master Volume, Low, Mid, High, CH1 Volume, CH2 Volume, CH3 Volume, CH1 Mic/Line, CH2 Mic/Line, and Voice Priority | | Controls | MP3: Mode, Play/Pause, Stop, Repeat, Skip Forward/Volume Up, Skip Backward/Volume Down | | Bluetooth | Operating Distance: Up to 100' / 30 m (under optimum conditions) | | Operating Distance | Up to 200' / 60 m (under optimum conditions) | | Mount Compatibility | 1-3/8" / 35 mm speaker stand | | Dimensions (L x W x H) | 10.5 x 11.5 x 17.25" / 267 x 292 x 438 mm | | Weight | 18.85 lb / 8.55 kg with batteries | | | | Max Audio Input Level | 120 dB | | RF Output | 10 mW | | Frequency Response | 100 Hz to 12 kHz ±10 dB | | Spurious Rejection | > 45 dB | | Input Impedance | 5 kOhms | | Display | LED | | Power Requirements | 2 x AA size alkaline or rechargeable batteries | | Battery Life | 8 hours (alkaline) | | Dimensions (L x Diam) | 6.65 x 2.16" / 245 x 54.75 mm | | Weight | 9.28 oz / 263 g without batteries | | | | Inputs | 1 x 1/8" / 3.5 mm microphone input | | Maximum Audio Input Level | 0 to +20 dBV | | Gain Adjustment | Mic, 0 dB, -10 dB | | RF Output | 10 mW | | Spurious Rejection | > 45 dB | | Input Impedance | 5 kOhms | | Display | LED indicator | | Battery Life (approx.) | Up to 8 hours using alkaline batteries | | Power Requirement | 2 x AA alkaline or rechargeable batteries | | Construction Material | Plastic | | Dimensions (H x W x D) | 3.3 x 2.6 x 1.0" / 83.8 x 64.8 x 25.4 mm | | Weight | 2.8 oz / 80 g (excluding batteries) | | | | Oscillation Type | PLL synthesized control OSC | | Frequency Range | 80 Hz to 16 kHz ±3 dB | | Frequency | Single-channel fixed frequency | | Operating Temperature | 14 to 58°F (-10 to -50°C) | | Power Requirement | 12 V, 0.5 A | | Display | LED AF/RF indicators | | Audio Output Level | +5 dBV | | Output Impedance | 3 kOhms | | Controls | Volume | | Signal to Noise Ratio | > 85 dBA | | Dynamic Range | > 83 dB | | Total Harmonic Distortion (THD) | < 0.5% | | Operating Distance | 160' / 50 m under optimum conditions | | RF Sensitivity | < -95 dBm | | Image Rejection | > 50 dB | | | | Package Weight | 23.795 lb | | Box Dimensions (LxWxH) | 21.4 x 13.0 x 12.5" |
