User Manual for Galaxy Audio TQ8-24SSN Traveler Quest 8 Portable 8" PA System with Two Receivers, Bodypack Transmitters, and Headset Microphones Click to enlarge the picture
Contents of the user manual for the Galaxy Audio TQ8-24SSN Traveler Quest 8
- Product category: Portable PA Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Portable PA Systems
 |
User manual for the Galaxy Audio TQ8-24SSN Traveler Quest 8 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

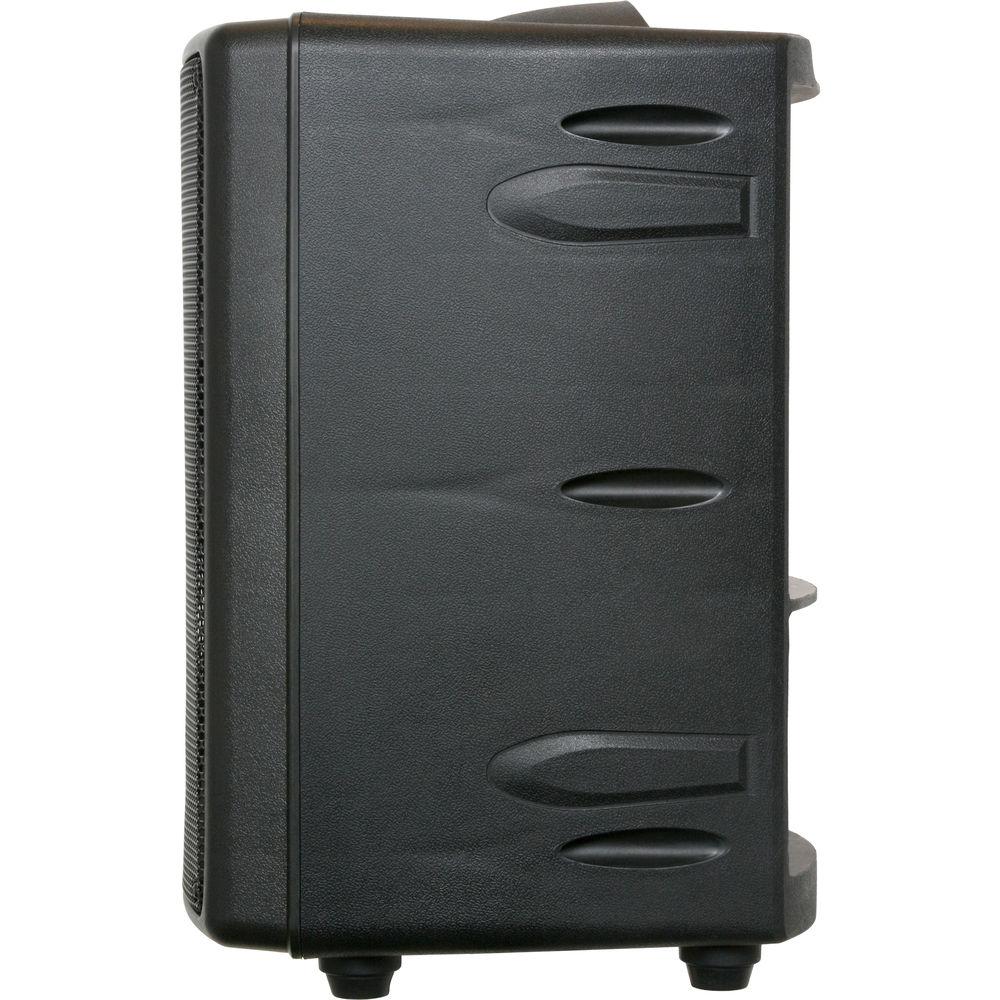

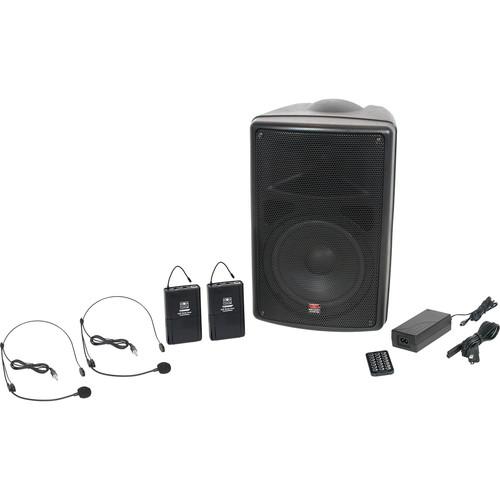

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Galaxy Audio TQ8-24SSN is a Traveler Quest 8 portable all-in-one PA system with two receivers, transmitters, and headset microphones designed to deliver convenient mixing and amplification of multiple sources for presenters, instructors, and announcers in conferences, training sessions, and special events. In addition to the TQ8 battery-powered 8" 2-way 150W PA system, it includes two TQREC microphone receiver modules, two TQMBP bodypack transmitters, two HS13-UBK headset microphones, one remote control, and a power supply. With a 24-hour rechargeable battery, a built-in carry handle, and an integrated pole-mount socket, it is ideal for use in a variety of locations. Utilize both wireless headset mics, connect wired mic- and line-level signals, stream music wirelessly via Bluetooth, and play MP3 files via SD card or USB flash drive. - TQ8 Traveler Quest 8 Battery Powered 8" Speaker with Built-In Bluetooth The TQ8 Traveler Quest 8 Battery Powered 8" Speaker with Built-In Bluetooth from Galaxy Audio is a portable, lightweight, "all-in-one" PA system. Running on AC or battery power, the TQ8 can be used in schools, houses of worship, corporate functions, fairgrounds, and other live-sound applications. Featuring a 150W amplifier with an 8" woofer, 1" horn, two XLR/1/4" combo inputs with their own volume control, one RCA, and an AUX 1/8" input, the speaker has a 3-band EQ with master volume control and a built-in media player with Bluetooth. You can play audio from an SD card, USB drive, or from a Bluetooth enabled device. The speaker is equipped with an integrated handle for easy transportation and has a 1-3/8" speaker-pole mount with locking mechanism for a secure mounting. With a voice priority button, it reduces the volume of the media player, Bluetooth, and line level input when it receives a transmission from a wireless or a wired handheld microphone, either plugged into the unit or as an installed wireless system. This feature can be turned on or off. Finally, the TQ8 is an "all-in-one" portable PA that offers audio quality and reliable performance. A remote control is also included for the MP3 player. UPC: 691281007637

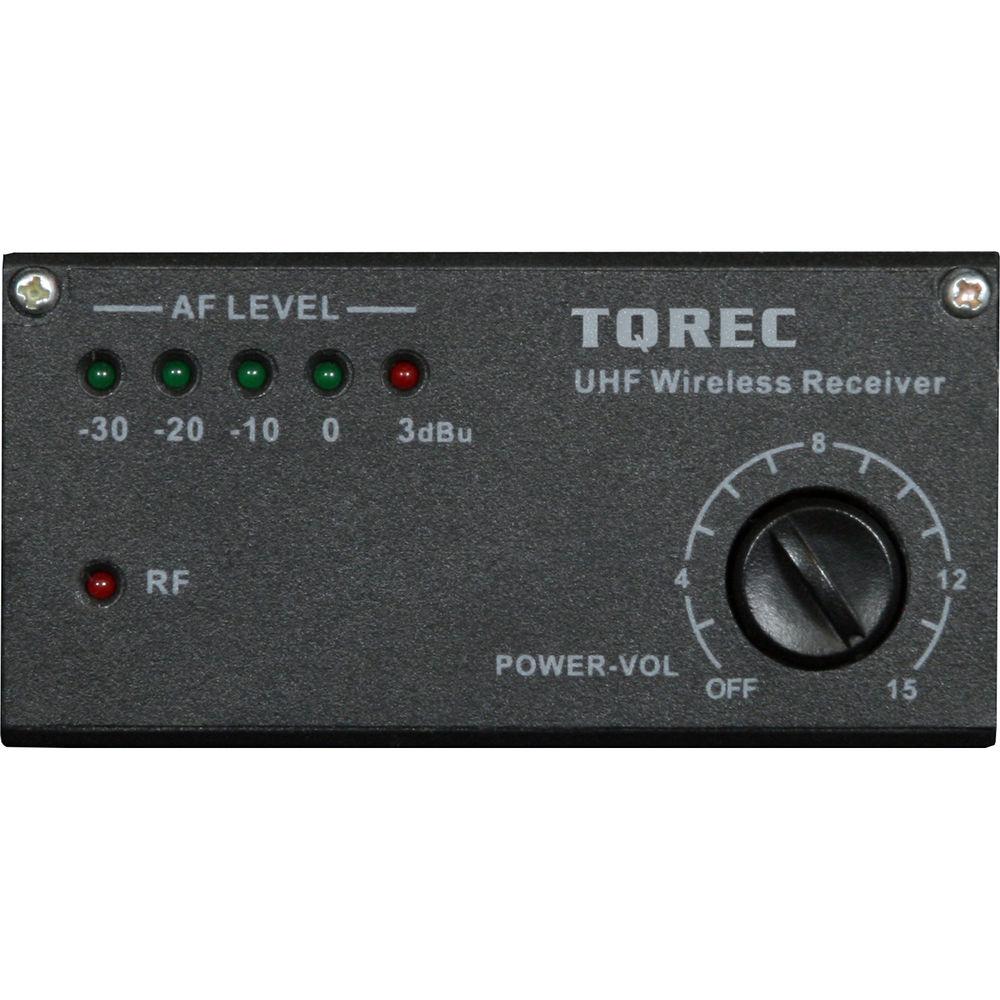

- TQREC Single-Channel UHF Receiver Module for Travel Quest 8 The Galaxy Audio TQREC is a single-channel UHF receiver module designed to provide simple integration of one wireless microphone with Travel Quest 8 portable PA systems for DJs, presenters, hosts, and musicians at parties, gigs, and special events. Its fixed-frequency design allows automatic syncing with compatible transmitters (available separately). Operate your transmitter from up to 160' away.The front panel offers a rotary volume control and dedicated RF and AF LED indicators. The TQREC requires no power supply or batteries, as it is powered via your Traveler Quest 8 PA. Installation and removal is simple and requires no proprietary tools.
- For Galaxy Audio Travel Quest 8 portable PA systems
- Supports one wireless microphone
- Operates at 517.550 MHz or 521.850 MHz

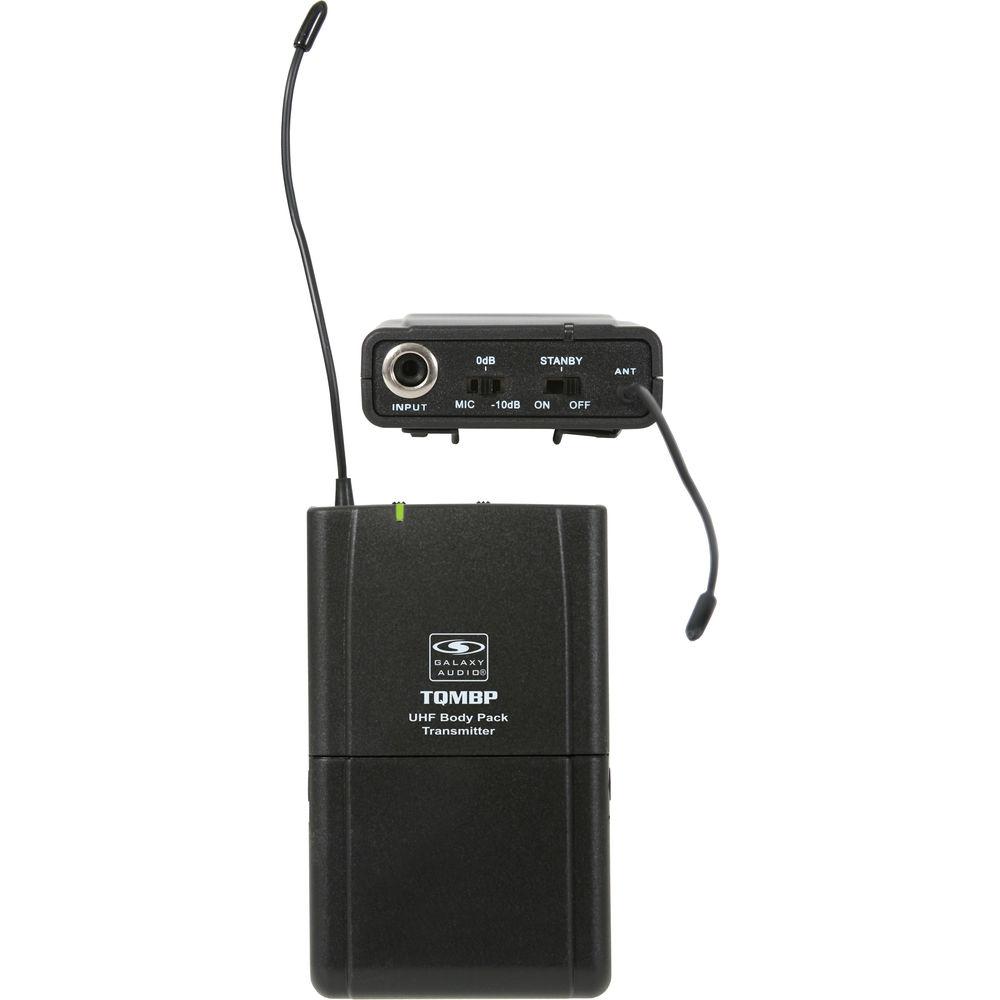

UPC: 691281007668 - TQMBP Bodypack Transmitter for Travel Quest 8 The Galaxy Audio TQMBP is a single-channel UHF bodypack transmitter designed to deliver easy operation and reliable audio transmission for musicians, singers, presenters, and educators using Travel Quest 8 portable PA systems at schools, live shows, and special events. It automatically syncs to your TQREC receiver (available separately) and attaches to clothing via the integrated belt clip. The locking 1/8" input jack prevents accidental disconnection and is compatible with a variety of sources such lavalier and headset mics. A 3-position gain adjustment allows proper level-matching for different audio signal strengths. Two AA batteries (available separately) power the TQMBP for up to eight hours. Switch off the transmitter's power to extend battery life. A small LED near the antenna indicates power status.
- Single-channel UHF receiver operates at 517.550 MHz or 521.850 MHz
- 3-position gain adjustment—mic, 0 dB (for guitars with passive pickups), and -10 dB (for guitars with active pickups)
- Locking 1/8" input jack prevents accidental disconnection
- Automatically syncs via IR to your TQREC receiver (available separately)

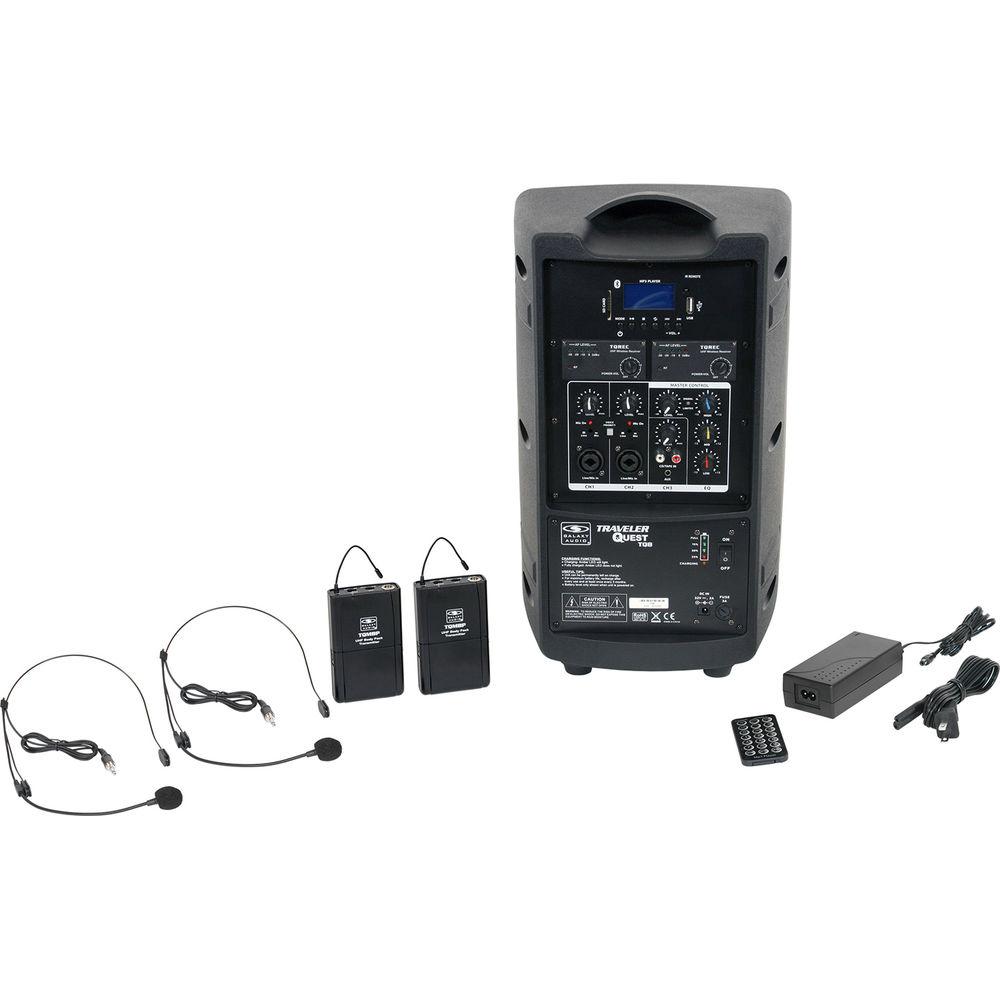

UPC: 691281007705 In the Box Bundle Items TQ8 Traveler Quest 8 Battery Powered 8" Speaker with Built-In Bluetooth excattcxtsreae 2 x TQREC Single-Channel UHF Receiver Module for Travel Quest 8 2 x TQMBP Bodypack Transmitter for Travel Quest 8

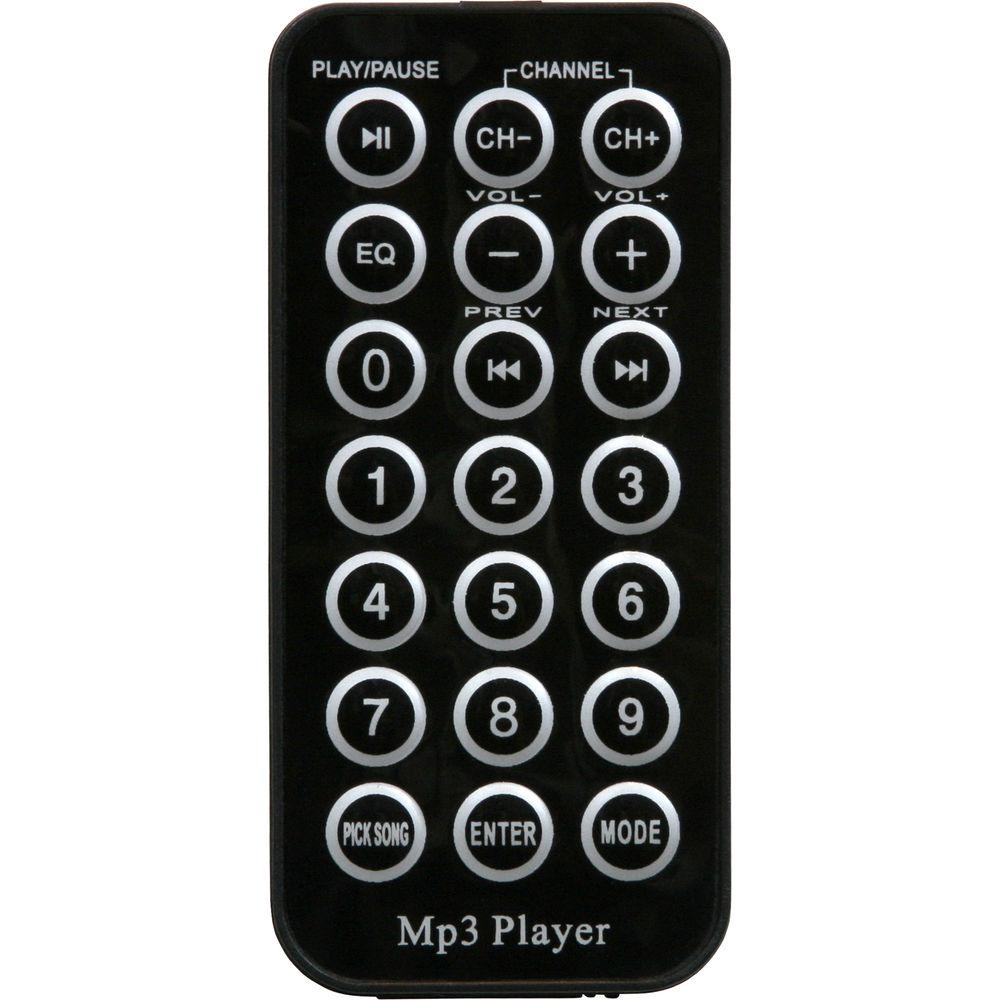

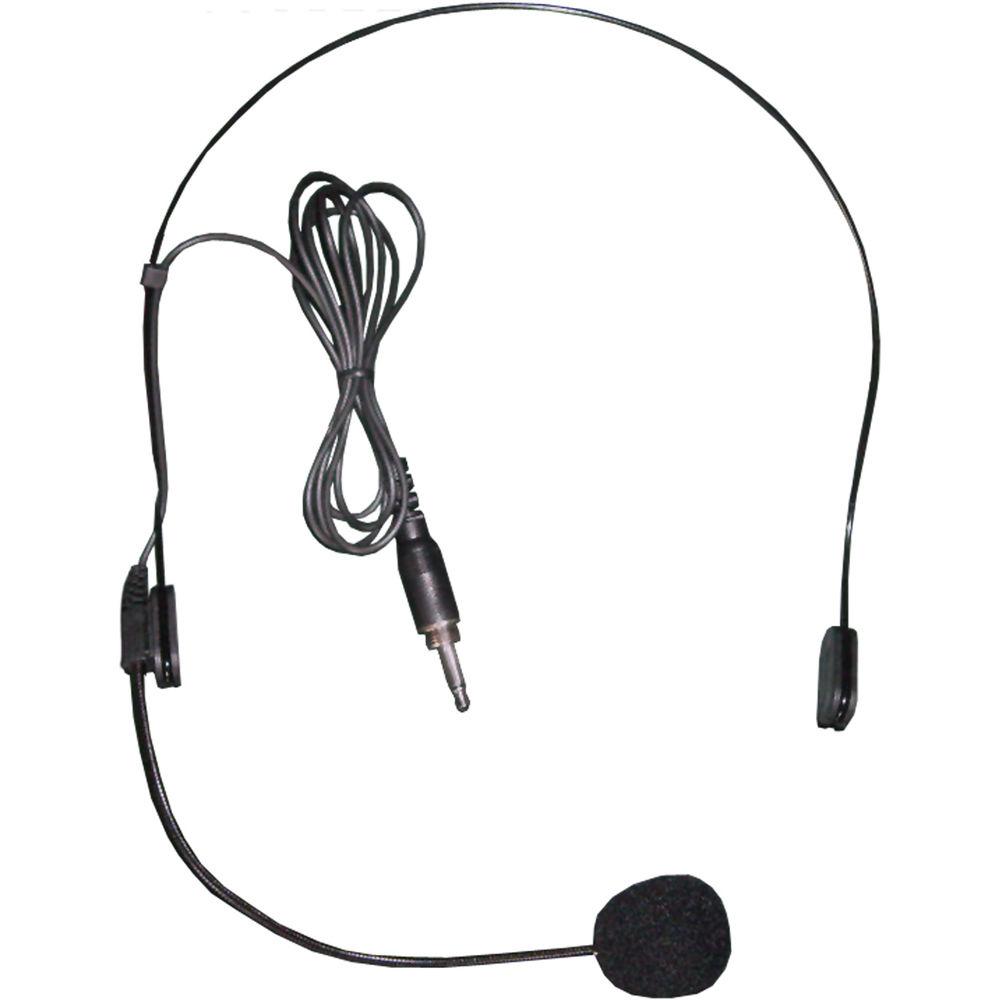

Also Includes - 2 x HS13-UBK Headset Microphones
- Power Supply
Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio TQ8-24SSN Traveler Quest 8 Portable 8" PA System with Two Receivers, Bodypack Transmitters, and Headset Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TQ8 Traveler Quest 8 Battery Powered 8" Speaker with Built-In Bluetooth
| Frequencies | N2 517.550 MHz
N4 521.850 MHz | | Output | 150 W | | Maximum SPL | 105 dB | | Frequency Response | 70 Hz to 18 kHz ±3 dB | | Battery | 12 V, 2.8 Ah
2 x (lead-acid) rechargeable batteries | | Battery Operation Times | 24+ hours | | Battery Charging Time | 7 to 8 hours | | Woofer Diameter | 8" / 203 mm | | Tweeter Diameter | 1" / 25.4 mm | | Sensitivity | Input dependent | | Audio Input | 2 x XLR-1/4" combo mic/line in
RCA & 1/8" / 3.5 mm stereo-aux input
Bluetooth, SD & USB | | Equalizer | Low, mid, and high | | Indicators | Charging meter LED, signal/limiter, mic on | | Power Requirements | 32 VDC 2A

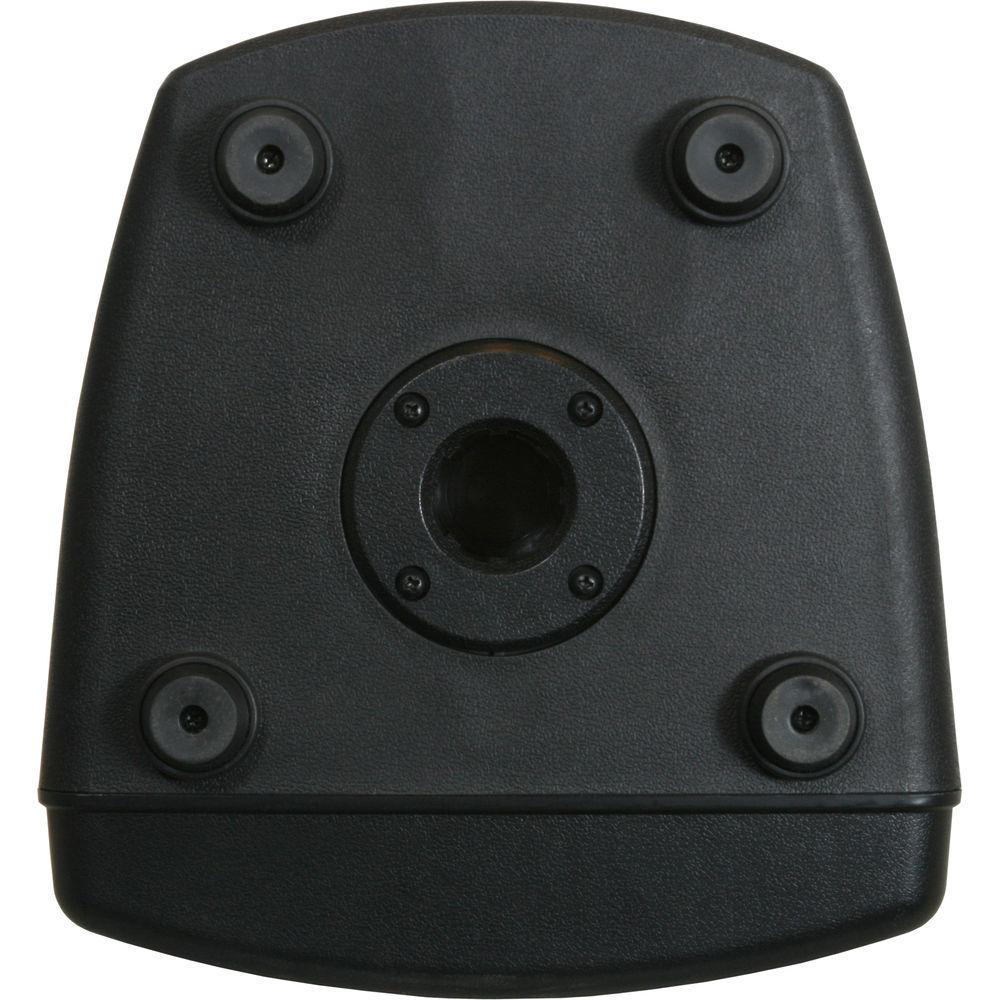

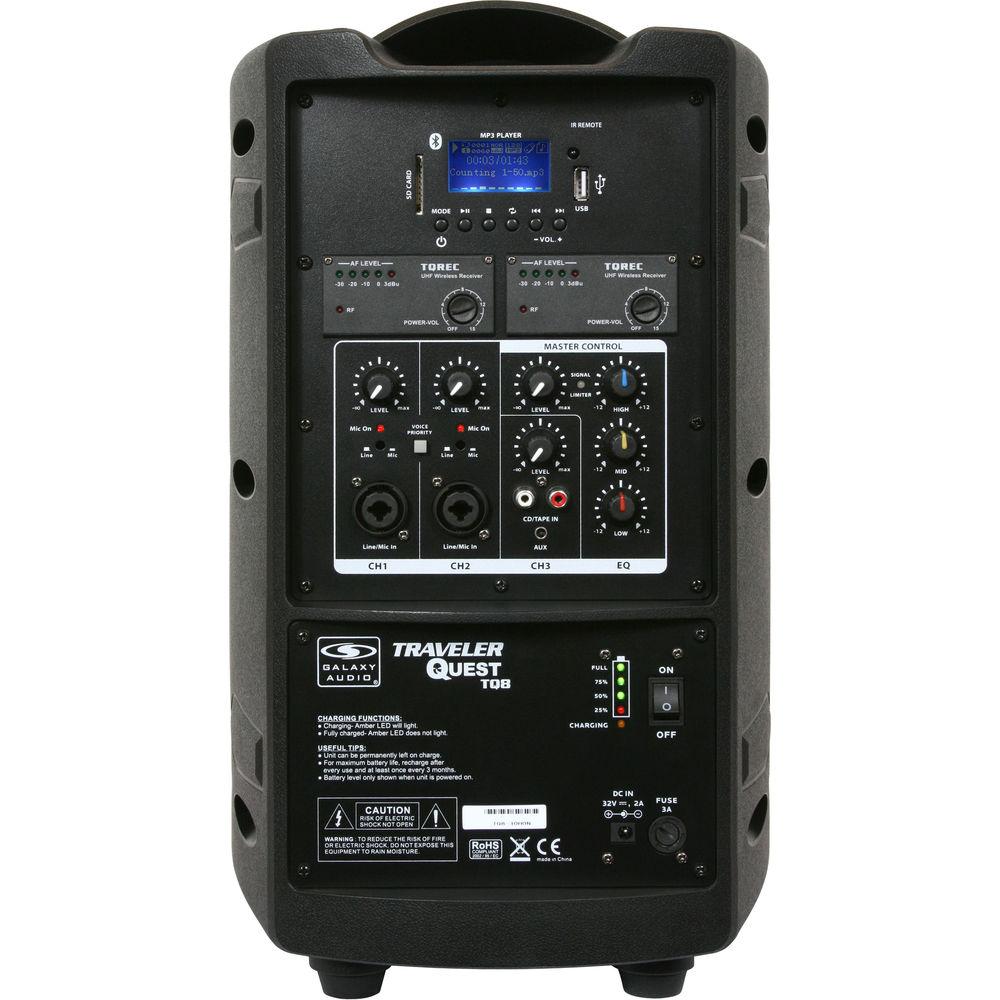

100-240 VAC 50/60 Hz (Universal power supply included) | | Antenna | Built-in antenna | | Master Controls | Master Volume, Low, Mid, High, CH1 Volume, CH2 Volume, CH3 Volume, CH1 Mic/Line, CH2 Mic/Line, and Voice Priority | | Controls | MP3: Mode, Play/Pause, Stop, Repeat, Skip Forward/Volume Up, Skip Backward/Volume Down | | Bluetooth | Operating Distance: Up to 100' (30 m) (under optimum conditions) | | Operating Distance | Up to 200' (60 m) (under optimum conditions) | | Mount Compatibility | 1-3/8" (35 mm) speaker stand | | Dimensions (L x W x H) | 10.5 x 11.5 x 17.25" (267 x 292 x 438 mm) | | Weight | 18.85 lb (8.55 kg) with batteries | | | | Box Dimensions (LxWxH) | 22.0 x 13.5 x 13.0" | - TQREC Single-Channel UHF Receiver Module for Travel Quest 8
| Frequencies | N2 517.550 MHz
N4 521.850 MHz | | Oscillation Type | PLL synthesized control OSC | | Channels | Single-channel fixed frequency | | Operating Distance | Up to 160' / 50 m (under optimum conditions) | | Frequency Response ± 3dB | 80 Hz to 16 kHz | | Audio Output Level | +5 dBV | | Output Impedance | 3 kOhms | | Signal-to-Noise Ratio (SNR) | >85 dBA | | Dynamic Range | >83 dB | | Total Harmonic Distortion (THD) | <0.5% | | RF Sensitivity | <-95 dBm | | Image Rejection | >50 dB | | Display | LED indicators | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Power Requirement | 12 VDC, 0.5 A via installation in Travel Quest 8 portable PA | | Dimensions (W x H x D) | 1.9 x 1.4 x 1.8" / 47.8 x 35.1 x 44.5 mm | | Weight | 2 oz / 56.7 g | - TQMBP Bodypack Transmitter for Travel Quest 8
| Frequencies | N2 517.550 MHz
N4 521.850 MHz | | Inputs | 1 x 1/8" / 3.5 mm microphone input | | Maximum Audio Input Level | 0 to +20 dBV | | Gain Adjustment | Mic, 0 dB, -10 dB | | RF Output | 10 mW | | Spurious Rejection | >45 dB | | Input Impedance | 5 kOhms | | Display | LED indicator | | Battery Life (approx.) | Up to 8 hours using alkaline batteries | | Power Requirement | 2 x AA alkaline or rechargeable batteries | | Construction Material | Plastic | | Dimensions (H x W x D) | 3.3 x 2.6 x 1.0" / 83.8 x 64.8 x 25.4 mm | | Weight | 2.8 oz / 80 g (excluding batteries) |
