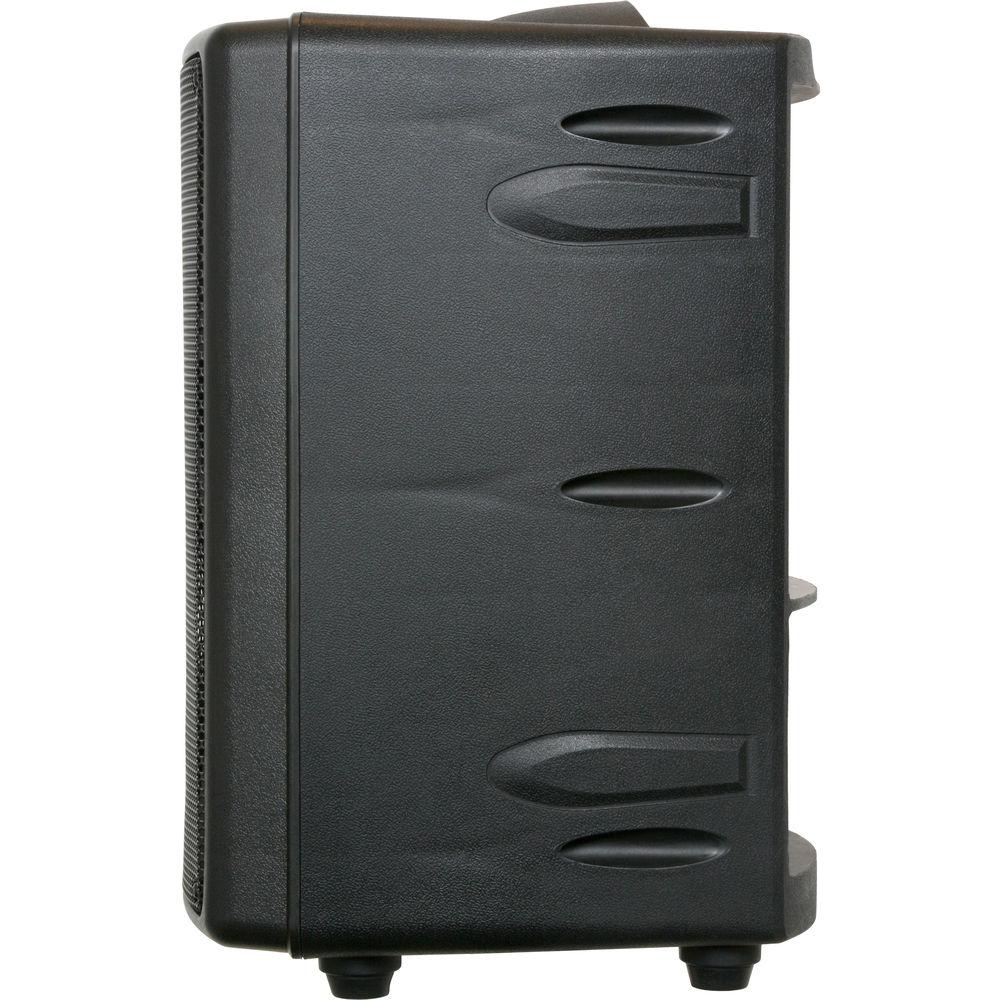

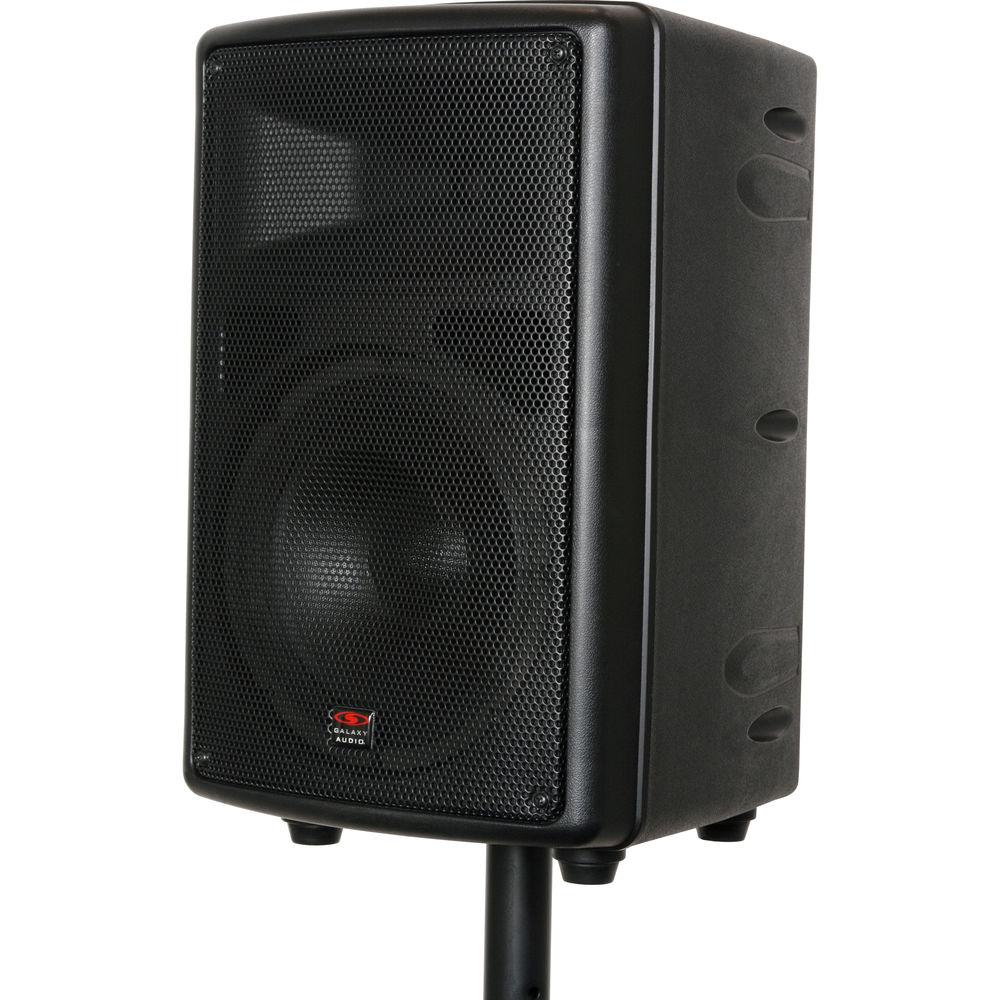

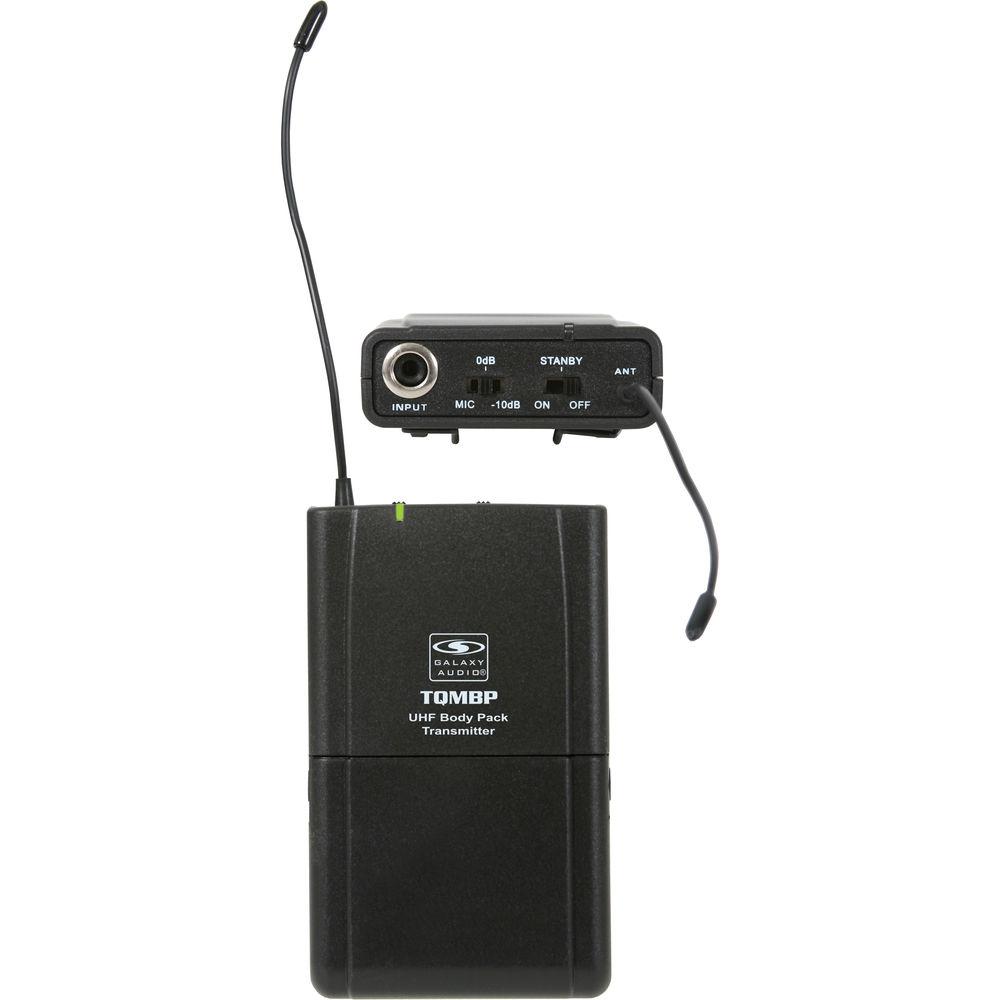

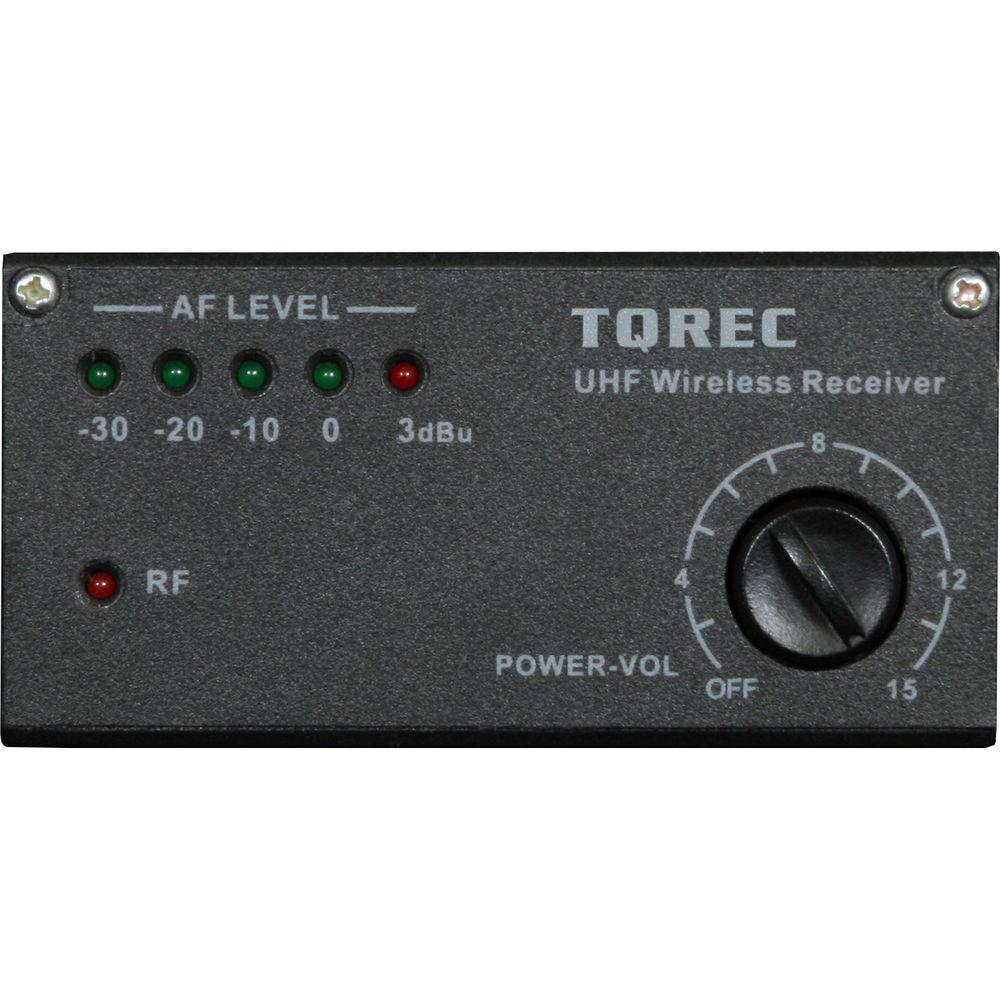

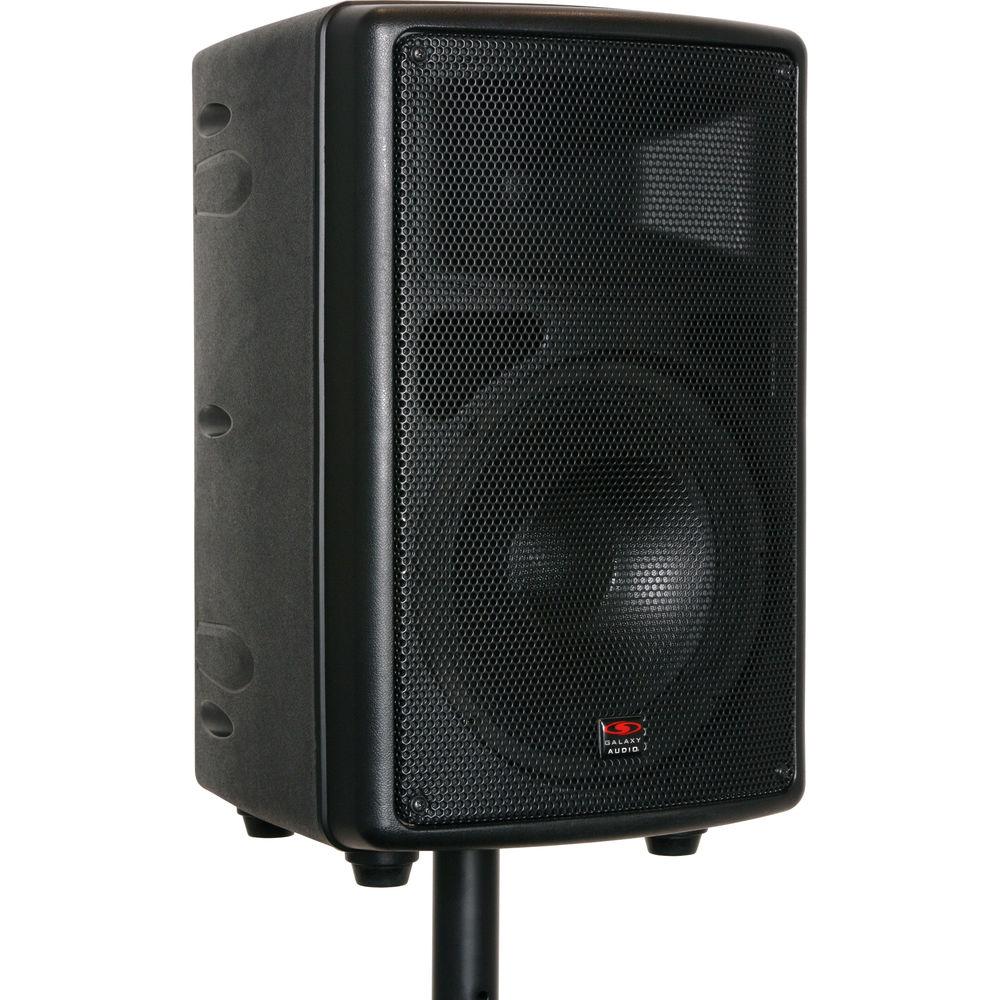

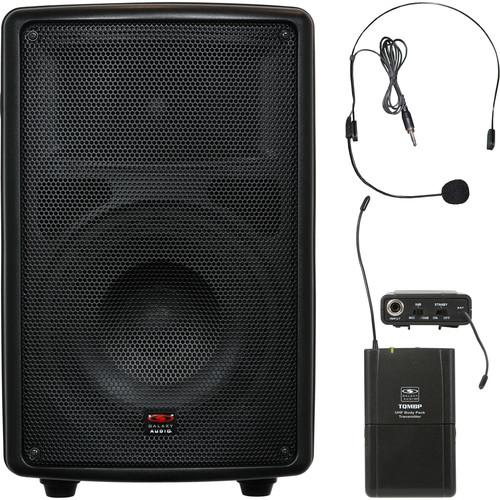

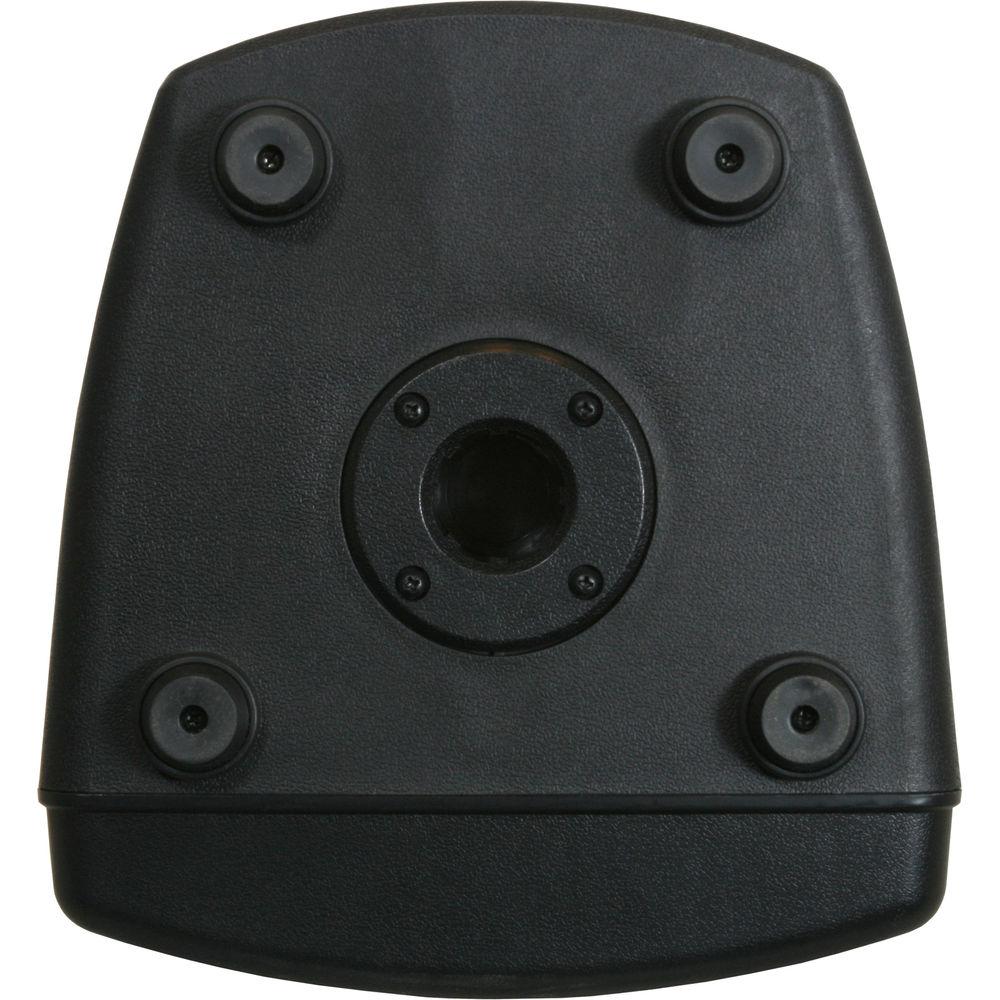

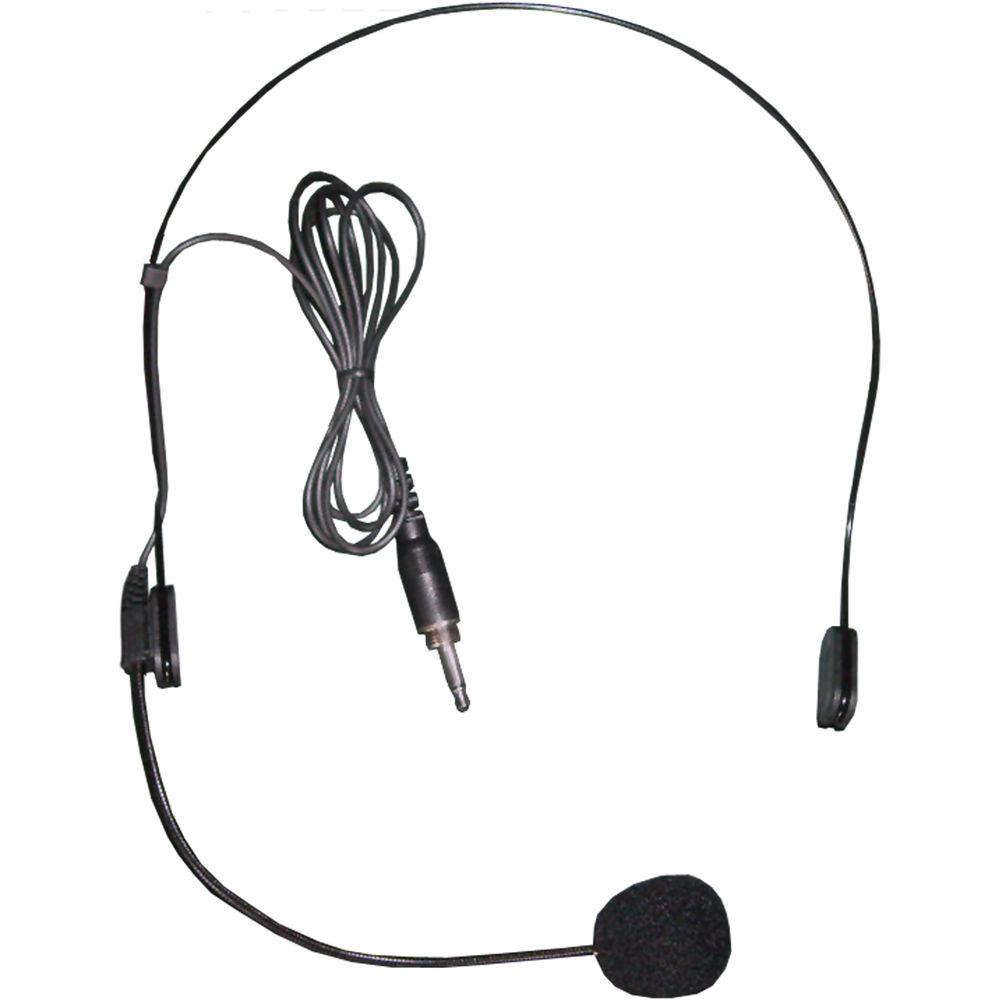

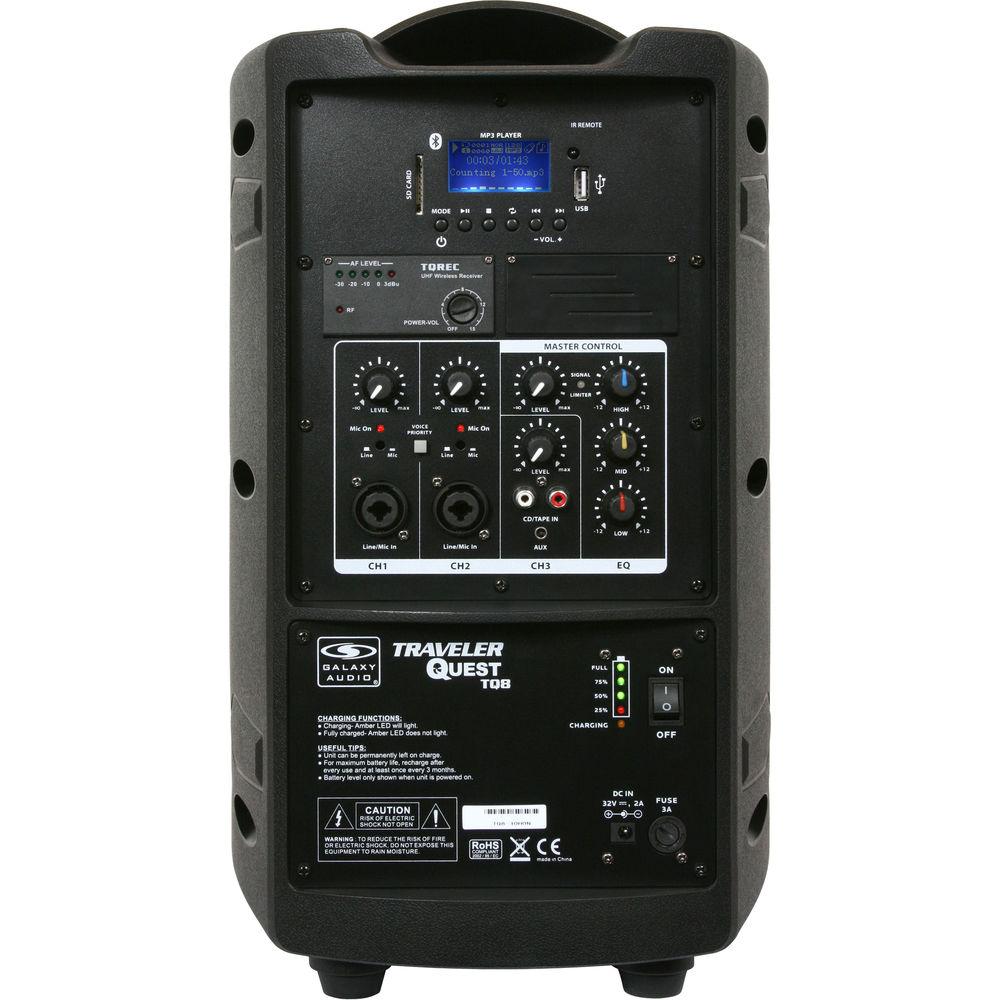

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The TQ8-40S0N Traveler Quest 8" Speaker and Bodypack Transmitter with Headset Mic from Galaxy Audio is a portable, lightweight, "all-in-one" PA system. Running on AC or battery power, the unit is configured with a wireless receiver, a bodypack transmitter and a unidirectional headset mic, and can be used for hands-free presentations in various environments such as schools, houses of worship, corporate or other live-sound applications. Featuring a 150W amplifier with an 8" woofer, 1" horn, two XLR/1/4" combo inputs each with their own volume control, and one RCA or 1/8" AUX input, the speaker has a 3-band EQ with master volume control and a built-in media player with Bluetooth. You can play audio from an SD card, USB drive, or from a Bluetooth enabled device. The TQ8 has a built-in integrated handle for easy transportation and a 1-3/8" speaker-pole mount is provided for secure mounting alternatives. With the voice priority button, it can reduce the volume of the media player, Bluetooth, and line-level input when it receives a signal from a wireless transmitter or a wired microphone, which either can be plugged into the unit or as an installed wireless system. This feature can be turned on or off. Finally, the TQ8 is an "all-in-one" portable PA that offers quality audio and reliable performance. A remote control is also included for the MP3 player. UPC: 691281007873 In the Box Galaxy Audio TQ8-40S0N Traveler Quest 8" Speaker and Bodypack Transmitter with Headset Mic MP3 Remote Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio TQ8-40S0N Traveler Quest 8" Speaker and Bodypack Transmitter with Headset Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio TQ8-40S0N Specs | | | Frequencies | N2 517.550 MHz
N4 521.850 MHz | | Output | 150 W | | Maximum SPL | 105 dB | | Frequency Response | 70 Hz to 18 kHz ±3 dB | | Battery | 12 V, 2.8 Ah
2 x (lead-acid) rechargeable batteries | | Battery Operation Times | 24+ hours | | Battery Charging Time | 7 to 8 hours | | Woofer Diameter | 8" 203 mm (LF woofer | | Tweeter Diameter | 1" (25.4 mm) horn | | Sensitivity | 9Input dependent | | Audio Input | 2 x XLR/1/4" combo mic/line in
RCA
1/8" (3.5 mm stereo-aux input

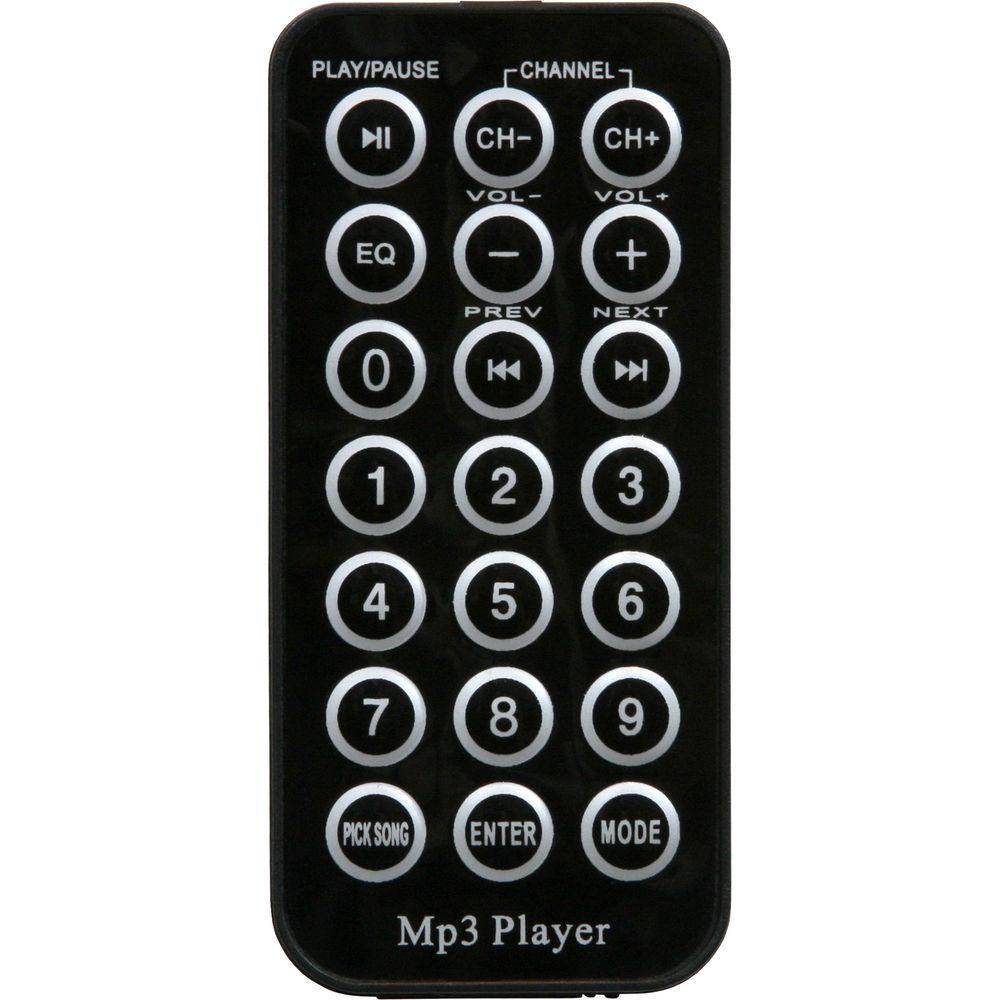

Bluetooth, SD, & USB | | Equalizer | Low, mid, and high | | Indicators | Charging meter LED, signal/limiter, mic on. | | Power Requirements | 32 VDC 2A (Universal 100-240 VAC 50/60 Hz power supply included) | | Antenna | Built-in antenna | | Master Controls | Master Volume, Low, Mid, High, CH1 Volume, CH2 Volume, CH3 Volume, CH1 Mic/Line, CH2 Mic/Line, and Voice Priority | | Controls | MP3: Mode, Play/Pause, Stop, Repeat, Skip Forward/Volume Up, Skip Backward/Volume Down | | Bluetooth | Operating Distance: Up to 100' (30 m) (under optimum conditions) | | Operating Distance | Up to 200' (60 m) (under optimum conditions) | | Mount Compatibility | 1-3/8" (35 mm) speaker stand | | Dimensions (L x W x H) | 10.5 x 11.5 x 17.25" (267 x 292 x 438 mm) | | Weight | 18.85 lb (8.55 kg) with batteries | | | | Max Audio Input Level | 0 dBV to +20 dBV | | Gain Adjustment | Mic/0 dB/-10 dB | | RF Output | 10 mW | | Spurious Rejection | >45 dB | | Input Impedance | 5 kOhms | | Display | LED | | Power Requirements | 2 x AA size alkaline or rechargeable batteries | | Battery Life | 8 hours (alkaline) | | Dimensions (H x W x D) | 3.3 x 2.6 x 1.0" " (85 x 65 x 24 mm) | | Weight | 2.8 oz (80 g) without batteries | | | | Type | Wrap around head | | Polar Pattern | Unidirectional | | Frequency Response | 50 Hz to 18 kHz | | Microphone Diameter | 0.48" (12.25 mm) | | | | Oscillation Type | PLL synthesized control OSC | | Frequency Range | 80 Hz to 16 kHz ±3 dB | | Frequency | Single channel fixed frequency | | Operating Temperature | 14 to 58°F (-10 to -50°C) | | Power Requirement | 120 V, 0.5 A | | Display | LED AF/RF indicators | | Audio Output Level | +5 dBV | | Output Impedance | 3 KOhms | | Controls | Volume | | Signal to Noise Ratio | > 85 dBA | | Dynamic Range | > 83 dB | | Total Harmonic Distortion (THD) | < 0.5% | | Operating Distance | 160' (50 m) under optimum conditions | | RF Sensitivity | < -95 dBm | | Image Rejection | > 50 dB | | | | Package Weight | 23.15 lb | | Box Dimensions (LxWxH) | 21.0 x 13.0 x 12.0" |
