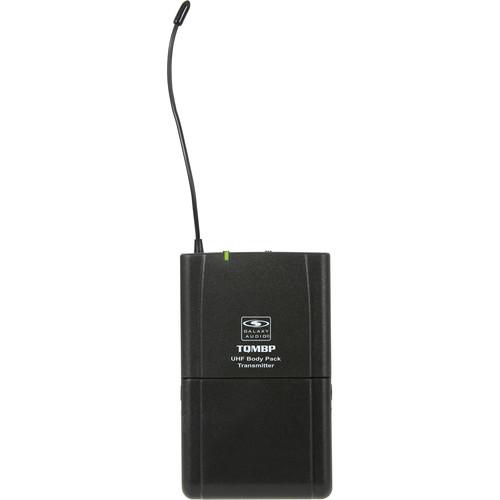

User Manual for Galaxy Audio TQMBP Bodypack Transmitter for Travel Quest 8 Click to enlarge the picture
Contents of the user manual for the Galaxy Audio TQMBP Bodypack Transmitter for
- Product category: Add-On Wireless & Components Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Add-On Wireless & Components
|
User manual for the Galaxy Audio TQMBP Bodypack Transmitter for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|
Product description The Galaxy Audio TQMBP is a single-channel UHF bodypack transmitter designed to deliver easy operation and reliable audio transmission for musicians, singers, presenters, and educators using Travel Quest 8 portable PA systems at schools, live shows, and special events. It automatically syncs to your TQREC receiver (available separately) and attaches to clothing via the integrated belt clip. The locking 1/8" input jack prevents accidental disconnection and is compatible with a variety of sources such lavalier and headset mics. A 3-position gain adjustment allows proper level-matching for different audio signal strengths. Two AA batteries (available separately) power the TQMBP for up to eight hours. Switch off the transmitter's power to extend battery life. A small LED near the antenna indicates power status. - Single-channel UHF receiver operates at 517.550 MHz or 521.850 MHz
- 3-position gain adjustment—mic, 0 dB (for guitars with passive pickups), and -10 dB (for guitars with active pickups)
- Locking 1/8" input jack prevents accidental disconnection
- Automatically syncs via IR to your TQREC receiver (available separately)
UPC: 691281007705 In the Box Galaxy Audio TQMBP Bodypack Transmitter for Travel Quest 8 Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio TQMBP Bodypack Transmitter for Travel Quest 8 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio TQMBP Specs | Frequencies | N2 517.550 MHz
N4 521.850 MHz | | Inputs | 1 x 1/8" / 3.5 mm microphone input | | Maximum Audio Input Level | 0 to +20 dBV | | Gain Adjustment | Mic, 0 dB, -10 dB | | RF Output | 10 mW | | Spurious Rejection | >45 dB | | Input Impedance | 5 kOhms | | Display | LED indicator | | Battery Life (approx.) | Up to 8 hours using alkaline batteries | | Power Requirement | 2 x AA alkaline or rechargeable batteries | | Construction Material | Plastic | | Dimensions (H x W x D) | 3.3 x 2.6 x 1.0" / 83.8 x 64.8 x 25.4 mm | | Weight | 2.8 oz / 80 g (excluding batteries) |
