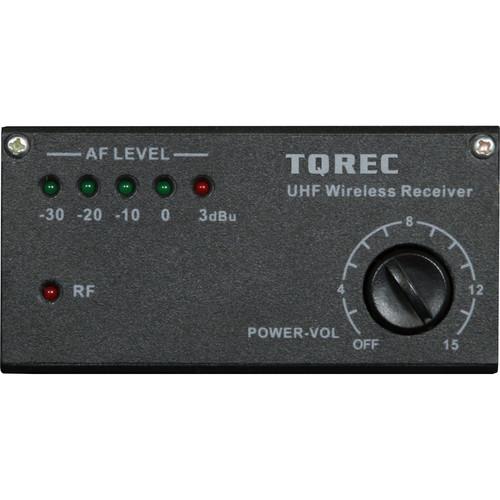

Product description The Galaxy Audio TQREC is a single-channel UHF receiver module designed to provide simple integration of one wireless microphone with Travel Quest 8 portable PA systems for DJs, presenters, hosts, and musicians at parties, gigs, and special events. Its fixed-frequency design allows automatic syncing with compatible transmitters (available separately). Operate your transmitter from up to 160' away.The front panel offers a rotary volume control and dedicated RF and AF LED indicators. The TQREC requires no power supply or batteries, as it is powered via your Traveler Quest 8 PA. Installation and removal is simple and requires no proprietary tools. - For Galaxy Audio Travel Quest 8 portable PA systems
- Supports one wireless microphone
- Operates at 517.550 MHz or 521.850 MHz
UPC: 691281007668 In the Box Galaxy Audio TQREC Single-Channel UHF Receiver Module for Travel Quest 8 Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio TQREC Single-Channel UHF Receiver Module for Travel Quest 8 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio TQREC Specs | Frequencies | N2 517.550 MHz
N4 521.850 MHz | | Oscillation Type | PLL synthesized control OSC | | Channels | Single-channel fixed frequency | | Operating Distance | Up to 160' / 50 m (under optimum conditions) | | Frequency Response ± 3dB | 80 Hz to 16 kHz | | Audio Output Level | +5 dBV | | Output Impedance | 3 kOhms | | Signal-to-Noise Ratio (SNR) | >85 dBA | | Dynamic Range | >83 dB | | Total Harmonic Distortion (THD) | <0.5% | | RF Sensitivity | <-95 dBm | | Image Rejection | >50 dB | | Display | LED indicators | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Power Requirement | 12 VDC, 0.5 A via installation in Travel Quest 8 portable PA | | Dimensions (W x H x D) | 1.9 x 1.4 x 1.8" / 47.8 x 35.1 x 44.5 mm | | Weight | 2 oz / 56.7 g |
