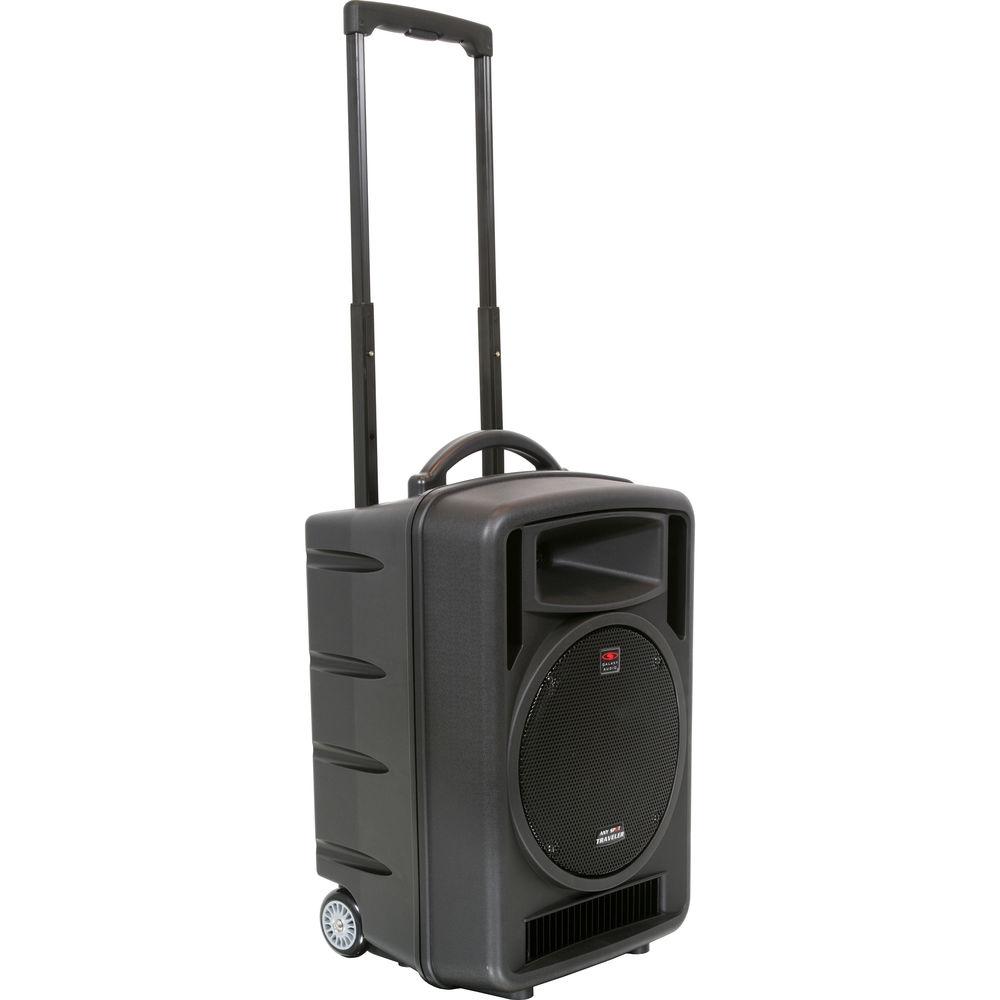

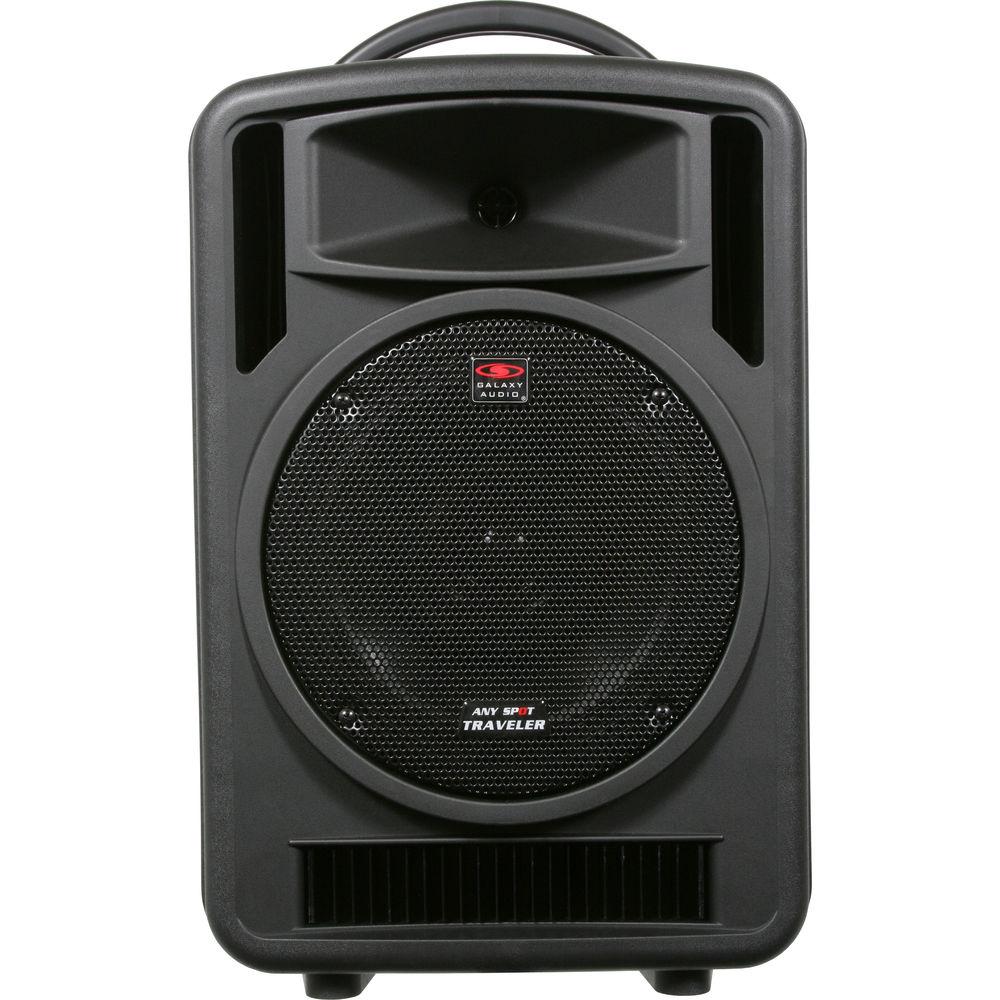

User Manual for Galaxy Audio Traveler 10" 150W Peak PA System with CD Player, UHF Receiver & Handheld Wireless Mic Click to enlarge the picture
Contents of the user manual for the Galaxy Audio Traveler 10" 150W Peak
- Product category: Portable PA Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Portable PA Systems
 |
User manual for the Galaxy Audio Traveler 10" 150W Peak contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

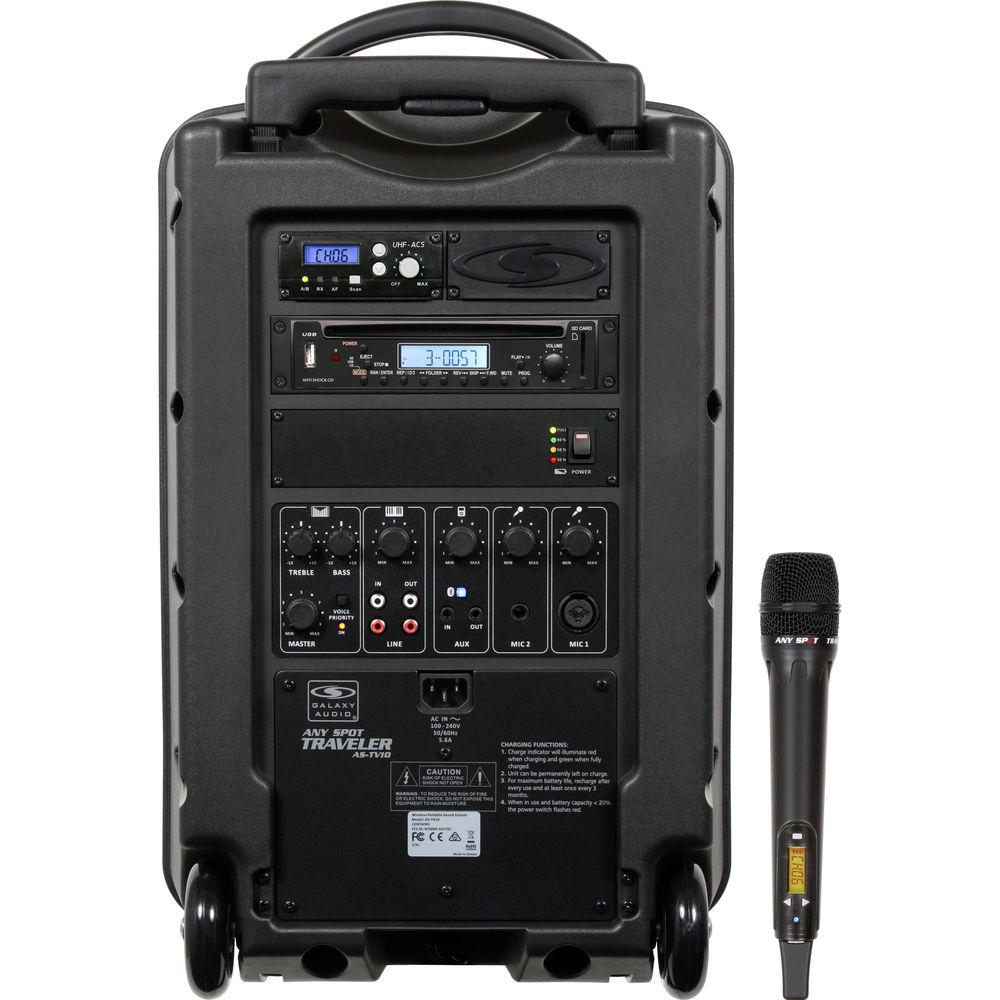

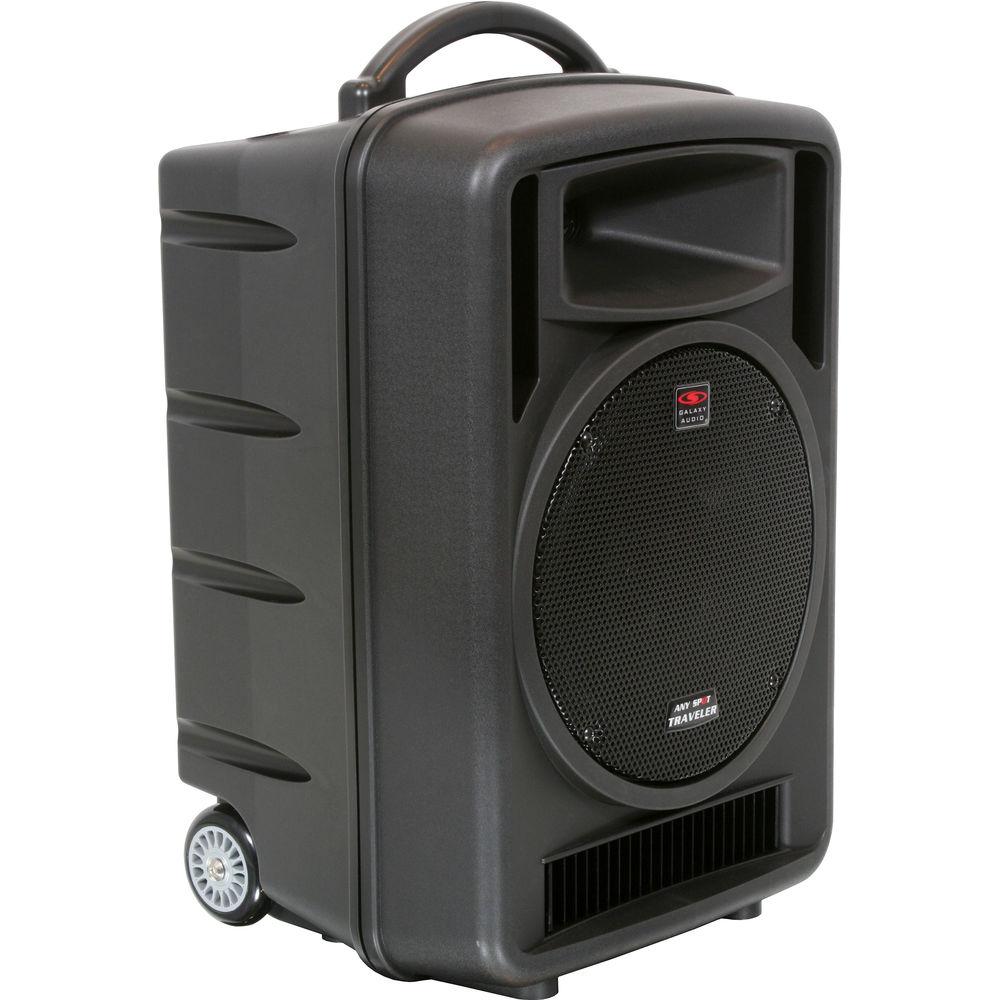

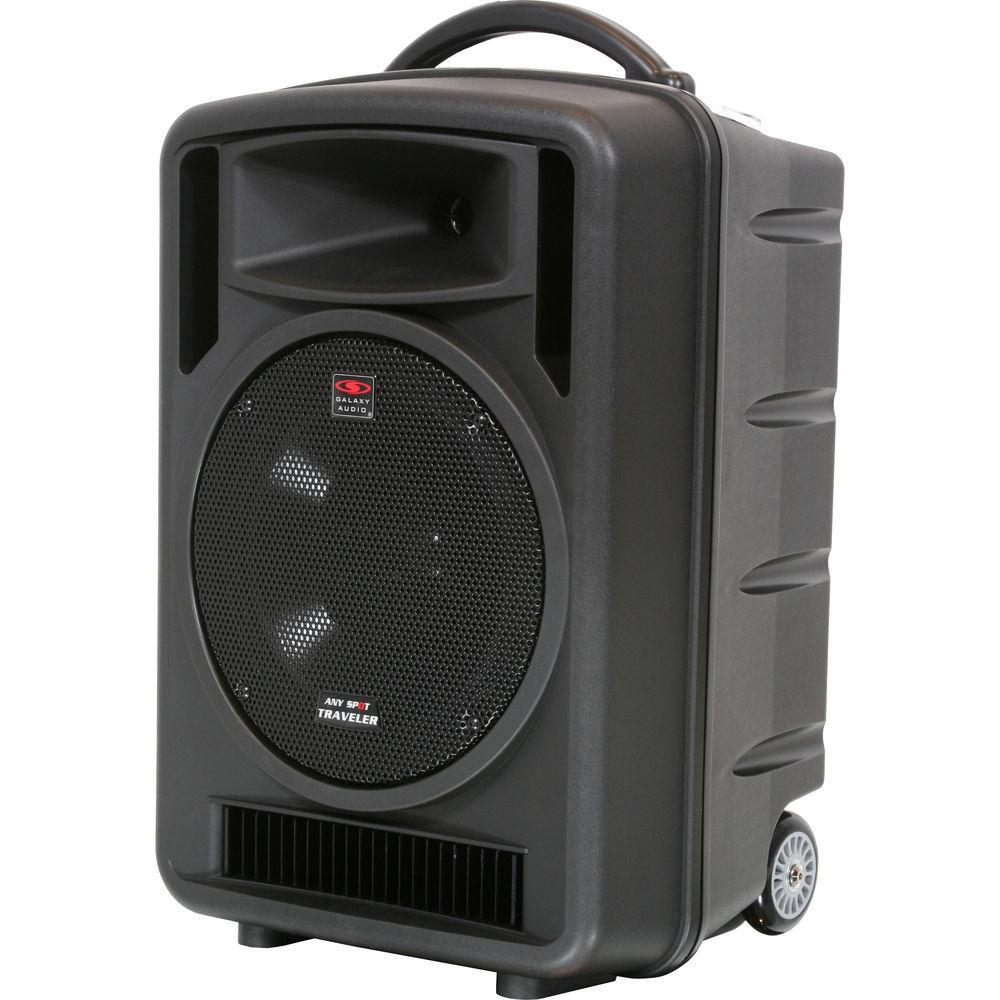

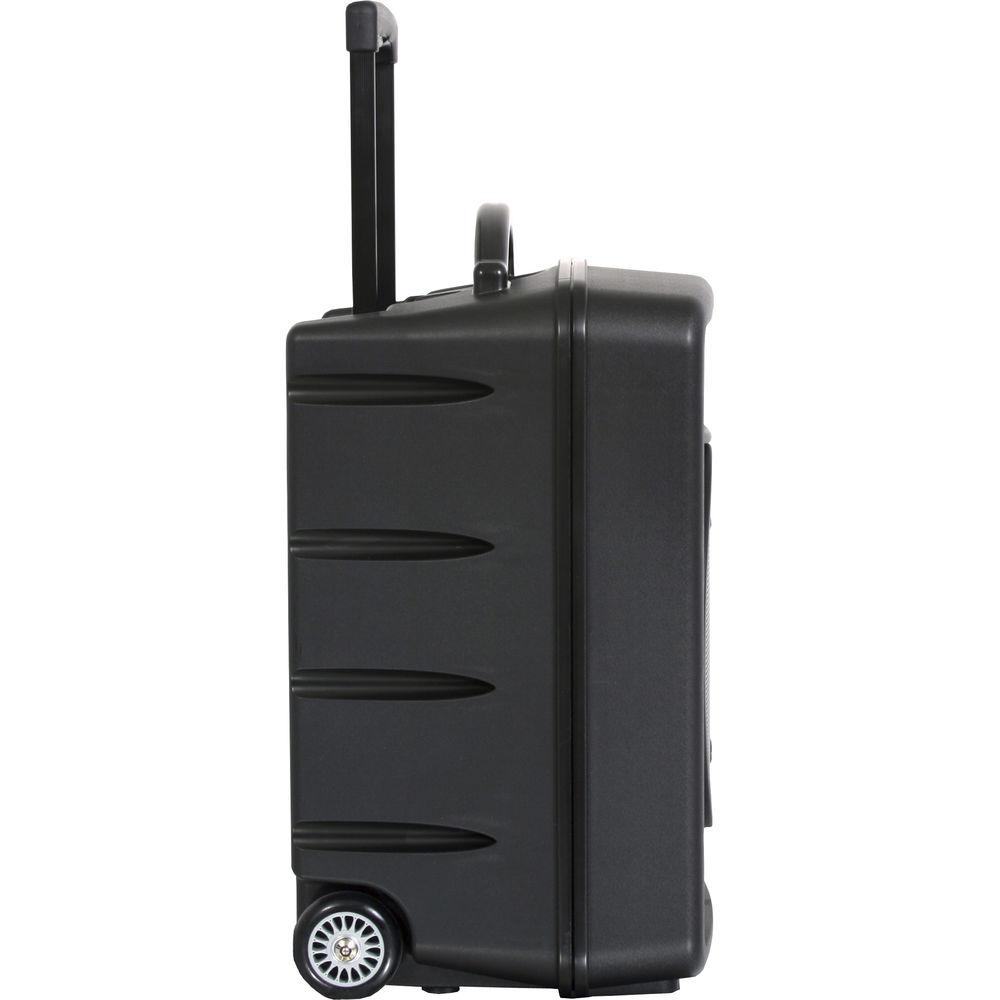

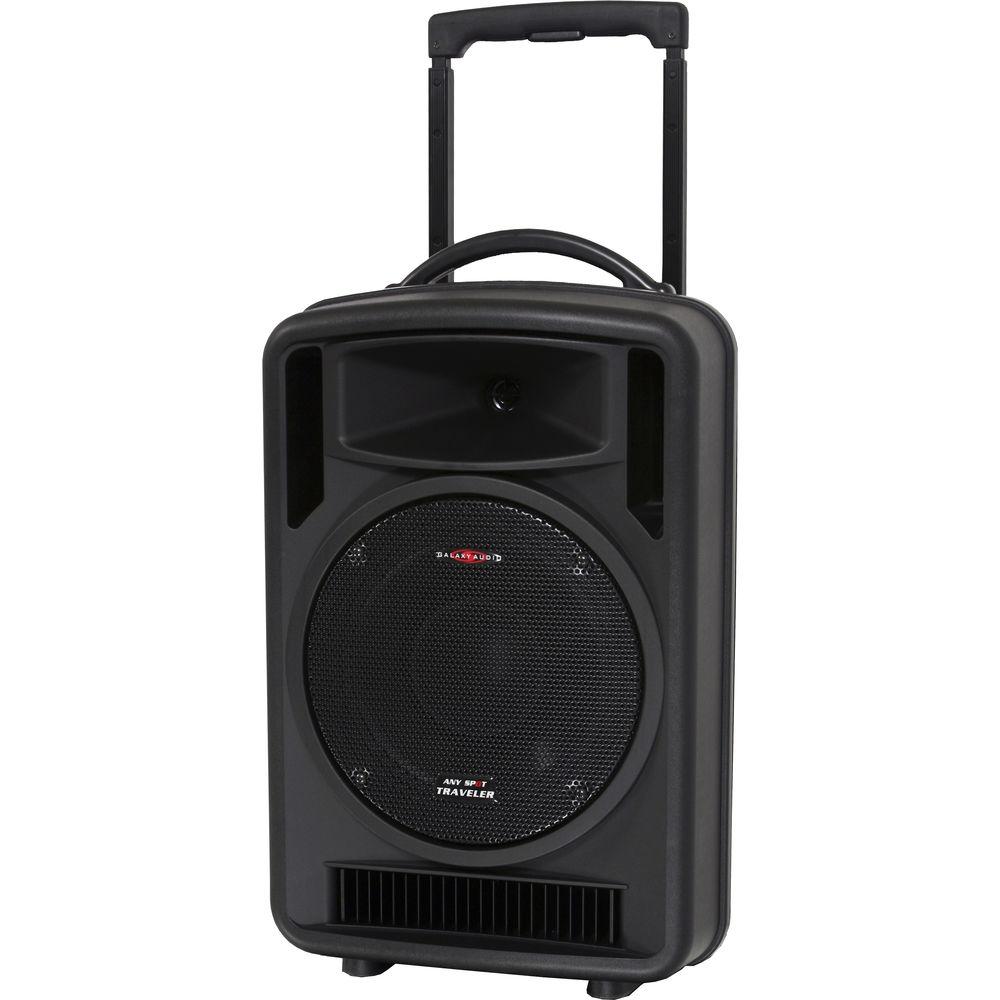

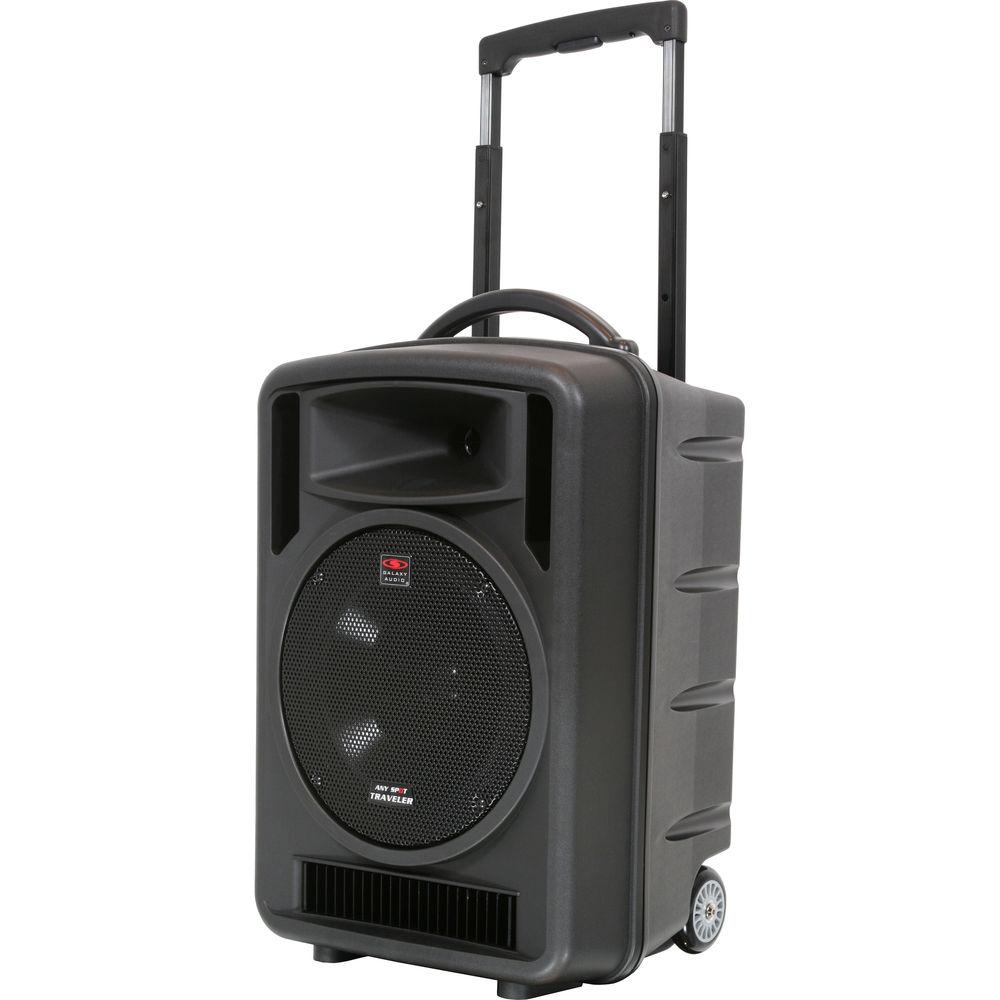

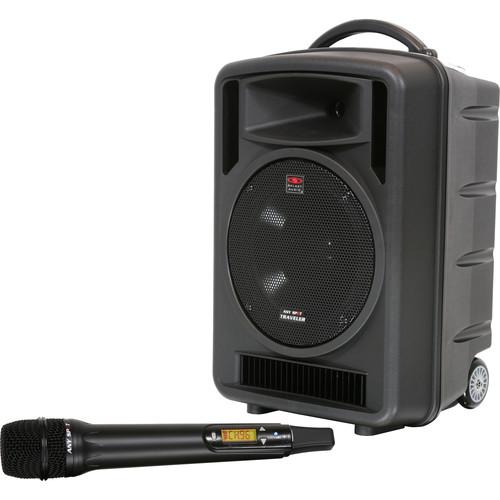

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More Intended for people looking for relatively portable, lightweight, and uncomplicated PA systems, this Galaxy Audio Traveler TV10 comes with a wireless handheld dynamic microphone to get you up and running right away, as well as a wireless receiver and a CD player that can read multiple types of media from multiple sources.The PA itself provides 150W peak / 100W RMS power through its 10” woofer and 1” tweeter. It provides four inputs, accommodating XLR, 1/4”, RCA, and 3.5mm connections. Each input provides its own channel control, and you’ll also be able to tweak the sound with a two-band EQ. A master volume is on hand for global level adjustments.At 44 lb—and measuring 12.2 x 14.2 x 22.8”—the PA itself would be relatively easy to carry about town. However, a retractable handle and wheels have been built into the Traveler TV10, making transportation even more of a cinch. A modular design allows you to plug-in what Galaxy Audio calls “Function Modules” as needed. So, if you need a Bluetooth receiver or a dual-wireless mic receiver, you can easily insert one into the back.This particular Traveler TV10 ambles your way with a UHF receiver primed to receive the microphone’s 96 selectable channels, giving you a range of 160 to 230’ in an open field. This will come in handy, as the supplied mic utilizes 96 selectable channels and a range of 200’ line of sight. You're also provided with an RM-CDV module, which plays DVD, VCD, CD+G, JPG, CD, and MP3 formats. In addition to its USB input, you can also use its SD input for SD cards. - PA Features at a Glance
-
- 100W RMS/150W peak
- 10" woofer / 1" horn
- Built-in battery and charger
- Includes TVHH Wireless Dynamic Handheld microphone
- 2 x microphone inputs
- RCA & 3.5mm outputs
- Master volume control
- Built-in Bluetooth
- Optional media player
- Four-bar battery indicator
- Voice priority
- Built-in wheels and handle
- Battery operation: 7.5 to 16 hours
- Speaker-stand mount

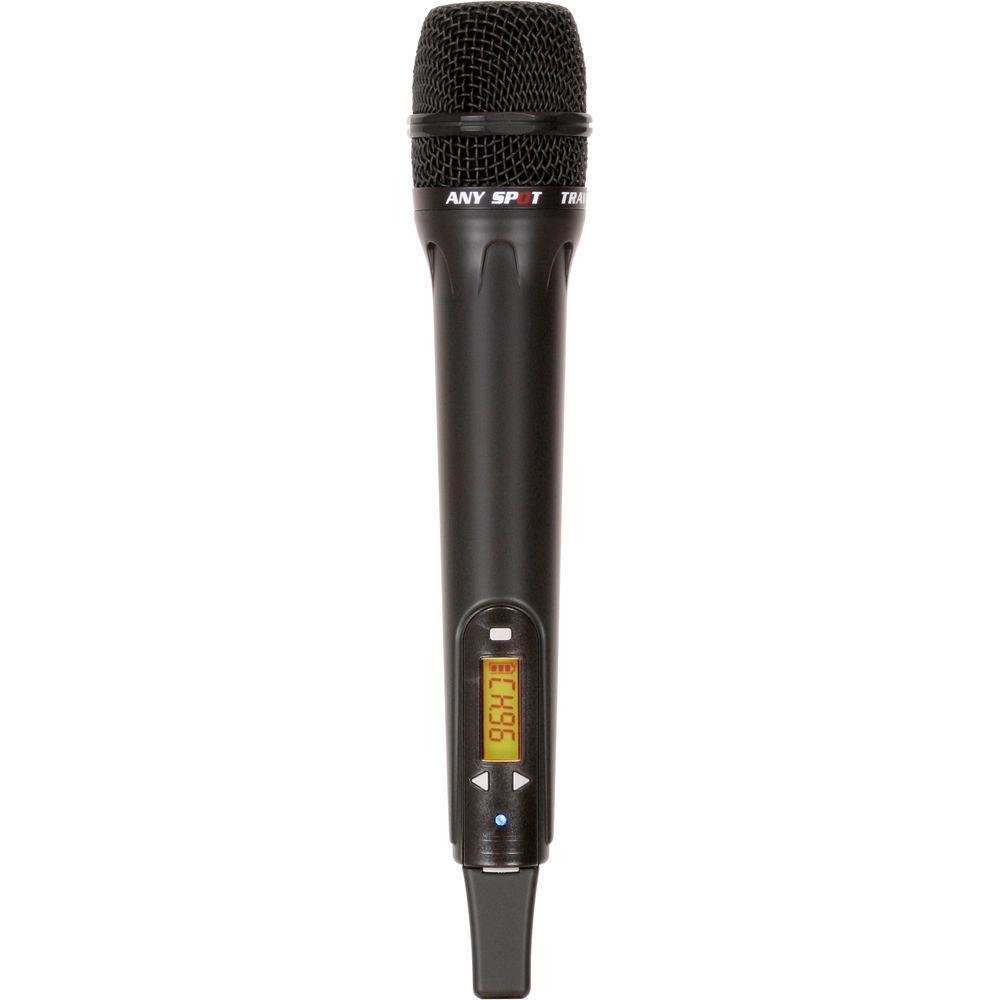

- Mic Features at a Glance
-
- 96 selectable channels
- Channel selector
- LCD display
- Dynamic capsule
- Built-in antenna
- 3-bar battery condition indicator
- High/low volume and mute switch
- Accepts 2 x AA Batteries for 14-hour lifespan (batteries available separately)
- DC charging input
- Included RM-CDV Player at a Glance
-
- Plays DVD R/RW, CD & MP3
- USB input
- SD input
- Remote control
- CD+G
- CD+V
- JPEG
- Video output
In the Box Galaxy Audio Traveler 10" 150W Peak PA System with CD Player, UHF Receiver & Handheld Wireless Mic TVHH Wireless Handheld Cardioid Dynamic Microphone TV5-REC Single Receiver for Traveler Series Portable PA Systems DVD, CD & MP3 Player with Wireless Remote Control Limited 3-Year Warranty on System and Microphone Limited 90-Day Warranty on Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio Traveler 10" 150W Peak PA System with CD Player, UHF Receiver & Handheld Wireless Mic in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio TV10-C010H000 Specs | | | Power Output | 100 W RMS, 150 W peak | | Impedance | 4 Ohms | | Max SPL | 112 dB | | Frequency Response | 20 Hz to 20 kHz (audio) | | Speaker | 10" LF woofer, 1" HF tweeter | | S/N Ratio | 70 dB | | Sensitivity | 92 dB at 1 W / 1 m | | Audio Inputs | 1 x XLR Microphone input
1 x 1/4" Microphone input
1 x 3.5 mm Auxiliary input
2 x RCA Line inputs | | Audio Outputs | 2 x RCA Line outputs
1 x 3.5 mm Auxiliary output | | Controls | Wireless, MIC, Bass, Treble, Master, AUX & LINE | | CD/DVD Drive | Included | | Power Requirements | 100 to 240 VAC, 50 / 60 Hz | | Operating Distance | Up to 200' / 61.0 m | | Mount Size | 1.4 / 35 mm | | Battery | 2 x 12 V, 4.5 Ah (Lead-Acid) rechargeable batteries | | Battery Life (approx.) | 4 to 6 hours (tested at over ten hours) | | Battery Charging Time | 5 Hours | | Dimensions | 12.2 x 14.2 x 22.8" / 310.0 x 360.0 x 580.0 mm | | Weight | 44.1 lb / 20.0 kg (batteries included) | | | | Oscillation Type | PLL synthesized control OSC | | No. of Channels | 96, pre-programmed | | Switching Bandwidth | 12 kHz maximum | | Ambient Temperature | 14 to 122°F / -10 to 50°C | | Maximum Deviation | 50 kHz, with level limiting | | Dynamic Range | 110 dB | | THD | Less than 0.5% | | Pre-Emphasis | 50 μs | | Squelch | Tone key and noise lock dual-squelch | | Frequency Range | 70 Hz to 16 kHz, wireless | | Operating Range | 160 to 230' / 50 to 70 m, open field | | Antenna | Diversity, built-in or external | | Sensitivity | 4 μv at 30 dB SINAD | | Double Intermediate | 110.6 MHz / 10.7 MHz | | Display Status | LCD indicator displays channel or frequency | | Controls | Channel Select Keys: Sync, up, and down | | Spurious Rejection | RF: 70 dB | | Adjacent Channel Crosstalk | 68 dB at 250 kHz | | IMD | 58 dB IMD rejection | | Carrier Frequency Range | 640 to 664 MHz | | Dimensions | 5.3 x 3.4 x 1.5" / 133 x 88 x 37 mm | | Weight | 3.9 oz / 110 g | | | | Type | Dynamic, handheld | | Pattern | Cardioid | | RF Output | 10 mW | | Spurious Emission | Less than 250 nW | | Channels | 96, selectable | | Antenna | Built-in | | Indicators | LCD display, 3-bar condition indicator | | Controls | Channel select keys, High/low volume and mute switch | | Power Supply | 2 x AA batteries | | Battery Life | Approximately 14 hours | | Charging Input | DC | | Dimensions | 1.8 x 10.4" / 46 x 264 mm | | Weight | 9.9 oz / 280.0 g |
