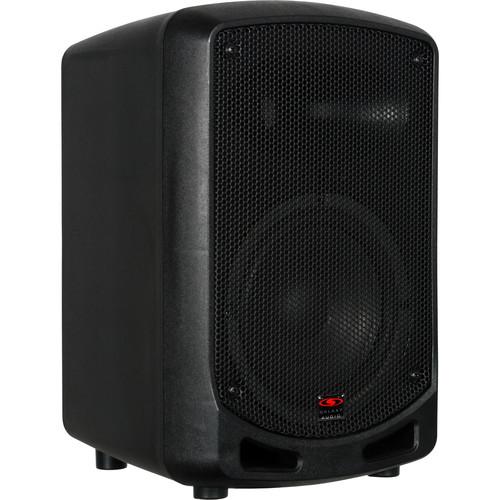

User Manual for Galaxy Audio Traveler Quest 6 - Battery-Powered Portable PA with Bluetooth Click to enlarge the picture
Contents of the user manual for the Galaxy Audio Traveler Quest 6 -
- Product category: Portable PA Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Portable PA Systems
 |
User manual for the Galaxy Audio Traveler Quest 6 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

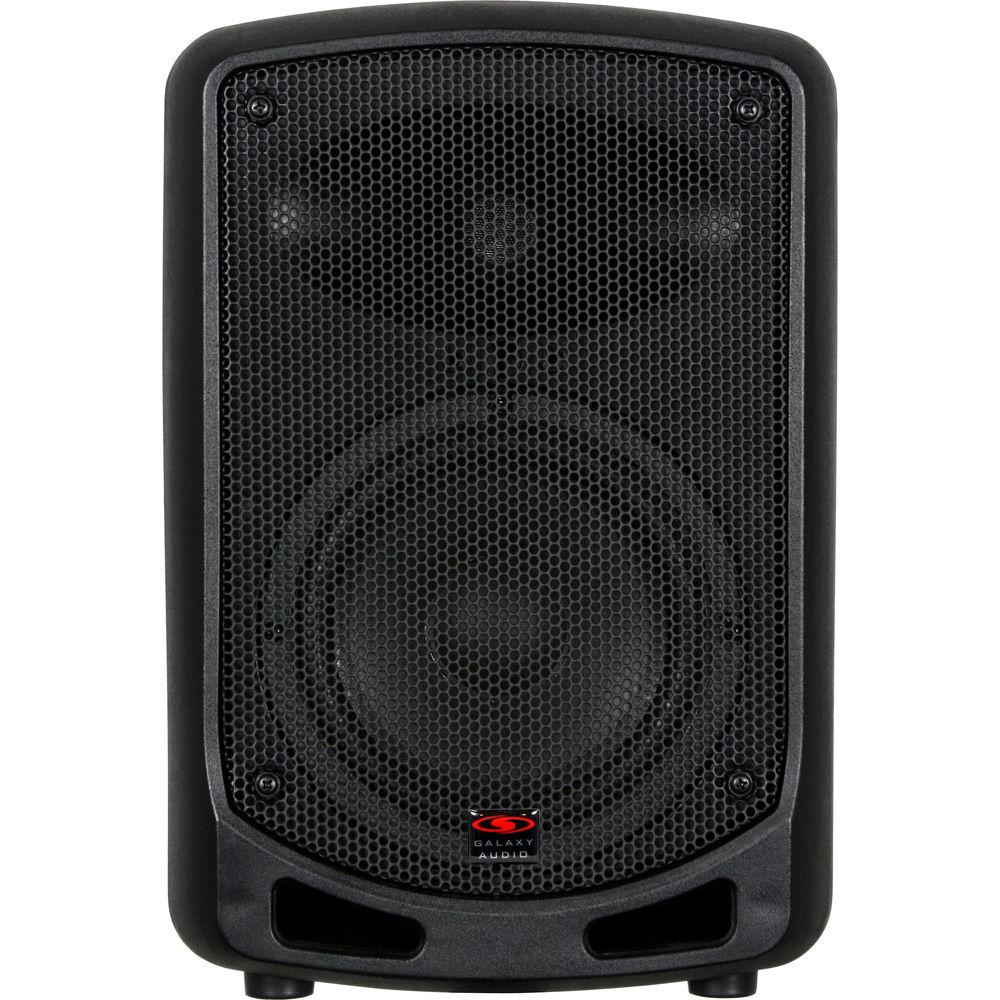

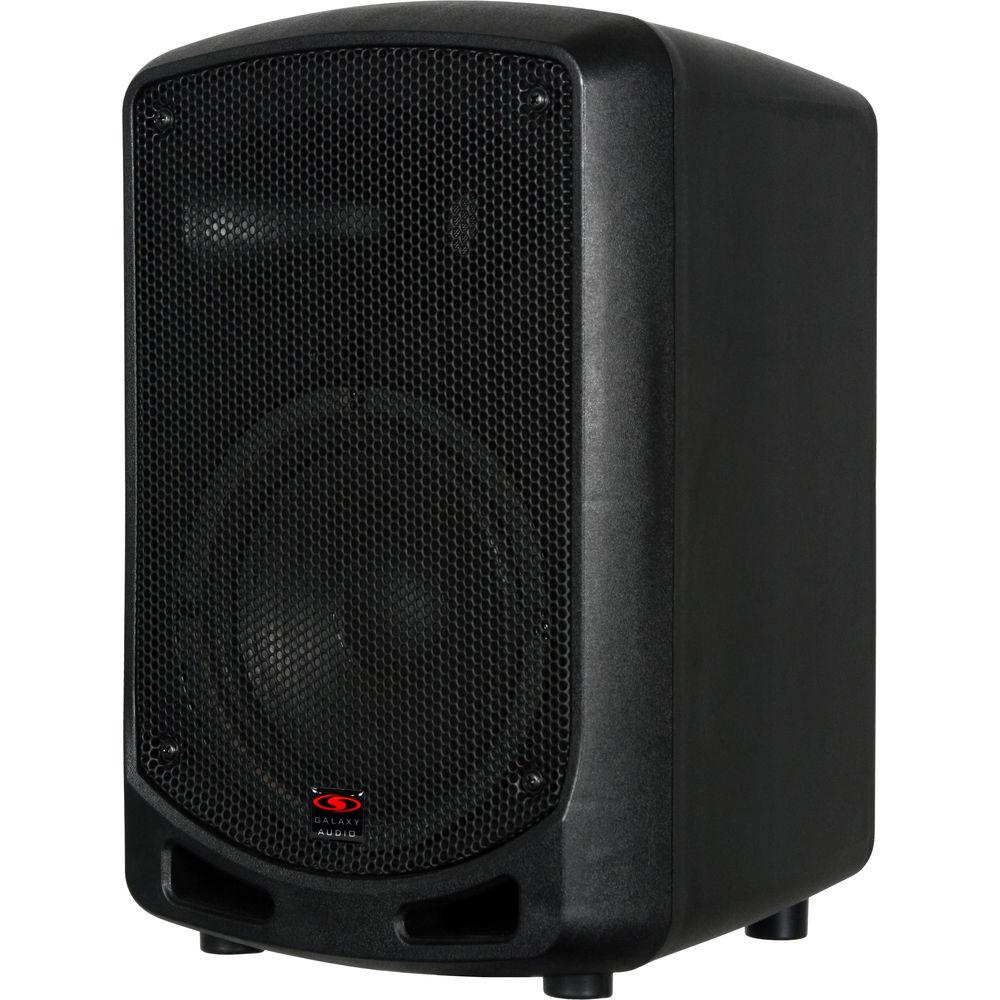

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Galaxy Audio Traveler Quest 6 (TQ6) is a portable, battery-powered PA with wireless Bluetooth, well suited for schools, houses of worship, emergency personnel, corporate functions, fairgrounds, auctioneers, aerobics instruction, and more. The TQ6 utilizes a built-in 30W amplifier to power the 6" woofer and 1" horn, which combine to offer a frequency response of 90 Hz to 17 kHz with a maximum SPL of 94 dB at 3.3'.

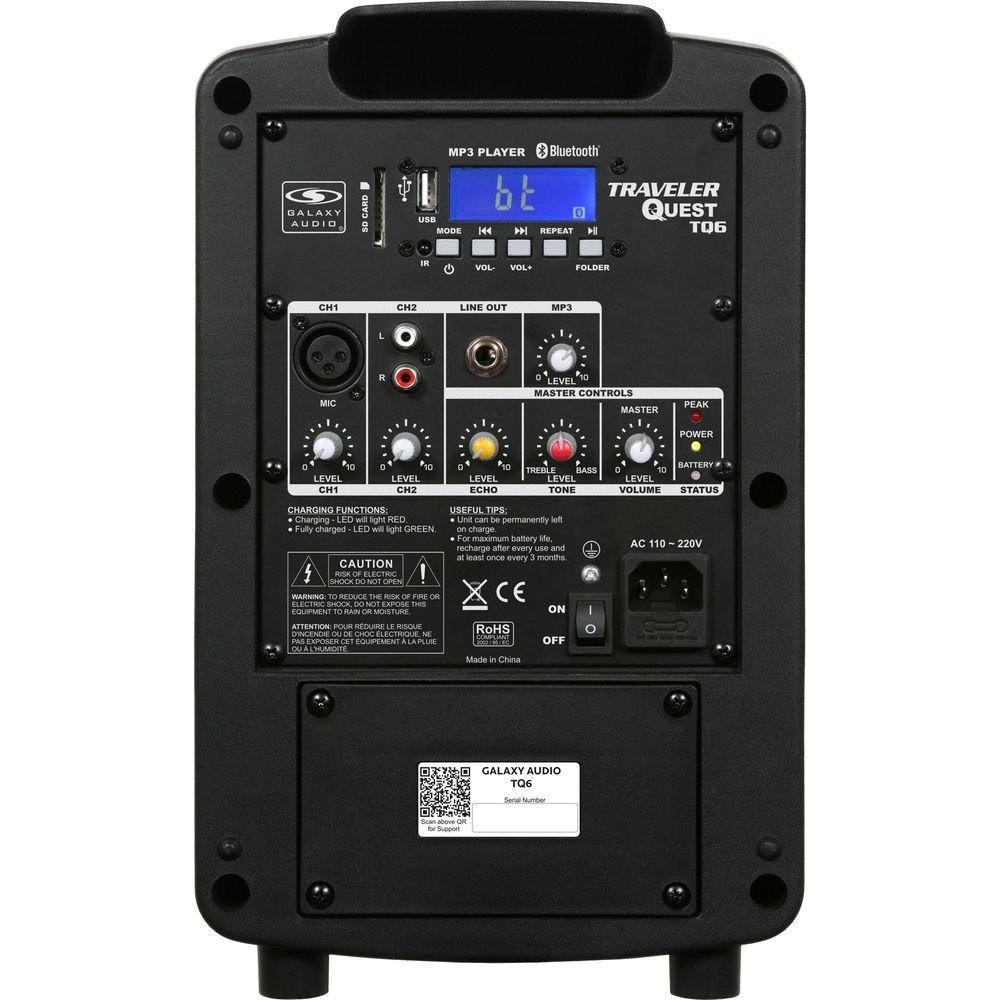

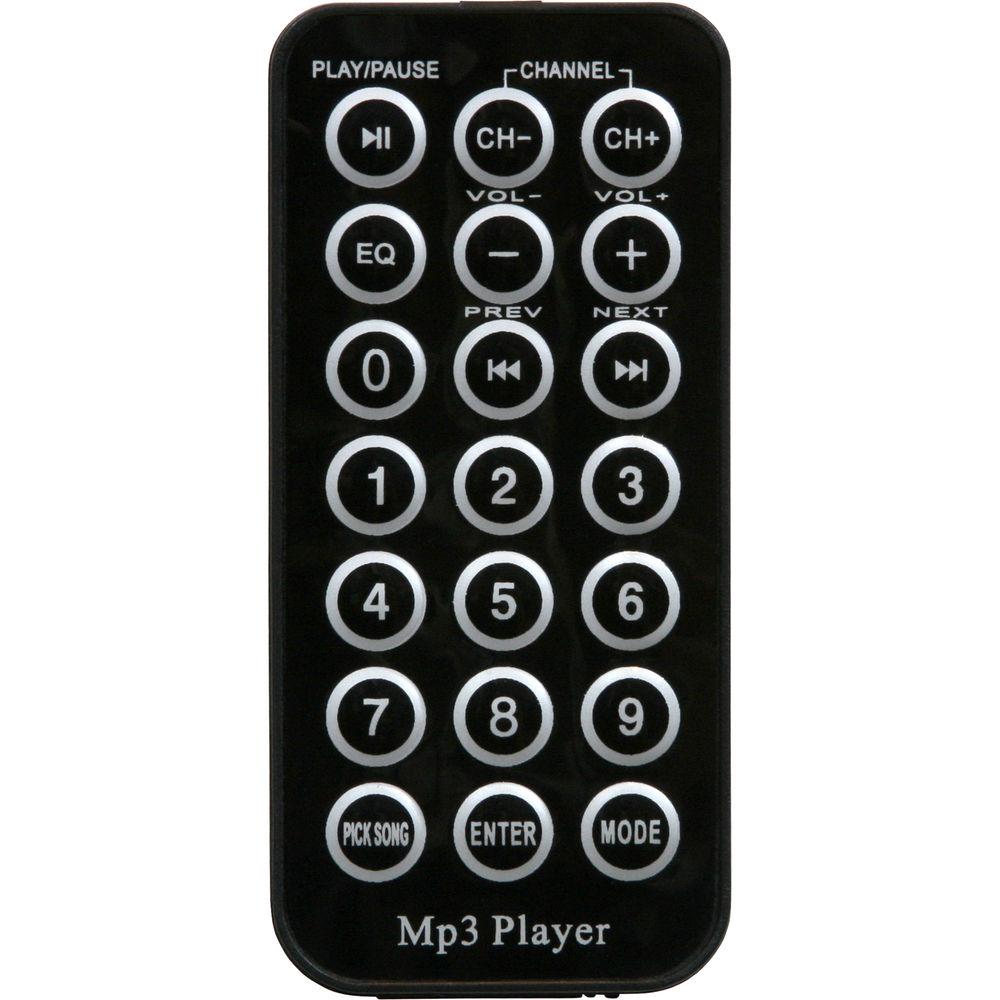

The rear panel offers a microphone input (CH1) and dual RCA inputs (CH2) with dedicated volume controls, as well as a 1/4" line output and an MP3 level control. The master controls offer echo, treble/bass tone controls, and the master volume. The TQ6 features a built-in media player with USB and SD card inputs, as well as Bluetooth wireless streaming. The player can be controlled with the on-board buttons or via the included wireless remote control.

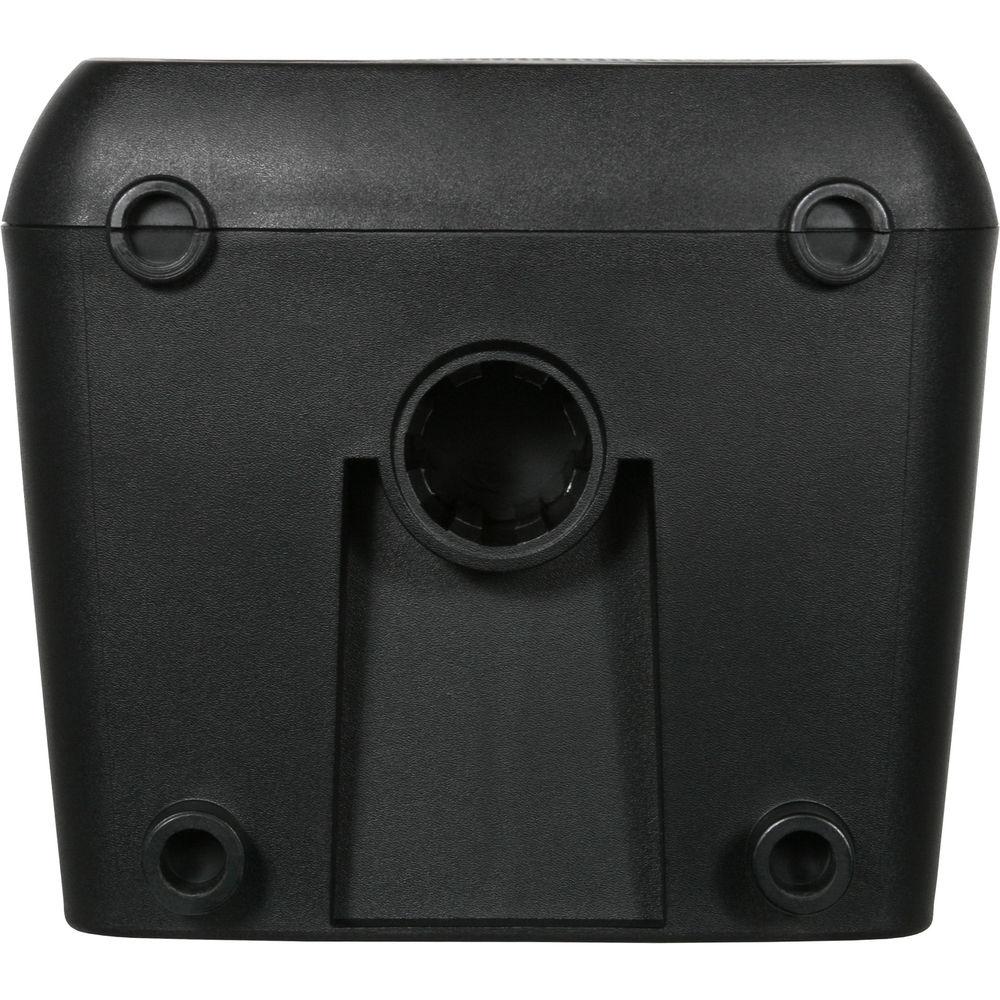

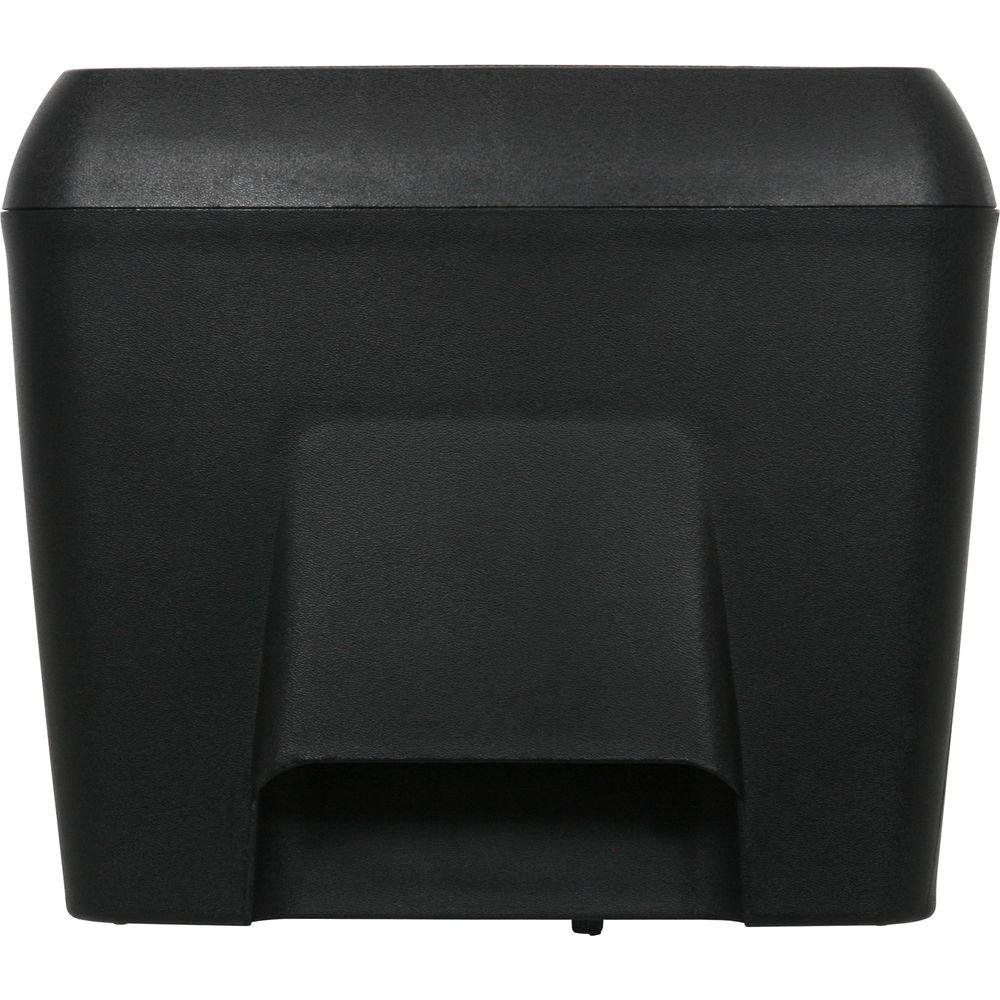

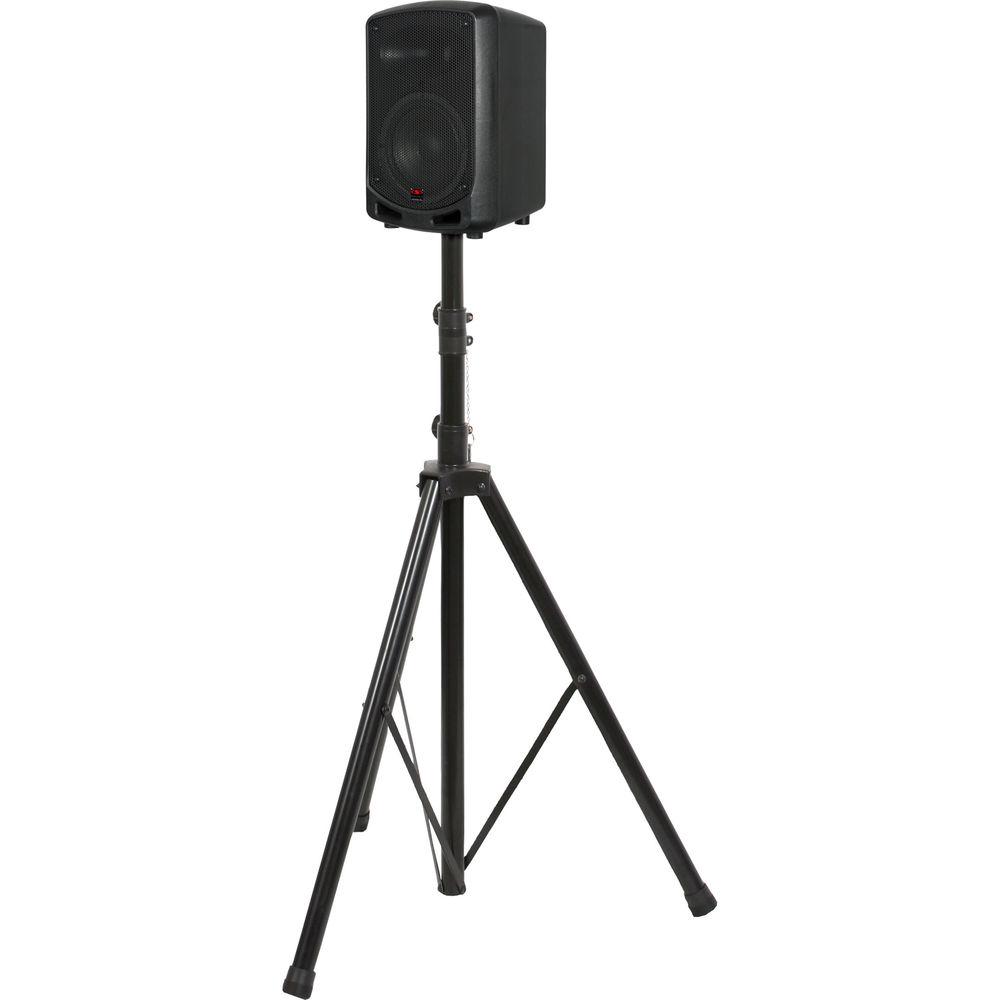

The built-in rechargeable battery offers up to 8 hours of playback time depending on the usage, while recharging may take 7 to 8 hours. The TQ6 can be used via AC power input, which will charge the battery while in use. Additional features include an integrated handle of easy transportation and a standard 35mm socket for speaker stand mounting. The Galaxy Audio Traveler Quest 6 ships with a power cord and wireless remote control. -
- 30W amplifier
- Battery powered
- Rechargeable
- Built-in Bluetooth
- XLR/dual RCA inputs
- Built-in MP3 player
- Built-in handle
- Speaker pole mount
- Runs up to 8+ hours
UPC: 691281802751 In the Box Galaxy Audio Traveler Quest 6 - Battery-Powered Portable PA with Bluetooth Wireless Remote Control Power Cord Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio Traveler Quest 6 - Battery-Powered Portable PA with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio TQ6 Specs | Power Output | 30 W | | Max SPL | 94 dB at 3.3' / 1 m | | Frequency Response | 90 Hz to 17 kHz | | Drivers | Woofer: 6.0" / 152.4 mm
Horn: 1.0" / 25.4 mm | | Audio Input | XLR, dual RCA, Bluetooth, SD input, USB input | | Indicators | Power LED
Battery status LED
Peak LED | | Controls | Master volume
Tone level
Echo level
CH1 volume
CH2 volume
MP3 volume | | MP3 Player | MP3 Player Controls:
Power/Mode
Play/Pause
Repeat
Skip Forward/Volume Up
Skip Backward/Volume Down | | Bluetooth Range | Tested to 100.0' / 30.5 m (under optimum conditions) | | Stand Mount | Speaker Stand: 1.4" / 35.0 mm | | Battery | Battery: 12 V, 2.8 Ah (lead-acid) rechargeable battery
Battery Operation: 8 hours
Battery Charging: 7 to 8 hours | | Power Requirements | Internal Power Supply: 110 to 220 VAC, 50/60 Hz | | Dimensions | 13.8 x 9.3 x 8.5" / 349.3 x 235.0 x 215.9 mm | | Weight | 9.4 lb / 4.2 kg | | | | Package Weight | 11.9 lb | | Box Dimensions (LxWxH) | 15.3 x 11.0 x 10.5" |
