Galaxy Audio TV8 Traveler Series 120W

Search your instruction manual in PDF to download

User Manual for Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones

Click to enlarge the picture

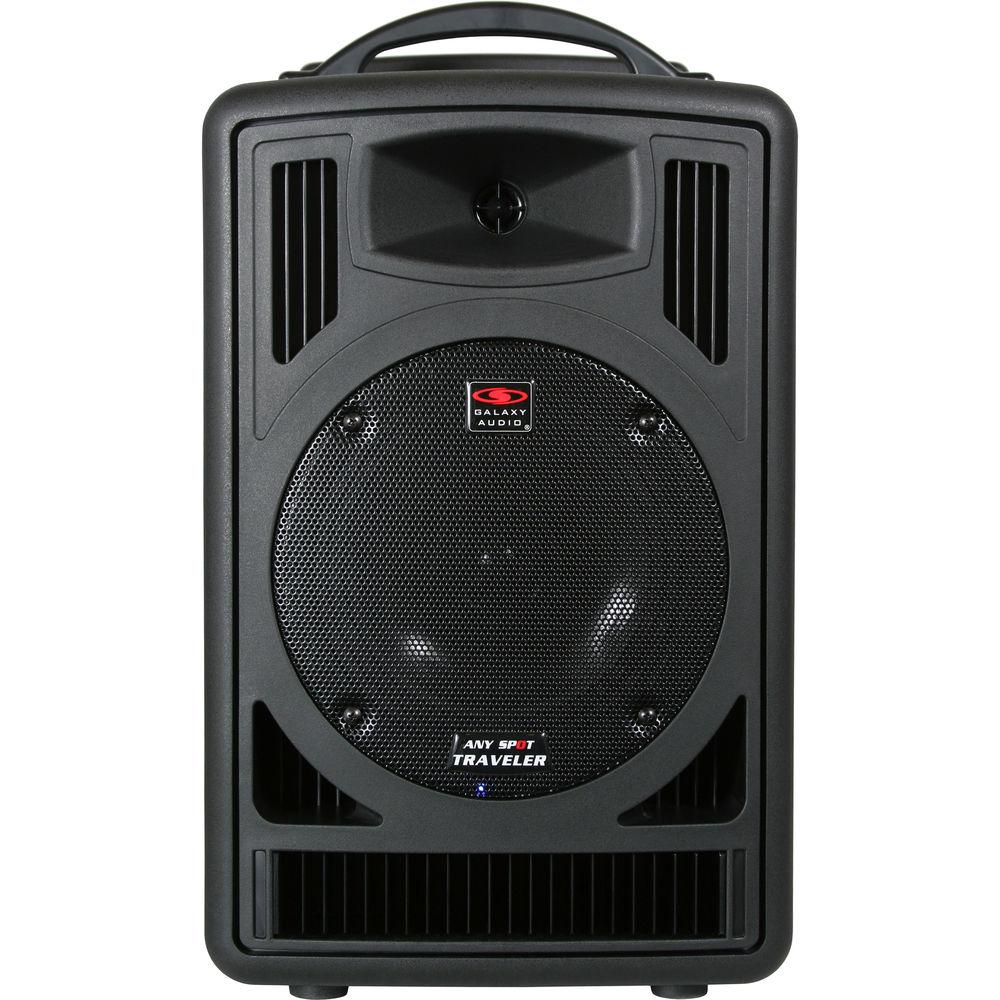

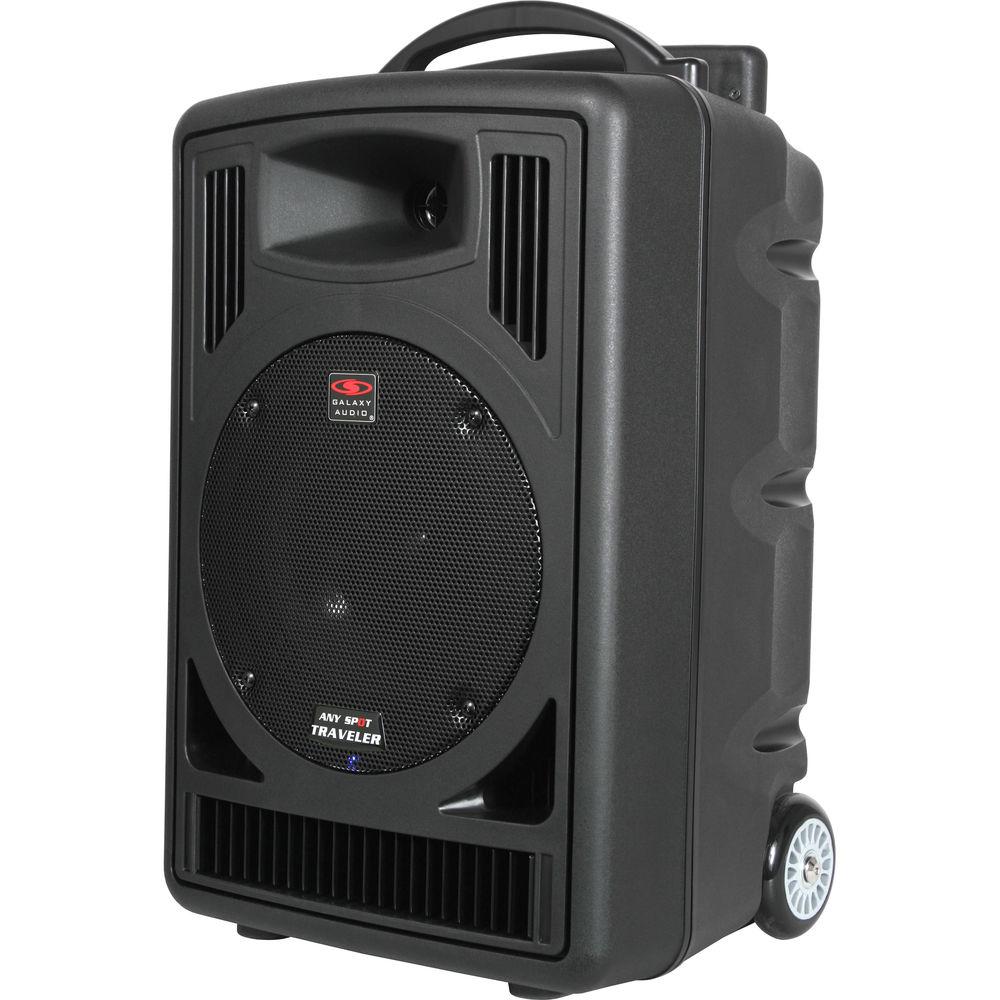

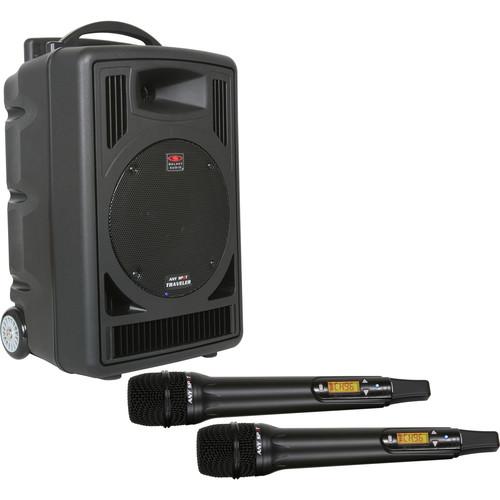

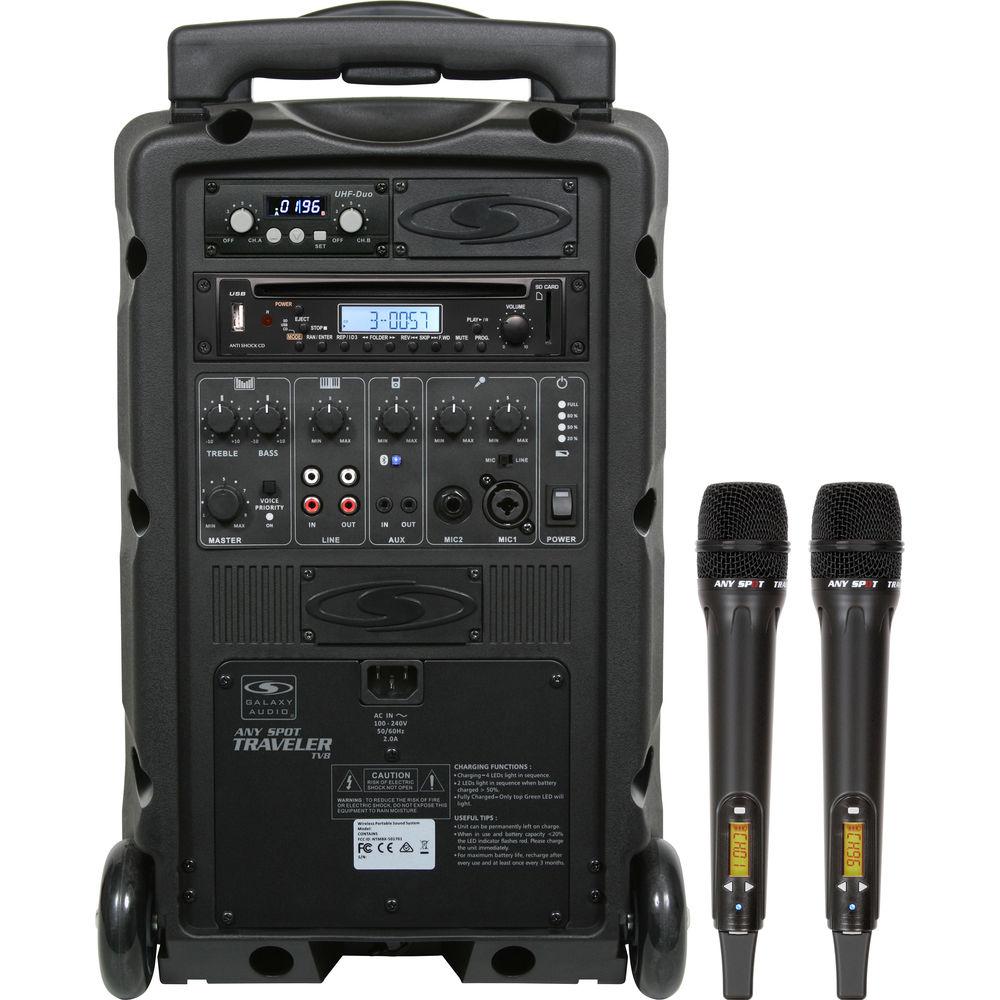

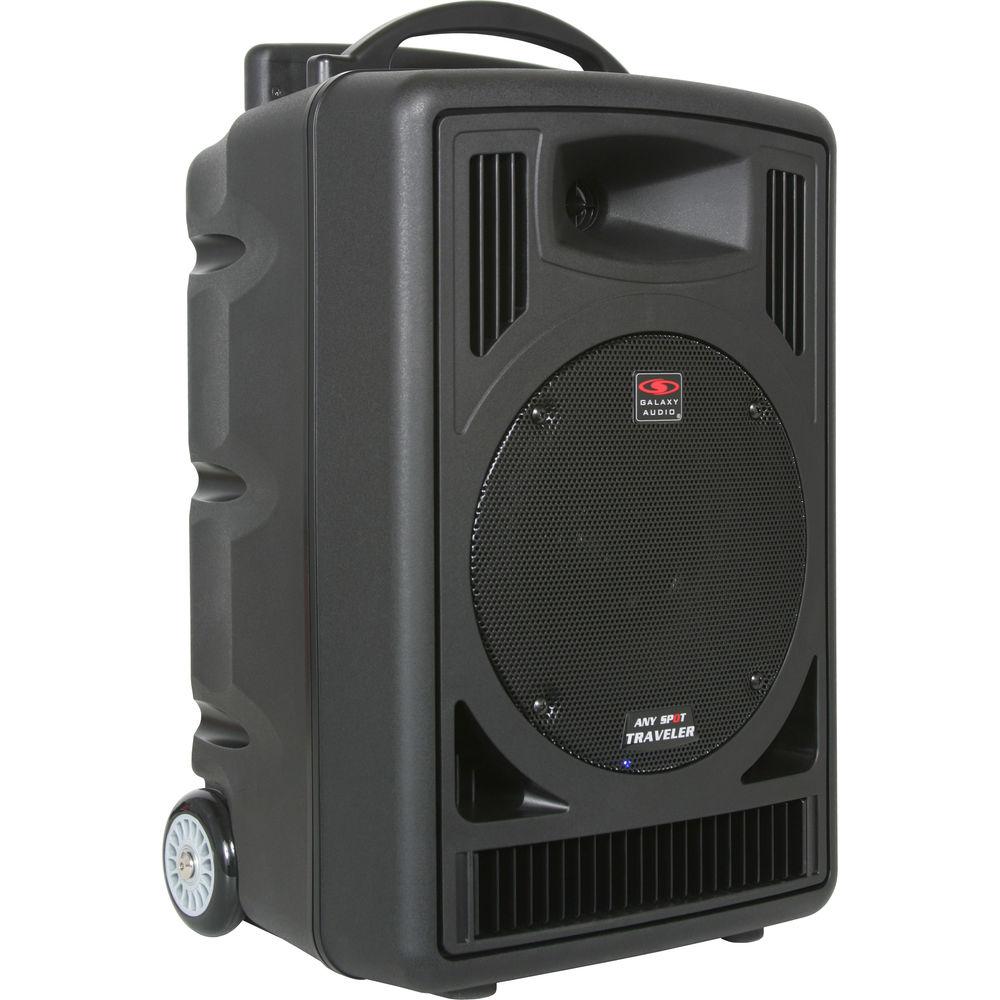

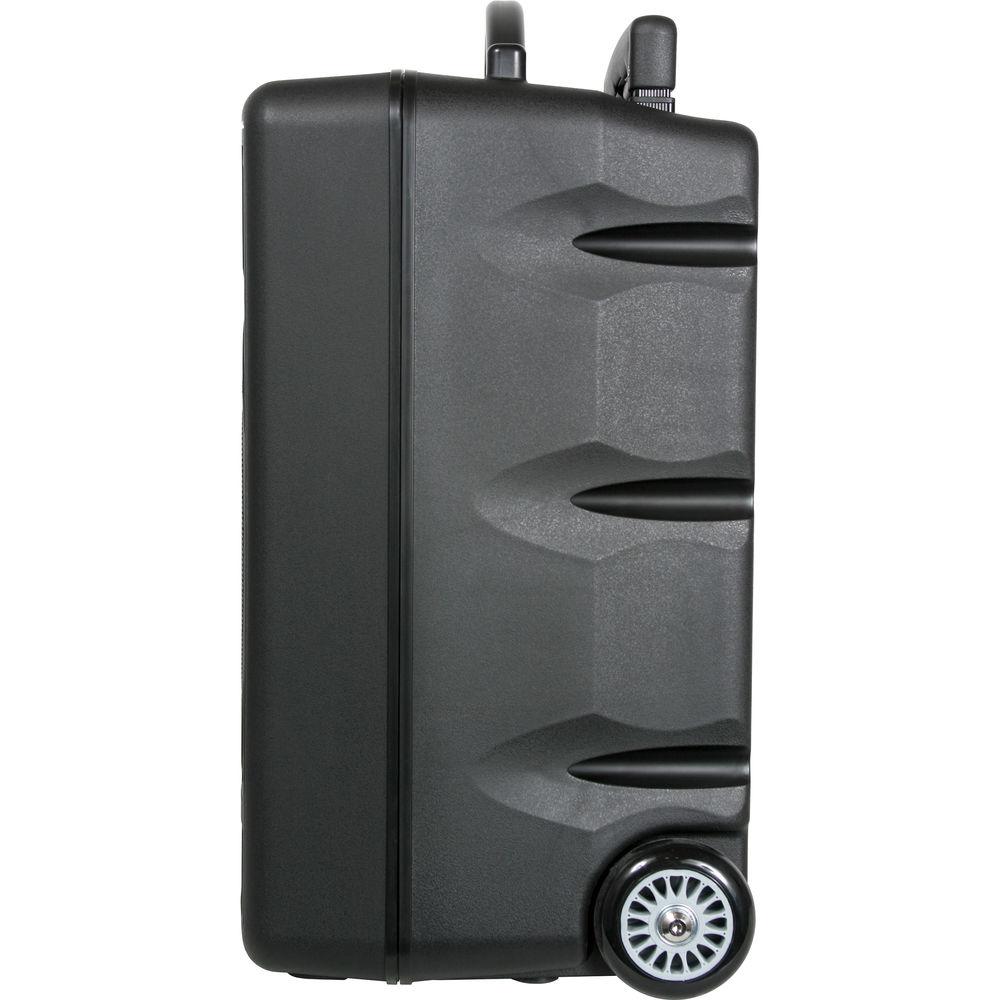

Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones Contents of the user manual for the Galaxy Audio TV8 Traveler Series 120W
  • Product category: Portable PA Systems Galaxy Audio
  • Brand: Galaxy Audio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Galaxy Audio Portable PA Systems

Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones
User manual for the Galaxy Audio TV8 Traveler Series 120W contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Galaxy Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!



Product description

7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones is a portable all-in-one PA system, media player, and microphone bundle designed to provide simple configuration and versatile sound reproduction for hosts, presenters, performers, and DJs at parties, meetings, training sessions, and special events. The bundle includes a TV8 Bluetooth-enabled PA system, an RM-CD CD/media player, a TV5-DREC dual UHF receiver, and two TVHH wireless handheld cardioid dynamic microphones.The handheld mics connect wirelessly to the TV5-DREC dual receiver, which resides in the TV8 PA system. Also mounted in the PA is the CD player, which plays standard and MP3 CDs and supports playback of files via its USB port and SD card slot.Choose from 96 channels and route music and instruments via Bluetooth, XLR, RCA, 3.5mm, and 1/4" inputs. Selectable voice priority allows automatic attenuation of music when signal is detected from a wired or wireless mic. The integrated mixer offers 2-band EQ and volume controls. 120W of peak power are pumped through an 8" woofer and 1" tweeter. Built-in handles and rolling wheels enable simple and efficient transport between locations.
  • TV8 Traveler Series 8" 2-Way 120W Portable All-In-One Bluetooth-Enabled PA System The Galaxy Audio TV8 is a Traveler Series portable all-in-one, Bluetooth-enabled PA system designed to provide compact and versatile sound reinforcement for DJs, announcers, presenters, and hosts at clubs, meetings, parties, and special events. Its 2-way 120W configuration utilizes an 8” woofer and a 1” tweeter and delivers coverage for up to 600 people.Connect wired microphones and instruments to the XLR and 1/4" jacks and hook up music playback devices such as CD players or MP3 players to the stereo RCA and 3.5mm ports. Stream music wirelessly from a smartphone, tablet, or laptop via the integrated Bluetooth receiver. The built-in mixer offers adjustable volume per input, 2-band EQ, and a master volume control. Stereo RCA and 3.5mm outputs can be used to record the mix or route it to a larger mixer. A selectable voice priority function allows incoming microphone signal to attenuate the music level, which is ideal for ensuring that announcements will not be overpowered by the music.The TV8 features an integrated carry handle, retractable luggage handle, and rolling wheels for easy transport. It can be powered via AC or the built-in rechargeable batteries.
      Powerful Sound Reinforcement
      • 8" woofer
      • 1" tweeter
      • High-power amplifier (80W RMS, 120W peak)
      • Coverage capacity of up to 600 people
      Flexible Inputs
      • XLR-1/4" combo jack input for a microphone or instrument
      • 1/4" input for a mic/line signal
      • Stereo RCA coaxial input and 3.5mm stereo mini-jack
      • Built-in Bluetooth for wirelessly streaming music from a smartphone, tablet, or laptop
      Voice Priority
      • A selectable voice priority function automatically reduces the volume of the media player, Bluetooth, and line level input when receiving a transmission from a wireless or wired handheld microphone, allowing announcements to be made without being overpowered by music
      AC or Battery Powered
      • Operate for an unlimited time on AC power or for about 7.5 to 16 hours on battery power
      • Approximately 6 to 8 hours to fully recharge the built-in batteries
      • Operation while recharging will not affect the charge time
      • If a power failure occurs while operating on AC power, the TV8 will seamlessly switch to battery power
      Add Modules for Expanded Functionality
      • Easily add or remove optional Function Modules via the "plug-in" modular design
      • Optional modules include wireless mic receivers, a media player, and an Audio Link Module, which wirelessly transmits the entire audio mix from one Traveler to any number of satellite Travelers
      • All optional modules are internally wired and require no external patching
      Simple Transport

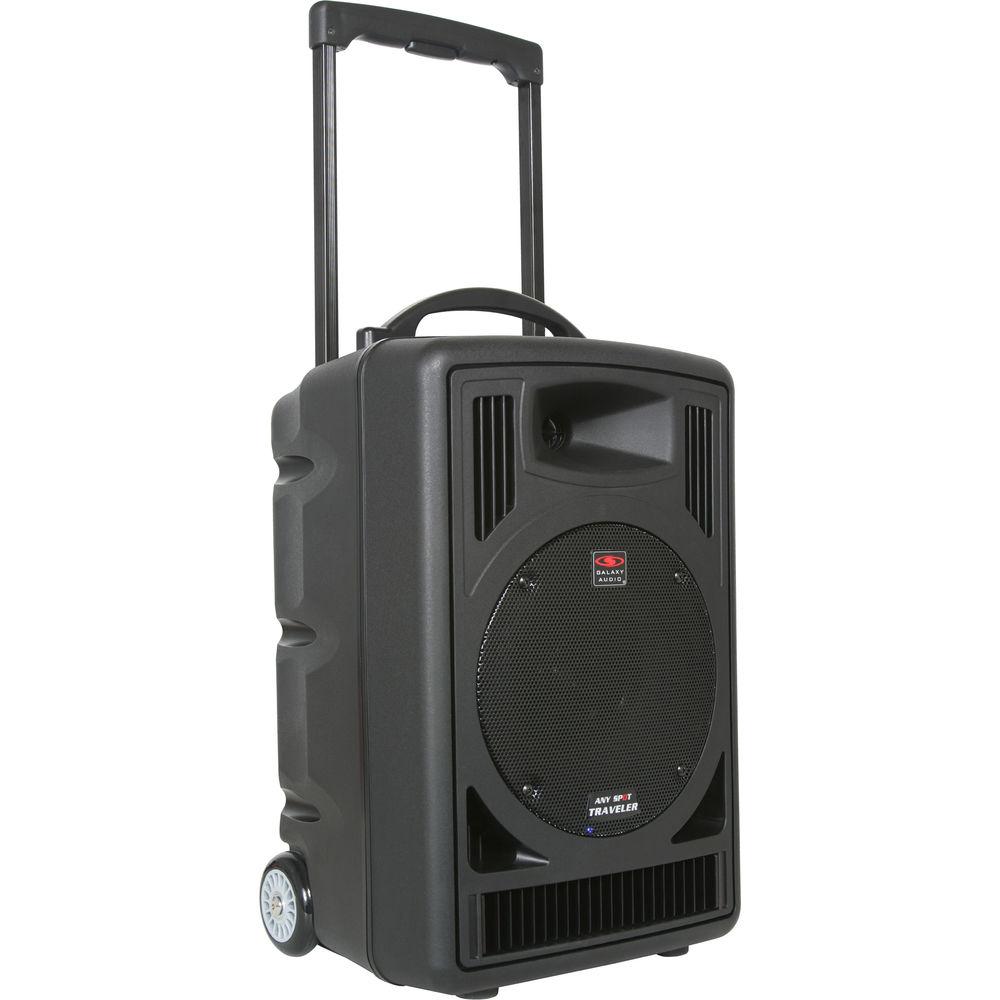

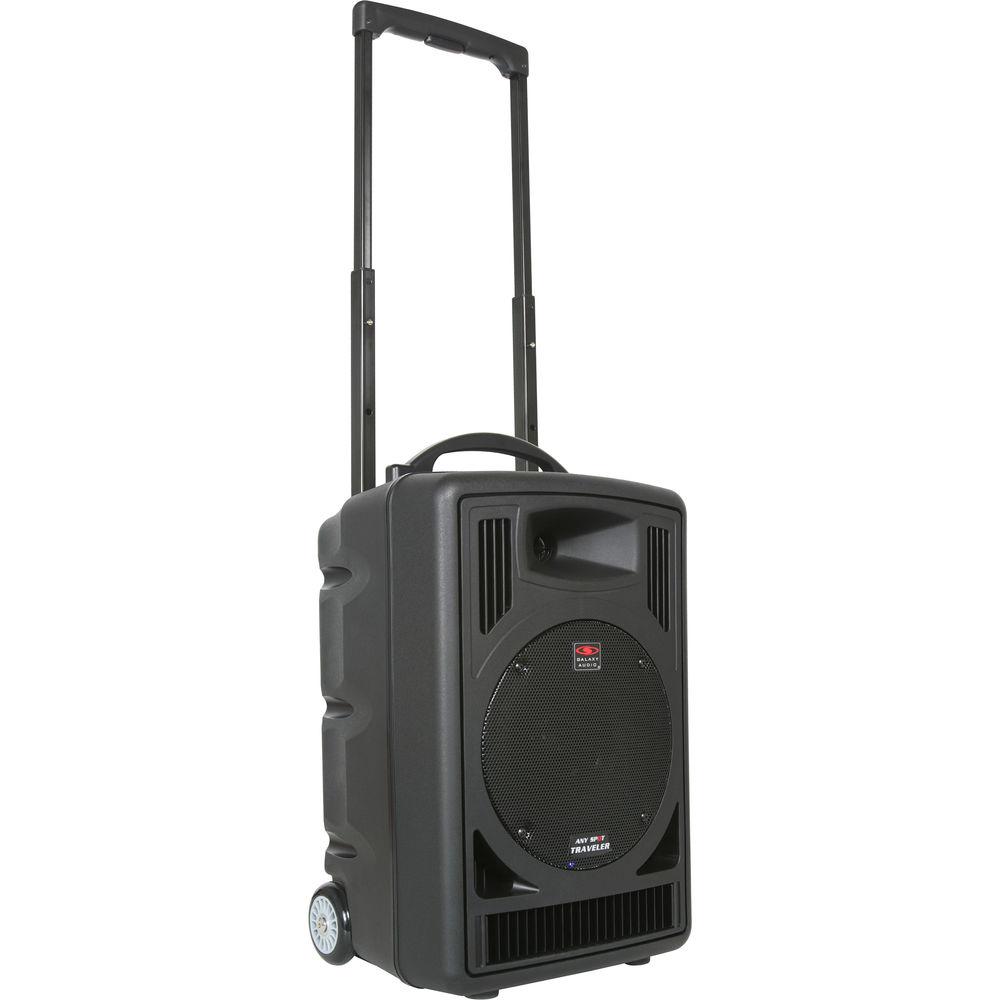

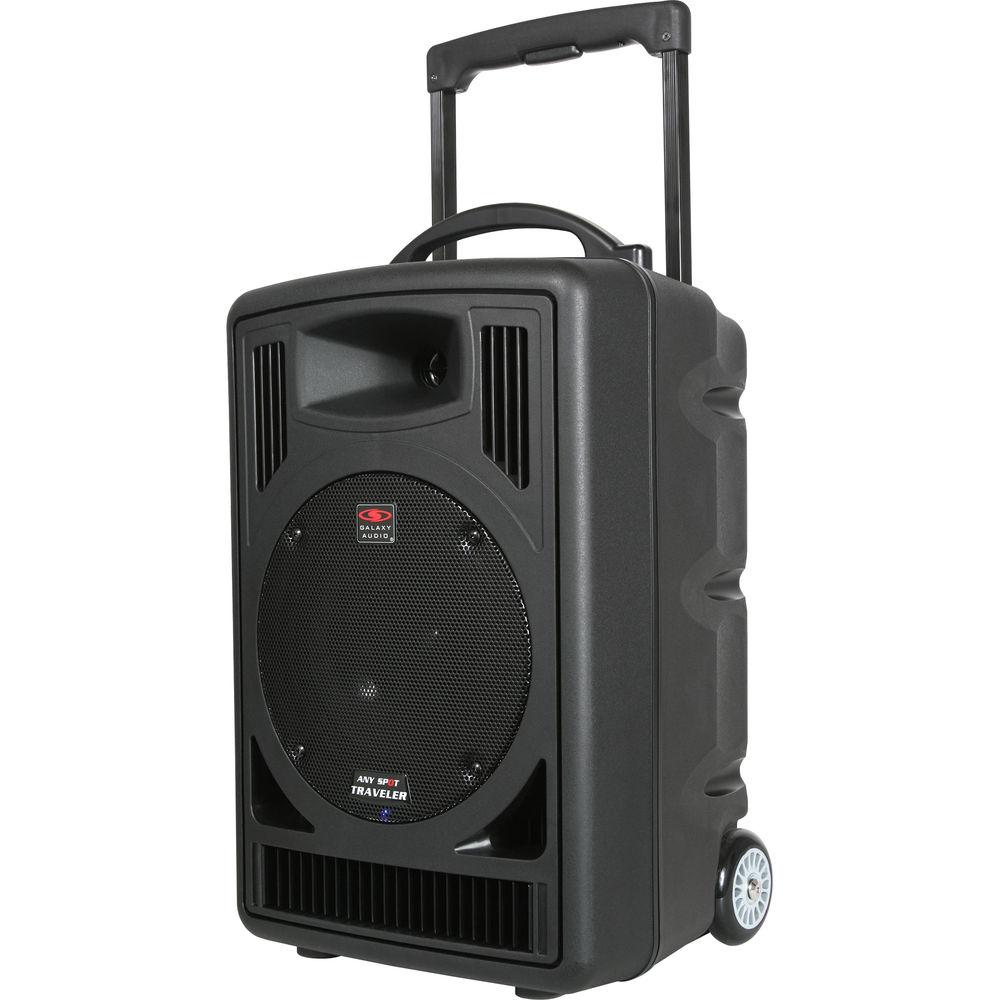

      • Durable ABS enclosure with a carry handle, retractable handle, and rolling wheels
      • Supports standard pole mounting
    UPC: 691281800733
  • RM-CD Traveler Series CD/MP3 Player The Galaxy Audio RM-CD is a CD/MP3 player designed to provide reliable music playback when used with TV8 and TV10 portable PA systems at restaurants, clubs, parties, and other special events. It supports standard WAV CDs and MP3 CDs, and offers playback of files on external media via its USB Type-A port and SD card slot. The front-panel features a volume knob, navigation controls, and an LCD display, which shows track, mode, and status information. The RM-CD includes a wireless remote control for hands-free access.
    • Plays standard and MP3 CDs
    • USB port and SD card slot allow easy playback of files on external media
    • Front-panel LCD display and volume control
    • Includes wireless remote control
    UPC: 691281806414
  • TV5-DREC Dual Receiver for Traveler Series Portable PA Systems The Galaxy Audio TV5-DREC is a dual-channel receiver designed to provide simple integration of two wireless microphones with Traveler Series TV8, TV5i, and TV5X portable PA systems for DJs, presenters, hosts, and musicians at parties, gigs, and special events. It features 96 selectable channels and easy installation via four screw holes.The front-panel channel selector and rotary volume controls enable efficient setup and operation. The LCD display shows the channel numbers and RF and AF indication. The TV5-DREC requires no power supply as it is powered via your Traveler Series PA.
    • For Galaxy Audio Traveler Series TV8, TV5i, and TV5X portable PA systems
    • Supports two wireless microphones
    • 96 selectable channels
    • Front-panel channel selector
    • RF and AF indication plus channel number on LCD display
    • Rotary volume controls
    • Easy installation via four screw holes
  • TVHH Wireless Handheld Cardioid Dynamic Microphone The Galaxy Audio TVHH is a wireless handheld cardioid dynamic microphone designed to provide cable-free vocal reproduction for announcers, hosts, DJs, and singers at clubs, restaurants, parties, and meetings. Its built-in antenna enables it to wirelessly transmit signal to UHF receivers installed in Traveler Series portable PA systems.An LCD display shows a 3-bar battery status indicator and the current channel, which can be set to any of the 96 available channels via up/down buttons. Switch between high volume, low volume, and mute without having to access the receiver.The TVHH is powered via two AA alkaline or NiMH batteries (available separately) and offers a DC charging input in case NiMH batteries need to be recharged.
    • Designed for use with UHF receivers installed in Galaxy Audio Traveler Series portable PA systems
    • Dynamic transducer with a cardioid polar pattern
    • 96 channels (selectable via up/down buttons)
    • Built-in antenna
    • Switch between high volume, low volume, and mute
    • LCD display shows channel number and 3-bar battery status indicator
    • Powered via two AA batteries (available separately)
    • Battery life up to 14 hours
    • DC charging input for use with AS-DCTVHH charger (available separately)
In the Box Bundle Items TV8 Traveler Series 8" 2-Way 120W Portable All-In-One Bluetooth-Enabled PA System scwutvuyuayvyruwftysyadfdsvdtwxxsefuud
  • Power Cable
  • Limited 3-Year Warranty on System
  • Limited 90-Day Warranty on Batteries
RM-CD Traveler Series CD/MP3 Player
  • Remote Control
  • Limited 1-Year Warranty
TV5-DREC Dual Receiver for Traveler Series Portable PA Systems
  • Limited 3-Year Warranty
2 x TVHH Wireless Handheld Cardioid Dynamic Microphone
  • Limited 3-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the Galaxy Audio TV8 Traveler Series 120W PA System with CD Player, Dual UHF Receiver, and Two Wireless Handheld Microphones in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • TV8 Traveler Series 8" 2-Way 120W Portable All-In-One Bluetooth-Enabled PA System
    Speakers 8" / 203 mm woofer
    1" / 25 mm tweeter
    Power Output 80 W (RMS) @ 4 Ohms
    120 W (peak) @ 4 Ohms
    Maximum SPL 112 dB
    Frequency Response 70 Hz to 20 kHz
    Inputs 1 x XLR-1/4" combo jack
    1 x 1/4" microphone/line input
    2 x RCA coaxial (L/R pair)
    1 x 1/8" (3.5 mm) stereo mini-jack
    Outputs 2 x RCA coaxial (L/R pair)
    1 x 1/8" (3.5 mm) stereo mini-jack
    Bluetooth Built-in receiver
    Range: ≤30' / 9.1 m
    Wireless Range 200' / 60 m (UHF wireless operating distance under optimum conditions)
    Signal to Noise Ratio 70 dB
    Sensitivity 92 dB, 1 W @ 1 m
    Mounting Compatibility 1-3/8" / 35 mm speaker stand
    Battery 2 x 12 V, 2.9 Ah lead-acid rechargeable batteries
    Battery Charging Time 6 to 8 hours
    Battery Run Time Approximately 7.5 to 16 hours (depending on program)
    Power Requirement 100 to 240 VAC, 50/60 Hz
    Construction Material ABS plastic
    Dimensions (D x W x H) 10.4 x 11.9 x 20.1" / 264 x 301 x 511 mm
    Weight 35 lb / 15.9 kg
  • RM-CD Traveler Series CD/MP3 Player
    Compatibility Galaxy Audio TV8 and TV10 Traveler Series portable PA systems
    Media Slots 1 x USB Type-A
    1 x SD card slot
    CD Playback Format WAV and MP3
    Power Requirement Powered via TV8 or TV10 portable PA system
    Dimensions Not specified by manufacturer
    Weight Not specified by manufacturer
    Box Dimensions (LxWxH) 12.0 x 10.0 x 8.5"
  • TV5-DREC Dual Receiver for Traveler Series Portable PA Systems
    Compatibility For use with Galaxy Audio Traveler Series TV8, TV5i, and TV5X portable PA systems
    Oscillation Type PLL synthesized control OSC
    Frequency Adjustment Range Pre-programmed, 96 switchable channels (maximum)
    Carrier Frequency Range 520 to 544 MHz
    Switching Bandwidth 12 MHz (maximum)
    Maximum Deviation 50 kHz (with level limiting)
    Frequency Response 70 Hz to 16 kHz (wireless)
    Dynamic Range 110 dB
    THD < 0.5%
    Pre-Emphasis 50

    Rating
