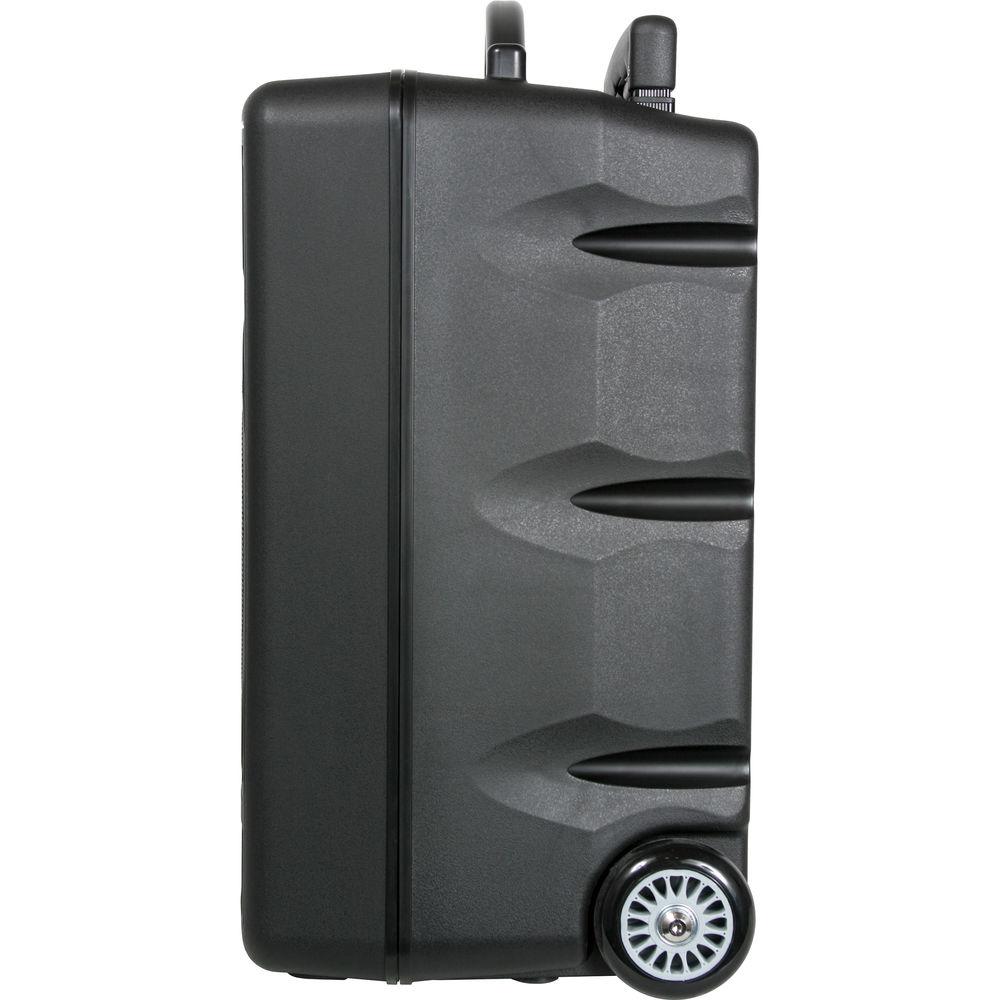

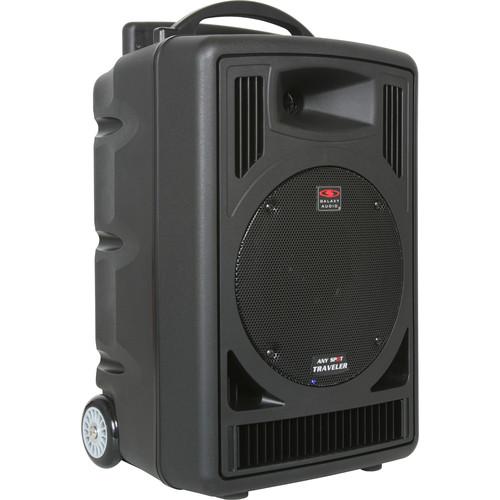

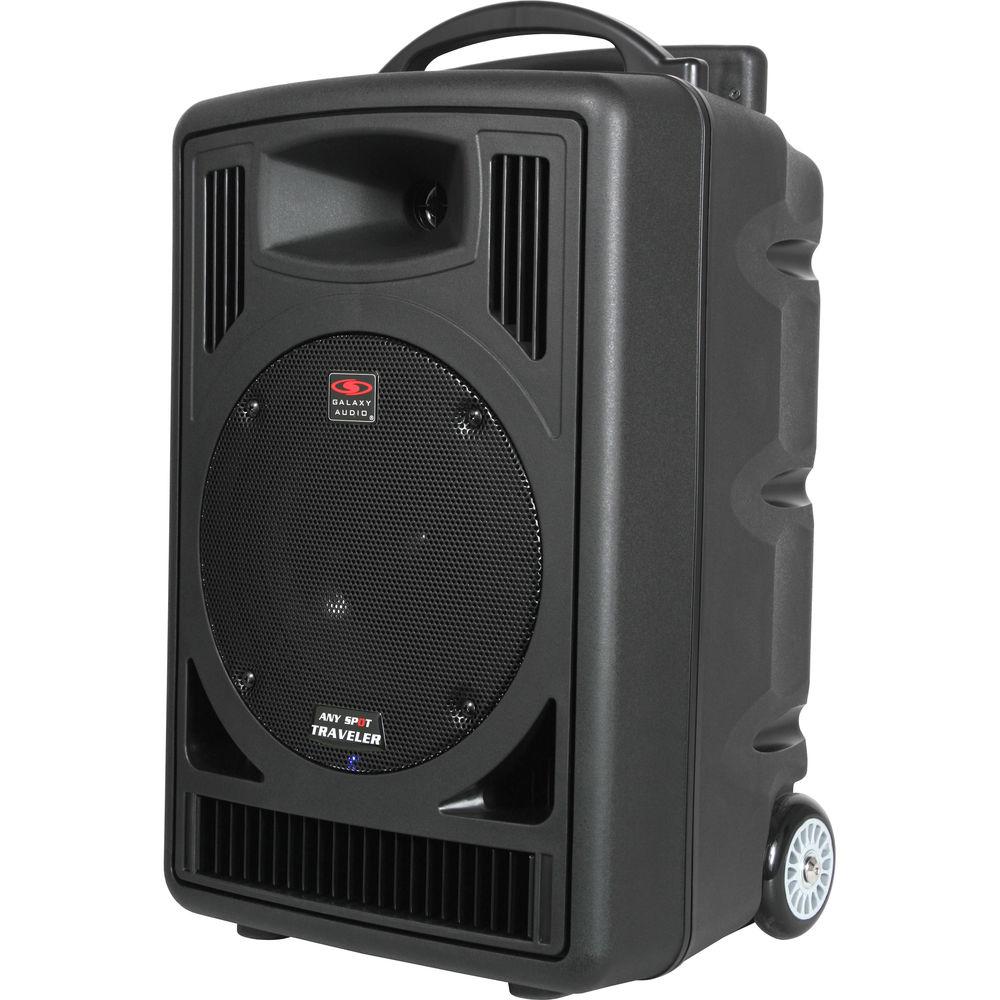

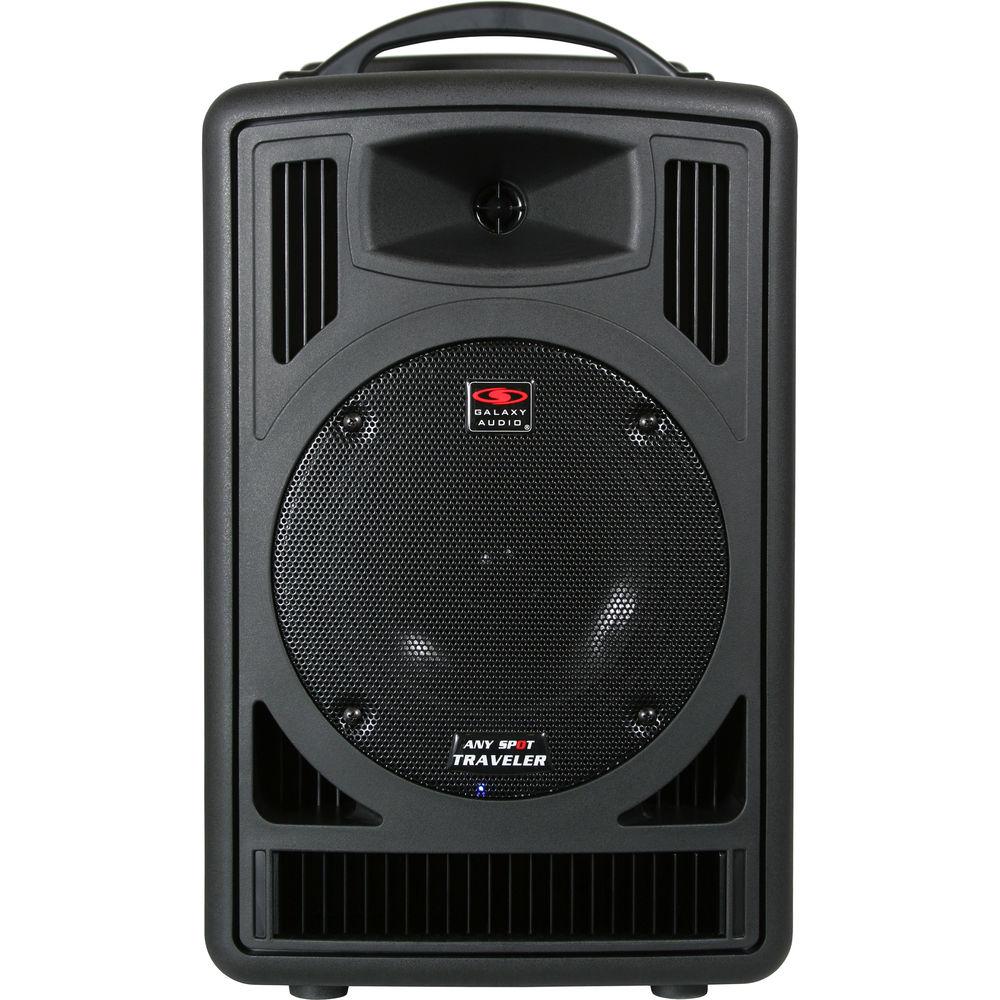

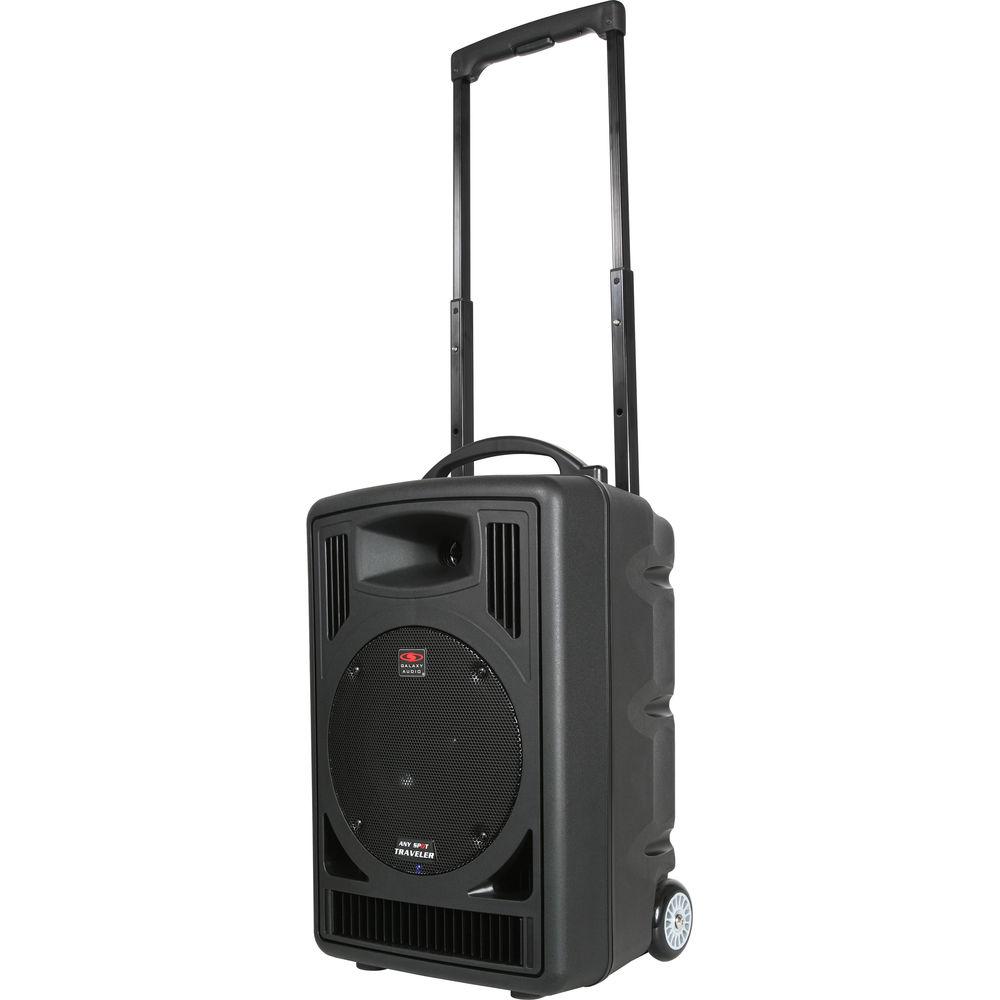

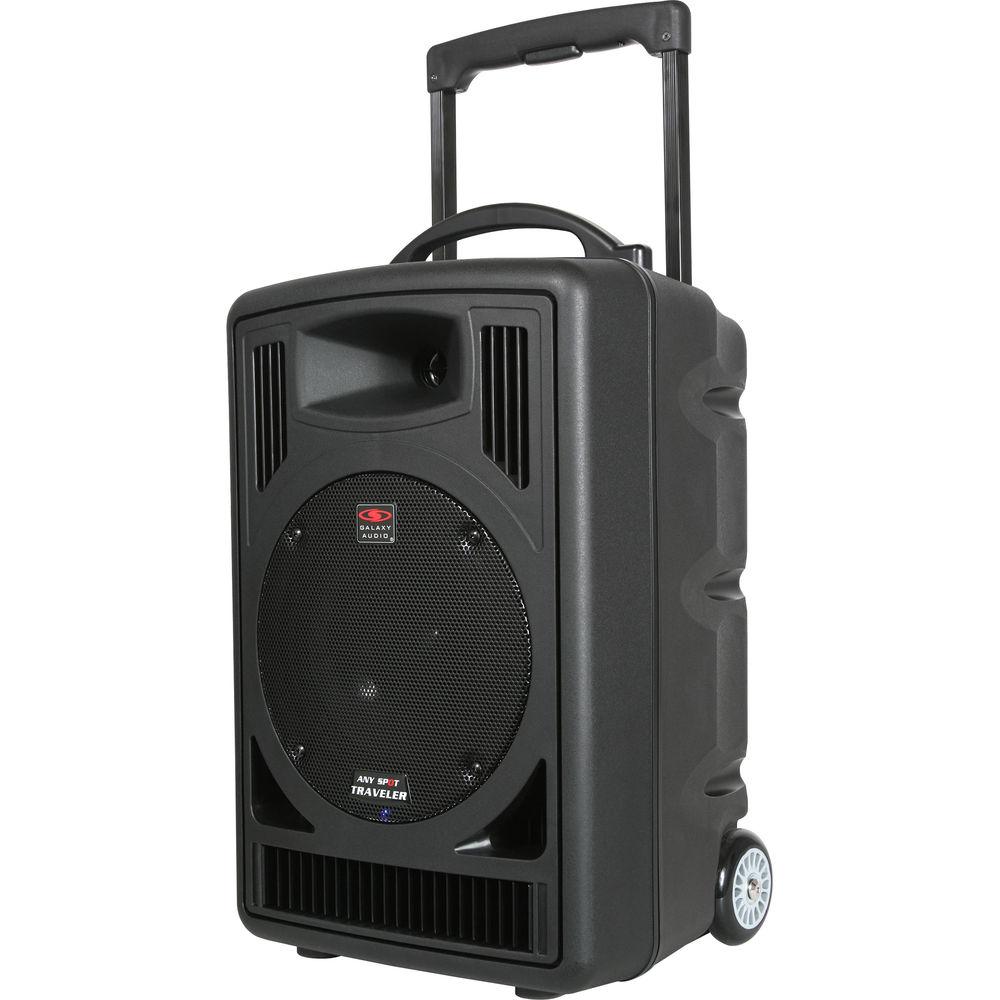

User Manual for Galaxy Audio TV8 Traveler Series 8" 2-Way 120W Portable All-In-One Bluetooth-Enabled PA System Click to enlarge the picture
Contents of the user manual for the Galaxy Audio TV8 Traveler Series 8"
- Product category: Portable PA Systems Galaxy Audio
- Brand: Galaxy Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Galaxy Audio Portable PA Systems
 |
User manual for the Galaxy Audio TV8 Traveler Series 8" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Galaxy Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Galaxy Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Galaxy Audio product will considerably shorten its lifespan!
|

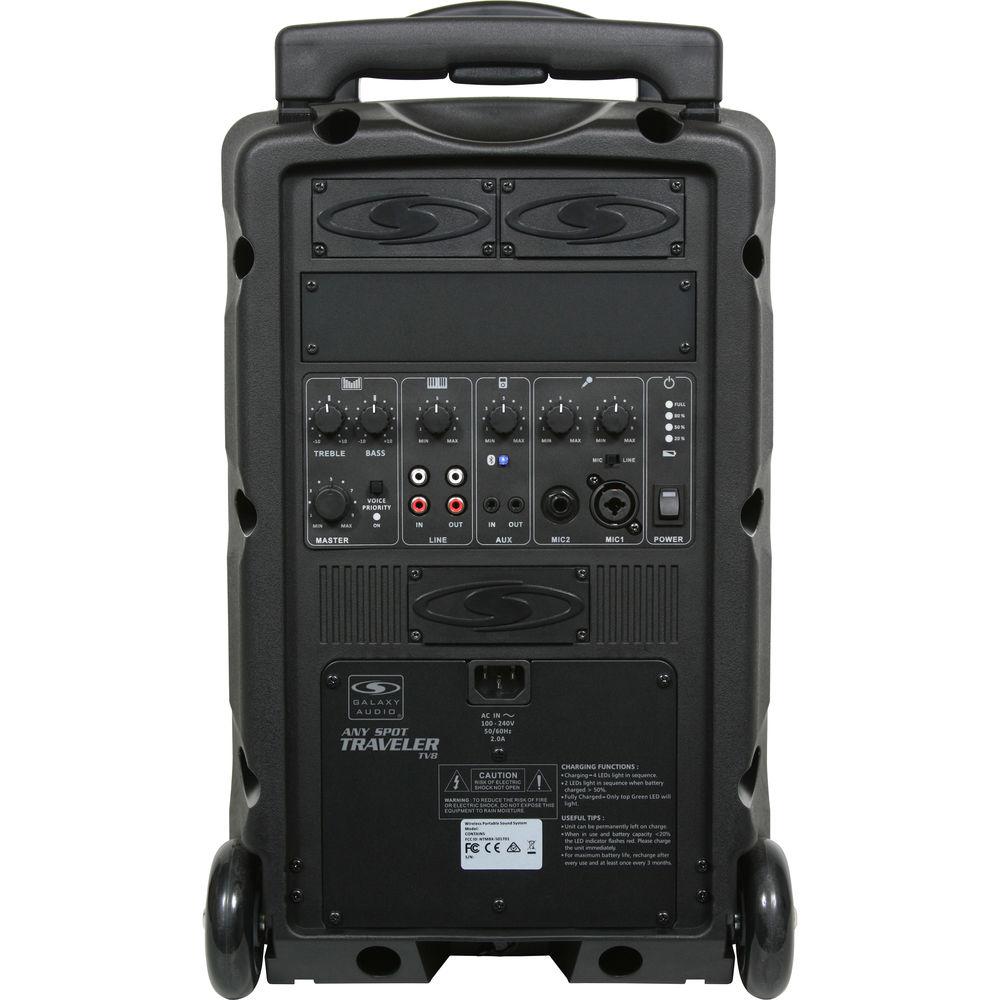

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Galaxy Audio TV8 is a Traveler Series portable all-in-one, Bluetooth-enabled PA system designed to provide compact and versatile sound reinforcement for DJs, announcers, presenters, and hosts at clubs, meetings, parties, and special events. Its 2-way 120W configuration utilizes an 8” woofer and a 1” tweeter and delivers coverage for up to 600 people.Connect wired microphones and instruments to the XLR and 1/4" jacks and hook up music playback devices such as CD players or MP3 players to the stereo RCA and 3.5mm ports. Stream music wirelessly from a smartphone, tablet, or laptop via the integrated Bluetooth receiver. The built-in mixer offers adjustable volume per input, 2-band EQ, and a master volume control. Stereo RCA and 3.5mm outputs can be used to record the mix or route it to a larger mixer. A selectable voice priority function allows incoming microphone signal to attenuate the music level, which is ideal for ensuring that announcements will not be overpowered by the music.The TV8 features an integrated carry handle, retractable luggage handle, and rolling wheels for easy transport. It can be powered via AC or the built-in rechargeable batteries. - Powerful Sound Reinforcement
-
- 8" woofer
- 1" tweeter
- High-power amplifier (80W RMS, 120W peak)
- Coverage capacity of up to 600 people
- Flexible Inputs
-
- XLR-1/4" combo jack input for a microphone or instrument
- 1/4" input for a mic/line signal
- Stereo RCA coaxial input and 3.5mm stereo mini-jack
- Built-in Bluetooth for wirelessly streaming music from a smartphone, tablet, or laptop
- Voice Priority
-
- A selectable voice priority function automatically reduces the volume of the media player, Bluetooth, and line level input when receiving a transmission from a wireless or wired handheld microphone, allowing announcements to be made without being overpowered by music
- AC or Battery Powered
-
- Operate for an unlimited time on AC power or for about 7.5 to 16 hours on battery power
- Approximately 6 to 8 hours to fully recharge the built-in batteries
- Operation while recharging will not affect the charge time
- If a power failure occurs while operating on AC power, the TV8 will seamlessly switch to battery power
- Add Modules for Expanded Functionality
-
- Easily add or remove optional Function Modules via the "plug-in" modular design
- Optional modules include wireless mic receivers, a media player, and an Audio Link Module, which wirelessly transmits the entire audio mix from one Traveler to any number of satellite Travelers
- All optional modules are internally wired and require no external patching
- Simple Transport
-

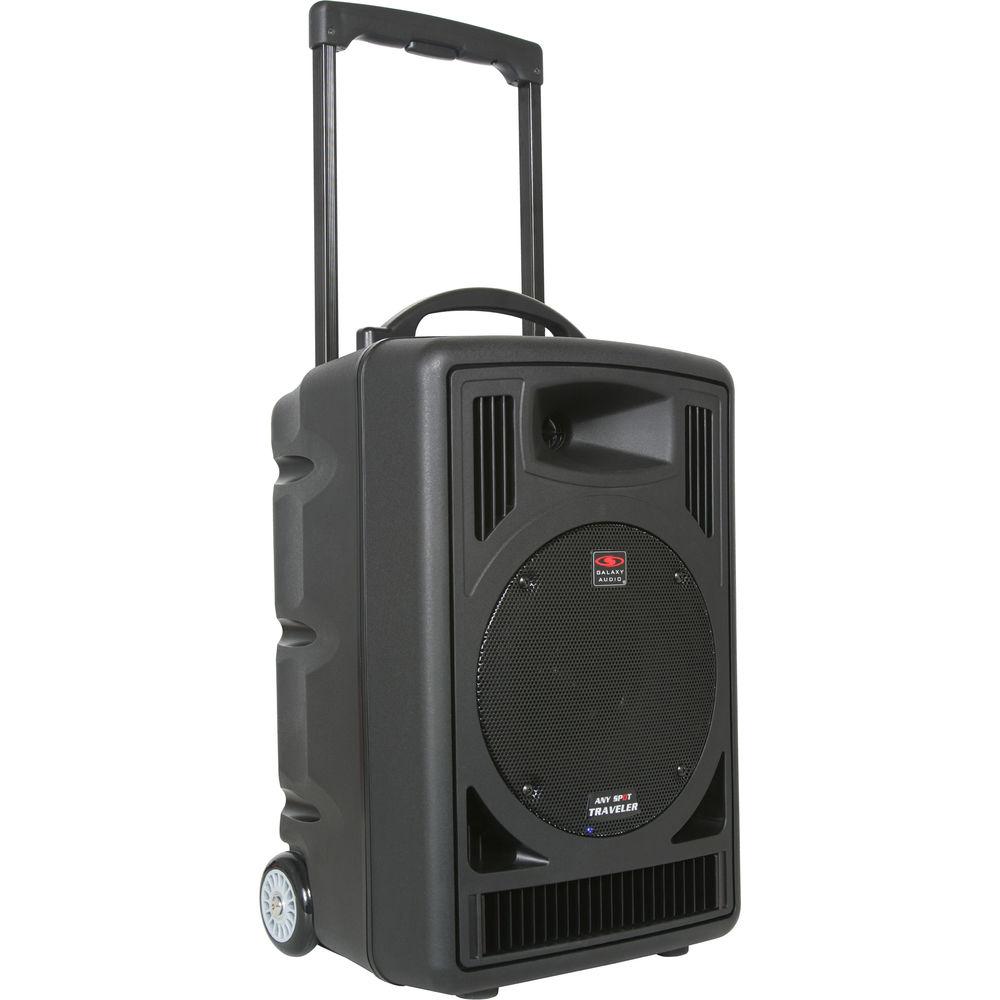

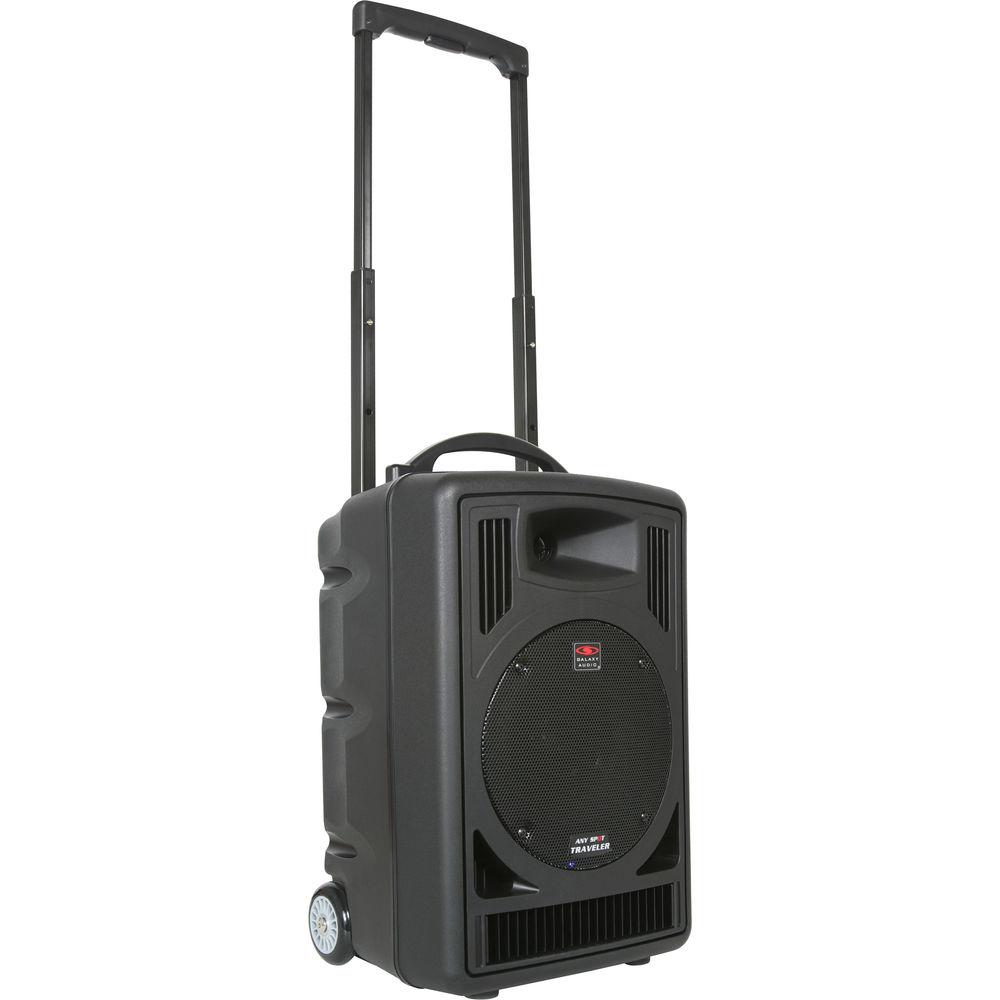

- Durable ABS enclosure with a carry handle, retractable handle, and rolling wheels

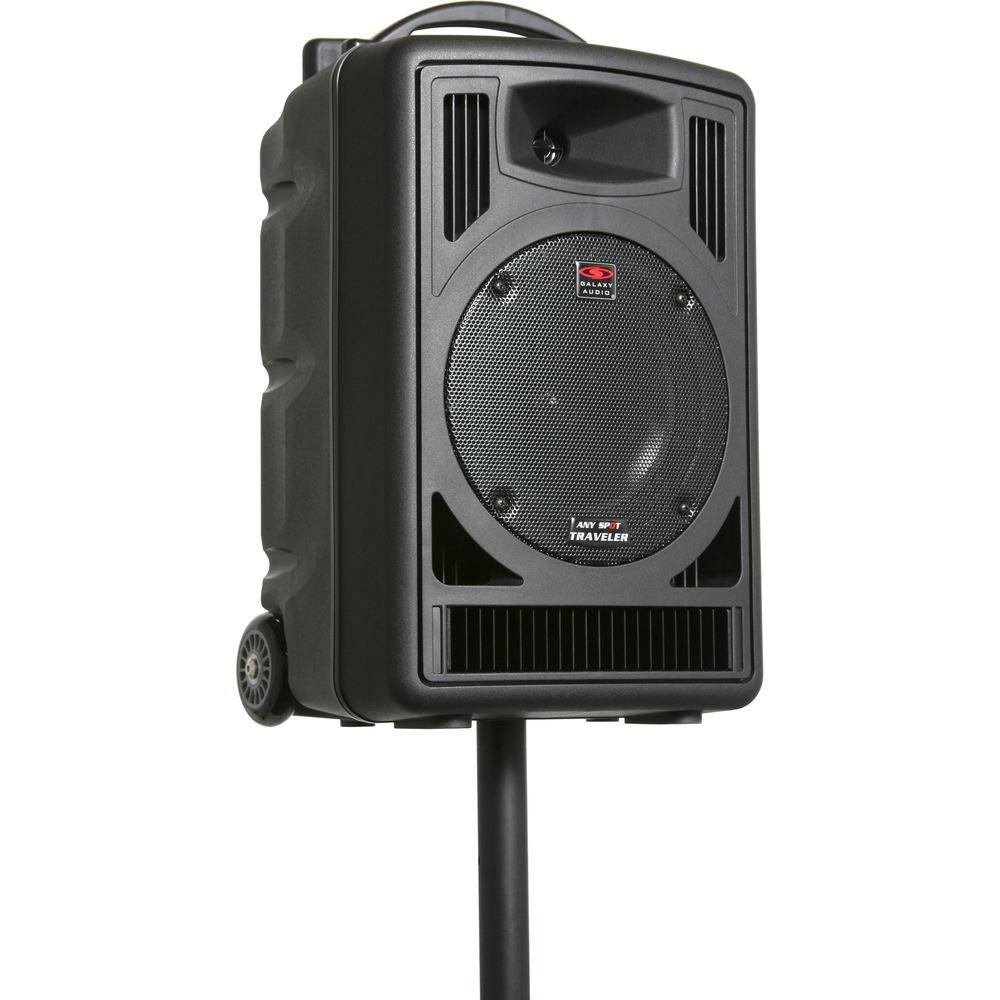

- Supports standard pole mounting
UPC: 691281800733 In the Box Galaxy Audio TV8 Traveler Series 8" 2-Way 120W Portable All-In-One Bluetooth-Enabled PA System Power Cable Limited 3-Year Warranty on System Limited 90-Day Warranty on Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the Galaxy Audio TV8 Traveler Series 8" 2-Way 120W Portable All-In-One Bluetooth-Enabled PA System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGalaxy Audio TV8-00000000 Specs | Speakers | 8" / 203 mm woofer
1" / 25 mm tweeter | | Power Output | 80 W (RMS) @ 4 Ohms
120 W (peak) @ 4 Ohms | | Maximum SPL | 112 dB | | Frequency Response | 70 Hz to 20 kHz | | Inputs | 1 x XLR-1/4" combo jack
1 x 1/4" microphone/line input
2 x RCA coaxial (L/R pair)
1 x 1/8" (3.5 mm) stereo mini-jack | | Outputs | 2 x RCA coaxial (L/R pair)
1 x 1/8" (3.5 mm) stereo mini-jack | | Bluetooth | Built-in receiver
Range: ≤30' / 9.1 m | | Wireless Range | 200' / 60 m (UHF wireless operating distance under optimum conditions) | | Signal to Noise Ratio | 70 dB | | Sensitivity | 92 dB, 1 W @ 1 m | | Mounting Compatibility | 1-3/8" / 35 mm speaker stand | | Battery | 2 x 12 V, 2.9 Ah lead-acid rechargeable batteries | | Battery Charging Time | 6 to 8 hours | | Battery Run Time | Approximately 7.5 to 16 hours (depending on program) | | Power Requirement | 100 to 240 VAC, 50/60 Hz | | Construction Material | ABS plastic | | Dimensions (D x W x H) | 10.4 x 11.9 x 20.1" / 264 x 301 x 511 mm | | Weight | 35 lb / 15.9 kg |
