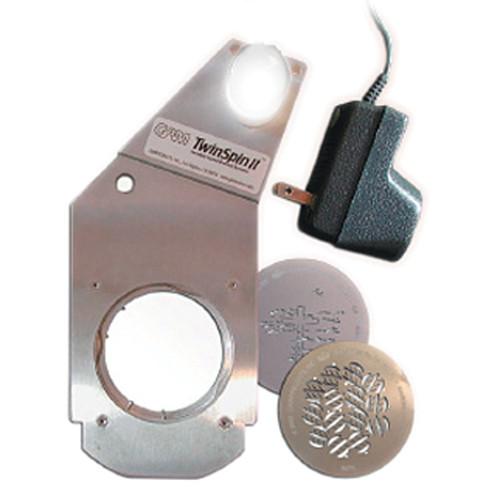

User Manual for Gam TwinSpin Inline Speed Dual Pattern Rotator Click to enlarge the picture
Contents of the user manual for the Gam TwinSpin Inline Speed Dual Pattern
- Product category: Accessories for Gobos & Patterns Gam
- Brand: Gam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gam Accessories for Gobos & Patterns
|
User manual for the Gam TwinSpin Inline Speed Dual Pattern contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gam product will considerably shorten its lifespan!
|
Product description The 230V TwinSpin Inline Speed Dual Pattern Rotator from GAM PRODUCTS uses silent drive belts to rotate 2 patterns in opposite directions. It is designed for use in ellipsoidal spotlights for projected effects, using 'B' size patterns.A low voltage motor is mounted on vibration pads, which minimize noise transmission to 20 gauge stainless steel plates. The motor is offset away from the hot air flow and drives 2 special hi-temp belts to quietly rotate 2 gobo rings in opposite directions. The gobo rings have a groove to receive drive belts around the edges, and a machined recessed groove to hold the gobo pattern and spring steel retaining the ring in place. Teflon glides are placed between the gobo rings and an outer housing to ensure a quiet and smooth operation. The motor is powered by a UL approved power transformer. The unit may be programmed from a standard light board and controlled as a part of a light cue. In the Box Gam TwinSpin Inline Speed Dual Pattern Rotator (230V) Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gam TwinSpin Inline Speed Dual Pattern Rotator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGam TwinSpin Specs | Power | 230 VAC, 12 VDC motor, draws 300 mA | | Connector | 2-pin European | | Cable | 18 AWG | | Speed | Ring Speed:
Slow: 0.3 to 3.0 rpm
Fast: 0.9 to 9.0 rpm | | Pattern | Use 'B' size, 3.38" (8.57 cm) | | Cable Length | 6.00' (1.83 m) | | Dimensions (W x H x D) | 5.75 x 10.88 x 3.63" (14.61 x 27.62 x 9.21 cm) | | Weight | Unit: 1.50 lb (0.68 kg)
With Plug: 2.20 lb (1.00 kg) |
