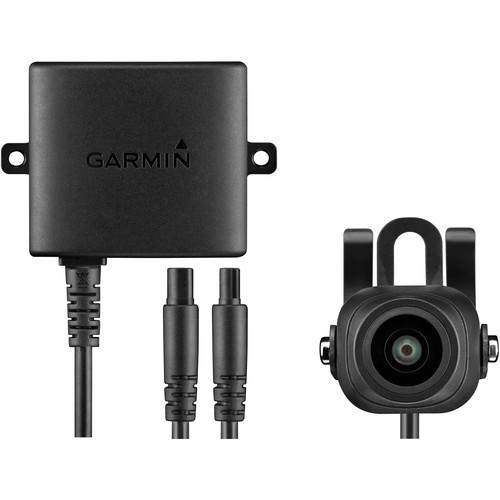

User Manual for Garmin Additional Camera and Transmitter for BC 30 System Click to enlarge the picture
Contents of the user manual for the Garmin Additional Camera and Transmitter for
- Product category: Back-Up Cameras Garmin
- Brand: Garmin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Garmin Back-Up Cameras
|
User manual for the Garmin Additional Camera and Transmitter for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Garmin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Garmin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Garmin product will considerably shorten its lifespan!
|
Product description Monitor more of your vehicle's blind spots by expanding your BC 30 Wireless Backup Camera System with an Additional Camera and Transmitter from Garmin. Connect the additional camera to your GPS receiving device for toggling between navigation maps and up to four cameras. An IPX7-rated housing provides water-resistance, enabling you to use the device in harsh weather. The package also includes a camera mount for easy installation. Note: A power cable is required for each individual camera and is sold separately. UPC: 753759137915 In the Box Garmin Additional Camera and Transmitter for BC 30 System Camera with Mounting Bracket Wireless Transmitter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Garmin Additional Camera and Transmitter for BC 30 System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGarmin 010-12242-20 Specs | Image Sensor | 1/3" 7-type color CMOS | | Resolution | 640 x 480 | | Viewing Angle | Vertical: 115°
Horizontal: 140° | | Wireless Transmission | Type: 2.4 GHz ISM radio band
Range: 45 ft. (13.5 m) | | Power | Requirement: 9 to 28 VDC
Consumption: 150 mA at 12 VDC | | Weatherproofing | IPX7, submersible to 3.3' (1 m) for 30 min | | Operating Temperature | Camera: -40 to 185°F (-40 to 85°C)
Transmitter and mount: -4 to 158°F (-20 to 70°C) | | Compatibility | BC 30 Wireless Backup Camera | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.59 lb | | Box Dimensions (LxWxH) | 7.15 x 4.15 x 2.35" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 18 owners. Add your rating and experience with the product.
