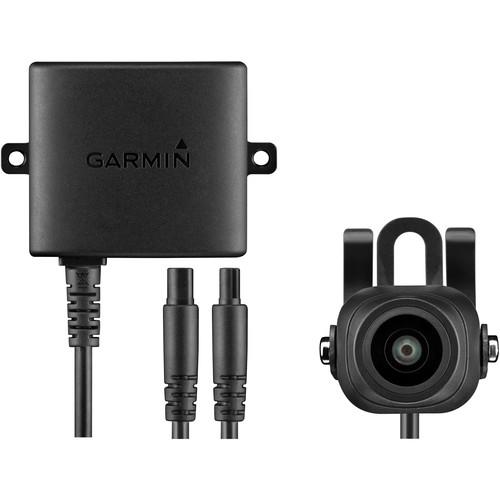

User Manual for Garmin BC 30 Wireless Backup Camera with Car Adapter Power Cable Click to enlarge the picture
Contents of the user manual for the Garmin BC 30 Wireless Backup Camera
- Product category: Back-Up Cameras Garmin
- Brand: Garmin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Garmin Back-Up Cameras
|
User manual for the Garmin BC 30 Wireless Backup Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Garmin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Garmin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Garmin product will considerably shorten its lifespan!
|
Product description The BC 30 Wireless Backup Camera from Garmin can be used with compatible GPS units to add another layer of safety while driving. Using a 1/3" color CMOS image sensor to capture 640x480 video, the camera is connected to a wireless transmitter mounted inside the vehicle and has a range of up to 45 feet. The camera can be attached to your license plate, bumper, or anyplace on the rear of your vehicle and through the transmitter's connection will display the imaging on the connected receiver GPS Unit. When the camera is wired to your reverse lights for power, you can set the navigation unit to automatically display the camera view every time the vehicle shifts into reverse, and toggle back to navigation when taken out of reverse. For constant connection, the GPS receiver unit must be powered by the included car adapter receiver cable for communicating with the camera. IPX7 rated, the camera and transmitter are submersible up to 3.3' for up to 30 minutes, allowing them to be used during all types of weather. - Compatibility
-
- dezl 570LMT, dezl 770 LMTHD, dezlCam LMTHD
- nuvi 2457LMT, nuvi 2497LMT, nuvi 2539LMT, nuvi 2557LMT, nuvi 3669LMTHD, nuvi 2559LMT, nuvi 2577LT, nuvi 2589LMT, nuvi 2597LMT, nuvi 2598LMTHD, nuvi 2599LMTHD, nuvi 2639LMT, nuvi 2689LMT, nuvi 2699LMTHD, nuvi 2789LMT, nuvi 55, nubi 55LM, nuvi 55LMT, nuvi 56, nuvi 56LM, nuvi 56LMT, nuvi 57, nuvi 57LM, nuvi 57LMT, nuvi 58, nuvi 58LM, nuvi 58LMT, nuvi 65LM, nuvi 65LMT, nuvi 66LM, nuvi 66LMT, nuvi 67LM, nuvi 67LMT, nuvi 68LM, nuvi 68LMT, nuviCam LMTHD
- RV 660LMT
UPC: 753759131395 In the Box Garmin BC 30 Wireless Backup Camera with Car Adapter Power Cable Camera Transmitter Car Adapter Receiver Cable Camera Mounting Bracket Limited One-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Garmin BC 30 Wireless Backup Camera with Car Adapter Power Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Garmin BC 30 Wireless Backup Camera with Car Adapter Power Cable can be downloaded in PDF format at the link stated below.
Technical parametersGarmin 010-12242-10 Specs | Image Sensor | 1/3" 7-type color CMOS | | Resolution | 640 x 480 | | Viewing Angle | Vertical: 115°
Horizontal: 140° | | Wireless Transmission | Type: 2.4 GHz ISM radio band
Range: 45 ft. (13.5 m) | | Power | Requirement: 9 to 28 VDC
Consumption: 150 mA at 12 VDC | | Weatherproofing | IPX7, submersible to 3.3' (1 m) for 30 min | | Operating Temperature | Camera: -40 to 185°F (-40 to 85°C)
Transmitter and mount: -4 to 158°F (-20 to 70°C) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 0.92 lb | | Box Dimensions (LxWxH) | 7.2 x 4.85 x 3.05" |
