Product description Garmin Announces the VIRB 360 Read More - Garmin VIRB 360: 4K Spherical Stabilization
- Garmin VIRB 360: Mountain Biking Bartlett Wash, Moab, UT

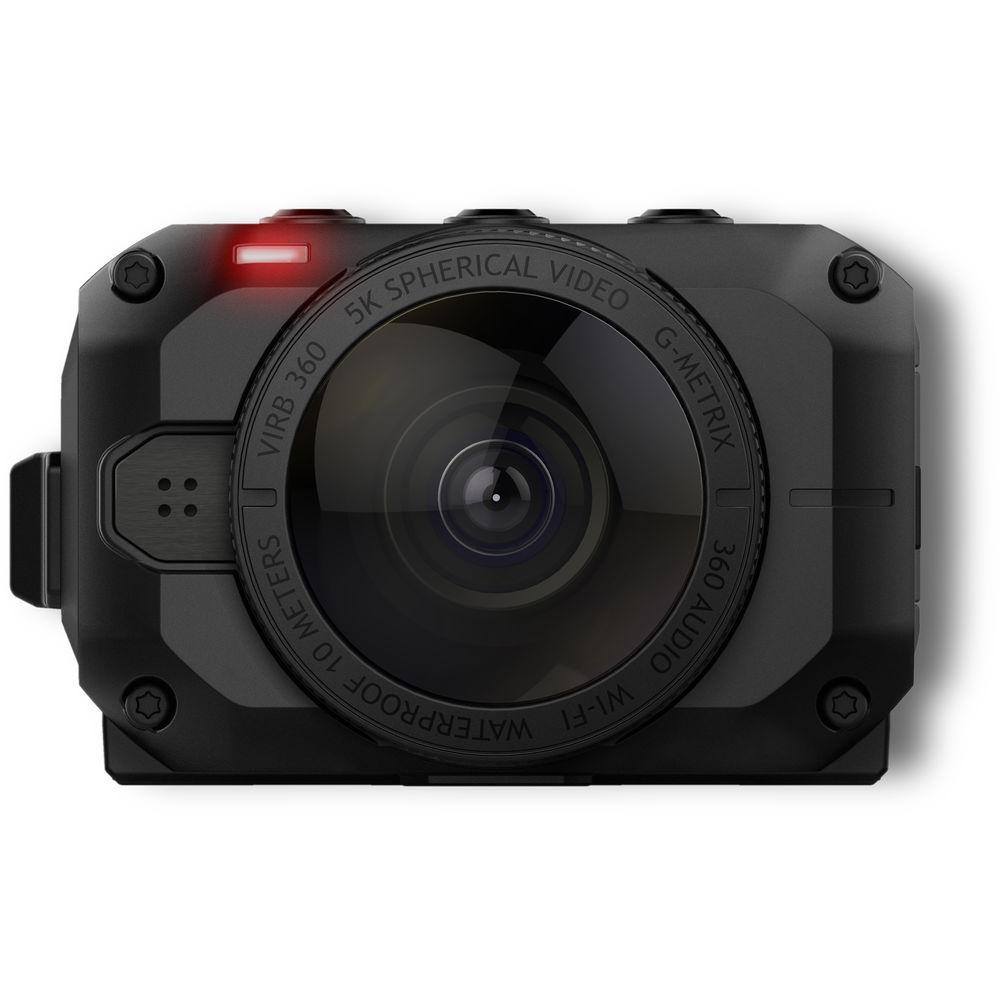

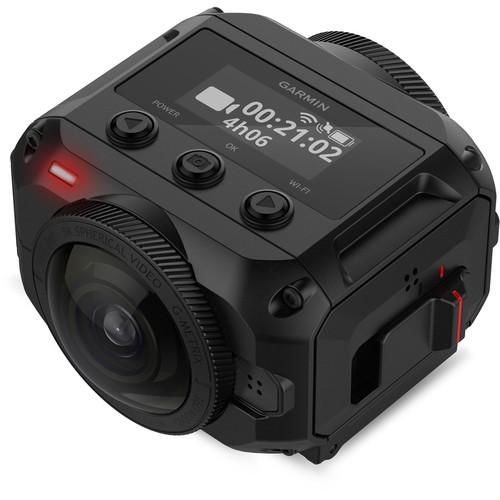

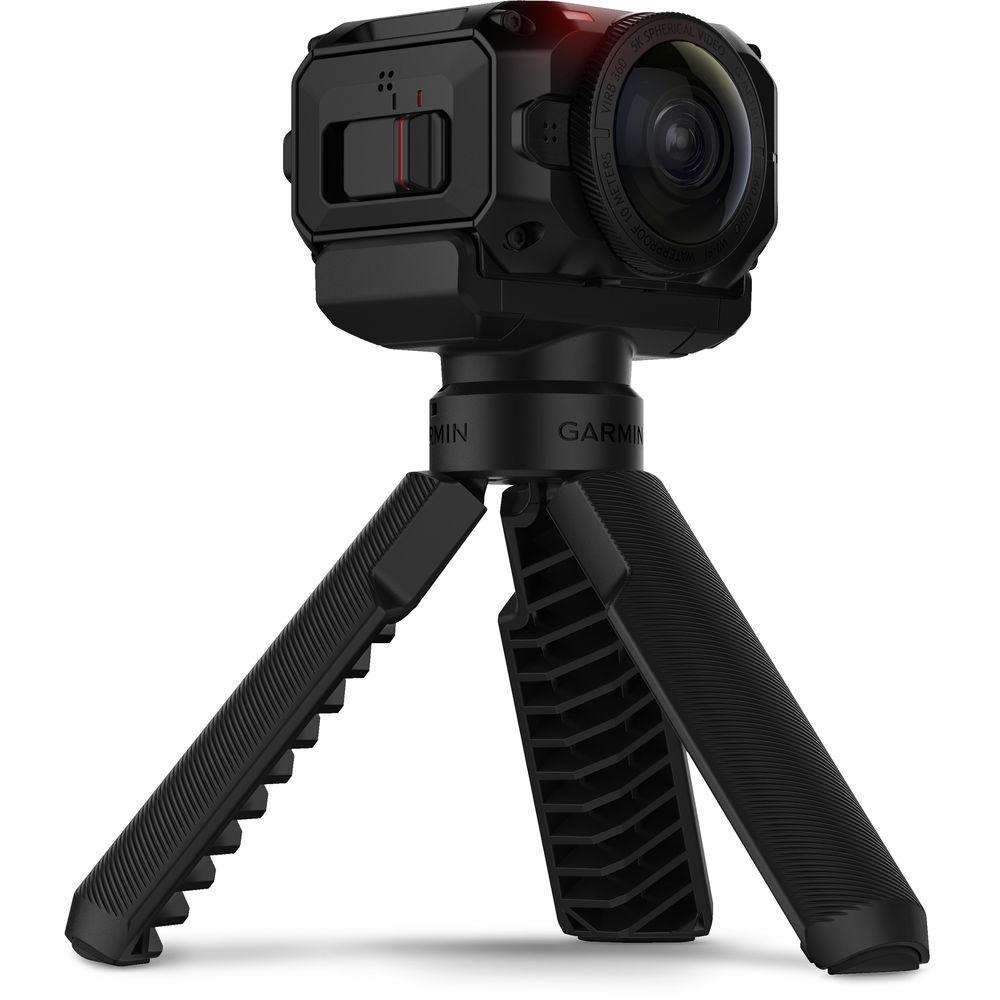

Secure the Garmin VIRB 360 Action Camera anywhere to capture or stream full 360° video. Two cameras with wide-angle lenses are contained within the body of the VIRB 360. Unstitched video can be captured in high-resolution 5.7K or 5K at 30fps as well as stitched, in-camera, for a 4K result. 5.7K video is generated by combining the 2880x2880 resolution of both camera feeds using the free desktop software. Practically speaking, your audience should always see a sharp image, regardless of where they're looking inside the video sphere. Audio from all directions is recorded using four microphones for a complementary spatial audio experience to the spherical video. Built-in barometer, accelerometer, gyroscope, and compass sensors as well as GPS and GLONASS positioning provide real-time data for the G-Metrix overlays. The free mobile and desktop VIRB applications can be used to offload, share, process, and even stabilize video recorded with the VIRB 360. Videos stitched in-camera can be streamed live with the VIRB applications on select Apple devices. While the apps offer deeper controls, operation of the camera itself is a simple affair. Use the top LCD to monitor key information, and when you're ready to roll simply press the record button, or just say so, using the voice command functionality. - Spherical Video
- Resolution up to 5.7K/30fps unstitched and 4K/30fps with in-camera stitching
- Spherical Audio
- 4 built-in microphones capture 360-degree spatial audio
- VIRB App
- Easy-to-use, free VIRB mobile app and desktop software let you edit, stabilize, add data overlays, and share videos
- Rugged Design
- Lightweight, waterproof to depths of 33', and shock-resistant: the VIRB 360 is ready to be mounted anywhere for capturing your adventures
- Simple Operation
- Start and stop recording with simple, one-touch buttons
- Live Streaming Capabilities
- Live streaming to YouTube or Facebook Live is available using a compatible smartphone or tablet
- G-Metrix
- Built-in sensors provide G-Metrix data overlays in 360-degree augmented reality
- Voice Control
- Use voice control to start and stop recording, take photos, and more, completely hands-free
- 360° Photos
- Up to 15-megapixel resolution provides high-quality spherical photos

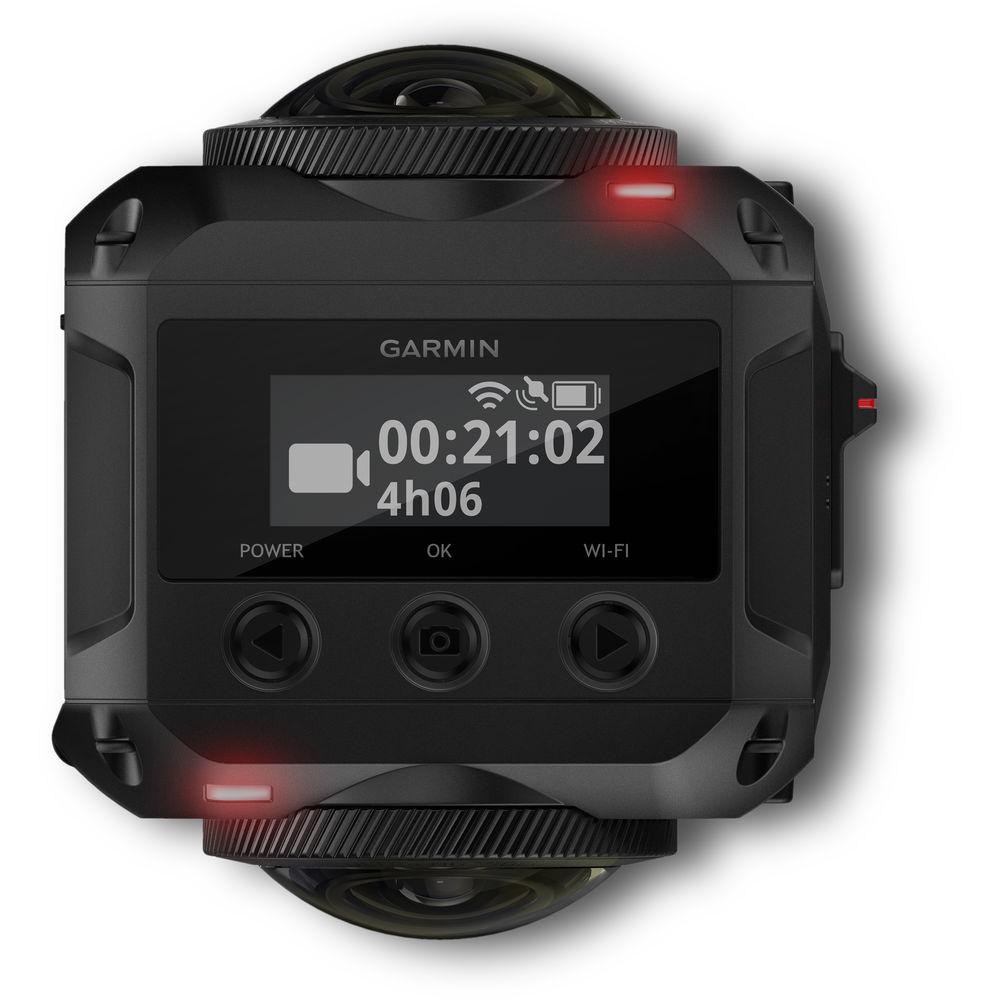

- Built-In Display
- Sunlight-readable display shows battery, storage, mode, and connectivity status at a glance

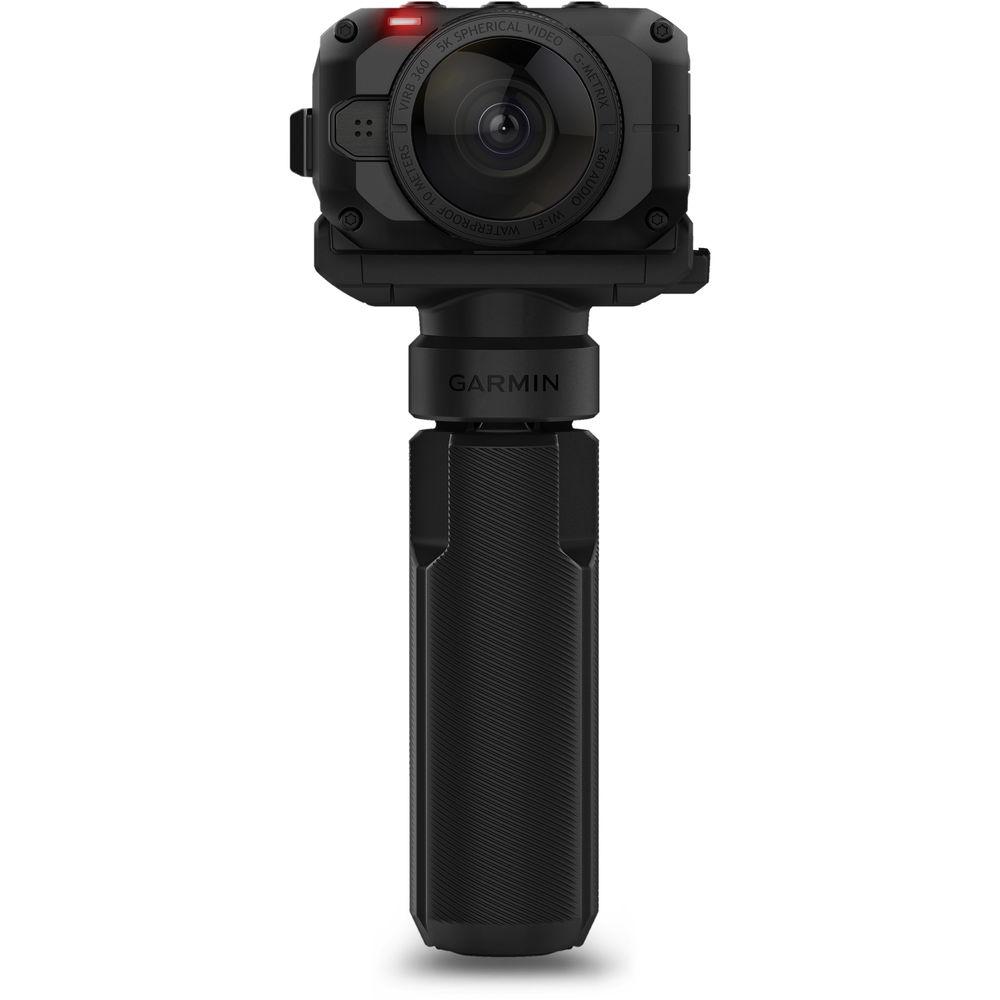

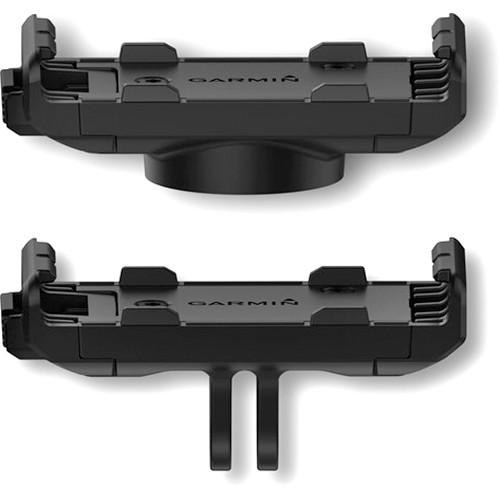

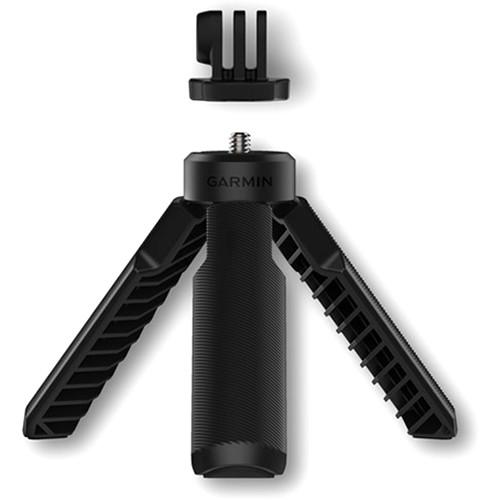

UPC: 753759180256 In the Box Garmin VIRB 360 Action Camera Rechargeable Battery for VIRB 360 bvsvqbztzerxuqrddeusurvzbf Charging/Data Cable Tripod Cradle Action Cradle Tripod/Handgrip for VIRB 360 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Garmin VIRB 360 Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGarmin 360 Specs | Sensor | 2 x 12 Megapixel 1/2.3" backside-illuminated CMOS
Pixel Size: 1.55 μM
Electronic Shutter: 30-1/8000s | | Lens | Formula: 8 elements (each)
Unstitched FOV: 201.8°
Traditional 16:9 FOV: 141° horizontal
Depth of Focus: 40cm-∞
Focal Length: 1.036mm
35mm Full-Frame-Equivalent Focal Length: 6mm
Aperture: Fixed f/2 | | Video Resolution | Unstitched:
2880 x 2880 (5.7K) 30 fps, 120 Mbps (2 x 60 Mbps files)
2496 x 2496 (5K) 30 fps, 100 Mbps (2 x 50 Mbps files)
1760 x 1760 (3.5K) 60 fps, 100 Mbps (2 x 50 Mbps files)
Stitched Spherical:
3840 x 2160 (4K) 30 fps, 80 Mbps
Traditional 16:9:
1920 x 1080 (FHD) 120 fps, 50 Mbps
1920 x 1080 (FHD) 60 fps, 40 Mbps | | Video Format | MP4 (AVC/H.264 encoding) | | Photo Resolution | Unstitched:
2 x 9 Megapixel (3008 x 3000)
Stitched:
15 Megapixel (5640 x 2816)
Traditional Single Lens:
3 Megapixel (1920 x 1440) | | ISO Rating | Automatic: 100-1600
Manual: 100-6400 | | Audio | Format: 48 kHz, AAC, 4-channel ambisonic | | Water Rating | 1 ATM (33' / 10 m) | | Connectivity | Wi-Fi (802.11b/g/n), Bluetooth 4.0, NFC, ANT+ | | Sensors | Accelerometer, Barometer, Compass, Gyroscope, GPS/GLONASS | | Storage | microSD (up to 128 GB) UHS-1 class U3 or faster | | Display | 1.1" / 27 mm (diagonal) | | Battery Life | 1 hour (approx.) | | Dimensions | 1.5 x 2.3 x 2.75" / 39 x 59 x 70 mm | | Weight | 5.6 oz / 160 g (with battery) | | | | Package Weight | 1.045 lb | | Box Dimensions (LxWxH) | 4.05 x 4.0 x 4.0" |
