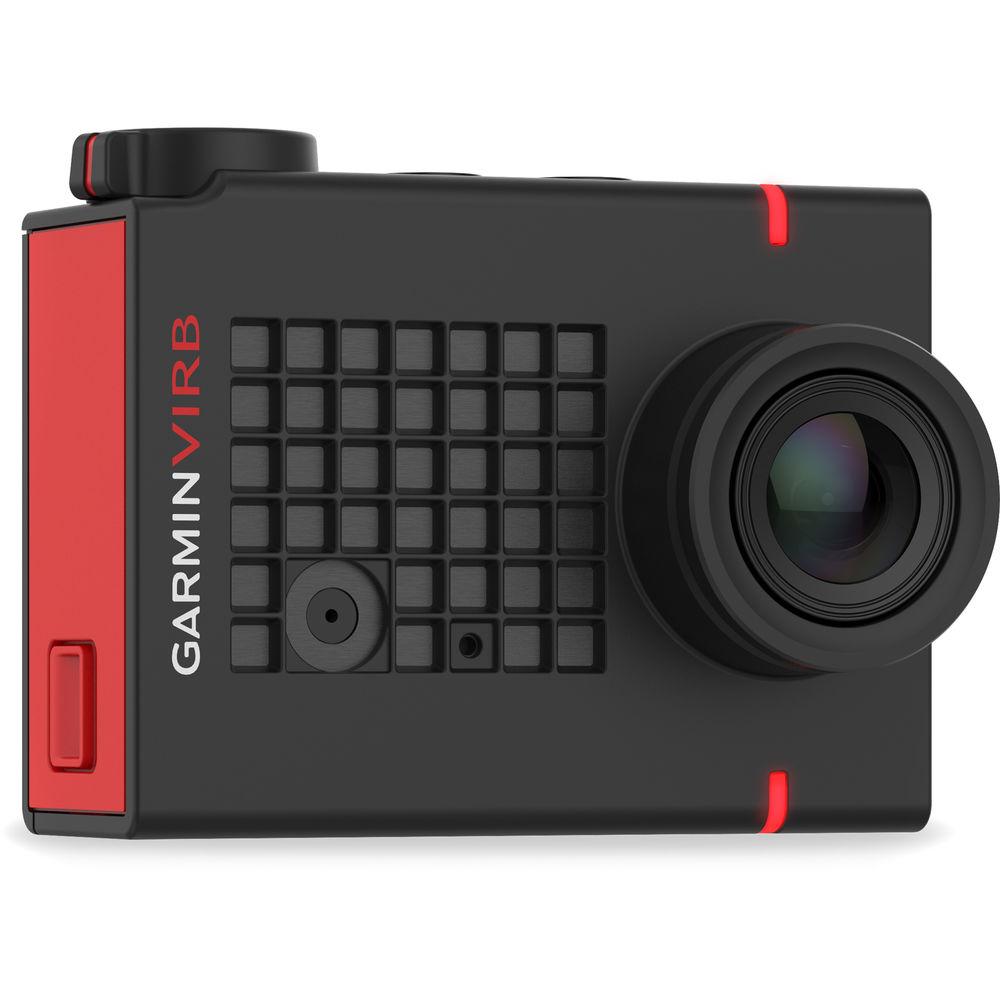

User Manual for Garmin VIRB Ultra 30 Action Camera Click to enlarge the picture
Contents of the user manual for the Garmin VIRB Ultra 30 Action Camera
- Product category: Sports & Action Cameras Garmin
- Brand: Garmin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Garmin Sports & Action Cameras
 |
User manual for the Garmin VIRB Ultra 30 Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Garmin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Garmin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Garmin product will considerably shorten its lifespan!
|

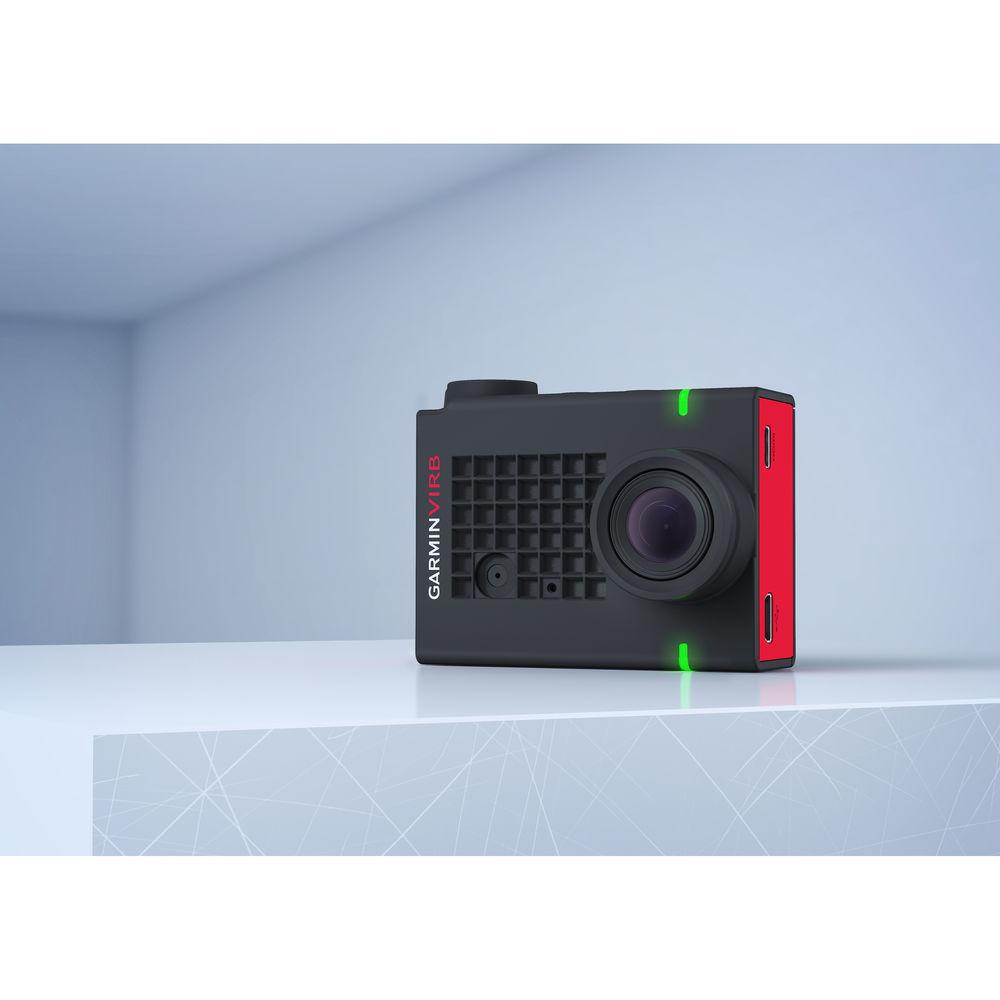

Product description With Ultra HD 4K resolution video at 30 fps, 3-axis video stabilization, voice control, GPS capture, 12MP photos with up to 60 fps burst frames, high-sensitivity mic, color touchscreen, live streaming to YouTube, 130' waterproof case, and easy-to-use one-touch operation, the VIRB Ultra 30 from Garmin is a cutting-edge action camera suitable for up to the most professional applications, and it's sleek and stylish to boot. Other video recording resolutions include 1080p at up to 120 fps and 720p at up to 240 fps.
Attach it to one of the many available support accessories, and command it what to do hands-free, such as "start recording" or "take a picture," or "remember that" to tag footage for later recall, and capture all your adventures. You can set your videos to automatically get stabilized in-camera using built-in electronic gyroscope stabilization, so that you don't have to apply stabilization in post-production to get smoother footage. And the built-in sensitive mic ensures that sound is recorded clear and not muffled -- and this is so whether the camera is in or out of the waterproof case. (Stabilization is applicable in Full HD 1080p60 resolution only.)

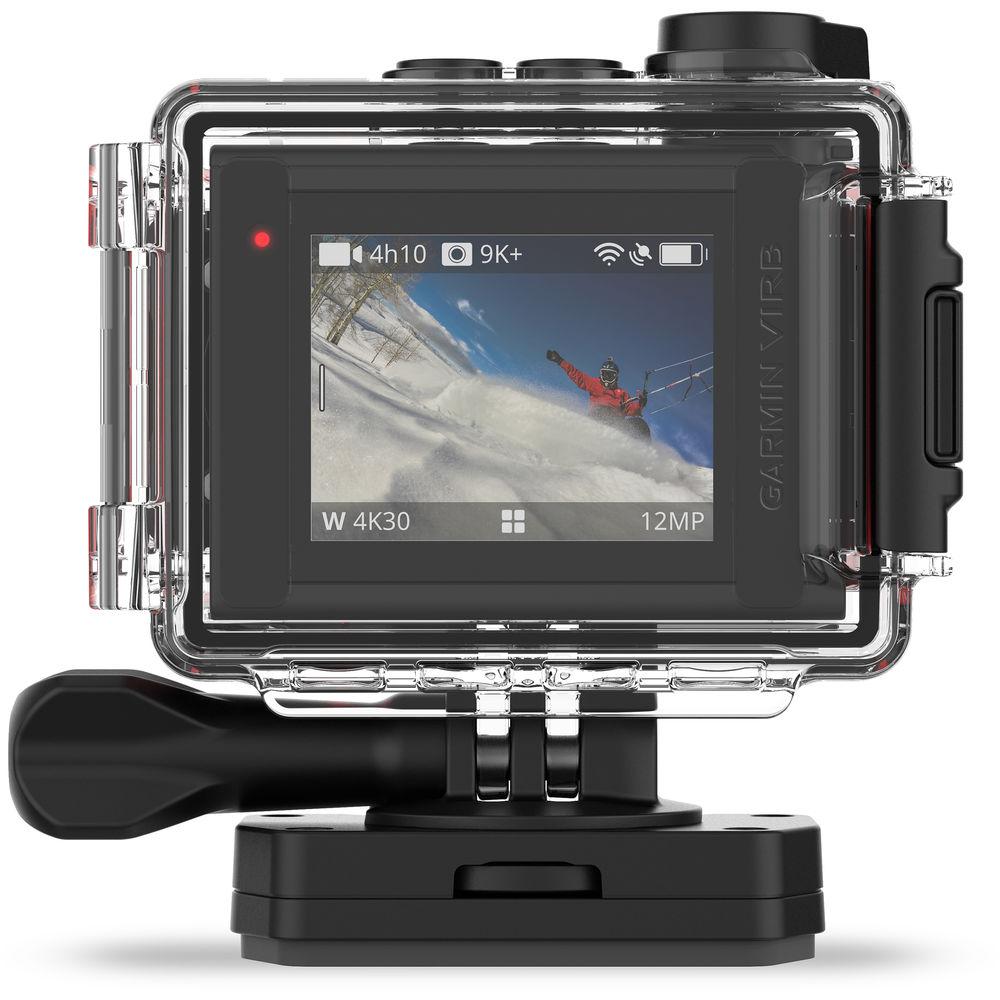

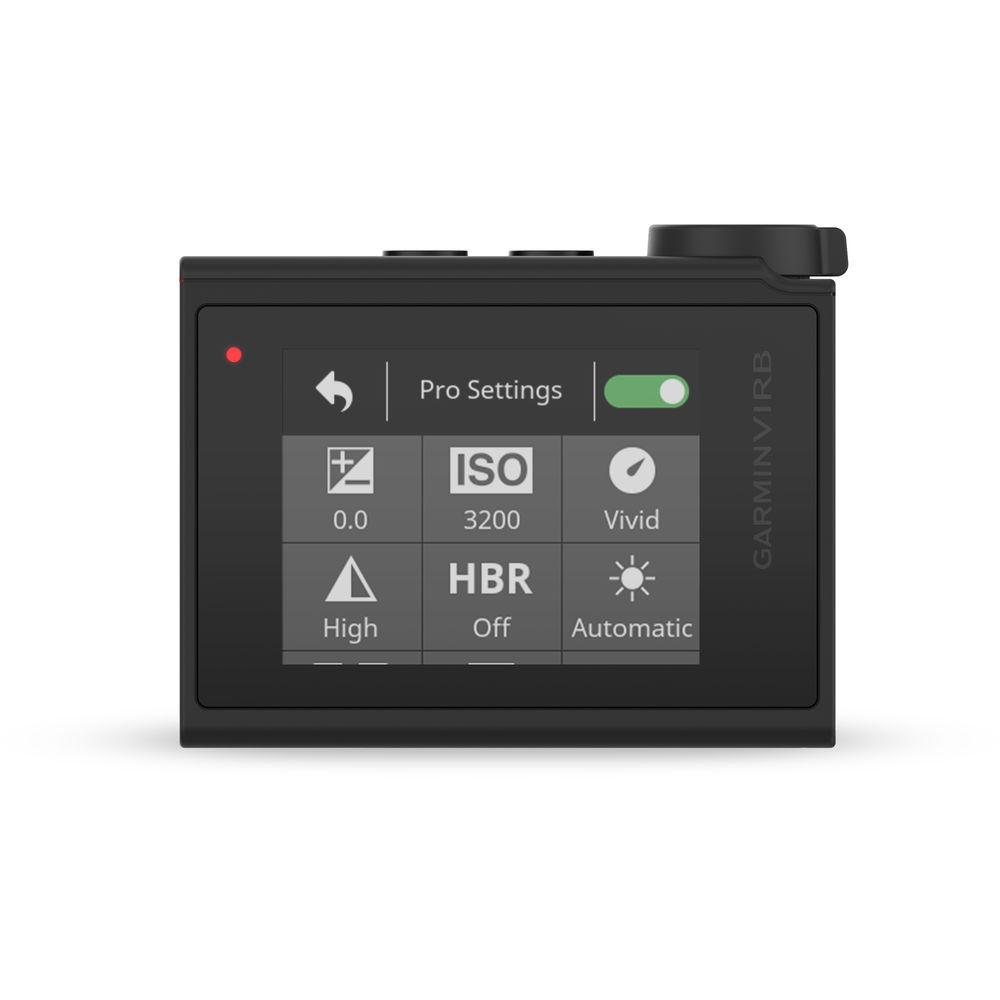

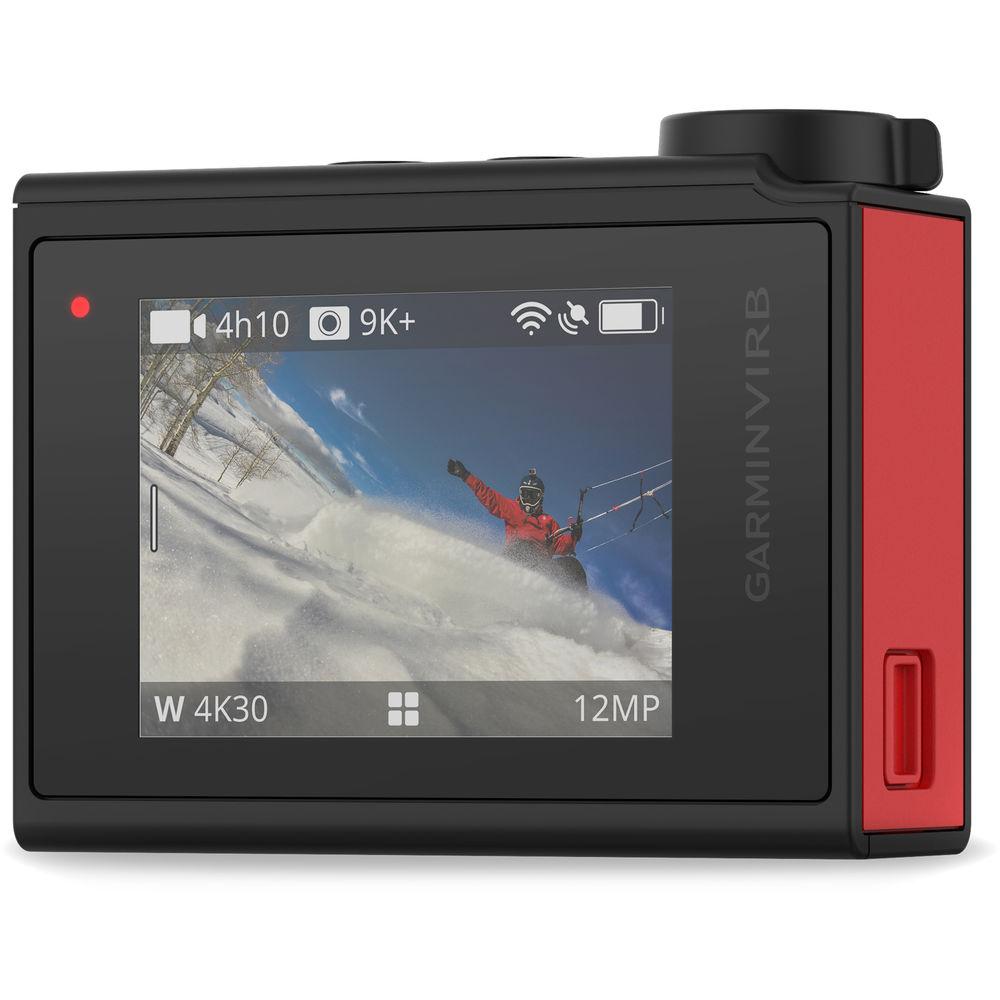

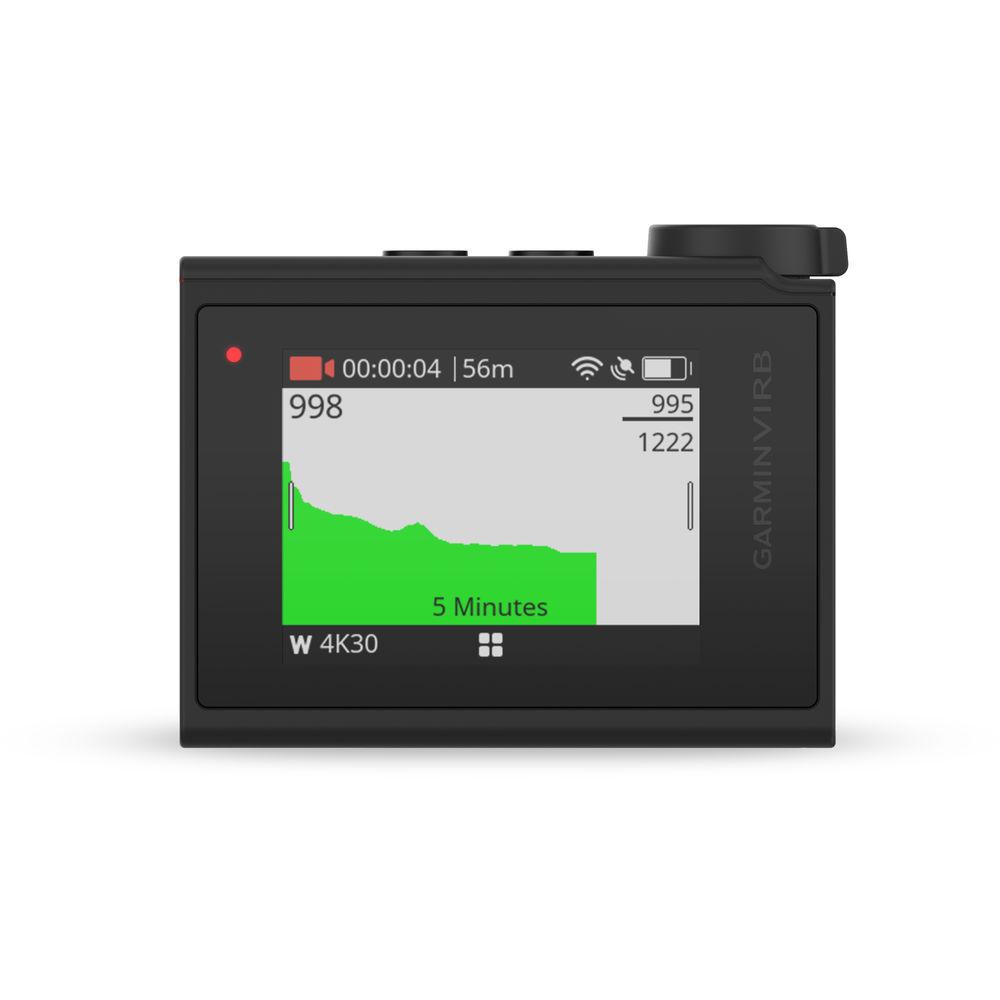

When you're setting up the camera, assigning desired frames rates and other factors, you'll find the touchscreen LCD very effective. For one thing, it works through the waterproof case, and second, it offers selections in large enough buttons that you'll find it very efficient to use.
When you're up there on that mountain, and want to document the height you reached, or how far you went, or how fast, just hit the GPS feature and the camera will take note of everything, of all the relevant performance data, which you can later use as proof. You can even overlay graphs and gauges over this data. Pair the VIRB Ultra 30 with the appropriate Garmin heart-rate monitor and you can even document your heart rate up on that mountain.

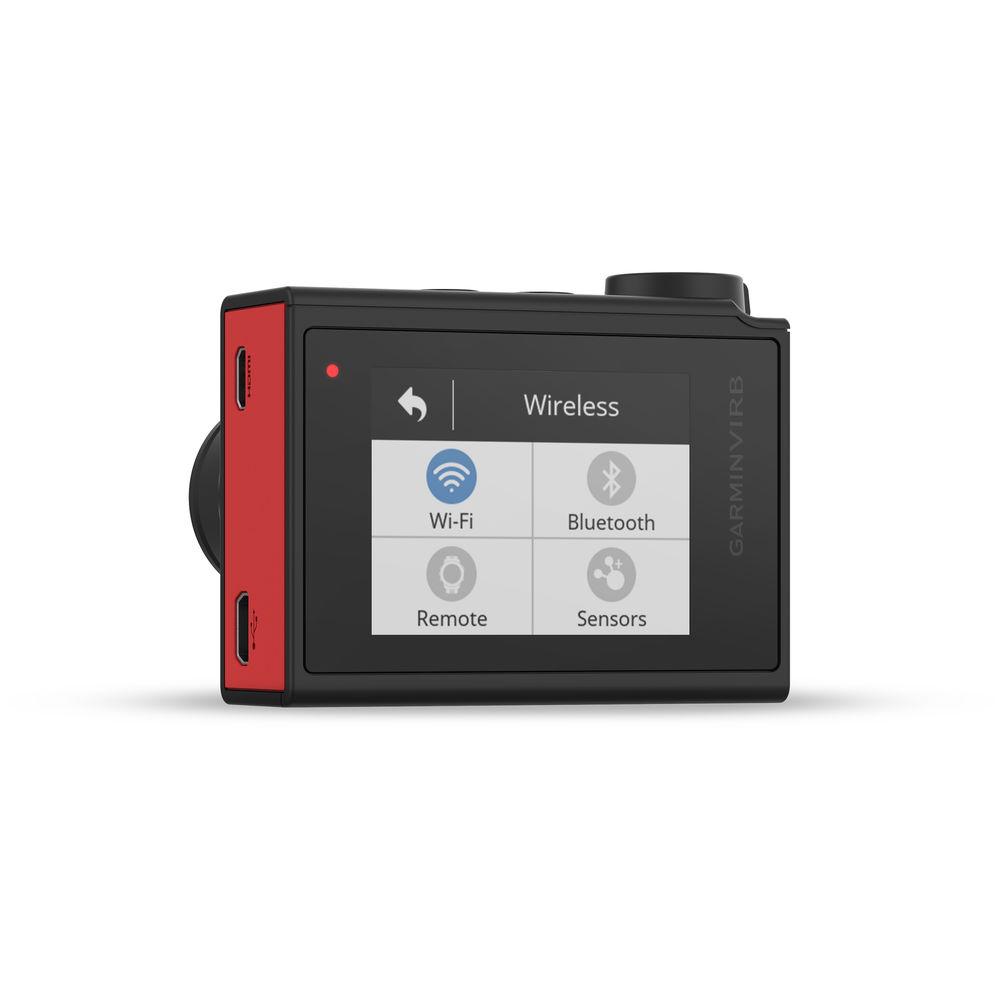

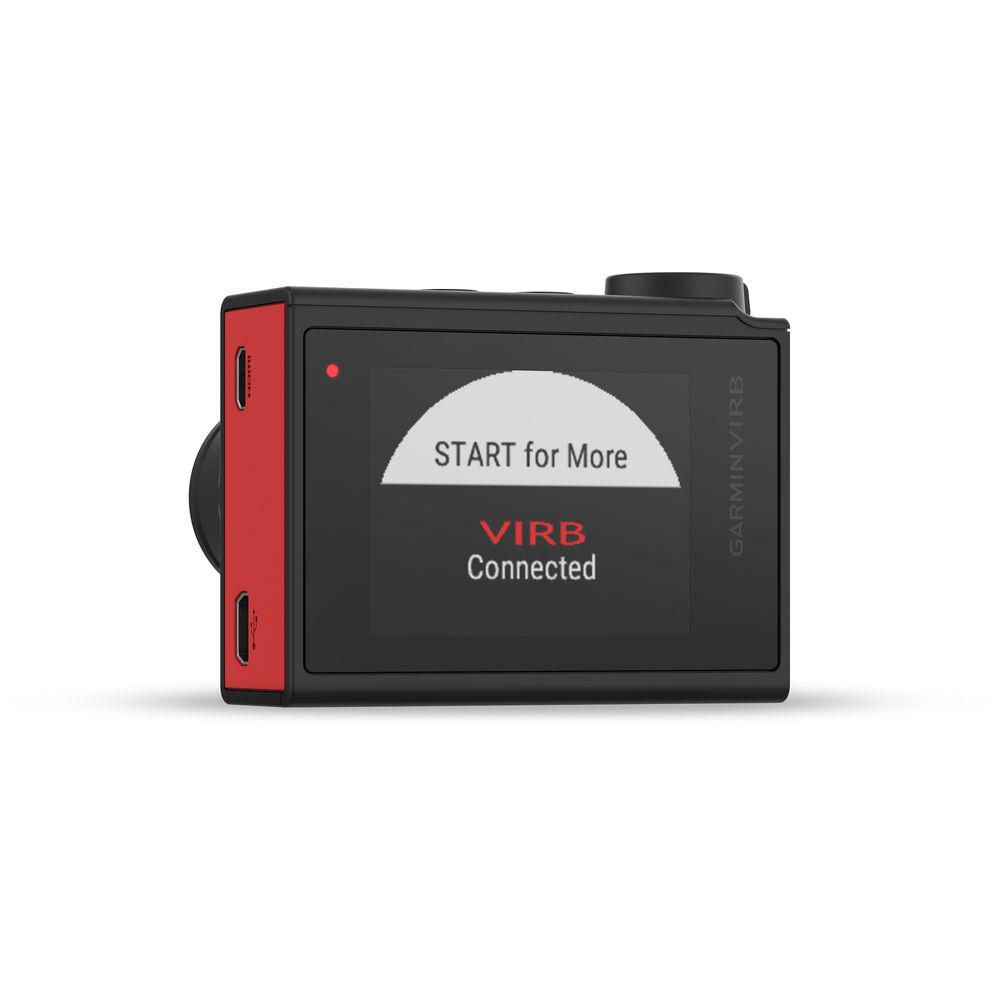

You also get a free VIRB Mobile App for iOS and Android that will let you control the camera remotely, set up shots, control multiple cameras, edit footage, and share your recordings in various ways, including live streaming to YouTube.

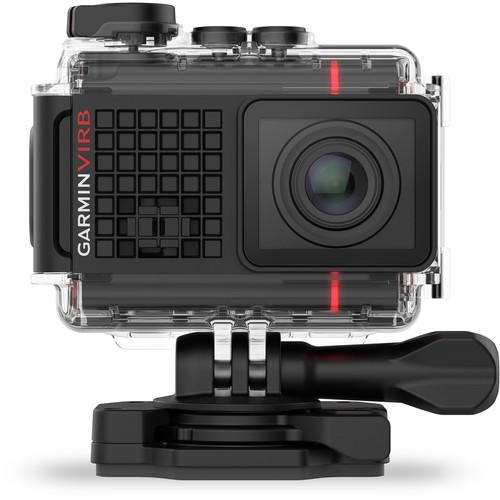

Included with the camera is a waterproof case, flat and curved adhesive mounts for attaching the camera to pretty much anything, standard 3-prong mount, and other accessories. Using the included battery, the camera runs for up to 75 minutes when recording 4K at 30 fps, and up to 135 minutes when recording 1080p30. It records everything to up to 128GB microSD cards. - Key Features
-
- 12MP 1/2.3" backside-illuminated CMOS sensor
- Capture up to UHD 4K at 30 fps, 2.7K at 60 fps, Full HD 1080p at 120 fps, 720p at 240 fps, and 480p at 300 fps
- 3-axis video stabilization using built-in electronic gyroscope
- High-sensitivity mic
- Voice control
- 6-element, all-glass, wide-angle lens with low distortion
- 12MP photos with up to 60 fps burst frames
- 130' waterproof housing
- Color touchscreen 1.75" LCD -- works through waterproof housing
- GPS capture
- Live streaming to YouTube from free iOS/Android app
- Supports up to 128GB microSD cards
- Time-lapse recording
- Lens Correction: Eliminate the slight image curvature in the wide angle setting (not for 4K)
- Light Boost: Automatically adjusts the recorded frames per second to the best level given lighting conditions
- Looping: Record video continuously while only saving the final specified duration (for Video and Expansive modes)
- Auto Pause: Record video only when moving
- Orientation: Automatically adjust recorded video to be right-side up regardless of camera orientation
- Gain Control AGC
- Internal Microphone Mono: Waterproof, rugged, exposed for sensitive audio capture
- External Microphone Stereo: 3.5mm connection (when using compatible cable, sold separately)
- White Balance: Adjust the color of the environment and scene
- Sharpness: Adjust the level of detail sharpness applied in-camera
- High Bit Rate: Adjust compression levels to reduce file size or increase picture quality; bit rate up to 60 Mb/s
- ISO Limit: Adjust maximum image brightness and image noise (grain) levels
-
UPC: 753759160975 In the Box Garmin VIRB Ultra 30 Action Camera Waterproof Case Lithium-Ion Battery Charging/Data Cable Anti-Fog Kit for VIRB Ultra 30 ycfxvvqazscazxuseswwzsrxefrzrur Flat Adhesive Mount Curved Adhesive Mount Standard Mount Adapter Vertical Mount Adapter Short Screw Long Screw Short Extension Arm Long Extension Arm Wrench Garmin VIRB Sticker Limited 1-Year Warranty Manual PDF 3.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Garmin VIRB Ultra 30 Action Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGarmin VIRB Ultra 30 Specs | | | Sensor | 1-Chip 1/2.3" CMOS | | Sensor Resolution | 12 MP | | | | Focal Length | 2.73mm | | Maximum Aperture | f/2.6 | | Lens Elements | 6 | | Minimum Focusing Distance | 19.7" / 50.0 cm | | Angle of View | 123° (Horizontal, in 4:3)
95° (Horizontal, in 4:3)
65° (Horizontal, in 4:3)
118° (Horizontal, in 16:9)
91.6° (Horizontal, in 16:9)
61.8° (Horizontal, in 16:9) | | | | Recording Media | 1 x microSD/HC/XC | | Recording Time | SD/SDHC/SDXC 13 GB
1920 x 1080 60 minutes | | Video Format | 3840 x 2160 at 24/25/30 fps (H.264)
2704 x 1524 at 24/25/30/48/50/60 fps (H.264)
2560 x 1440p at 24/25/30/48/50/60/72/80 fps (H.264)
1920 x 1080p (H.264)
1280 x 960p at 120/200 fps (H.264)
1280 x 720p at 24/25/30/50/60/120/200/240 fps (H.264)
640 x 480p at 300 fps (H.264) | | Aspect Ratio | 16:9
4:3 | | Still Image Resolution | JPEG: 12 Megapixel, 4000 x 3000 | | Audio Format | AAC | | Sampling Frequency | AAC: 48.0 kHz | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 1.75" | | | | Photo ISO Range | 100 - 800 (Manual) | | Video ISO Range | 400 - 6400 (Manual) | | Burst Photo | 60 Photos / 1 Second | | | | Image Stabilization | Digital | | Waterproof Depth Rating | 131.0' / 40.0 m (Waterproof Housing) | | Built-In Mic | Yes | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | | | Outputs | 1 x HDMI (Unspecified)
1 x USB 2.0 | | Microphone Input | Yes | | Headphone Jack | No | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh | | Charging Method | USB | | Dimensions (W x H x D) | 2.3 x 1.8 x 1.2" / 5.8 x 4.6 x 3.0 cm without housing
3.1 x 3.0 x 1.6" / 7.9 x 7.6 x 4.1 cm with housing | | Weight | 3.1 oz / 87.9 g with battery | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 6.5 x 4.4 x 2.8" |
