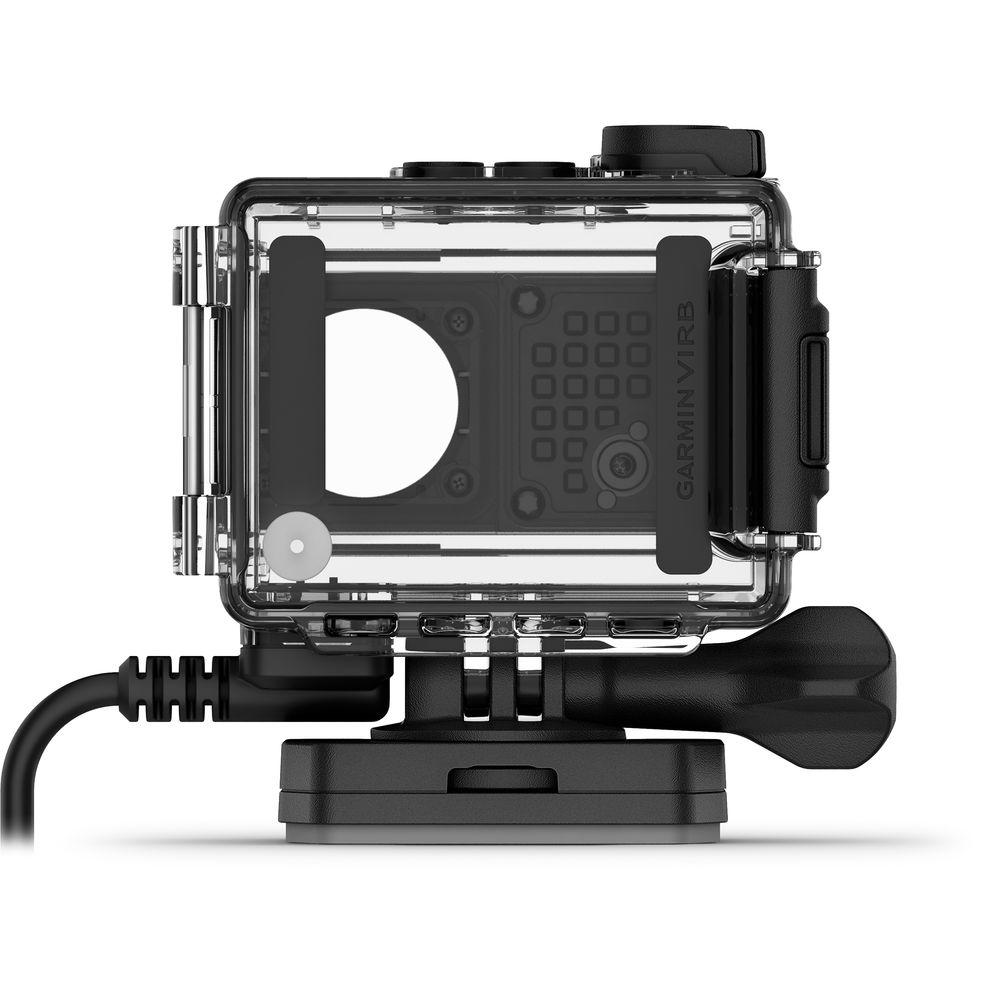

User Manual for Garmin VIRB Ultra 30 Action Camera with Powered Mount Click to enlarge the picture
Contents of the user manual for the Garmin VIRB Ultra 30 Action Camera
- Product category: Sports & Action Cameras Garmin
- Brand: Garmin
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Garmin Sports & Action Cameras
 |
User manual for the Garmin VIRB Ultra 30 Action Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Garmin product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Garmin user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Garmin product will considerably shorten its lifespan!
|

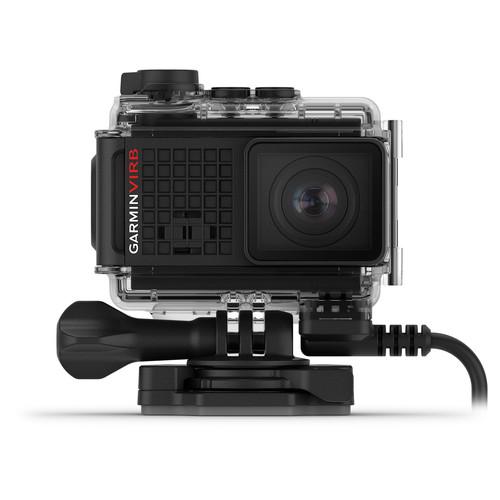

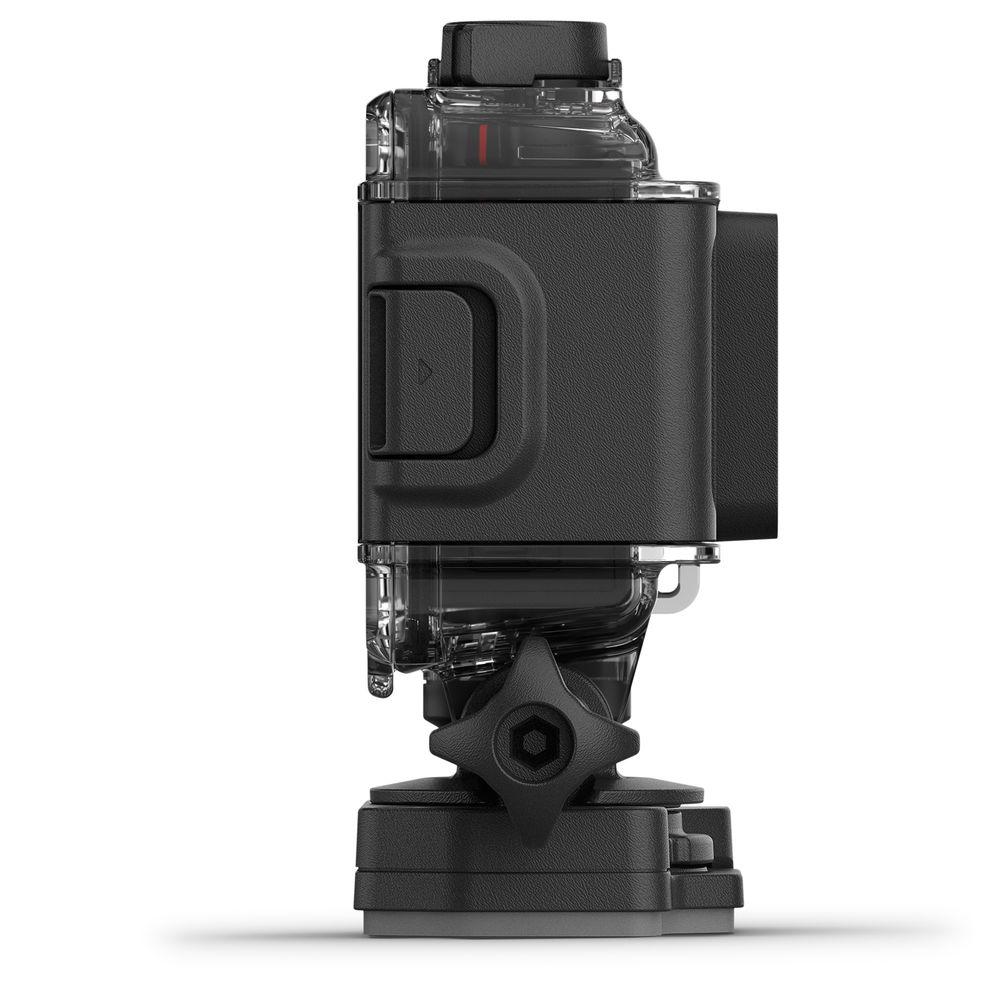

Product description The VIRB Ultra 30 with Powered Mount from Garmin features the advanced VIRB Ultra 30 action camera and a weatherproof powered case for hardwiring the camera on a boat, ATV, or elsewhere. The camera is designed for up to the most professional applications while the powered mount makes it even more suitable for professional use because it allows for continuous recording. A 12V power supply is also included for plugging the powered case to a power outlet. The VIRB Ultra 30 captures up to UHD 4K resolution video at 30 fps and features built-in digital 3-axis video stabilization (in up to 2.7K30), voice control, 12MP photo capture, GPS, live streaming to YouTube, and much more. Other resolutions include 2.7K at up to 60 fps, 1080p at up to 120 fps, and 720p at up to 240 fps for effective slow motion video.

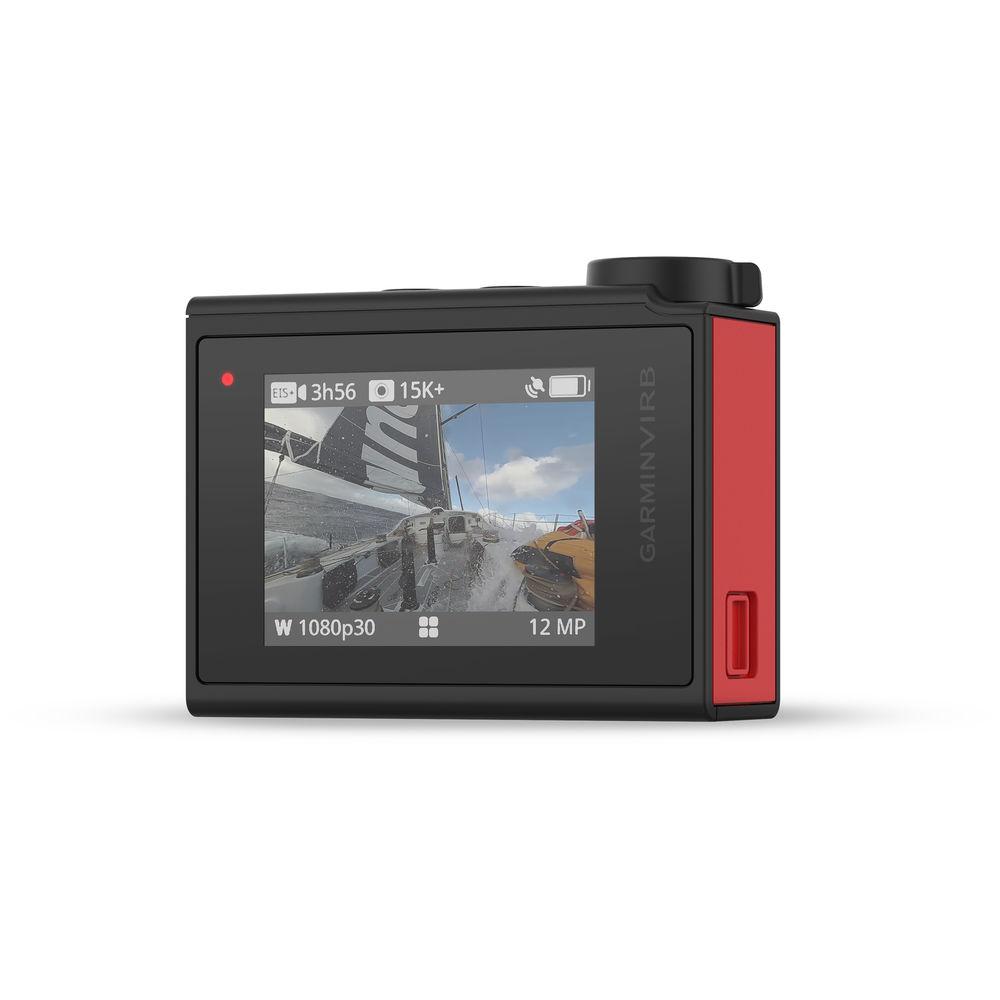

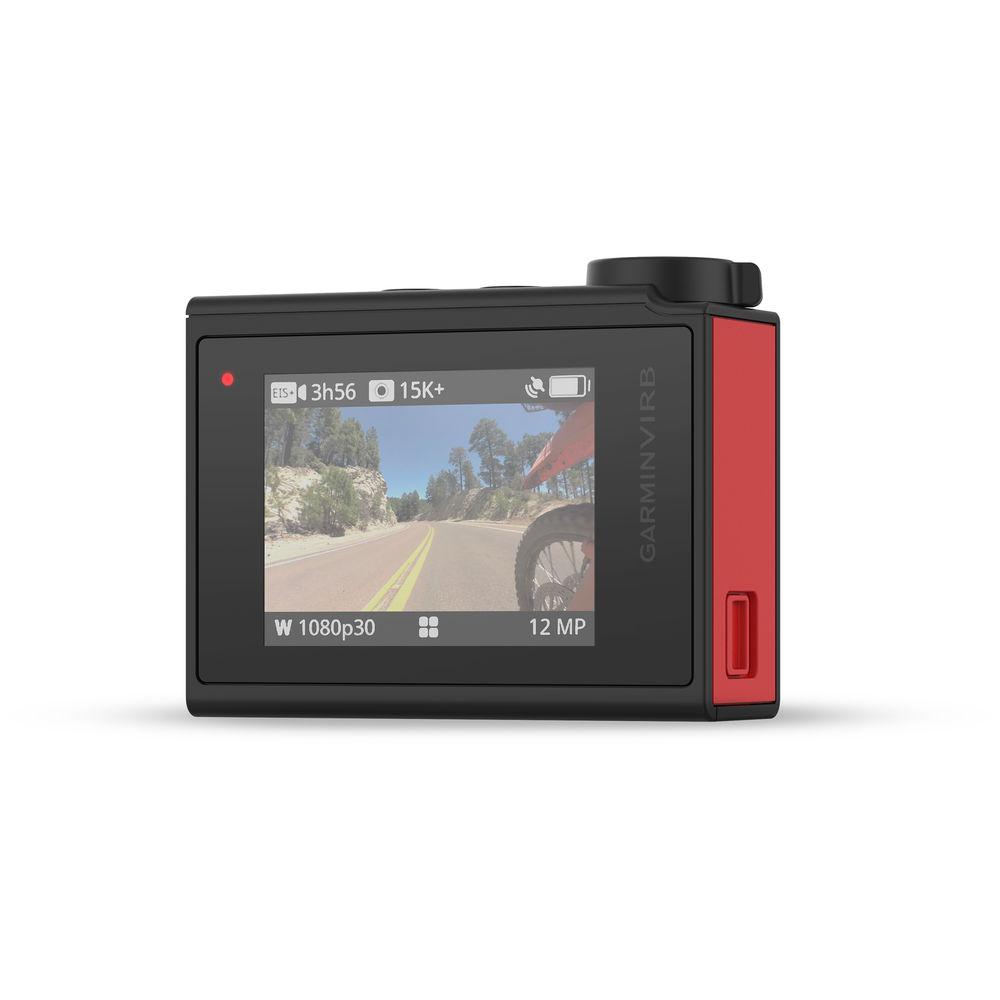

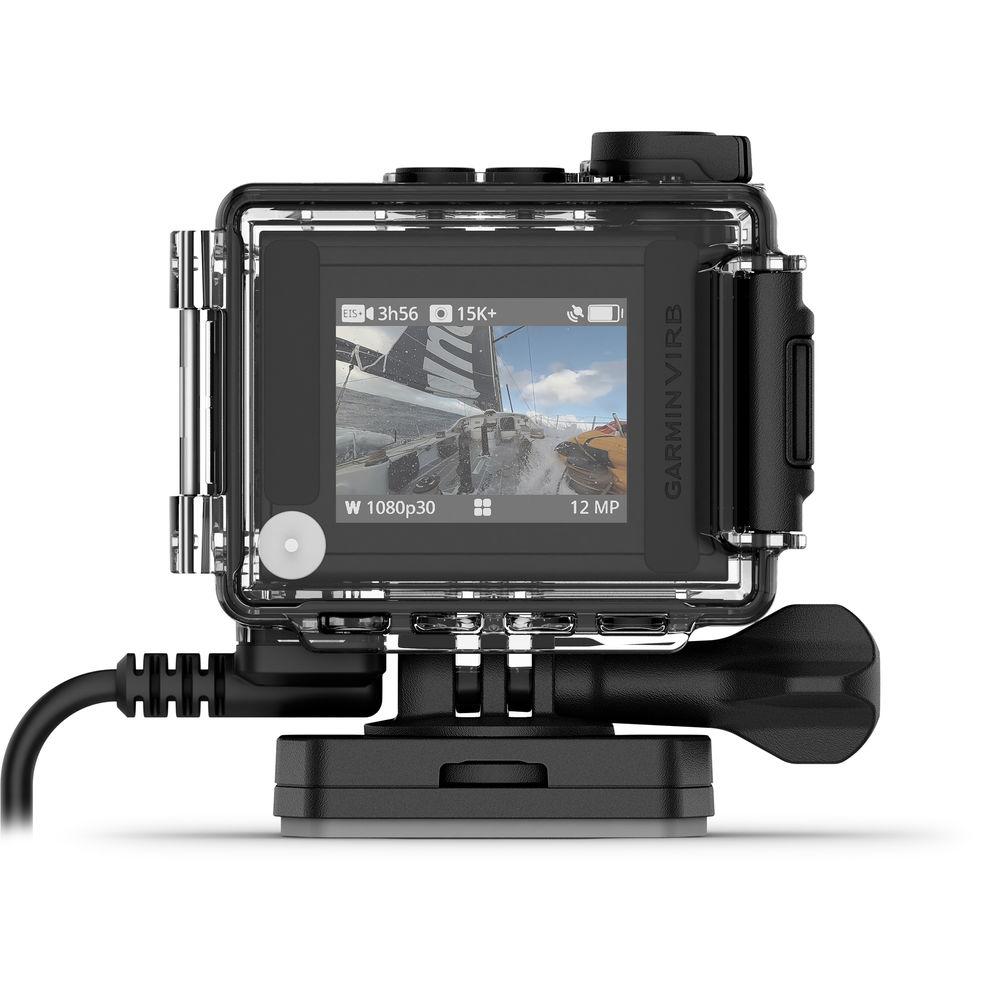

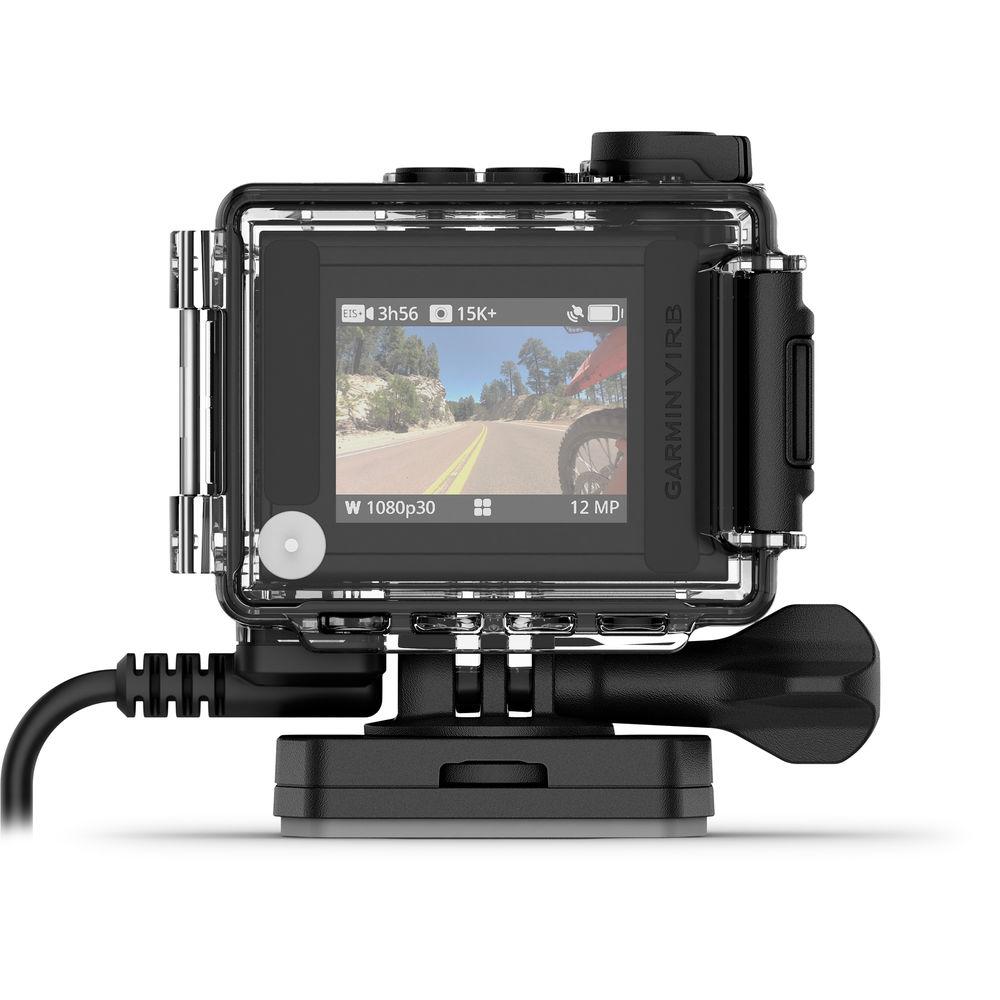

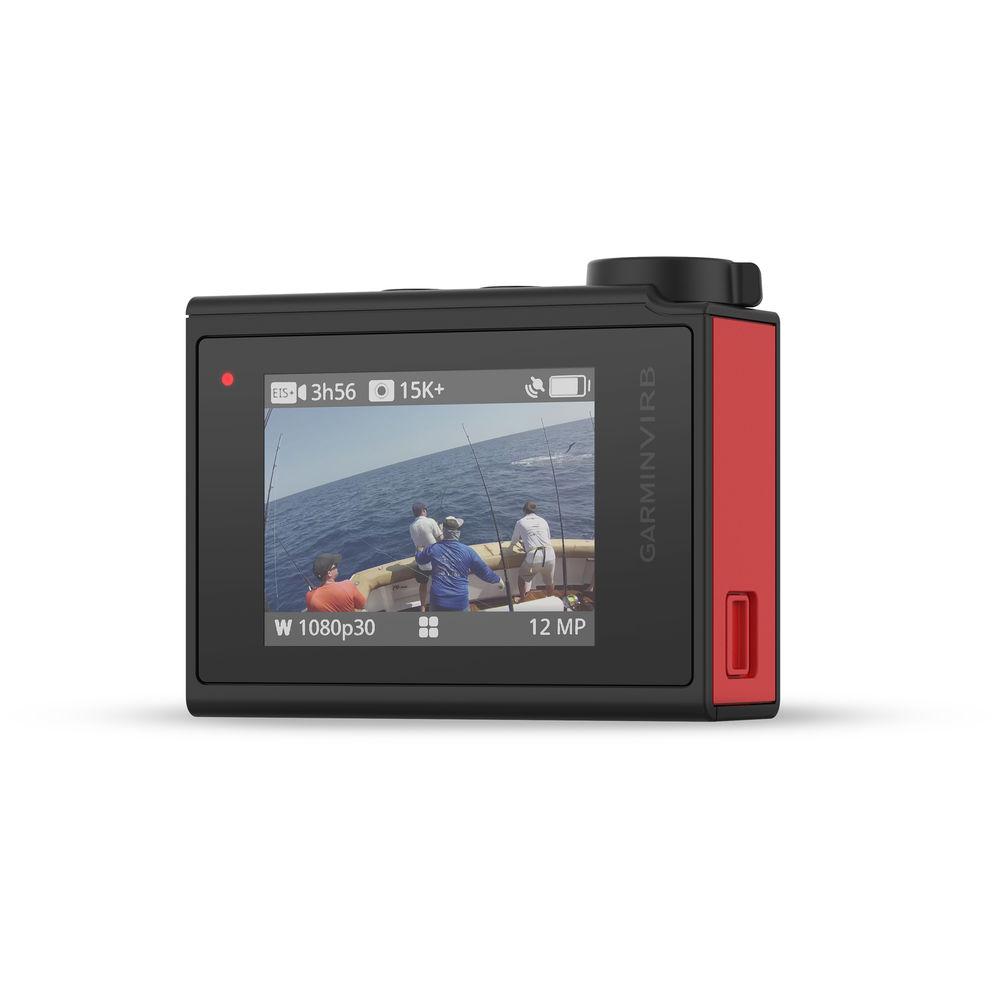

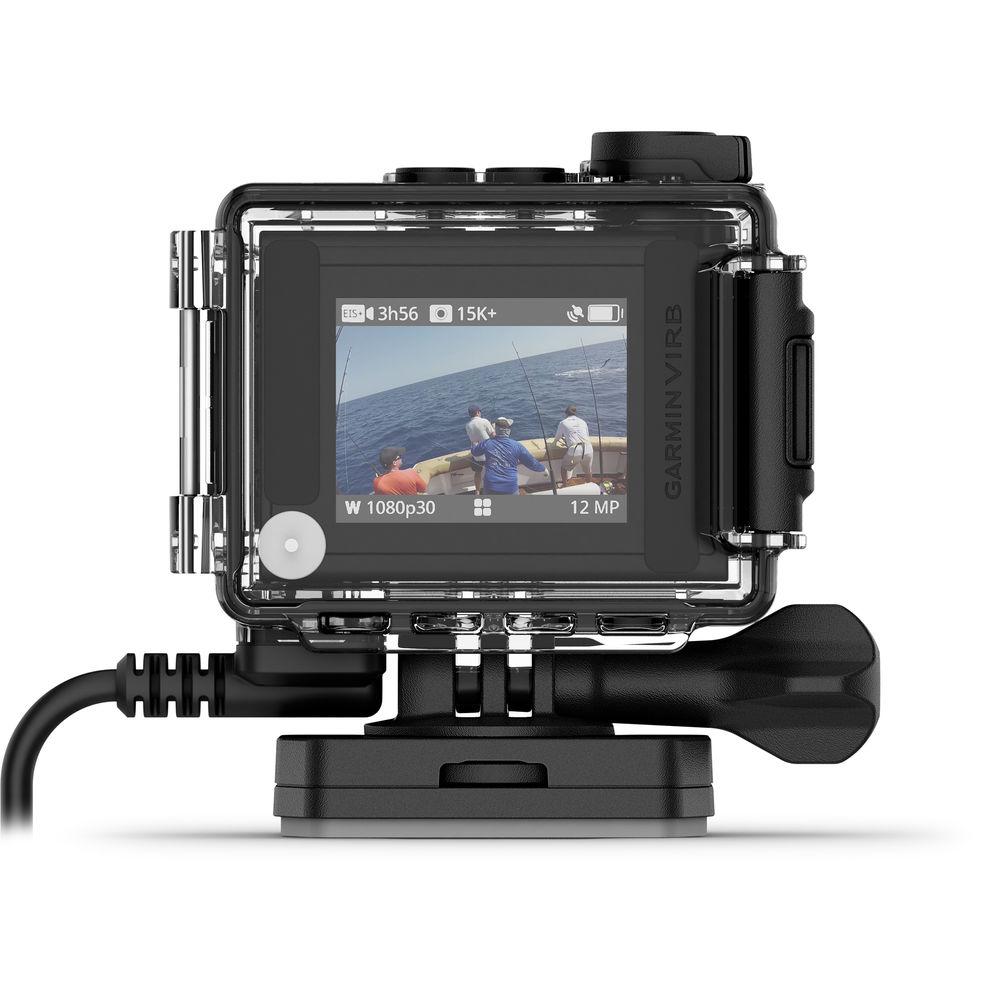

The VIRB Ultra 30 has a color touchscreen offering easy, one-touch operation. The touchscreen works through the included powered case, and the buttons are large so they're easy to find on the go. There's also a built-in high-sensitivity mic which ensures that sound is recorded clear and not muffled, and works to full effect whether in or out of the case.
Voice control allows you to give the camera hands-free commands such as "start recording," "take a picture," or "remember that" to tag footage for later recall. The GPS feature allows you to document distances traveled, heights reached, speeds reached, and other factors by taking note of all relevant performance data that can later be pulled up. You can even overlay graphs and gauges over this data.
The camera pairs with the free iOS/Android VIRB mobile app that lets you control the camera remotely, set up shots, control multiple cameras, edit footage, and share your recordings in various ways, including live streaming to YouTube. Using the included battery, the camera runs for up to 75 minutes when recording 4K at 30 fps, and up to 135 minutes when recording 1080p30. It supports up to 128GB microSD cards for recording. The VIRB Ultra 30 also supports an optional waterproof housing that lets you take the camera to depths of 130'. Just like with the powered case, the camera's touchscreen and high-sensitivity mic also work through the waterproof case. - Key Features
-
- VIRB Ultra 30 action camera
- Powered, weatherproof case for hardwiring the camera on a boat, ATV, etc.
- 12V power supply for plugging the powered case to a power outlet
- 12MP 1/2.3" backside-illuminated CMOS sensor
- Capture up to UHD 4K at 30 fps, 2.7K at 60 fps, Full HD 1080p at 120 fps, 720p at 240 fps, and 480p at 300 fps
- 3-axis video stabilization using built-in electronic gyroscope
- High-sensitivity mic
- Voice control
- 6-element, all-glass, wide-angle lens with low distortion
- 12MP photos with up to 60 fps burst frames
- Color touchscreen 1.75" LCD
- GPS capture
- Live streaming to YouTube from free iOS/Android app
- Supports up to 128GB microSD cards
- Time-lapse recording
- Lens correction: Eliminate the slight image curvature in the wide-angle setting (not for 4K)
- Light boost: Automatically adjusts the recorded frames per second to the best level given lighting conditions
- Looping: Record video continuously while only saving the final specified duration (for Video and Expansive modes)
- Auto pause: Record video only when moving
- Orientation: Automatically adjust recorded video to be right-side up regardless of camera orientation
- Gain control AGC
- Internal microphone mono: Waterproof, rugged, exposed for sensitive audio capture
- External microphone stereo: 3.5mm connection (when using compatible cable, sold separately)
- White balance: Adjust the color of the environment and scene
- Sharpness: Adjust the level of detail sharpness applied in-camera
- High bit rate: Adjust compression levels to reduce file size or increase picture quality; bit rate up to 60 Mb/s
- ISO limit: Adjust maximum image brightness and image noise (grain) levels
UPC: 753759210724 In the Box Garmin VIRB Ultra 30 Action Camera with Powered Mount Weatherproof Powered Case Barometric Door 12V Power Cable (33') Lithium-Ion Battery Flat Adhesive Mount Set of Standard and Vertical Mount Adapters Set of Short and Long Screws Set of Short and Long Extension Arms Wrench Anti-Fog Kit Garmin VIRB sticker Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Garmin VIRB Ultra 30 Action Camera with Powered Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGarmin VIRB Ultra 30 Specs | | | Sensor | 1-Chip 1/2.3" CMOS | | Sensor Resolution | 12 MP | | | | Focal Length | 2.73mm | | Maximum Aperture | f/2.6 | | Lens Elements | 6 | | Minimum Focusing Distance | 19.7" / 50.0 cm | | Angle of View | 123° (Horizontal, in 4:3)
95° (Horizontal, in 4:3)
65° (Horizontal, in 4:3)
118° (Horizontal, in 16:9)
91.6° (Horizontal, in 16:9)
61.8° (Horizontal, in 16:9) | | | | Recording Media | 1 x microSD/HC/XC | | Recording Time | SD/SDHC/SDXC 13 GB
1920 x 1080 60 minutes | | Video Format | 3840 x 2160 at 24/25/30 fps (H.264)
2704 x 1524 at 24/25/30/48/50/60 fps (H.264)
2560 x 1440p at 24/25/30/48/50/60/72/80 fps (H.264)
1920 x 1080p (H.264)
1280 x 960p at 120/200 fps (H.264)
1280 x 720p at 24/25/30/50/60/120/200/240 fps (H.264)
640 x 480p at 300 fps (H.264) | | Aspect Ratio | 16:9
4:3 | | Still Image Resolution | JPEG: 12 Megapixel, 4000 x 3000 | | Audio Format | AAC | | Sampling Frequency | AAC: 48.0 kHz | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 1.75" | | | | Photo ISO Range | 100 - 800 (Manual) | | Video ISO Range | 400 - 6400 (Manual) | | Burst Photo | 60 Photos / 1 Second | | | | Image Stabilization | Digital | | Waterproof Depth Rating | 131.0' / 40.0 m (Waterproof Housing) | | Built-In Mic | Yes | | Wi-Fi | Yes, Wi-Fi 4 (802.11n) | | | | Outputs | 1 x HDMI (Unspecified)
1 x USB 2.0 | | Microphone Input | Yes | | Headphone Jack | No | | | | Battery | Rechargeable Lithium-Ion Battery Pack, 3.6 VDC, 1250 mAh | | Charging Method | USB | | Dimensions (W x H x D) | 2.3 x 1.8 x 1.2" / 5.8 x 4.6 x 3.0 cm without waterproof housing
3.1 x 3.0 x 1.6" / 7.9 x 7.6 x 4.1 cm with waterproof housing | | Weight | 3.1 oz / 87.9 g with battery | | | | Package Weight | 1.825 lb | | Box Dimensions (LxWxH) | 8.15 x 5.25 x 3.2" |
