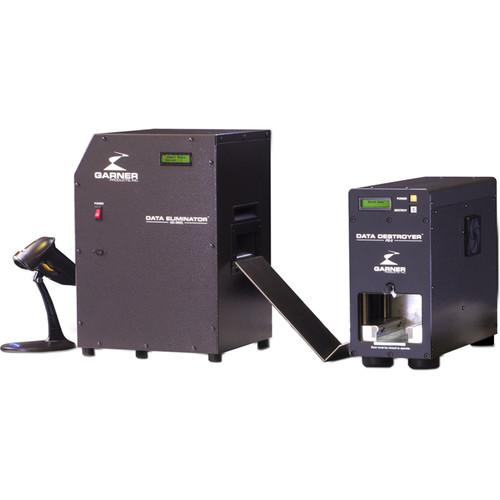

Product description This Garner kit bundles together the HD-3WXL Degausser, PD-5 Hard Drive Destroyer, and the SCAN-1 Report System. The high-speed, high-volume HD-3WXL Hard Drive and Tape Degausser features a speedy 9-second complete erasure time, and accepts drives up to 1.7" high. Document the erasure of your data using the included SCAN-1 Report system, complete with scanner, and report-generator software (download). The NSA-listed PD-5 Destroyer offers another level of data destruction, crushing hard drives with 15,500 pounds of force. Suitable for laptop, standard, and full-height hard drives, the PD-5 has an under 18-second crushing cycle, and accepts drives up to 2.25" in height. - HD-3WXL Hard Drive and Tape Degausser Kit with SCAN-1 Report Generator The compact HD-3WXL Hard Drive and Tape Degausser from Garner is a high-volume and high-speed degausser featuring a 0.93 Tesla (9,300 gauss) field, and a nine-second complete erasure time. Suitable for hard drives up to 1.7" high, and for multiple tape formats, the HD-3WXL erases up to 360 drives (3.5") or tapes per hour. An internal field-checker ensures the complete erasure of sensitive data on your drives and tapes. Powered using a standard wall outlet, the HD-3WXL Degausser accommodates a wide variety of hard-drive and tape formats. Use the included SCAN-1 barcode scanner with its downloadable software to generate detailed, audit-compatible media destruction reports.
Features -
- Compact form factor with exit slide
- SCAN-1 media-destruction report generator with barcode scanner
- 9-second erasure time
- Erases up to 360 drives (3.5") or tapes per hour
- Accommodates hard drives up to 1.7" high, and a wide variety of tape formats
- Continuous-duty cycle
- Internal verification, LCD display screen
Certifications / Listings - PD-5 High-Capacity Hard Drive Destroyer The Garner PD-5 Hard Drive Destroyer uses 15,500 pounds of crushing power to physically destroy hard drives containing your sensitive data. This powerful, high-speed, destroyer bends, breaks, and mangles hard drives, including data platters and other internal components, thwarting data recovery. The PD-5 is software-independent, destroying up to eight laptop-, two standard-, or one full-height hard drive per cycle. Drives are destroyed in 18 seconds or less, meeting NSA emergency-destruction guidelines. The Garner PD-5 Destroyer automatically senses the inserted media type, and can run continuously without cooling down between cycles. Its office-friendly design is quiet, free of hydraulic fluid, and offers push-button operation with an LCD display screen. The optional SSD-1 accessory destroyer expands the PD-5's range to include solid-state drives, including laptop SSDs, solid-state hybrid drives (SSHDs), flash, compact flash, thumb, and other USB drives (SSD-1 not included).
Features - Powerful, high-speed destroyer crushes laptop, standard, or network hard drives up to 2.25" high
- Uses 15,500 pounds of force and automatic torque control to crush drives in 18 seconds or less
- Destroys up to eight laptop drives, two standard 1-inch hard drives, or one full-height hard drive per cycle
- Quiet, software-independent, and office-friendly design contains no hydraulic fluid
- Does not require cool-down between cycles
- Can be used with the optional SSD-1 destroyer for obliterating a range of solid state drives
Compliance Standards -
- NSA/CSS Evaluated Products List (EPL) for Hard Drive Bending Devices
- California Senate Bill 1386
- DOD Emergency Destruction Guidelines
- FCC
- GLBA (Gramm-Leach-Bliley Act)
- HIPAA (Health Information Portability and Accountability Act)
- NIST (National Institute of Standards and Technology) Guidelines for Media
- Sanitization
- NIST SP 800-36
- NIST SP 800-88r1
- NSA/CSS SDDM 9-12
- PCI DSS 3.2 (Payment Card Industry Data Security Standard)
- PIPEDA (Personal Information Protection and Electronic Documents Act)
In the Box Bundle Items HD-3WXL Hard Drive and Tape Degausser Kit with SCAN-1 Report Generator - SCAN-1 Media Destruction Report Package
PD-5 High-Capacity Hard Drive Destroyer Table of Contents
|
Upload User Manual
Have you got an user manual for the Garner HD-3WXL Degausser Kit with PD-5 Destroyer & SCAN-1 System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - HD-3WXL Hard Drive and Tape Degausser Kit with SCAN-1 Report Generator
| Type | Capacitive discharge | | Supported Media Types | Hard Drives: up to 1.7" high, including full height, standard and laptop
Tape Cartridges: All LTO, all DLT, 3490, 9940, 3592, AIT, and more | | Drawer Capacity (HxWxD) | 1.7 x 4.5 x 5.9" (43 x 114 x 150 mm) | | Duty Cycle | Continuous | | Erasure Time | Maximum Hard Drives per Hour:
3600 x 1.8" (46 mm)
1440 x 2.5" (64 mm)
360 x 3.5" (89 mm) | | Magnetic Field Strength | 0.93 Tesla (9300 gauss) nominal | | Operating Conditions | Temperature: 41 to 104°F (5 to 40°C)
Humidity: 10 to 40% (non-condensing) | | Power Supply | 100-240 VAC ±5%, 50/60 Hz Factory-configurable | | Power Consumption | Standby: 36 W
Charging: 300 W (average)
Erasing: 36 W | | Dimensions (WxHxD) | Without Slide: 18.9 x 13.3 x 13.0" (480 x 338 x 330 mm)
With Slide: 18.9 x 22.8 x 13.0" (480 x 580 x 330 mm) | | Weight | 66 lb (30 kg) | | | | Box Dimensions (LxWxH) | 24.5 x 18.5 x 18.0" | - PD-5 High-Capacity Hard Drive Destroyer
| Type | Physical hard drive destroyer | | Compatible Media | Hard drives up to 2.25" (5.7 cm) high | | Power Supply | 100-240 VAC ±5%, 50/60 Hz, factory-configurable | | Power Consumption | Standby: 90 W
Crushing: 1200 W (maximum) | | Temperature | 41 to 104°F (5 to 40°C) | | Humidity | 10 to 40% (non-condensing) | | Destruction Chamber Capacity | 2.3 x 4.9 x 6.8" (58 x 125 x 173 mm) | | Dimensions (HxWxD) | 14.9 x 7.5 x 18.6" (38 x 19 x 47 cm) | | Weight | 79 lbs (36 kg) |
