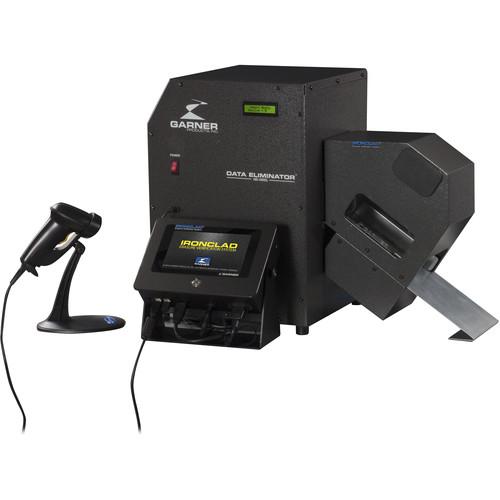

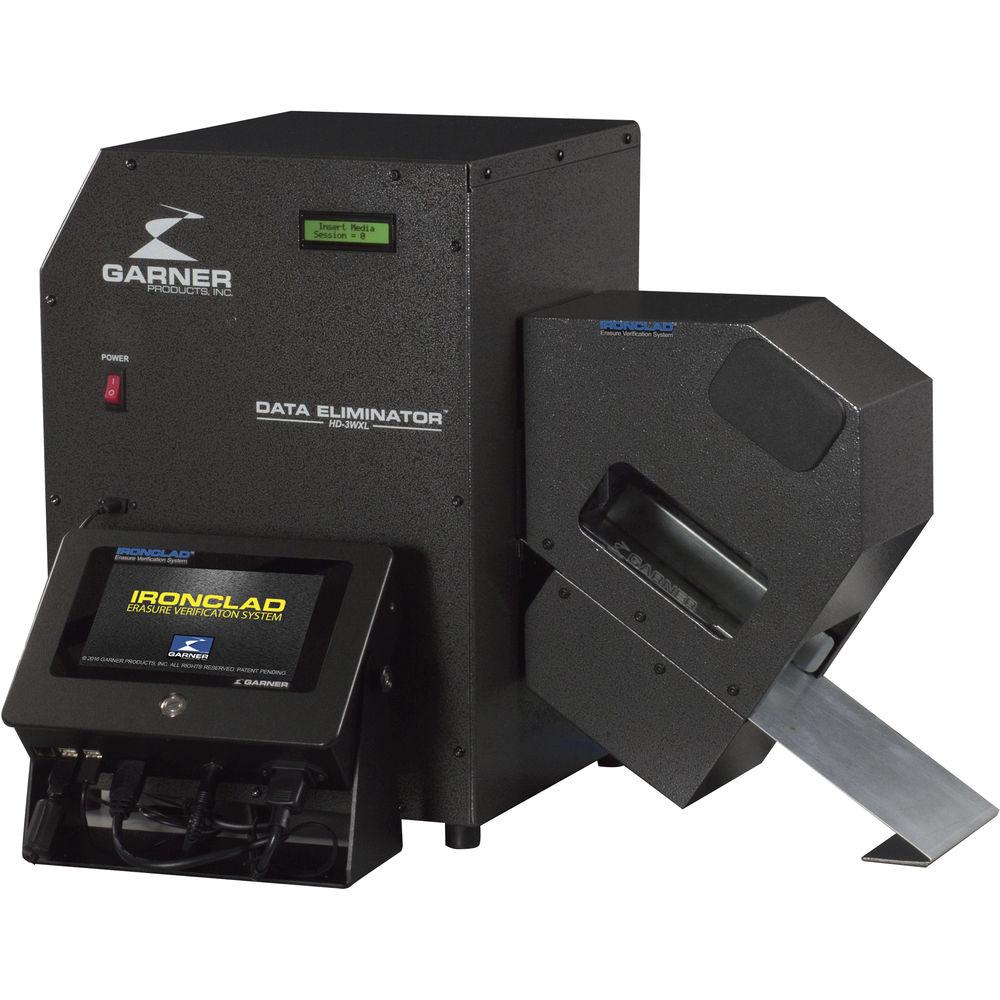

Product description This Garner kit combines the HD-3WXL Hard Drive and Tape Degausser with the IRONCLAD Erasure-Verification System. The HD-3WXL is a high-volume and high-speed degausser featuring a 0.93 Tesla (9300 gauss) field, and a nine-second complete erasure time. Suitable for hard drives up to 1.7" high and for multiple tape formats, the HD-3WXL erases up to 360 drives (3.5") or tapes per hour. After degaussing your media, use the IRONCLAD system to verify erasure, capture images of the erased drives, and to generate detailed, audit-compatible media destruction reports. Powered using a standard wall outlet, the HD-3WXL Degausser accommodates a wide variety of hard-drive and tape formats. The IRONCLAD system features a touchscreen interface, and includes erasure-report software, a barcode scanner, and labels for degaussed media. Features -
- Compact form factor with exit slide

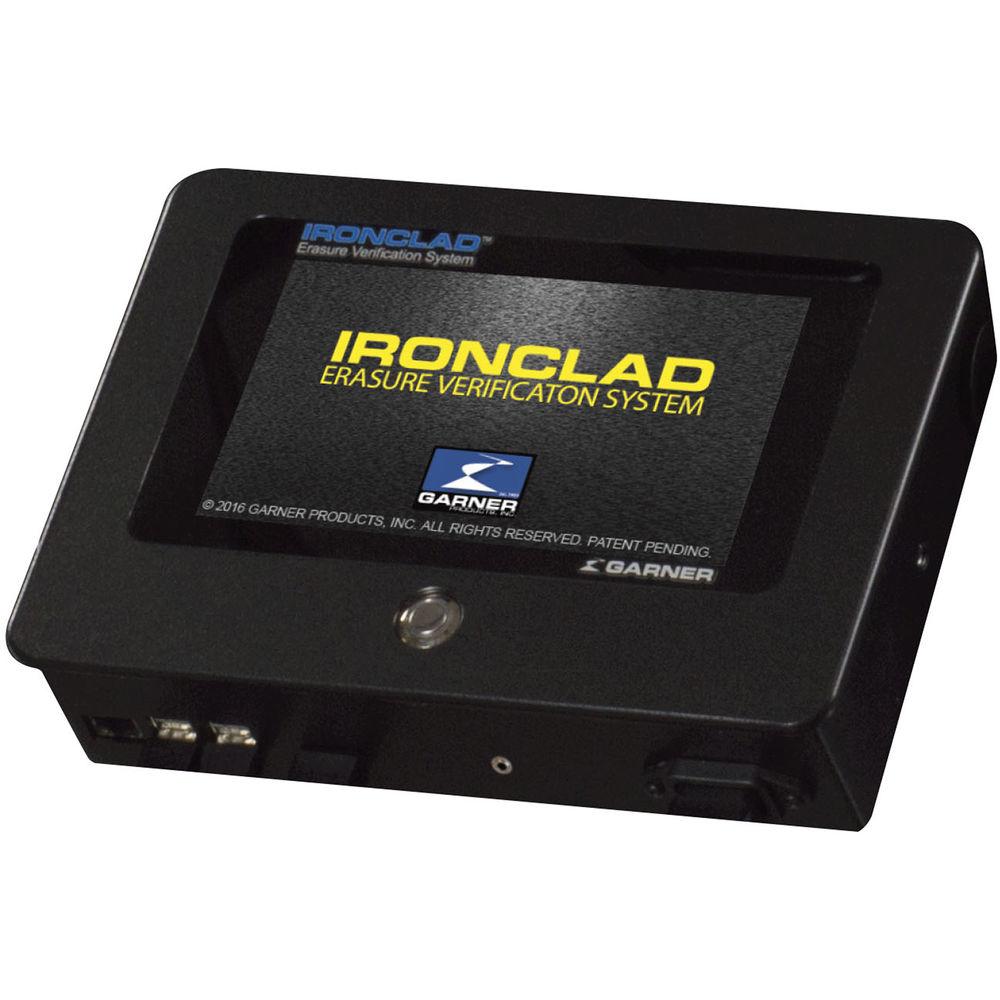

- IRONCLAD erasure-verification system captures images of degaussed drives
- IRONCLAD software generates audit-worthy reports tracking your media erasure
- Touchscreen IRONCLAD interface; barcode scanner and media labels included
- 9-second erasure time
- Erases up to 360 drives (3.5") or tapes per hour
- Accommodates hard drives up to 1.7" high and a wide variety of tape formats
- Continuous-duty cycle
- Internal verification, LCD display screen
Certifications / Listings In the Box Garner HD-3WXL Degausser with IRONCLAD Erasure-Verification System Exit Slide IRONCLAD Verification System for HD-3WXL Degausser adqbaafyeczwtbrz Laptop Hard Drive Caddy 50 x "Degaussed" Media Labels Stylus Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Garner HD-3WXL Degausser with IRONCLAD Erasure-Verification System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGarner HD-3WXL IRONCLAD Specs | | | Type | Capacitive discharge | | Supported Media Types | Hard Drives: up to 1.7" high, including full height, standard and laptop
Tape Cartridges: All LTO, all DLT, 3490, 9940, 3592, AIT, and more | | Drawer Capacity (HxWxD) | 1.7 x 4.5 x 5.9" (43 x 114 x 150 mm) | | Duty Cycle | Continuous | | Erasure Time | Maximum Hard Drives per Hour:
3600 x 1.8" (46 mm)
1440 x 2.5" (64 mm)
360 x 3.5" (89 mm) | | Magnetic Field Strength | 0.93 Tesla (9300 gauss) nominal | | Operating Conditions | Temperature: 41 to 104°F (5 to 40°C)
Humidity: 10 to 40% (non-condensing) | | Power Supply | 100-240 VAC ±5%, 50/60 Hz Factory-configurable | | Power Consumption | Standby: 36 W
Charging: 300 W (average)
Erasing: 36 W | | Dimensions (HxWxD) | Without Slide: 18.9 x 13.3 x 13.0" (480 x 338 x 330 mm)
With Slide: 18.9 x 22.8 x 13.0" (480 x 580 x 330 mm) | | Weight | 66 lb (30 kg) | | | | Screen Size | 7" (178 mm) | | Storage Capacity | 16 GB | | Power Supply | 15 W | | Control Head Dimensions | 6.6 x 9.6 x 2.5" (168 x 244 x 64 mm) | | Weight | 4 lb (1.8 kg) |
