User manual
Garner SW-2 Workstation with HD-2 Degausser,

User Manual for Garner SW-2 Workstation with HD-2 Degausser, IRONCLAD Verification & PD-4 Destroyer

• Product category: Degaussers & Erasers Garner
• Brand: Garner
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Garner Degaussers & Erasers

Product description

• HD-2 Hard Drive & Tape Degausser 110-120 VAC (50/60 Hz) The Garner HD-2 Hard Drive & Tape Degausser erases hard drives (laptop, desktop, and network up to 1" high), and high coercivity tape media, including all formats of LTO (1,2,3,4), SuperDLT I & II, DLT, AIT, 8mm and more, all without any adapters. With a continuous duty rating (no cooling necessary), quiet operation, and a 60-second cycle time, the HD-2 can fit right on a desktop.The HD-2 is exceptionally user-friendly. Simply place your media into the drawer on the right side of the HD-2, and push the "Erase" button. Within 60 seconds your media is erased; open the drawer, and remove your erased media.The HD-2 has been independently tested, and certified to meet both ANSI, and CE standards. Built-in safeguards check the stored power before each erase cycle ensuring complete erasure every time. Audible tones, and lighted push buttons report the status of the HD-2 to the operator.The HD-2 produces an erasing field many times stronger than the erasing fields produced by the read/write heads in hard drives, and tape drives. The field strength, along with the encompassing magnetic field ensure the data is no longer recoverable by computer or laboratory attacks. Since the HD-2 does not rely on software, the HD-2 will also completely and permanently erase failed and damaged hard drives regardless of the operating system or interface.The HD-2 will assist you in meeting compliance standards for government mandates requiring complete elimination of sensitive information stored on magnetic media prior to re-use or disposal. Note: Hard Drives and some tapes are not reusable after having been erased with the HD-2
  • Erases high-coercivity hard drives & tapes
  • Easy to use drawer with one button operation
  • Continuous duty with a 60-second cycle time
  • Solid-state design that is micro-processor controlled
  Government Mandates:
  • The HD-2 will assist you in meeting compliance standards for government mandates requiring complete elimination of sensitive information stored on magnetic media prior to re-use or disposal
    • PCI DSS (Payment Card Industry) Data Security Standard
    • NIST (National Institute of Standards and Technology) Guidelines for Media Sanitization
    • NIST SP 800-36
    • NIST SP 800-88
    • HIPAA (Health Information Portability and Accountability Act)
    • PIPEDA (Personal Information Protection and Electronic Documents Act)
    • GLBA (Gramm-Leach-Bliley Act)
    • California Senate Bill 1386
• IRONCLAD Verification System for HD-2 Degausser Designed to work with the HD-2 Degausser, the Garner IRONCLAD Verification System provides visual and text documentation of your drives' erasure. This 16GB system consists of a touchscreen control head, a camera, erasure-report software, and a barcode scanner with stand. The IRONCLAD system is fully integrable with any 2015 or newer, USB-equipped HD-2 model degausser (available separately). Use the IRONCLAD system to scan each hard drive's serial number, capture an image of the degaussed drive, record the system operator's ID, and document the drive's erasure status. The included software generates erasure reports and images suitable for auditing purposes. A touchscreen stylus, and 50 "Degaussed" labels are included with the system components.

  Features

  • Automated erasure-verification system captures the hard drive's serial number, erasure status, and the operator's ID
  • Includes a 7" touchscreen interface with 16GB storage and stylus, a camera, and a barcode scanner with stand
  • IRONCLAD erasure-report software generates reports and images suitable for auditing purposes
• PD-4 Physical Hard Drive Destroyer Optimally used after degaussing, the Garner PD-4 Physical Hard Drive Destroyer provides quick, secure destruction of hard drives containing sensitive data. Just like a mini Death Star compactor, the PD-4 destroys by crushing, applying approximately 10,500 pounds of force to drives in its destruction chamber. The PD-4 is software-independent, destroying up to six laptop-, two standard-, or one full-height hard drive per cycle. The first drive is destroyed in 20 seconds or less, meeting NSA emergency-destruction guidelines. The Garner PD-4 Destroyer automatically adjusts its crushing power to the drive's height, and can run continuously without cooling down between cycles. Its office-friendly design is quiet, free of hydraulic fluid, and offers push-button operation.

  Features

  • Destroys laptop, standard, or network hard drives
  • Multiple drive destruction with first drive crushed in 20 seconds or less
  • Durable stainless-steel crushing wedge with automatic height and crush control
  • Quiet, office-friendly design with no hydraulic fluid
  • For complete security, best used after drives have been degaussed

  Compliance Standards

  • California Senate Bill 1386
  • DOD Emergency Destruction Guidelines
  • FCC
  • GLBA (Gramm-Leach-Bliley Act)
  • HIPAA (Health Information Portability and Accountability Act)
  • NIST (National Institute of Standards and Technology) Guidelines for Media
  • Sanitization
  • NIST SP 800-36
  • NIST SP 800-88r1
  • NSA/CSS SDDM 9-12
  • PCI DSS 3.2 (Payment Card Industry Data Security Standard)
  • PIPEDA (Personal Information Protection and Electronic Documents Act)

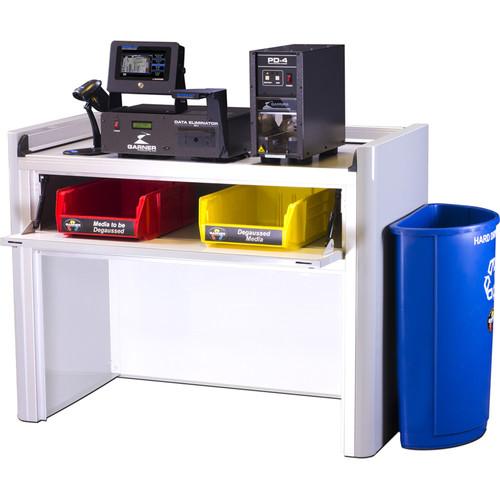

• SW-2 Secure Workstation for Select Degaussers/HD Destroyers The Garner SW-2 Secure Workstation is designed to house select degaussers, hard drive destroyers, and accessories (components not included). Use this standing-height table to neatly contain and support your media destruction equipment. The solidly built SW-2 features a powder-coated aluminum and wood-laminate construction designed to prevent magnetic particles from attaching to the workstation. A locking compartment secures media drives awaiting erasure and/or destruction.

  Features

  • • Houses and supports select Garner degaussers, hard drive destroyers, and accessories (not included)
    • Powder-coated aluminum and wood-laminate construction prevents magnetic particles from attaching to the workstation
    • Locking compartment secures media drives awaiting erasure and/or destruction
    • Standing-desk height work surface
• MB-1B Blue Recycle Container The MB-1B Blue Recycle Container from Garner is a half round recycling container with a capacity of 21 gallons. It's made from a durable rotationally molded polyethylene.Rotational molding is a 3-stage heating process that results in evenness all around the edges of the case. The polyethylene material is inserted into a mold, and then gradually rotated until the material sticks to the edges of the mold in an even pattern. Once cooled, this plastic material forms a strong bond that minimizes sagging and potential collapse.
  • Used for disposal of unwanted media
  • Durable polyethylene construction
• Red "Media to be Degaussed" Bin for HD-3WXL With the Garner Red "Media to be Degaussed" Bin, you'll never again wonder whether or not your magnetic media, hard drive, or laptop has passed through your Garner HD-3WXL Degausser or other data eraser. Molded of durable, impact-resistant plastic, the bin's bright color and clear label answer the question of whether a tape or drive contains data.
• Yellow "Degaussed Media" Bin for HD-3WXL With the Garner Yellow "Degaussed Media" Bin, you'll never again wonder whether or not your magnetic media, hard drive, or laptop has passed through your Garner HD-3WXL Degausser or other data eraser. Molded of durable, impact-resistant plastic, the bin's bright color and clear label answer the question of whether a tape or drive contains data.

• Limited 1-Year Warranty

• Touchscreen Control Head

• Camera

• Barcode Scanner with Stand

• IRONCLAD Erasure Report Software

• 50 x "Degaussed" Labels

• Stylus

• 1-Year IRONCLAD Software Support

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HD-2 Hard Drive & Tape Degausser 110-120 VAC (50/60 Hz)

  Type	Hard drive & tape degausser
  Supported Formats	Hard drives up to 1.0" high including full height, standard and laptop drives, tape cartridges including DLT, LTO, and 8 mm
  Magnetic Field Strength	7300 Oe, 0.73 Tesla
  Duty Cycle	60 sec
  Power Requirements	110-120 VAC (50/60 Hz)
  Dimensions (WxHxD)	17.50 x 7.25 x 12.25 (444.50 x 184.15 x 311.15 mm)
  Weight	42 lbs (19.05 kg)

  Box Dimensions (LxWxH)	24.0 x 18.0 x 12.5"

• IRONCLAD Verification System for HD-2 Degausser

  Storage Capacity	16 GB
  Touchscreen	7" (178 mm)
  Interfaces	1 x Ethernet 4 x USB 1 x HDMI 1 x 3.5 mm camera port 1 x Power (standard wall outlet)
  Power Supply	90-240 VAC, 47-440 Hz
  Power Consumption	15 W
  Fuse	250 VAC, H3 .15 A
  Dimensions (WxHxD)	Control Head: 6.5 x 9.6 x 2.5" (165 x 244 x 64 mm) Camera Unit: 4.3 x 17.8 x 4.9" (109 x 451 x 125 mm)
  Weight	Control Head: 4 lb (1.8 kg) Camera Unit: 6 lb (2.7 kg)

• PD-4 Physical Hard Drive Destroyer

  Type	Physical hard drive destroyer
  Hard Drive Maximum Height	2.8 x 4.5 x 6.3" (71 x 114 x 160 mm)
  Chamber Capacity	Hard Drives: 1 x full height 2 x standard height 6 x laptop
  Power Supply	100-130 VAC ±5%, 50/60 Hz, factory-configurable 200-240 VAC ±5%, 50/60 Hz, factory-configurable
  Power Consumption	During Standby: 24 W During Crush: 1920 W (max)
  Temperature	41 to 104°F (5 to 40°C)
  Humidity	10 to 40% (non-condensing)
  Destruction Chamber Dimensions	2.8 x 4.5 x 6.3" (71 x 114 x 160 mm)
  Dimensions (HxWxD)	14.2 x 7.2 x 16.9" (361 x 183 x 429 mm)
  Weight	73 lbs (33 kg)

  Box Dimensions (LxWxH)	21.5 x 20.7 x 12.3"

• SW-2 Secure Workstation for Select Degaussers/HD Destroyers

  Dimensions (HxWxD)	47 x 50 x 32" (119 x 127 x 81 cm)
  Weight	190 lb (86 kg)

• MB-1B Blue Recycle Container

  Dimensions	11.0 x 28.0 x 21.0" (27.9 x 71.1 x 53.3 cm)
  Weight	1 lb (0.5 kg)

• Red "Media to be Degaussed" Bin for HD-3WXL

  Weight

  1.0 lb (0.5 kg)

• Yellow "Degaussed Media" Bin for HD-3WXL

  Weight

  1.0 lb (0.5 kg)
