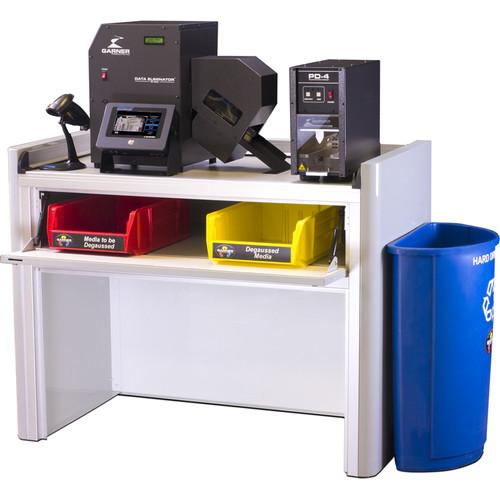

Garner SW-2 Workstation with HD-3WXL Degausser,

User Manual for Garner SW-2 Workstation with HD-3WXL Degausser, IRONCLAD Verification & PD-4 Destroyer

• Product category: Degaussers & Erasers Garner
• Brand: Garner
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Garner Degaussers & Erasers

Product description

• HD-3WXL Degausser with IRONCLAD Erasure-Verification System This Garner kit combines the HD-3WXL Hard Drive and Tape Degausser with the IRONCLAD Erasure-Verification System. The HD-3WXL is a high-volume and high-speed degausser featuring a 0.93 Tesla (9300 gauss) field, and a nine-second complete erasure time. Suitable for hard drives up to 1.7" high and for multiple tape formats, the HD-3WXL erases up to 360 drives (3.5") or tapes per hour. After degaussing your media, use the IRONCLAD system to verify erasure, capture images of the erased drives, and to generate detailed, audit-compatible media destruction reports. Powered using a standard wall outlet, the HD-3WXL Degausser accommodates a wide variety of hard-drive and tape formats. The IRONCLAD system features a touchscreen interface, and includes erasure-report software, a barcode scanner, and labels for degaussed media.

  Features

  • • Compact form factor with exit slide
    • IRONCLAD erasure-verification system captures images of degaussed drives
    • IRONCLAD software generates audit-worthy reports tracking your media erasure
    • Touchscreen IRONCLAD interface; barcode scanner and media labels included
    • 9-second erasure time
    • Erases up to 360 drives (3.5") or tapes per hour
    • Accommodates hard drives up to 1.7" high and a wide variety of tape formats
    • Continuous-duty cycle
    • Internal verification, LCD display screen

  Certifications / Listings

  • CE
    ANSI
    FCC
• PD-4 Physical Hard Drive Destroyer Optimally used after degaussing, the Garner PD-4 Physical Hard Drive Destroyer provides quick, secure destruction of hard drives containing sensitive data. Just like a mini Death Star compactor, the PD-4 destroys by crushing, applying approximately 10,500 pounds of force to drives in its destruction chamber. The PD-4 is software-independent, destroying up to six laptop-, two standard-, or one full-height hard drive per cycle. The first drive is destroyed in 20 seconds or less, meeting NSA emergency-destruction guidelines. The Garner PD-4 Destroyer automatically adjusts its crushing power to the drive's height, and can run continuously without cooling down between cycles. Its office-friendly design is quiet, free of hydraulic fluid, and offers push-button operation.

  Features

  • Destroys laptop, standard, or network hard drives
  • Multiple drive destruction with first drive crushed in 20 seconds or less
  • Durable stainless-steel crushing wedge with automatic height and crush control
  • Quiet, office-friendly design with no hydraulic fluid
  • For complete security, best used after drives have been degaussed

  Compliance Standards

  • California Senate Bill 1386
  • DOD Emergency Destruction Guidelines
  • FCC
  • GLBA (Gramm-Leach-Bliley Act)
  • HIPAA (Health Information Portability and Accountability Act)
  • NIST (National Institute of Standards and Technology) Guidelines for Media
  • Sanitization
  • NIST SP 800-36
  • NIST SP 800-88r1
  • NSA/CSS SDDM 9-12
  • PCI DSS 3.2 (Payment Card Industry Data Security Standard)
  • PIPEDA (Personal Information Protection and Electronic Documents Act)
• SW-2 Secure Workstation for Select Degaussers/HD Destroyers The Garner SW-2 Secure Workstation is designed to house select degaussers, hard drive destroyers, and accessories (components not included). Use this standing-height table to neatly contain and support your media destruction equipment. The solidly built SW-2 features a powder-coated aluminum and wood-laminate construction designed to prevent magnetic particles from attaching to the workstation. A locking compartment secures media drives awaiting erasure and/or destruction.

  Features

  • • Houses and supports select Garner degaussers, hard drive destroyers, and accessories (not included)
    • Powder-coated aluminum and wood-laminate construction prevents magnetic particles from attaching to the workstation
    • Locking compartment secures media drives awaiting erasure and/or destruction
    • Standing-desk height work surface
• MB-1B Blue Recycle Container The MB-1B Blue Recycle Container from Garner is a half round recycling container with a capacity of 21 gallons. It's made from a durable rotationally molded polyethylene.Rotational molding is a 3-stage heating process that results in evenness all around the edges of the case. The polyethylene material is inserted into a mold, and then gradually rotated until the material sticks to the edges of the mold in an even pattern. Once cooled, this plastic material forms a strong bond that minimizes sagging and potential collapse.
  • Used for disposal of unwanted media
  • Durable polyethylene construction
• Red "Media to be Degaussed" Bin for HD-3WXL With the Garner Red "Media to be Degaussed" Bin, you'll never again wonder whether or not your magnetic media, hard drive, or laptop has passed through your Garner HD-3WXL Degausser or other data eraser. Molded of durable, impact-resistant plastic, the bin's bright color and clear label answer the question of whether a tape or drive contains data.
• Yellow "Degaussed Media" Bin for HD-3WXL With the Garner Yellow "Degaussed Media" Bin, you'll never again wonder whether or not your magnetic media, hard drive, or laptop has passed through your Garner HD-3WXL Degausser or other data eraser. Molded of durable, impact-resistant plastic, the bin's bright color and clear label answer the question of whether a tape or drive contains data.

• Exit Slide

• IRONCLAD Verification System for HD-3WXL Degausser

• Laptop Hard Drive Caddy

• 50 x "Degaussed" Media Labels

• Stylus

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• HD-3WXL Degausser with IRONCLAD Erasure-Verification System

  Type	Capacitive discharge
  Supported Media Types	Hard Drives: up to 1.7" high, including full height, standard and laptop Tape Cartridges: All LTO, all DLT, 3490, 9940, 3592, AIT, and more
  Drawer Capacity (HxWxD)	1.7 x 4.5 x 5.9" (43 x 114 x 150 mm)
  Duty Cycle	Continuous
  Erasure Time	Maximum Hard Drives per Hour: 3600 x 1.8" (46 mm) 1440 x 2.5" (64 mm) 360 x 3.5" (89 mm)
  Magnetic Field Strength	0.93 Tesla (9300 gauss) nominal
  Operating Conditions	Temperature: 41 to 104°F (5 to 40°C) Humidity: 10 to 40% (non-condensing)
  Power Supply	100-240 VAC ±5%, 50/60 Hz Factory-configurable
  Power Consumption	Standby: 36 W Charging: 300 W (average) Erasing: 36 W
  Dimensions (HxWxD)	Without Slide: 18.9 x 13.3 x 13.0" (480 x 338 x 330 mm) With Slide: 18.9 x 22.8 x 13.0" (480 x 580 x 330 mm)
  Weight	66 lb (30 kg)

  Screen Size	7" (178 mm)
  Storage Capacity	16 GB
  Power Supply	15 W
  Control Head Dimensions	6.6 x 9.6 x 2.5" (168 x 244 x 64 mm)
  Weight	4 lb (1.8 kg)

• PD-4 Physical Hard Drive Destroyer

  Type	Physical hard drive destroyer
  Hard Drive Maximum Height	2.8 x 4.5 x 6.3" (71 x 114 x 160 mm)
  Chamber Capacity	Hard Drives: 1 x full height 2 x standard height 6 x laptop
  Power Supply	100-130 VAC ±5%, 50/60 Hz, factory-configurable 200-240 VAC ±5%, 50/60 Hz, factory-configurable
  Power Consumption	During Standby: 24 W During Crush: 1920 W (max)
  Temperature	41 to 104°F (5 to 40°C)
  Humidity	10 to 40% (non-condensing)
  Destruction Chamber Dimensions	2.8 x 4.5 x 6.3" (71 x 114 x 160 mm)
  Dimensions (HxWxD)	14.2 x 7.2 x 16.9" (361 x 183 x 429 mm)
  Weight	73 lbs (33 kg)

  Box Dimensions (LxWxH)	21.5 x 20.7 x 12.3"

• SW-2 Secure Workstation for Select Degaussers/HD Destroyers

  Dimensions (HxWxD)	47 x 50 x 32" (119 x 127 x 81 cm)
  Weight	190 lb (86 kg)

• MB-1B Blue Recycle Container

  Dimensions	11.0 x 28.0 x 21.0" (27.9 x 71.1 x 53.3 cm)
  Weight	1 lb (0.5 kg)

• Red "Media to be Degaussed" Bin for HD-3WXL

  Weight

  1.0 lb (0.5 kg)

• Yellow "Degaussed Media" Bin for HD-3WXL

  Weight

  1.0 lb (0.5 kg)
