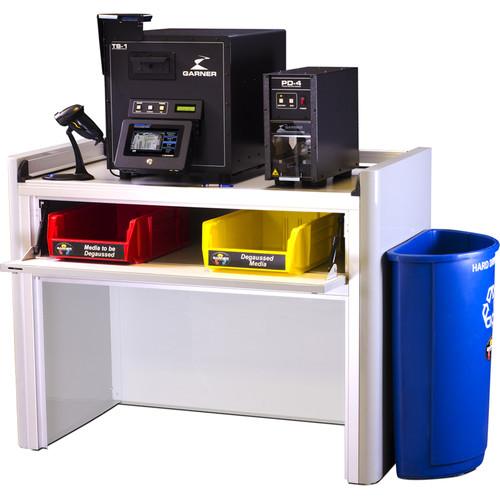

User Manual for Garner SW-2 Workstation with TS-1 IRONCLAD Degausser & PD-4 Destroyer Click to enlarge the picture
Contents of the user manual for the Garner SW-2 Workstation with TS-1 IRONCLAD
- Product category: Degaussers & Erasers Garner
- Brand: Garner
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Garner Degaussers & Erasers
|
User manual for the Garner SW-2 Workstation with TS-1 IRONCLAD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Garner product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Garner user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Garner product will considerably shorten its lifespan!
|
Product description This Garner kit packages the TS-1 Degausser, IRONCLAD Verification, PD-4 Hard Drive Destroyer and SW-2 Workstation together. The powerful, NSA-listed TS-1 degausser features a robust 20,000-gauss (2-tesla) magnetic field, and a 45-second complete erasure time. Track and document the erasure of your data using the included IRONCLAD Erasure Verification system, complete with touchscreen display, labels, barcode scanner, and report generator. The NSA-listed PD-4 Destroyer offers physical data destruction, using 10,500 pounds of force to crush hard drives in 20 seconds. The standing-height SW-2 Workstation houses and supports the media destruction components. Workstation features include aluminum and wood construction, and a locking media compartment. A recycling bin and two media storage bins help you keep track of your media's destruction status. - TS-1 Hard Drive and Tape Degausser (NSA/CSS EPL-Listed) The TS-1 Hard Drive and Tape Degausser from Garner is an NSA-listed degausser featuring a robust 20,000-gauss (2-tesla) magnetic field, and a 45-second complete erasure time. Suitable for hard drives up to 1.3" high, and multiple tape formats, the TS-1 erases evenly, regardless of the media's orientation in the TS-1 drawer. This degausser erases both perpendicularly- and longitudinally-recorded drives up to 5000 Oe, and up to 3000-Oe magnetic tape media. The TS-1's built-in verification system confirms the strength of each erasure cycle in a bar graph format. Besides field strength, the TS-1 Degausser's LCD screen displays erasure status, a media count, and diagnostics. Compatible with standard office wall outlets, the TS-1 also features quiet operation, a table-top design, and four retractable handles for two-person lifting.
Features - Generates 20,000-gauss (2-tesla) magnetic field for hard drive, and tape cartridge erasure in 45 seconds
- Verification system with LCD display of field strength, media counter, and diagnostics
- Table-top design with pinch-free loading drawer
- Erases up to 5000-Oe perpendicular and longitudinal hard drives, and up to 3000-Oe magnetic tapes
Certifications / Listings - NSA/CSS - EPL-listed (Evaluated Products List)
CE ANSI FCC - IRONCLAD Verification System for TS-1 Degausser Designed to work with the TS-1 Degausser, the Garner IRONCLAD Verification System provides visual and text documentation of your drives' erasure. This 16GB system consists of a touchscreen control head, a camera, erasure-report software, and a barcode scanner with stand. The IRONCLAD system is fully integrable with any 2015 or newer, USB-equipped TS-1 model degausser (available separately). Use the IRONCLAD system to scan each hard drive's serial number, capture an image of the degaussed drive, record the system operator's ID, and document the drive's erasure status. The included software generates erasure reports and images suitable for auditing purposes. A touchscreen stylus, and 50 "Degaussed" labels are included with the system components.
Features - Automated erasure-verification system captures the hard drive's serial number, erasure status, and the operator's ID
- Includes a 7" touchscreen interface with 16GB storage and stylus, a camera, and a barcode scanner with stand
- IRONCLAD erasure-report software generates reports and images suitable for auditing purposes
- PD-4 Physical Hard Drive Destroyer Optimally used after degaussing, the Garner PD-4 Physical Hard Drive Destroyer provides quick, secure destruction of hard drives containing sensitive data. Just like a mini Death Star compactor, the PD-4 destroys by crushing, applying approximately 10,500 pounds of force to drives in its destruction chamber. The PD-4 is software-independent, destroying up to six laptop-, two standard-, or one full-height hard drive per cycle. The first drive is destroyed in 20 seconds or less, meeting NSA emergency-destruction guidelines. The Garner PD-4 Destroyer automatically adjusts its crushing power to the drive's height, and can run continuously without cooling down between cycles. Its office-friendly design is quiet, free of hydraulic fluid, and offers push-button operation.
Features - Destroys laptop, standard, or network hard drives
- Multiple drive destruction with first drive crushed in 20 seconds or less
- Durable stainless-steel crushing wedge with automatic height and crush control
- Quiet, office-friendly design with no hydraulic fluid
- For complete security, best used after drives have been degaussed
Compliance Standards -
- California Senate Bill 1386
- DOD Emergency Destruction Guidelines
- FCC
- GLBA (Gramm-Leach-Bliley Act)
- HIPAA (Health Information Portability and Accountability Act)
- NIST (National Institute of Standards and Technology) Guidelines for Media
- Sanitization
- NIST SP 800-36
- NIST SP 800-88r1
- NSA/CSS SDDM 9-12
- PCI DSS 3.2 (Payment Card Industry Data Security Standard)
- PIPEDA (Personal Information Protection and Electronic Documents Act)
SW-2 Secure Workstation for Select Degaussers/HD Destroyers The Garner SW-2 Secure Workstation is designed to house select degaussers, hard drive destroyers, and accessories (components not included). Use this standing-height table to neatly contain and support your media destruction equipment. The solidly built SW-2 features a powder-coated aluminum and wood-laminate construction designed to prevent magnetic particles from attaching to the workstation. A locking compartment secures media drives awaiting erasure and/or destruction. Features -
- Houses and supports select Garner degaussers, hard drive destroyers, and accessories (not included)
- Powder-coated aluminum and wood-laminate construction prevents magnetic particles from attaching to the workstation
- Locking compartment secures media drives awaiting erasure and/or destruction
- Standing-desk height work surface
MB-1B Blue Recycle Container The MB-1B Blue Recycle Container from Garner is a half round recycling container with a capacity of 21 gallons. It's made from a durable rotationally molded polyethylene.Rotational molding is a 3-stage heating process that results in evenness all around the edges of the case. The polyethylene material is inserted into a mold, and then gradually rotated until the material sticks to the edges of the mold in an even pattern. Once cooled, this plastic material forms a strong bond that minimizes sagging and potential collapse. - Used for disposal of unwanted media
- Durable polyethylene construction
Red "Media to be Degaussed" Bin for HD-3WXL With the Garner Red "Media to be Degaussed" Bin, you'll never again wonder whether or not your magnetic media, hard drive, or laptop has passed through your Garner HD-3WXL Degausser or other data eraser. Molded of durable, impact-resistant plastic, the bin's bright color and clear label answer the question of whether a tape or drive contains data. Yellow "Degaussed Media" Bin for HD-3WXL With the Garner Yellow "Degaussed Media" Bin, you'll never again wonder whether or not your magnetic media, hard drive, or laptop has passed through your Garner HD-3WXL Degausser or other data eraser. Molded of durable, impact-resistant plastic, the bin's bright color and clear label answer the question of whether a tape or drive contains data. In the Box Bundle Items TS-1 Hard Drive and Tape Degausser (NSA/CSS EPL-Listed) caxyyzczfbrqet IRONCLAD Verification System for TS-1 Degausser - Barcode Scanner with Stand
- IRONCLAD Erasure Report Software
- 1-Year IRONCLAD Software Support
PD-4 Physical Hard Drive Destroyer SW-2 Secure Workstation for Select Degaussers/HD Destroyers MB-1B Blue Recycle Container Red "Media to be Degaussed" Bin for HD-3WXL caxyyzczfbrqet Yellow "Degaussed Media" Bin for HD-3WXL Table of Contents
|
Upload User Manual
Have you got an user manual for the Garner SW-2 Workstation with TS-1 IRONCLAD Degausser & PD-4 Destroyer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - TS-1 Hard Drive and Tape Degausser (NSA/CSS EPL-Listed)
Type | Capacitive discharge | Supported Formats | Hard Drives: up to 1.3" high, including full height, standard & laptop Tape Cartridges: LTO, all DLT, AIT, 2590 series, 8mm, etc. | Magnetic Field Strength | 2 tesla (20,000 gauss) nominal | Disk Coercivity in NSA EPL-D | 5000 Oe, longitudinal- and perpendicular-recorded | Tape Coercivity in NSA EPL-D | 3000 Oe | Duty Cycle | Continuous | Erasure | Maximum Hard Drives per Hour: 720 x 1.8" (46 mm) 480 x 2.5" (64 mm) 80 x 3.5" (89 mm) | Power Requirements | 100~240 VAC ±5%, 50/60 Hz Factory-configurable | Power Consumption | Standby: 36 W Charging: 420 W (average) Erasing: 36 W | Temperature / Humidity | Temperature: 41 to 104°F (5 to 4°C) Humidity: 10 to 40% (non-condensing) | Drawer Capacity (HxWxD) | 1.3 x 4.3 x 5.9" (31.8 x 108 x 148.6 mm) | Dimensions (WxHxD) | 18.8 x 17.6 x 21.5" (476.3 x 447 x 546 mm) | Weight | 144 lb (65.3 kg) | | Box Dimensions (LxWxH) | 33.5 x 27.5 x 26.0" | - IRONCLAD Verification System for TS-1 Degausser
Storage Capacity | 16 GB | Touchscreen | 7" (178 mm) | Interfaces | 1 x Ethernet 4 x USB 1 x HDMI 1 x 3.5 mm camera port 1 x Power (standard wall outlet) | Power Supply | 90-240 VAC, 47-440 Hz | Power Consumption | 15 W | Fuse | 250 VAC, H3 .15 A | Dimensions (WxHxD) | Control Head: 6.5 x 9.6 x 2.5" (165 x 244 x 64 mm) Camera Unit: 7.7 x 5.6 x 4.9" (196 x 143 x 125 mm) | Weight | Control Head: 4 lb (1.8 kg) Camera Unit: 1.2 lb (0.5 kg) | - PD-4 Physical Hard Drive Destroyer
Type | Physical hard drive destroyer | Hard Drive Maximum Height | 2.8 x 4.5 x 6.3" (71 x 114 x 160 mm) | Chamber Capacity | Hard Drives: 1 x full height 2 x standard height 6 x laptop | Power Supply | 100-130 VAC ±5%, 50/60 Hz, factory-configurable 200-240 VAC ±5%, 50/60 Hz, factory-configurable | Power Consumption | During Standby: 24 W During Crush: 1920 W (max) | Temperature | 41 to 104°F (5 to 40°C) | Humidity | 10 to 40% (non-condensing) | Destruction Chamber Dimensions | 2.8 x 4.5 x 6.3" (71 x 114 x 160 mm) | Dimensions (HxWxD) | 14.2 x 7.2 x 16.9" (361 x 183 x 429 mm) | Weight | 73 lbs (33 kg) | | Box Dimensions (LxWxH) | 21.5 x 20.7 x 12.3" | - SW-2 Secure Workstation for Select Degaussers/HD Destroyers
Dimensions (HxWxD) | 47 x 50 x 32" (119 x 127 x 81 cm) | Weight | 190 lb (86 kg) | - MB-1B Blue Recycle Container
Dimensions | 11.0 x 28.0 x 21.0" (27.9 x 71.1 x 53.3 cm) | Weight | 1 lb (0.5 kg) | - Red "Media to be Degaussed" Bin for HD-3WXL
- Yellow "Degaussed Media" Bin for HD-3WXL
