Garner TS-1 Degausser Kit with PD-5

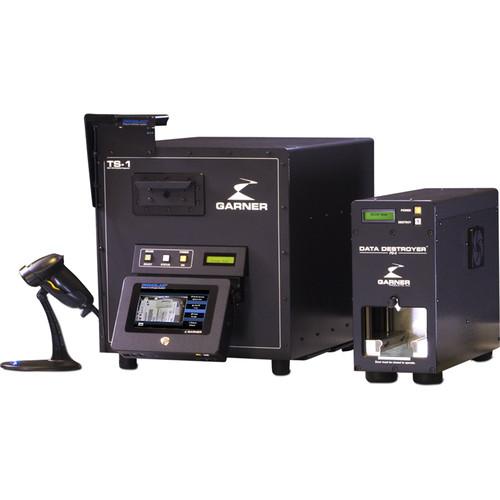

User Manual for Garner TS-1 Degausser Kit with PD-5 Drive Destroyer & IRONCLAD Verification

• Product category: Degaussers & Erasers Garner
• Brand: Garner
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Garner Degaussers & Erasers

Product description

• TS-1 Hard Drive and Tape Degausser (NSA/CSS EPL-Listed) The TS-1 Hard Drive and Tape Degausser from Garner is an NSA-listed degausser featuring a robust 20,000-gauss (2-tesla) magnetic field, and a 45-second complete erasure time. Suitable for hard drives up to 1.3" high, and multiple tape formats, the TS-1 erases evenly, regardless of the media's orientation in the TS-1 drawer. This degausser erases both perpendicularly- and longitudinally-recorded drives up to 5000 Oe, and up to 3000-Oe magnetic tape media. The TS-1's built-in verification system confirms the strength of each erasure cycle in a bar graph format. Besides field strength, the TS-1 Degausser's LCD screen displays erasure status, a media count, and diagnostics. Compatible with standard office wall outlets, the TS-1 also features quiet operation, a table-top design, and four retractable handles for two-person lifting.

  Features

  • Generates 20,000-gauss (2-tesla) magnetic field for hard drive, and tape cartridge erasure in 45 seconds
  • Verification system with LCD display of field strength, media counter, and diagnostics
  • Table-top design with pinch-free loading drawer
  • Erases up to 5000-Oe perpendicular and longitudinal hard drives, and up to 3000-Oe magnetic tapes

  Certifications / Listings

  • NSA/CSS - EPL-listed (Evaluated Products List)
    CE
    ANSI
    FCC
• IRONCLAD Verification System for TS-1 Degausser Designed to work with the TS-1 Degausser, the Garner IRONCLAD Verification System provides visual and text documentation of your drives' erasure. This 16GB system consists of a touchscreen control head, a camera, erasure-report software, and a barcode scanner with stand. The IRONCLAD system is fully integrable with any 2015 or newer, USB-equipped TS-1 model degausser (available separately). Use the IRONCLAD system to scan each hard drive's serial number, capture an image of the degaussed drive, record the system operator's ID, and document the drive's erasure status. The included software generates erasure reports and images suitable for auditing purposes. A touchscreen stylus, and 50 "Degaussed" labels are included with the system components.

  Features

  • Automated erasure-verification system captures the hard drive's serial number, erasure status, and the operator's ID
  • Includes a 7" touchscreen interface with 16GB storage and stylus, a camera, and a barcode scanner with stand
  • IRONCLAD erasure-report software generates reports and images suitable for auditing purposes
• PD-5 High-Capacity Hard Drive Destroyer The Garner PD-5 Hard Drive Destroyer uses 15,500 pounds of crushing power to physically destroy hard drives containing your sensitive data. This powerful, high-speed, destroyer bends, breaks, and mangles hard drives, including data platters and other internal components, thwarting data recovery. The PD-5 is software-independent, destroying up to eight laptop-, two standard-, or one full-height hard drive per cycle. Drives are destroyed in 18 seconds or less, meeting NSA emergency-destruction guidelines. The Garner PD-5 Destroyer automatically senses the inserted media type, and can run continuously without cooling down between cycles. Its office-friendly design is quiet, free of hydraulic fluid, and offers push-button operation with an LCD display screen. The optional SSD-1 accessory destroyer expands the PD-5's range to include solid-state drives, including laptop SSDs, solid-state hybrid drives (SSHDs), flash, compact flash, thumb, and other USB drives (SSD-1 not included).

  Features

  • Powerful, high-speed destroyer crushes laptop, standard, or network hard drives up to 2.25" high
  • Uses 15,500 pounds of force and automatic torque control to crush drives in 18 seconds or less
  • Destroys up to eight laptop drives, two standard 1-inch hard drives, or one full-height hard drive per cycle
  • Quiet, software-independent, and office-friendly design contains no hydraulic fluid
  • Does not require cool-down between cycles
  • Can be used with the optional SSD-1 destroyer for obliterating a range of solid state drives

  Compliance Standards

  • • NSA/CSS Evaluated Products List (EPL) for Hard Drive Bending Devices
    • California Senate Bill 1386
    • DOD Emergency Destruction Guidelines
    • FCC
    • GLBA (Gramm-Leach-Bliley Act)
    • HIPAA (Health Information Portability and Accountability Act)
    • NIST (National Institute of Standards and Technology) Guidelines for Media
    • Sanitization
    • NIST SP 800-36
    • NIST SP 800-88r1
    • NSA/CSS SDDM 9-12
    • PCI DSS 3.2 (Payment Card Industry Data Security Standard)
    • PIPEDA (Personal Information Protection and Electronic Documents Act)
  In the Box Bundle Items TS-1 Hard Drive and Tape Degausser (NSA/CSS EPL-Listed) uqsbyefyawsqrczryrdxbf
  • Limited 1-Year Warranty
  IRONCLAD Verification System for TS-1 Degausser
  • Touchscreen Control Head
  • Camera
  • Barcode Scanner with Stand
  • IRONCLAD Erasure Report Software
  • 50 x "Degaussed" Labels
  • Stylus
  • 1-Year IRONCLAD Software Support
  • Limited 1-Year Warranty
  PD-5 High-Capacity Hard Drive Destroyer
  • Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• TS-1 Hard Drive and Tape Degausser (NSA/CSS EPL-Listed)

  Type	Capacitive discharge
  Supported Formats	Hard Drives: up to 1.3" high, including full height, standard & laptop Tape Cartridges: LTO, all DLT, AIT, 2590 series, 8mm, etc.
  Magnetic Field Strength	2 tesla (20,000 gauss) nominal
  Disk Coercivity in NSA EPL-D	5000 Oe, longitudinal- and perpendicular-recorded
  Tape Coercivity in NSA EPL-D	3000 Oe
  Duty Cycle	Continuous
  Erasure	Maximum Hard Drives per Hour: 720 x 1.8" (46 mm) 480 x 2.5" (64 mm) 80 x 3.5" (89 mm)
  Power Requirements	100~240 VAC ±5%, 50/60 Hz Factory-configurable
  Power Consumption	Standby: 36 W Charging: 420 W (average) Erasing: 36 W
  Temperature / Humidity	Temperature: 41 to 104°F (5 to 4°C) Humidity: 10 to 40% (non-condensing)
  Drawer Capacity (HxWxD)	1.3 x 4.3 x 5.9" (31.8 x 108 x 148.6 mm)
  Dimensions (WxHxD)	18.8 x 17.6 x 21.5" (476.3 x 447 x 546 mm)
  Weight	144 lb (65.3 kg)

  Box Dimensions (LxWxH)	33.5 x 27.5 x 26.0"

• IRONCLAD Verification System for TS-1 Degausser

  Storage Capacity	16 GB
  Touchscreen	7" (178 mm)
  Interfaces	1 x Ethernet 4 x USB 1 x HDMI 1 x 3.5 mm camera port 1 x Power (standard wall outlet)
  Power Supply	90-240 VAC, 47-440 Hz
  Power Consumption	15 W
  Fuse	250 VAC, H3 .15 A
  Dimensions (WxHxD)	Control Head: 6.5 x 9.6 x 2.5" (165 x 244 x 64 mm) Camera Unit: 7.7 x 5.6 x 4.9" (196 x 143 x 125 mm)
  Weight	Control Head: 4 lb (1.8 kg) Camera Unit: 1.2 lb (0.5 kg)

• PD-5 High-Capacity Hard Drive Destroyer

  Type	Physical hard drive destroyer
  Compatible Media	Hard drives up to 2.25" (5.7 cm) high
  Power Supply	100-240 VAC ±5%, 50/60 Hz, factory-configurable
  Power Consumption	Standby: 90 W Crushing: 1200 W (maximum)
  Temperature	41 to 104°F (5 to 40°C)
  Humidity	10 to 40% (non-condensing)
  Destruction Chamber Capacity	2.3 x 4.9 x 6.8" (58 x 125 x 173 mm)
  Dimensions (HxWxD)	14.9 x 7.5 x 18.6" (38 x 19 x 47 cm)
  Weight	79 lbs (36 kg)
