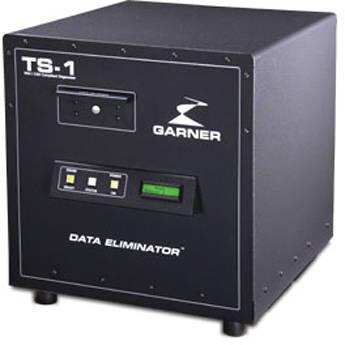

Product description The TS-1 Hard Drive and Tape Degausser from Garner is an NSA-listed degausser featuring a robust 20,000-gauss (2-tesla) magnetic field, and a 45-second complete erasure time. Suitable for hard drives up to 1.3" high, and multiple tape formats, the TS-1 erases evenly, regardless of the media's orientation in the TS-1 drawer. This degausser erases both perpendicularly- and longitudinally-recorded drives up to 5000 Oe, and up to 3000-Oe magnetic tape media. The TS-1's built-in verification system confirms the strength of each erasure cycle in a bar graph format. Besides field strength, the TS-1 Degausser's LCD screen displays erasure status, a media count, and diagnostics. Compatible with standard office wall outlets, the TS-1 also features quiet operation, a table-top design, and four retractable handles for two-person lifting. Features - Generates 20,000-gauss (2-tesla) magnetic field for hard drive, and tape cartridge erasure in 45 seconds
- Verification system with LCD display of field strength, media counter, and diagnostics
- Table-top design with pinch-free loading drawer
- Erases up to 5000-Oe perpendicular and longitudinal hard drives, and up to 3000-Oe magnetic tapes
Certifications / Listings - NSA/CSS - EPL-listed (Evaluated Products List)
CE
ANSI
FCC In the Box Garner TS-1 Hard Drive and Tape Degausser (NSA/CSS EPL-Listed) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Garner TS-1 Hard Drive and Tape Degausser in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGarner TS-1 Specs | Type | Capacitive discharge | | Supported Formats | Hard Drives: up to 1.3" high, including full height, standard & laptop
Tape Cartridges: LTO, all DLT, AIT, 2590 series, 8mm, etc. | | Magnetic Field Strength | 2 tesla (20,000 gauss) nominal | | Disk Coercivity in NSA EPL-D | 5000 Oe, longitudinal- and perpendicular-recorded | | Tape Coercivity in NSA EPL-D | 3000 Oe | | Duty Cycle | Continuous | | Erasure | Maximum Hard Drives per Hour:
720 x 1.8" (46 mm)
480 x 2.5" (64 mm)
80 x 3.5" (89 mm) | | Power Requirements | 100~240 VAC ±5%, 50/60 Hz Factory-configurable | | Power Consumption | Standby: 36 W
Charging: 420 W (average)
Erasing: 36 W | | Temperature / Humidity | Temperature: 41 to 104°F (5 to 4°C)
Humidity: 10 to 40% (non-condensing) | | Drawer Capacity (HxWxD) | 1.3 x 4.3 x 5.9" (31.8 x 108 x 148.6 mm) | | Dimensions (WxHxD) | 18.8 x 17.6 x 21.5" (476.3 x 447 x 546 mm) | | Weight | 144 lb (65.3 kg) | | | | Package Weight | 200.0 lb | | Box Dimensions (LxWxH) | 33.5 x 27.5 x 26.0" |
