User Manual for GeChic 1102H On-Lap 11.6" 16:9 Portable LCD Monitor Click to enlarge the picture
Contents of the user manual for the GeChic 1102H On-Lap 11.6" 16:9 Portable
- Product category: Computer Monitors GeChic
- Brand: GeChic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GeChic Computer Monitors
 |
User manual for the GeChic 1102H On-Lap 11.6" 16:9 Portable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GeChic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GeChic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GeChic product will considerably shorten its lifespan!
|

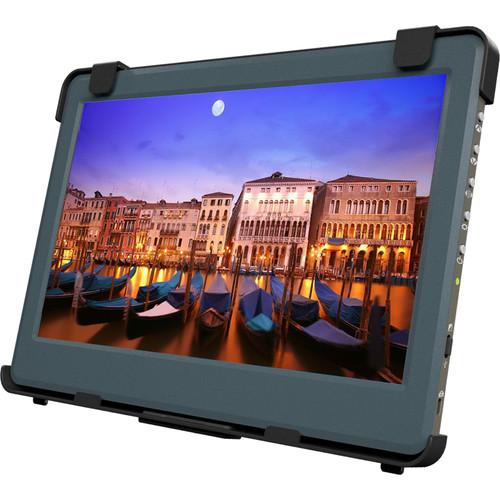

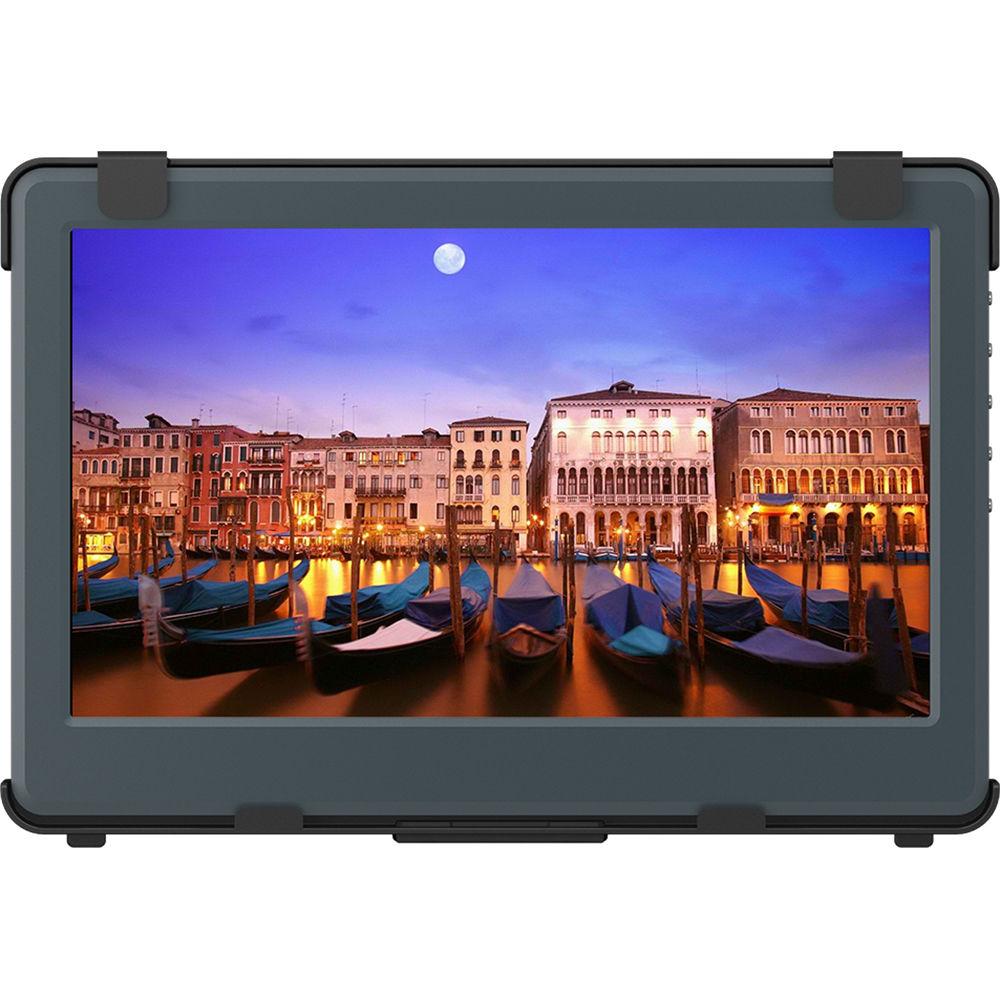

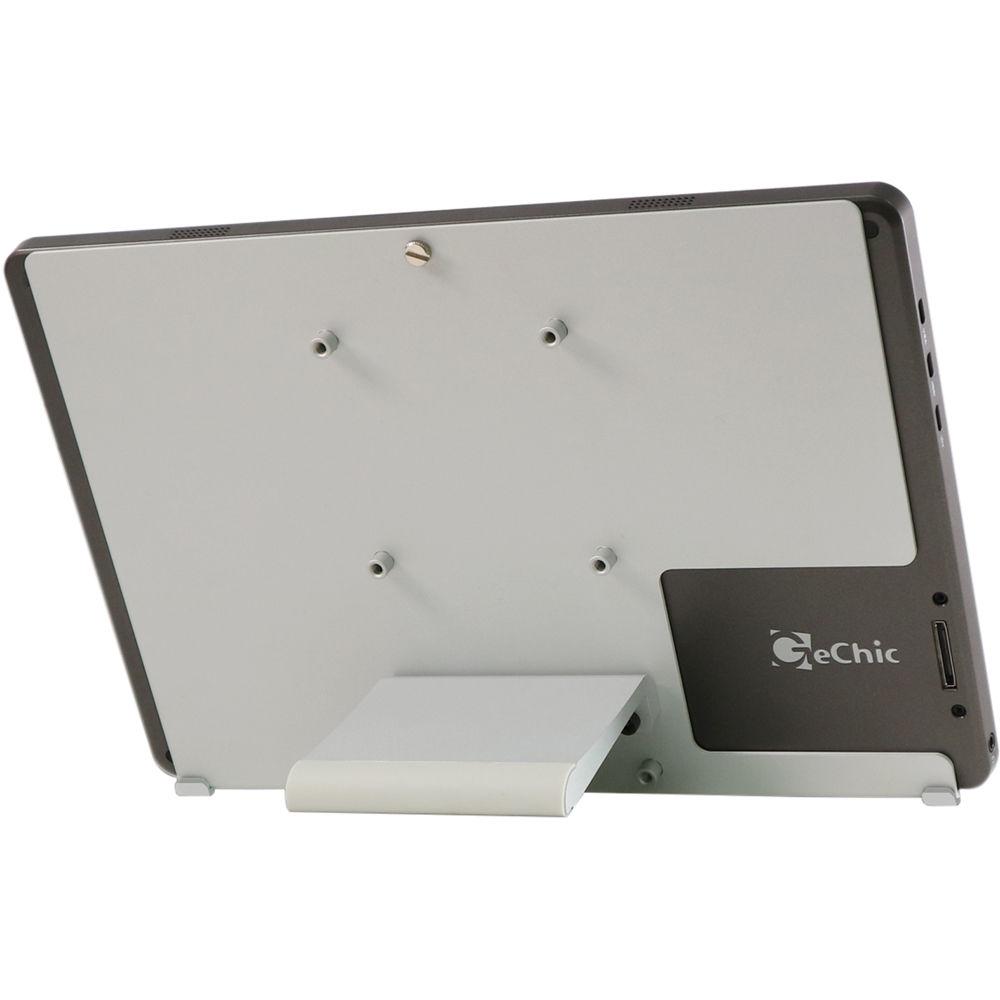

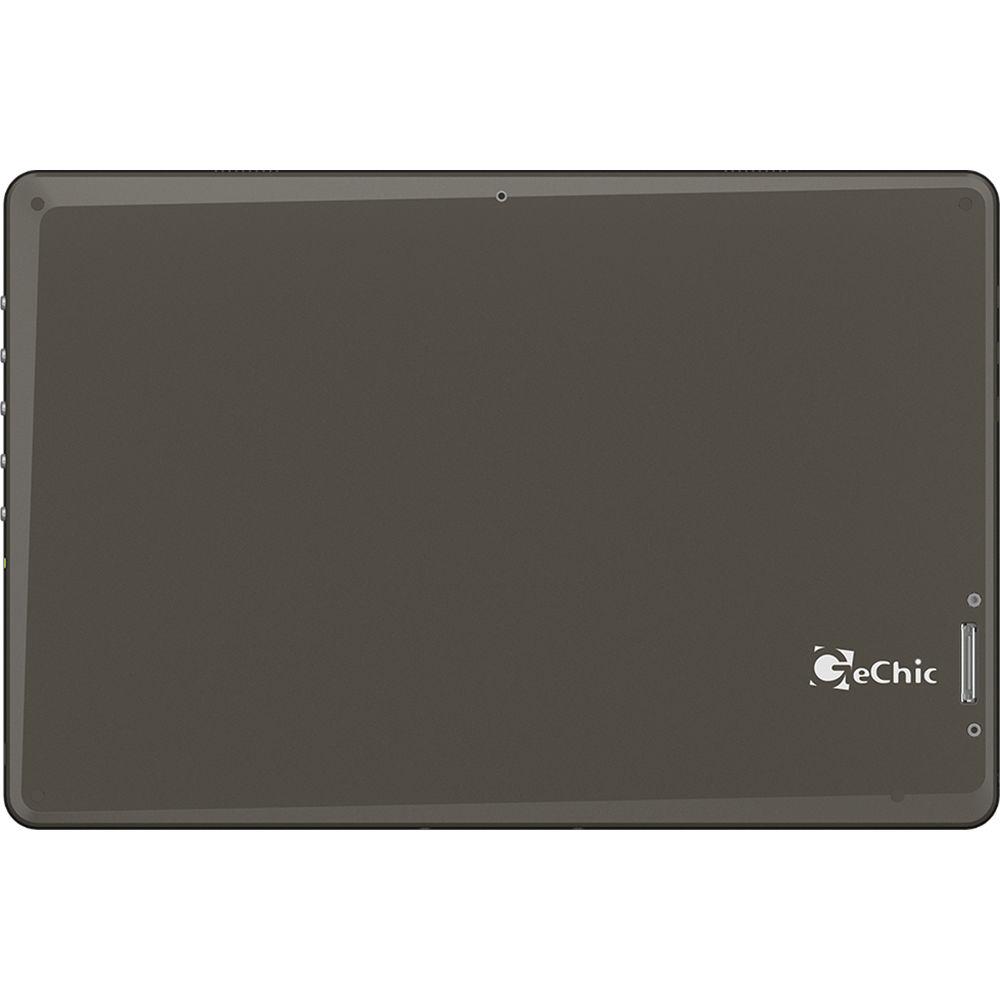

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More Take the 1102H On-Lap 11.6" 16:9 Portable LCD Monitor from GeChic with you on-the-go and use with your laptop for a dual monitor setup virtually anywhere you go. This portable monitor features a Full HD 1920 x 1080 resolution display, a 1000:1 contrast ratio, a 350 cd/m² brightness rating, a 12.5 ms response time, support for up to 16.7 million colors, and 178° horizontal and vertical viewing angles so you can see all of your content from virtually any angle. Configuration is simple thanks to micro-USB, HDMI, and VGA inputs while the optional rear dock opens up even more connection options. When you're finished, pack up the On-Lap 1102H portable monitor in no time thanks to the smart cover stand, which doubles as a cover to help protect your investment when you're on-the-go. -
- Whether you use this monitor horizontally or vertically, it makes a perfect companion for a dual monitor configuration
- The On-Lap 1102H is powered by a 6900mAh lithium-ion polymer battery
- The On-Lap 1102H uses Fringe-Field Switching technology for wide viewing angles, true color, high contrast ratios, and rapid response times

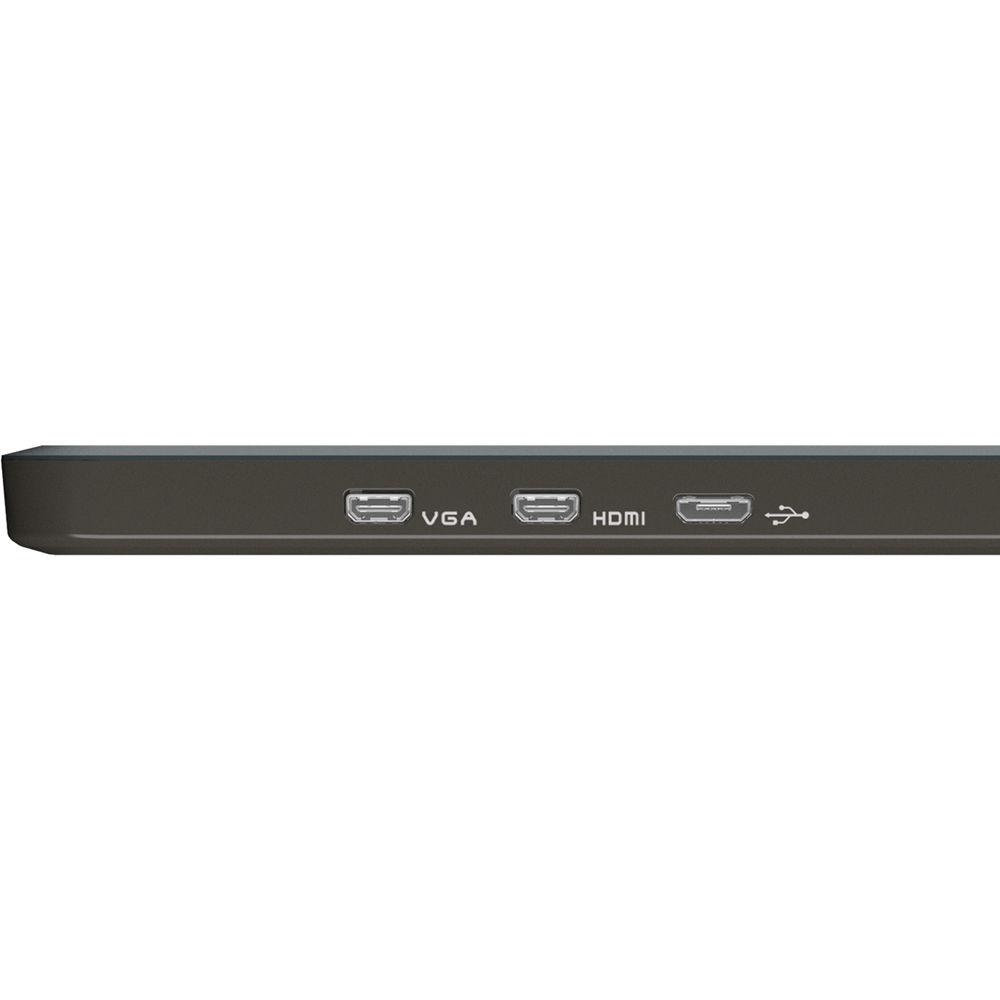

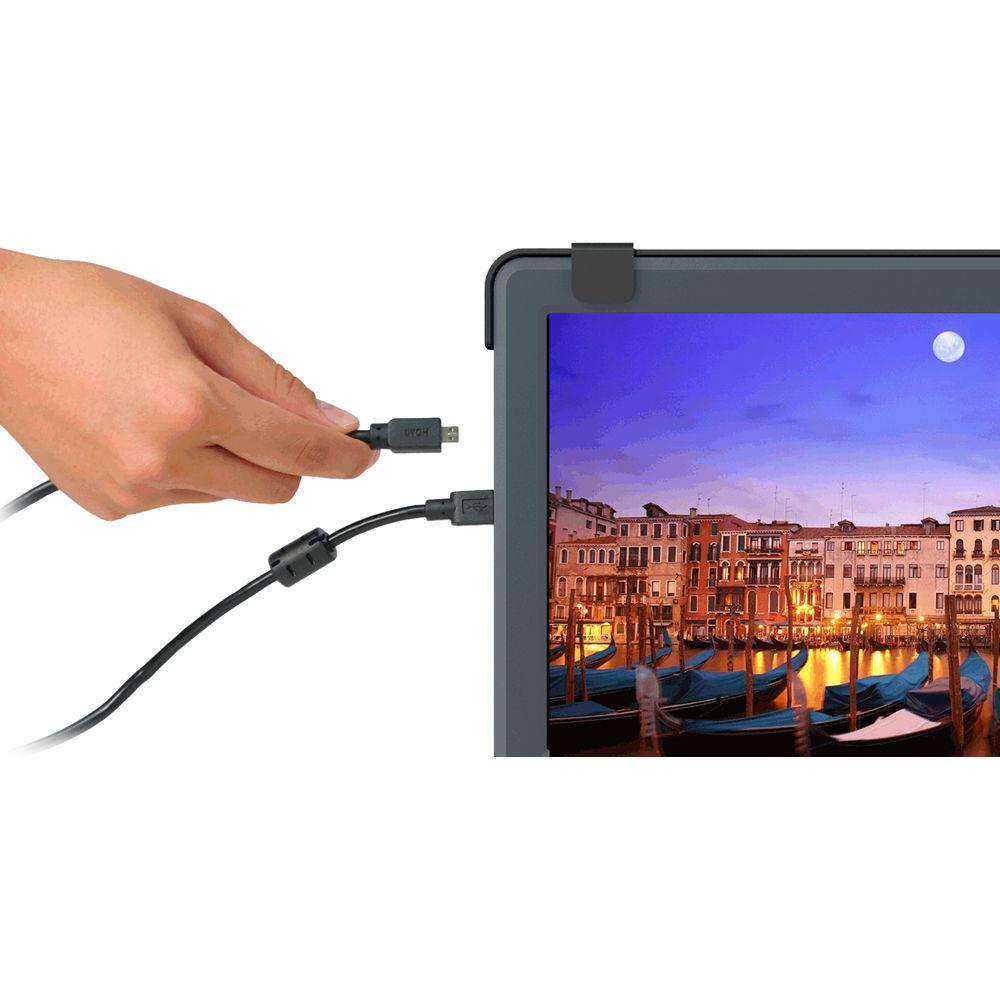

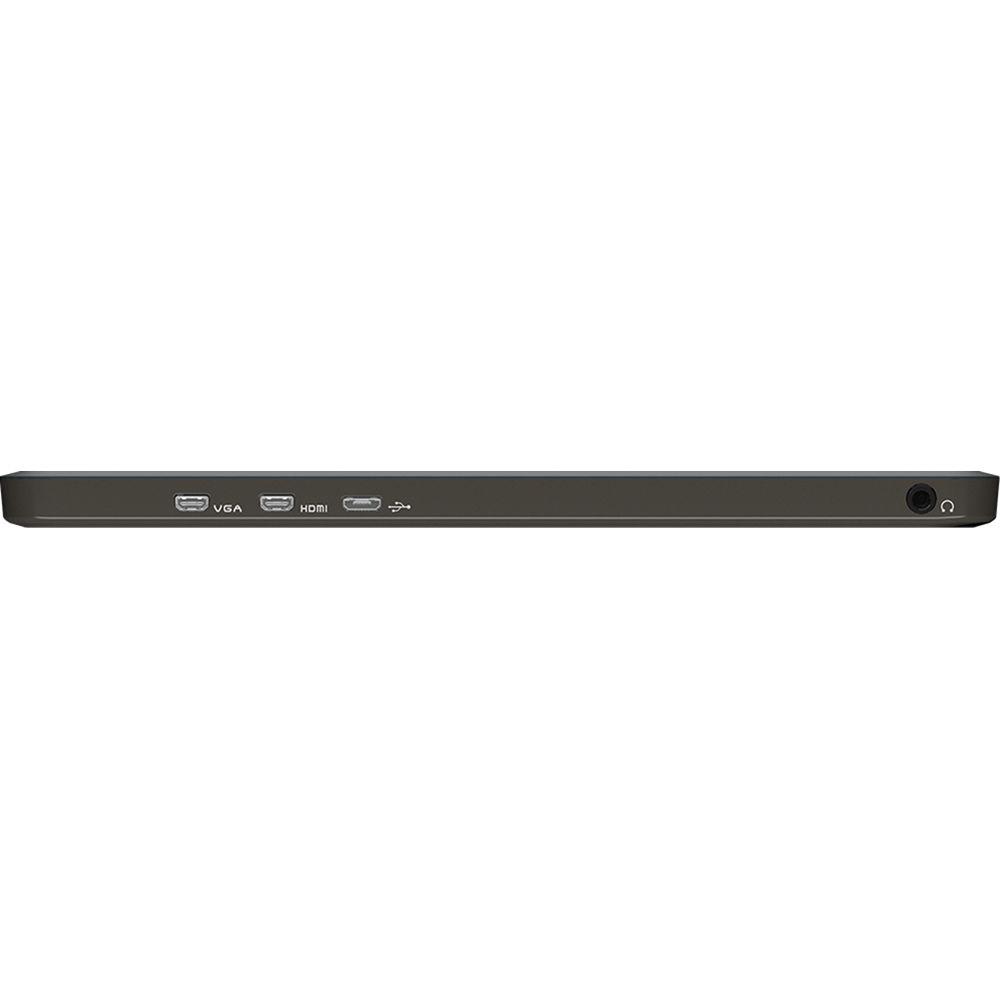

- Flexible connection solutions include micro-USB, HDMI, and VGA ports

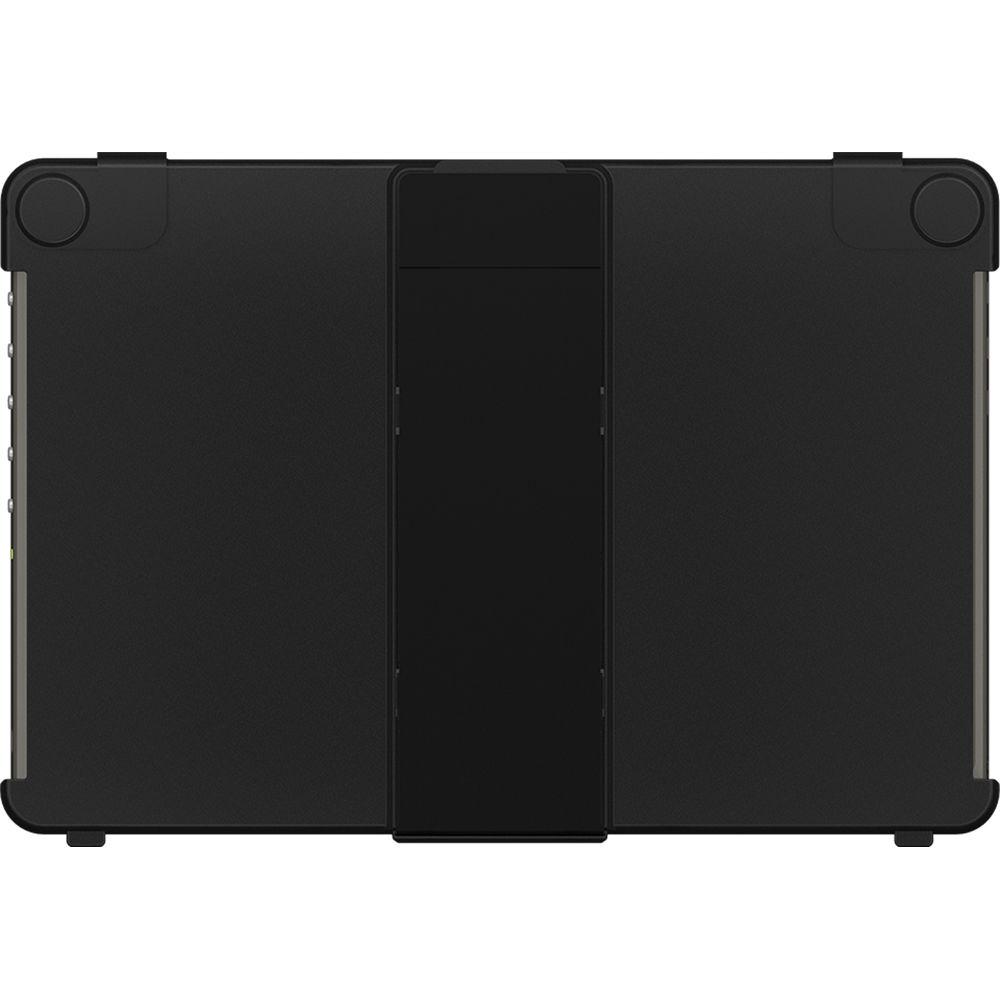

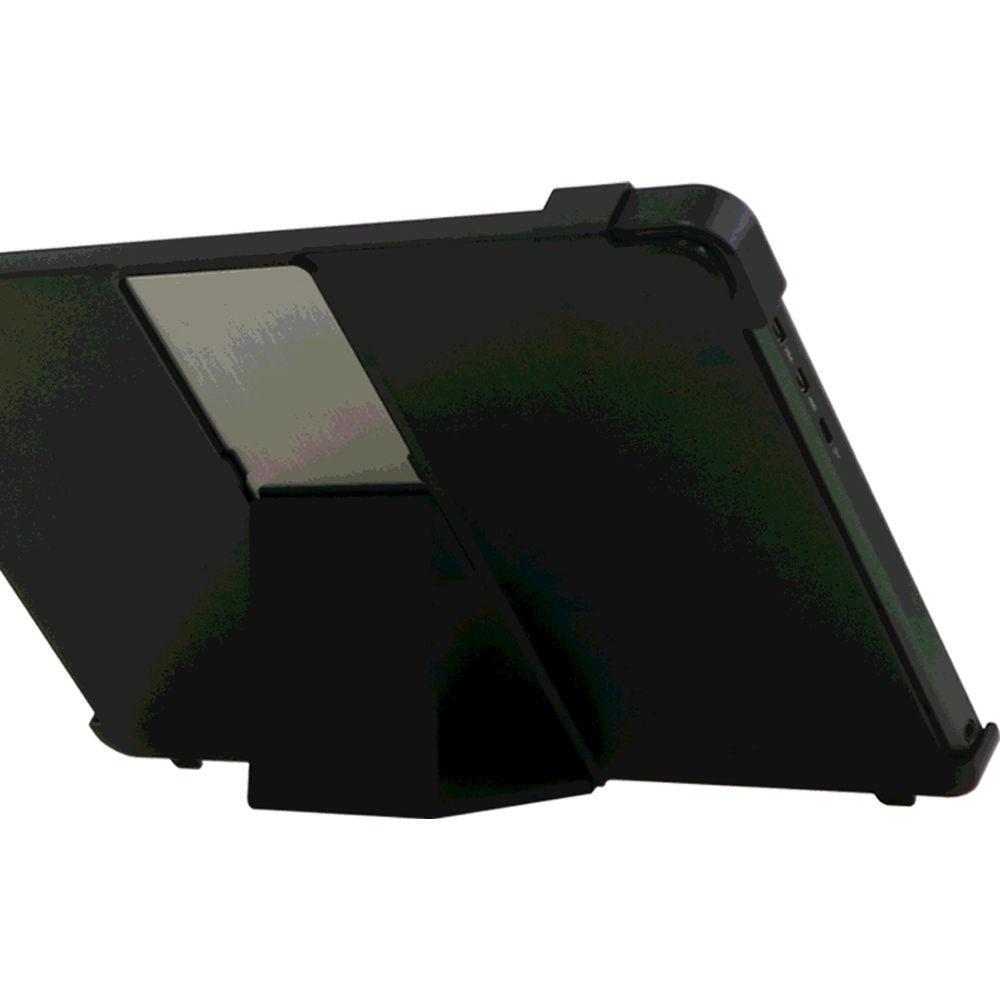

- The included Smart Cover helps to protect your On-Lap 1102H monitor even when on-the-go
In the Box GeChic 1102H On-Lap 11.6" 16:9 Portable LCD Monitor Cover Stand 1/4"-20 Screw Mount Kit HDMI-A to Micro-HDMI Cable USB-A to Micro-USB cable Mini-HDMI to Micro-HDMI Video Cable 5V, 2A Adapter Limited 1-Year Warranty User Manual PDF 3.5mb Table of Contents
|
Upload User Manual
Have you got an user manual for the GeChic 1102H On-Lap 11.6" 16:9 Portable LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGeChic 1102H Specs | | | Size | 11.6" | | Screen Area | 10.08 x 5.67" / 25.6 x 14.4 cm | | Panel Type | Unspecified LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 190 ppi | | Finish | Matte | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 13 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 2 x HDMI
1 x VGA
1 x Micro-USB
1 x 3.5 mm Output | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1 W | | | | Power Consumption | 8.5 W (Maximum)
0.5 W (Standby) | | DC Input Power | 5 VDC at 1.7 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 90% | | Storage Humidity | 10 to 90% | | Certifications | BSMI, C-Tick, CE, FCC, RoHS, VCCI, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | None | | Mounting-Hole Pattern | None | | Dimensions (W x H x D) | 11.6 x 7.6 x 0.4" / 294.0 x 194.0 x 11.0 mm (Without Stand)
11.8 x 8.2 x 0.8" / 299.0 x 209.0 x 21.0 mm (With Stand) | | Weight | 1.30 lb / 590 g (Without Stand)
1.85 lb / 840 g (With Stand) | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 14.0 x 13.0 x 2.0" |
