User Manual for GeChic 1102I 11.6" 16:9 Portable Touchscreen LCD Monitor Click to enlarge the picture
Contents of the user manual for the GeChic 1102I 11.6" 16:9 Portable Touchscreen
- Product category: Computer Monitors GeChic
- Brand: GeChic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GeChic Computer Monitors
 |
User manual for the GeChic 1102I 11.6" 16:9 Portable Touchscreen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GeChic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GeChic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GeChic product will considerably shorten its lifespan!
|

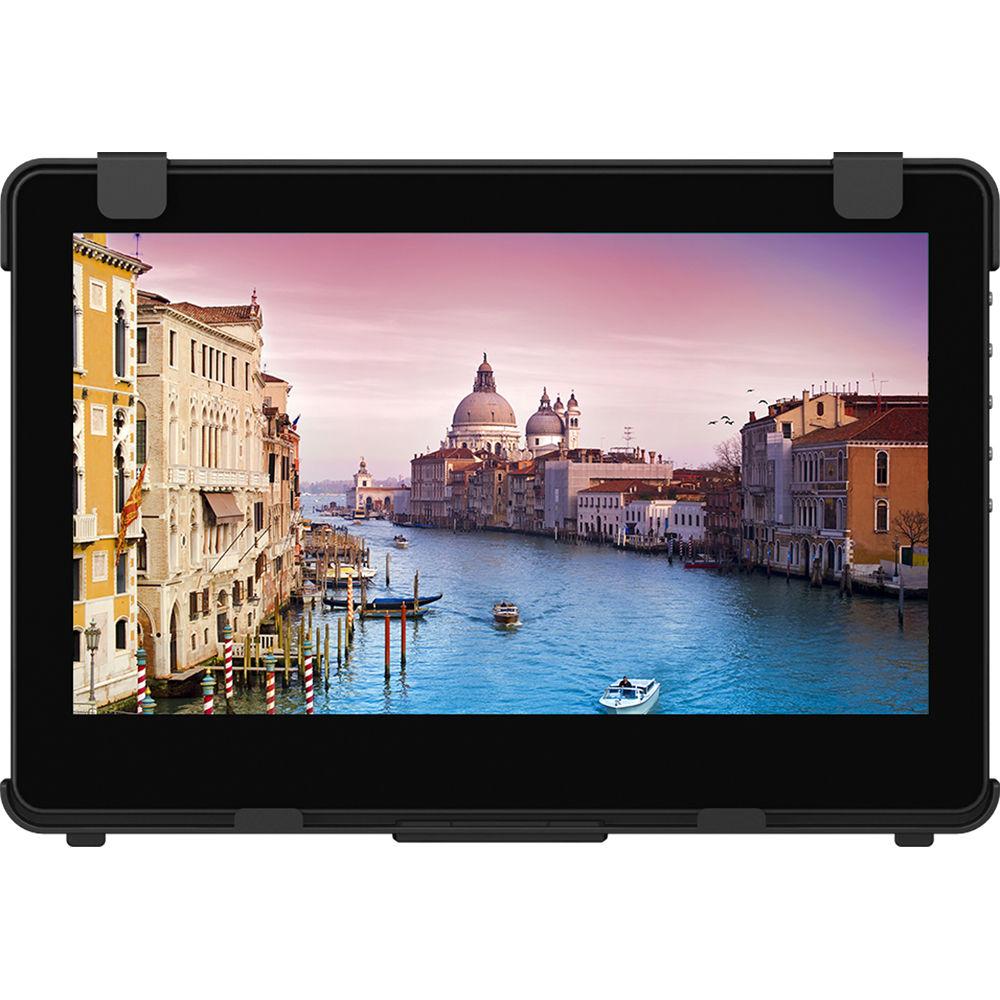

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More zrbbseuvytuwycawrtvueatayvyv The innovative 1102I 11.6" 16:9 Portable Touchscreen IPS Monitor from GeChic offers touchscreen capabilities with support for up to 10 touch-points. The touchscreen also supports palm rejection technology, which allows for a more comfortable user experience especially when using a stylus.
Setup is simple thanks to the versatile connectivity options with a micro-USB, a micro-HDMI port, and a VGA port located on the side of the display. On the back, you will find a 30-pin port that is compatible with the On-Lap Proprietary HDMI Type-A and USB Type-A to dock port cable (sold separately). Included with the GeChic 1102I is a smart stand supporting both horizontal and vertical viewing as well as protection against minor bumps or drops.
The GeChic 1102I Portable Touchscreen Monitor features a Full HD 1920 x 1080 resolution screen along with a 1000:1 contrast ratio, a 250 cd/m² brightness rating, and support for up to 16.7 million colors to ensure all of your multimedia content is displayed with enhanced colors and clarity. - 10-Point Multi-Touch & Palm Rejection Technology
- Offering accuracy and fluidity, the On-Lap 1102I is designed to satisfy you with every touch response. With 10-point touch recognition you can type on screen as if on keyboard, drawing and tapping. The palm rejection technology avoids unintentional inputs and brings you comfort of touch.
- Flexible Connection Solutions

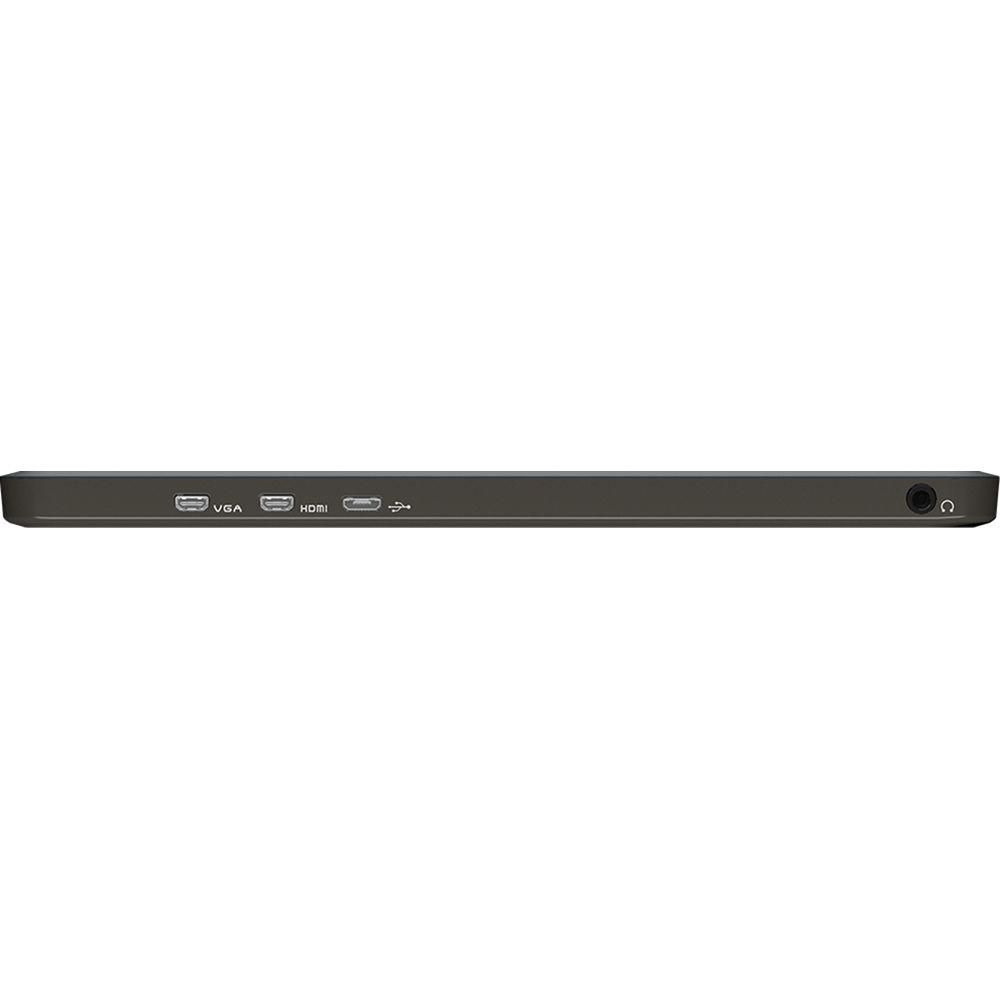

- Side Connection
Three side connections include micro-USB, micro-HDMI, and VGA inputs.

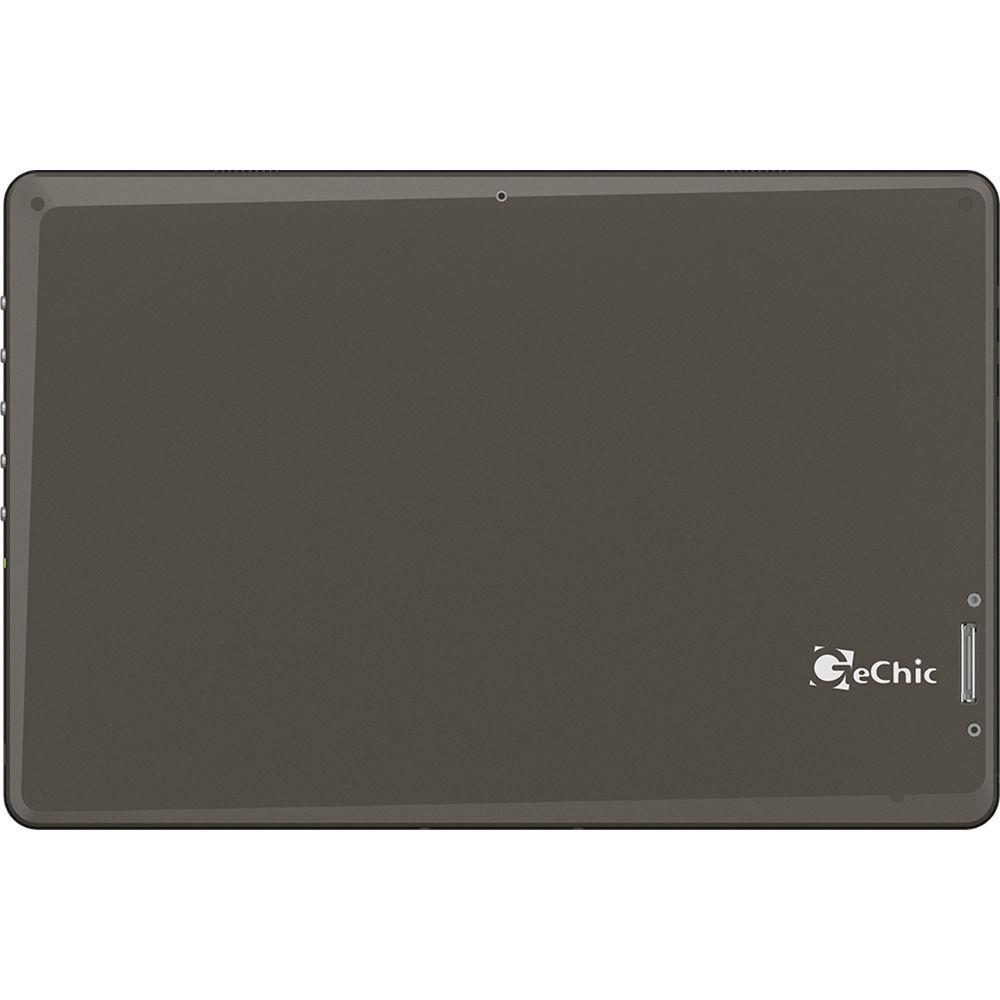

Rear Connection
A 30-pin specific rear port is set on the rear of 1102I. With the On-Lap Proprietary HDMI Type-A and USB Type-A to dock port cable (sold separately), you gain the clear front display in your system. - Advanced FFS Technology
- The On-Lap 1102I uses the high-end FFS (Fringe-Field Switching) panel for wide viewing angles. The panel combines the advantages of Full HD, 16.7M true color, a high contrast ratio, and fast response time. You can read webpages, view photos, and watch videos with more image quality on a power-saving screen.

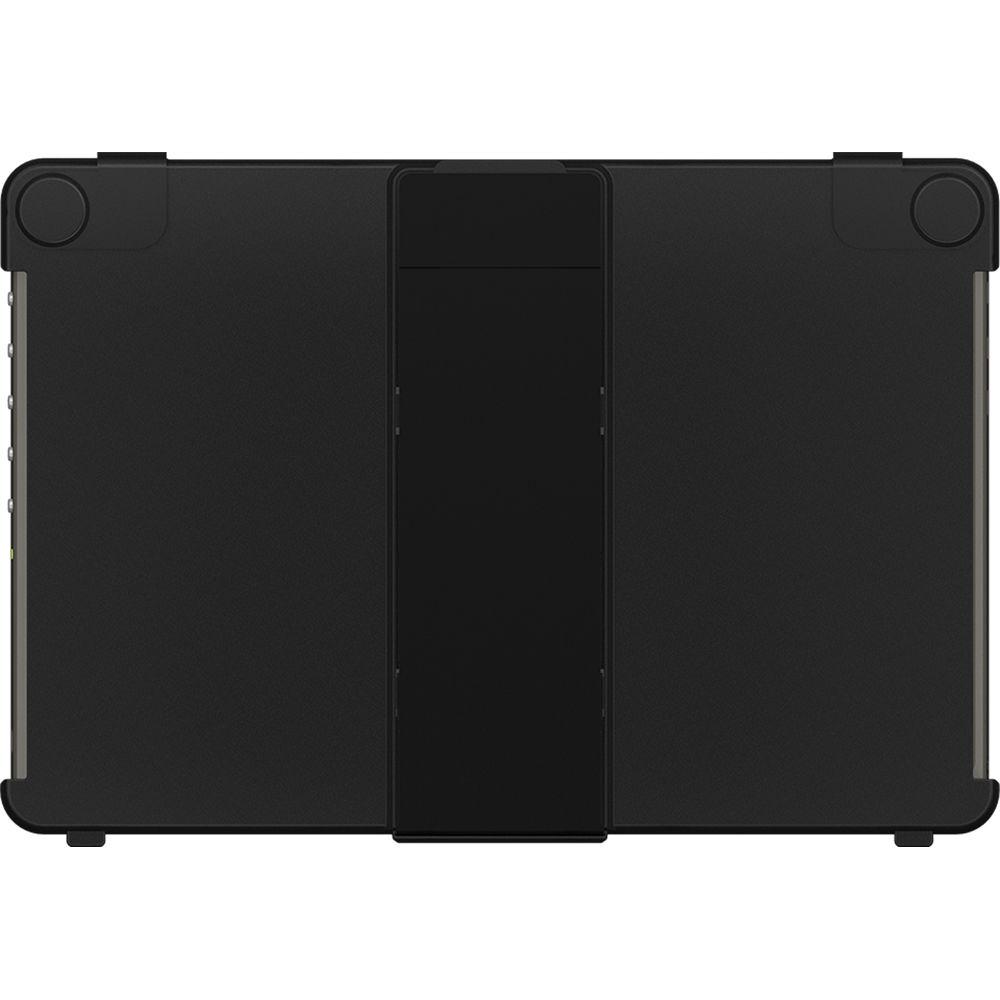

- Smart Stand Gains More Flexibility
- With the cover protection, take 1102 on your person wherever you go. Free more space to create a cleaner desk and earn your efficiency. The rigid protective cover not only provides reliable protection but also sustains 1102I horizontally or vertically at various viewing angles.

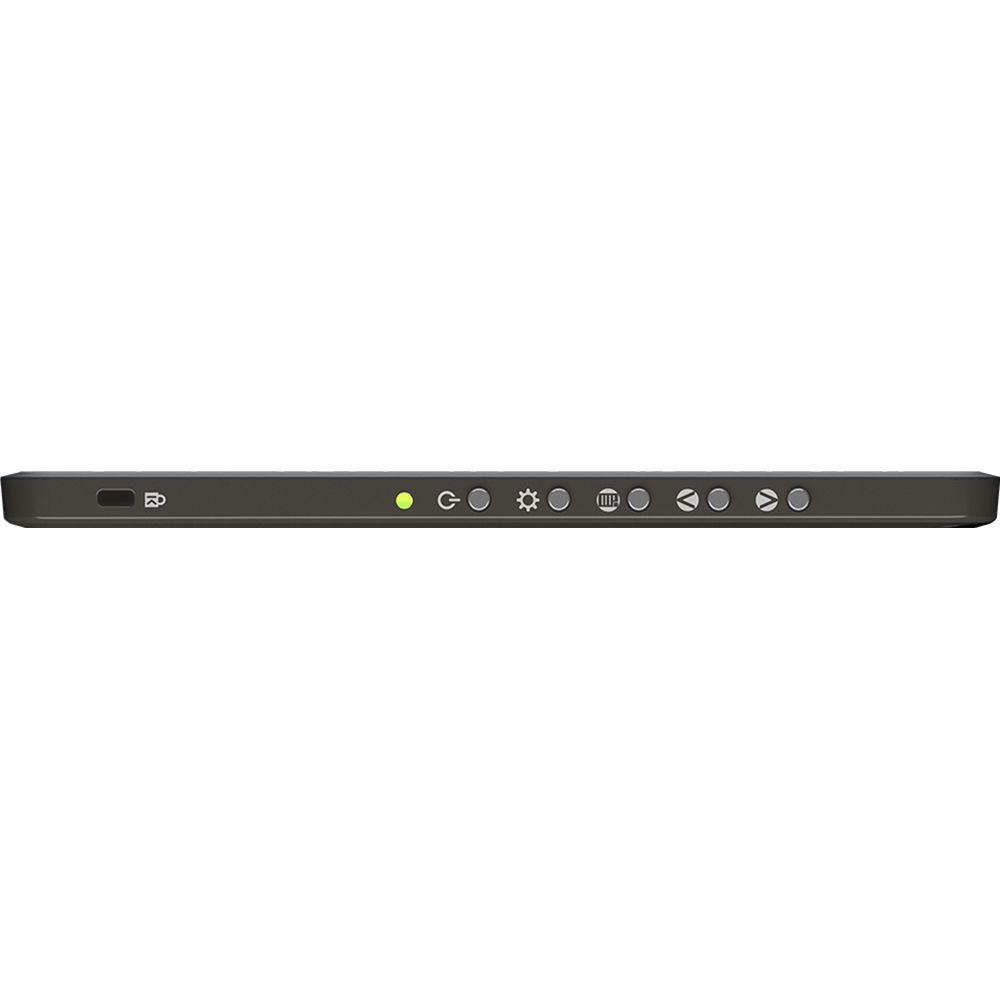

- Kensington Security Slot
- The industry standard Kensington Lock port on the side of 1102I provides an anti-theft protection. Just install a lock to level up the security when you place the 1102I for advertising, or on a counter as a sign board.
- VESA Mounting
- The optional Multi-Mount kit for the 1102I supports the VESA 75 interface. Install 1102I on monitor arm or wall mount allowing more space for either office environment or factory.
- HDMI Video Display Capability
- 1920 x 1080p (50 Hz / 59.94 Hz / 60 Hz)
1280 x 720p (50 Hz / 59.94 Hz / 60 Hz)
720 x 480p (59.94 Hz / 60 Hz)
640 x 480p (59.94 Hz / 60 Hz) In the Box GeChic 1102I 11.6" 16:9 Portable Touchscreen LCD Monitor Cover Stand HDMI Type-A to Micro-HMDI Cable USB Type-A to Micro-USB Cable Power Adapter Limited 1-Year Warranty User Manual PDF 2mbzrbbseuvytuwycawrtvueatayvyv Table of Contents
|
Upload User Manual
Have you got an user manual for the GeChic 1102I 11.6" 16:9 Portable Touchscreen LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGeChic 1102I Specs | Panel | 11.6" / 29.5 cm | | Aspect Ratio | 16:9 | | Active Area | 10.1 x 5.7" / 25.6 x 14.4 cm | | Pixel Pitch | 0.1335 mm | | Resolution | 1920 x 1080 | | Color Depth | 16.7 million colors | | Brightness | 250 cd/m² | | Contrast Ratio | 1000:1 (typical) | | Viewing Angles (H/V) | 178°/178° (CR>10) | | Surface | Anti-glare | | Touchscreen Type | Projective capacitive | | Number of Touch Points | 10 detections | | Operating Systems Supported | Windows 10/8.1/7 | | Surface Hardness | ≧7H | | Stylus | Support capacitive type stylus
(Diameter of conductive rubber ≧0.02" / 6 mm) | | Response Time | 12.5 ms (typical) | | Connectivity | 2 x HDMI (1 x micro-HDMI port, 1 x rear dock port)
1 x VGA
1 x 3.5 mm mini jack
1 x mini-USB (5 VDC) | | HDCP Support | Yes | | Plug & Play | VESA DDC2B/C1 | | Audio Output | Headphone out | | Speakers | 2 x 1 W (max)
(Rated impedance 5.1 Ohms at 2 kHz) | | Power Consumption | On: ≦8.5 W
Standby: <0.5 W
Off: <0.5 W | | Power Rating | 5 V / 1.7 A | | Temperature & Humidity | Operating Temperature: 32 to 122°F / 0 to 50°C
Operating Humidity: 20 to 90% RH
Storage Temperature: -4 to 140°F / -20 to 60°C
Storage Humidity: 10 to 90% RH | | VESA Wall Mounting | 75 x 75 mm | | Certifications | BSMI, CE, C-Tick, FCC, KC, VCCI, RoHS | | Dimensions | 11.6 x 7.6 x 0.5" / 29.4 x 19.4 x 1.2 cm (monitor)
11.6 x 8.2 x 0.8" / 29.4 x 20.9 x 2.1 cm (monitor with cover) | | Weight | 23.6 oz / 670 g (monitor)
32.5 oz / 920 g (monitor with cover) | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 15.0 x 13.1 x 1.9" |
