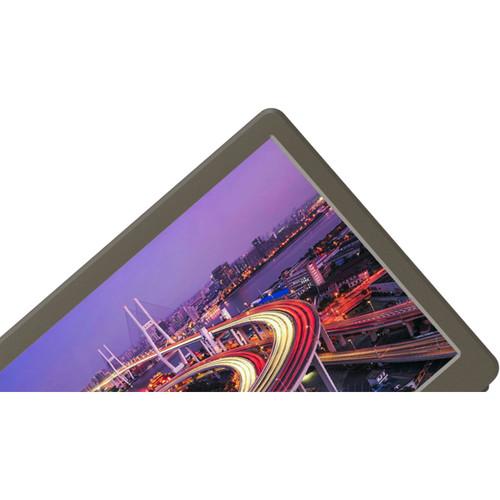

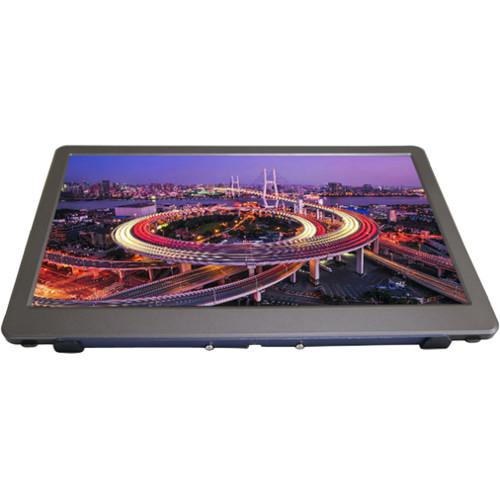

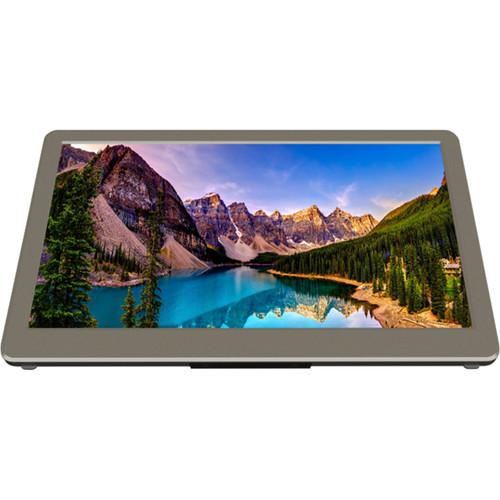

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The 15.6" On-Lap 1503E 16:9 Portable IPS Monitor from GeChic is a multi-use monitor designed with flexibility in mind. With plug-and-play connectivity and power over USB, it's compatible with a wide range of devices including game consoles and even smartphones. Specs-wise, it's built with an In-Plane Switching panel with a 1920 x 1080 Full HD resolution, a 700:1 static contrast ratio, a 220 cd/m² brightness rating, and wide 170° viewing angles. Aside from its USB power port, it also has HDMI and a headphone jack. The On-Lap comes with a foldable, detachable stand that provides you with multiple viewing angles. - Low Blue Light
- Low Blue Light emissions help to reduce eyestrain and fatigue over extended viewing periods.
- HDCI CEC Control
- With HDCI CEC Control, this display can automatically power on/off together with your CEC host system.

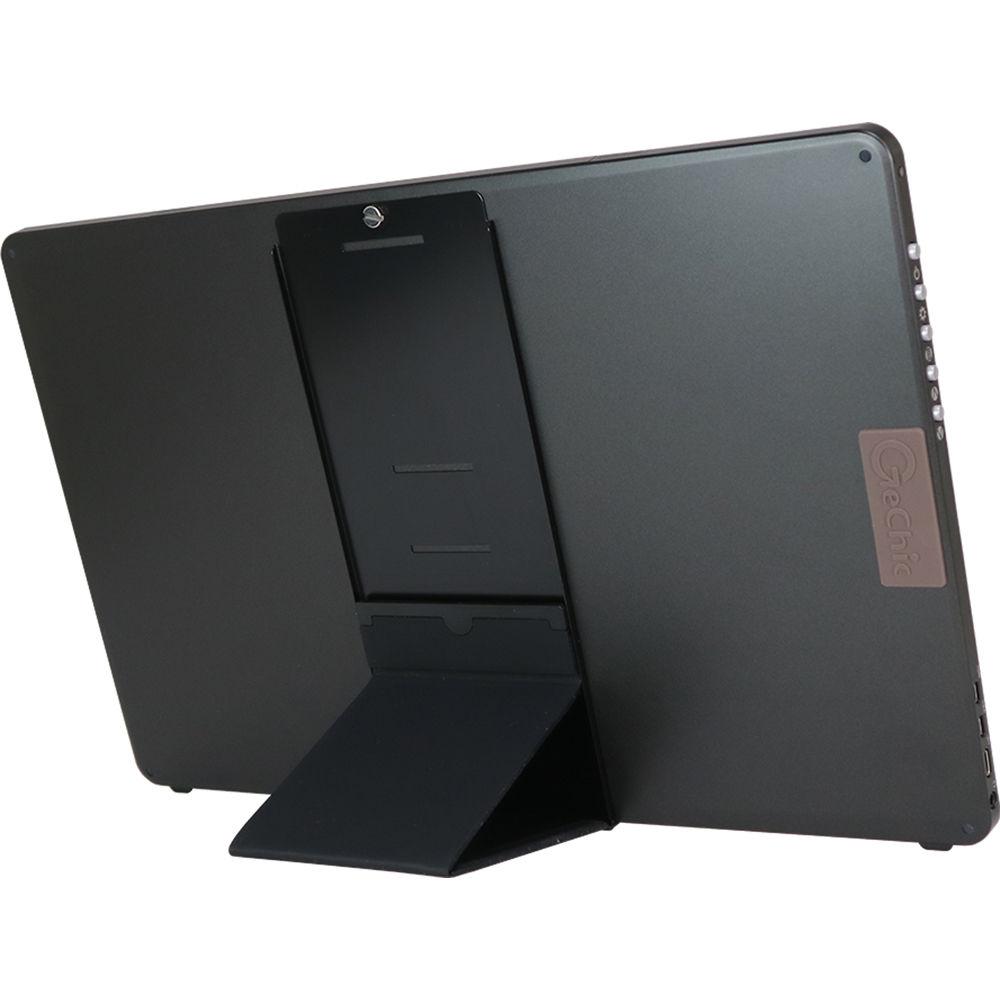

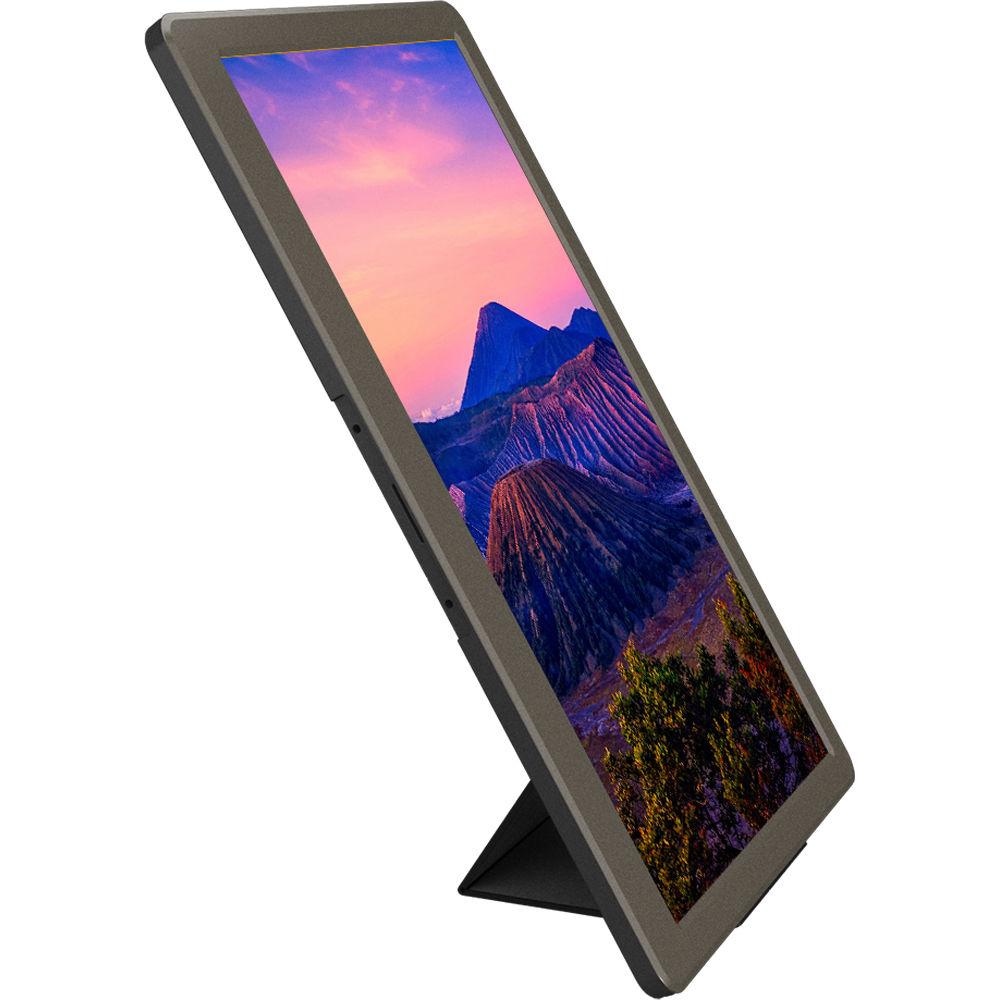

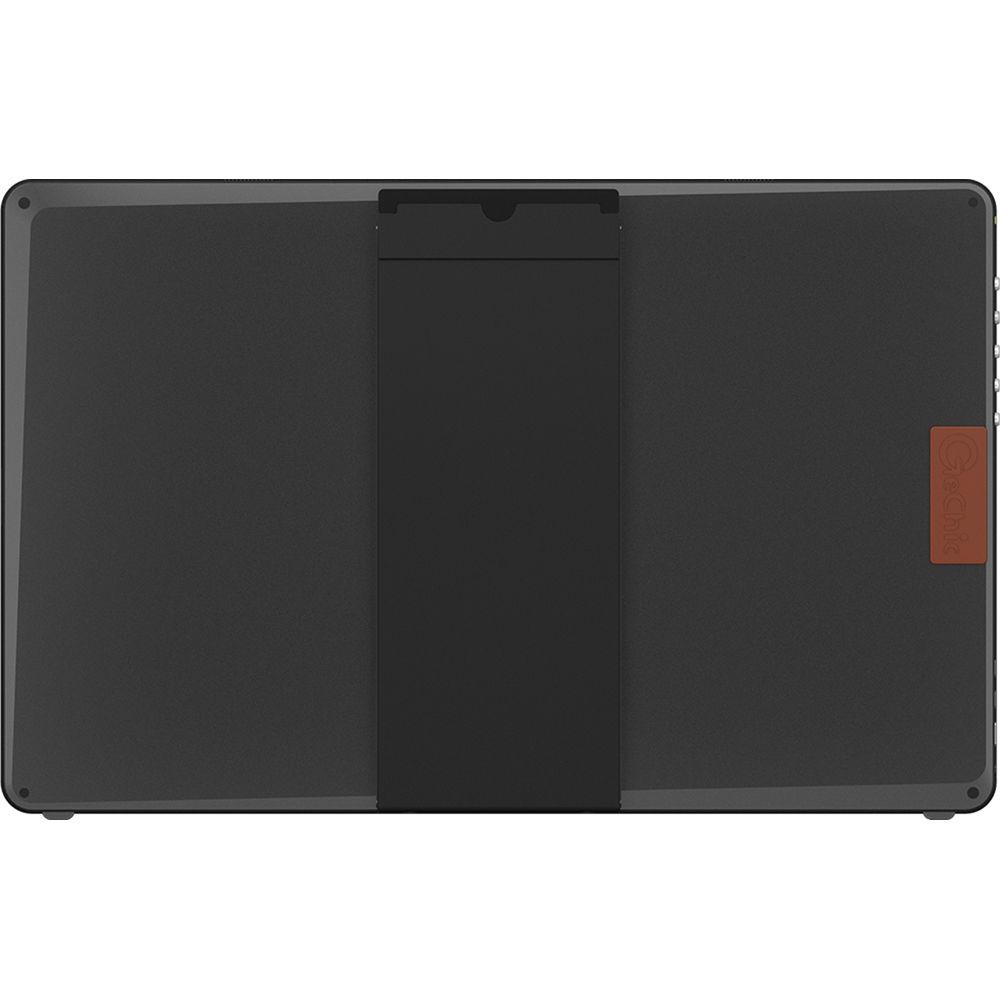

- Stand
- The detachable stand provides you with three viewing angles: 52°, 62°, and 72° to best fit your current application. It can also fold flat so you can take it with you on-the-go.
- Compatibility
- This monitor is compatible with game consoles such as the PlayStation 4, Nintendo Switch, Xbox One, and more for LAN events. It's also compatible with your smartphone for larger viewing, as long as it supports HDMI output.
- Additional Features
-

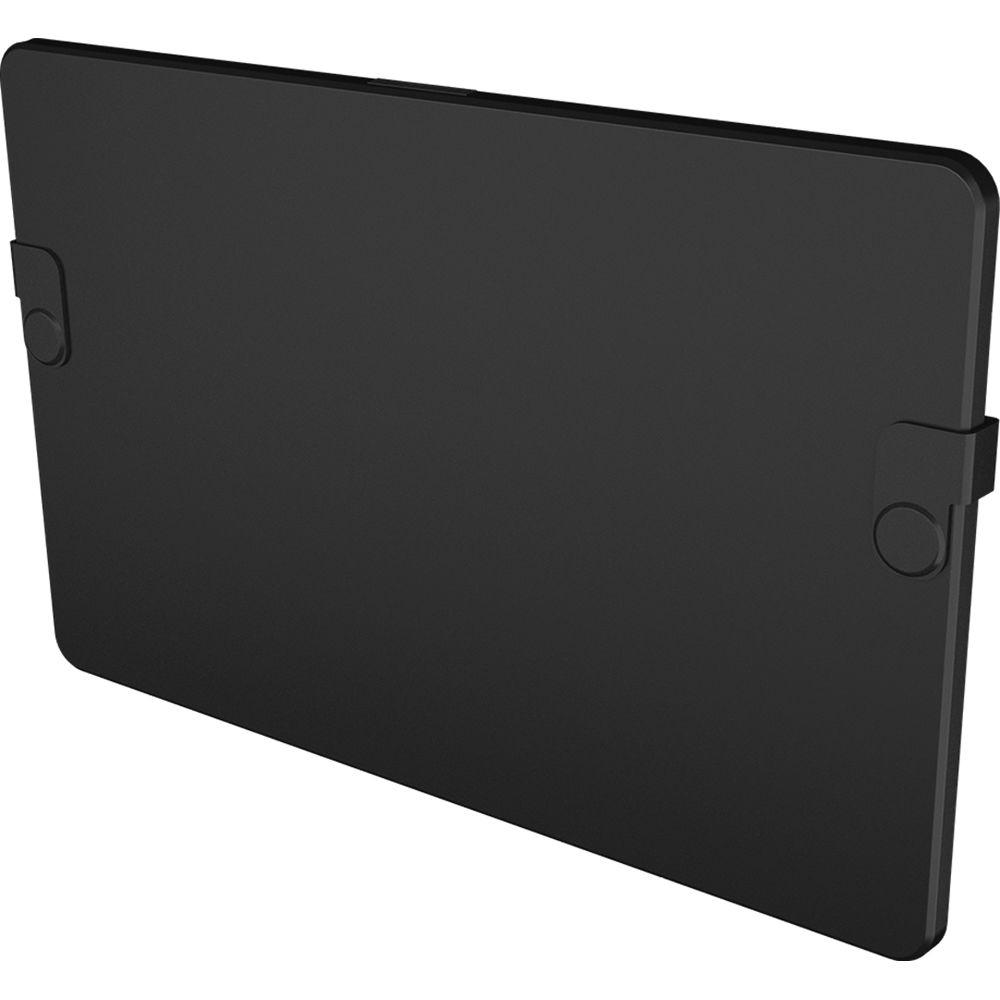

- Included cover measures 15.3 x 9.9 x 0.4" / 38.9 x 25.1 x 1cm and weighs 10.2 oz / 290g
- Included stand weighs 9.9 oz / 282g
In the Box GeChic 15.6" On-Lap 1503E 16:9 Portable IPS Monitor USB Type-A to Type-C Power Cable (3.9' / 1.2m) HDMI-A to Micro-HDMI Video Cable (3.9' / 1.2m) Protective Cover Stand Power Adapter Limited 1-Year Warranty User Manual PDF 3.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the GeChic 15.6" On-Lap 1503E 16:9 Portable IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGeChic On-Lap 1503E Specs | | | Size | 15.6" | | Screen Area | 13.55 x 7.62" / 344.2 x 193.6 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 141 ppi | | Finish | Matte | | Maximum Brightness | 220 cd/m2 | | Contrast Ratio | 700:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | HDR Compatibility | None | | Response Time | 15 ms (GtG) | | Viewing Angle | Horizontal: 170°

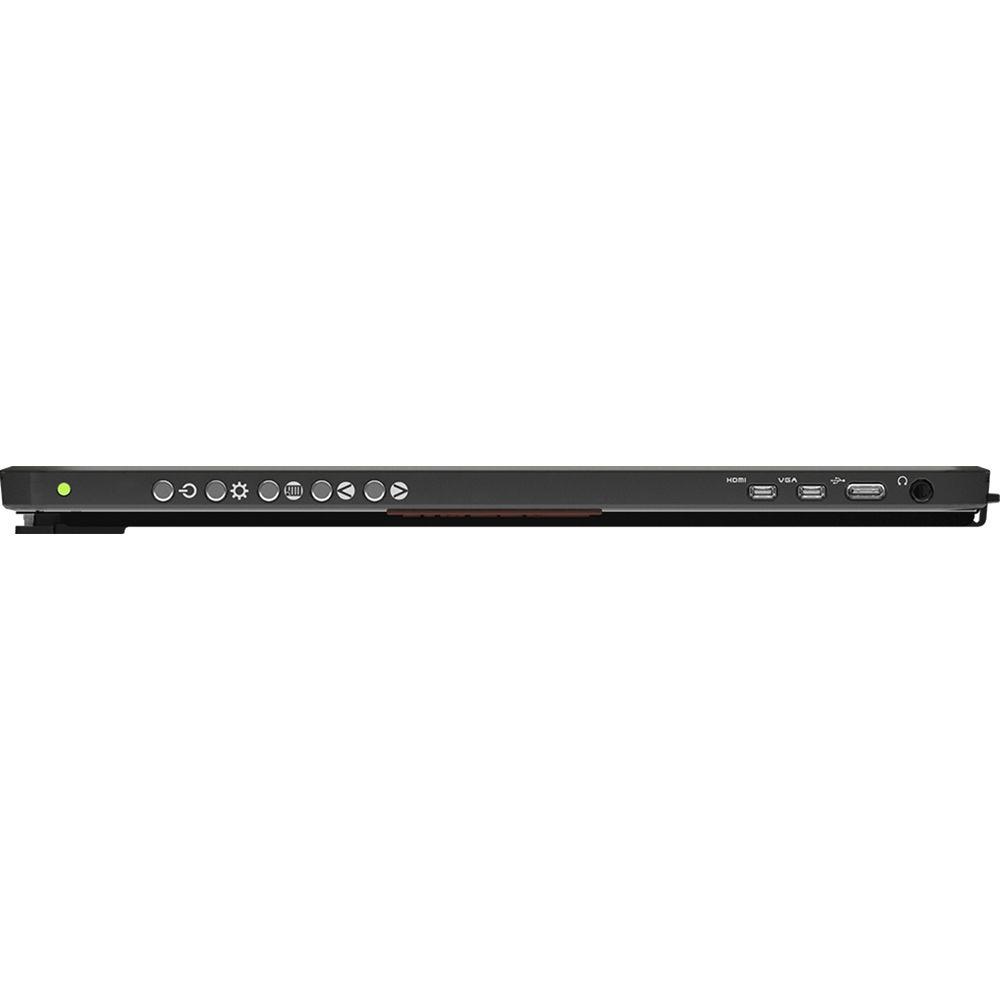

Vertical: 170° | | Dot Pitch | 0.179 x 0.179 mm | | Backlight Lifespan | 15,000 Hours | | | | Connectivity | 1 x 3.5 mm Output
1 x Micro-HDMI
1 x USB Type-C | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1.5 W | | | | Power Adapter Type | External | | DC Input Power | 5 VDC at 2 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Certifications | BSMI, CE, FCC, RoHS, VCCI, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | 0 to 72° | | Mounting-Hole Pattern | None | | Lock Slot | No | | Dimensions (W x H x D) | 15.0 x 9.7 x 0.4" / 382.0 x 246.0 x 11.0 mm | | Weight | 1.71 lb / 779 g | | | | Package Weight | 4.585 lb | | Box Dimensions (LxWxH) | 18.4 x 12.5 x 2.2" |
