Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More zutyyawswauabaabrvry This portable 1503H 15.6" 16:9 Portable On-Lap IPS Monitor from GeChic is designed to provide enhanced picture quality when connected to a variety of HDMI compatible devices. The display features a Full HD 1920 x 1080 resolution along with a 700:1 contrast ratio, a 12.5 ms response time, and a 300 cd/m² brightness rating. In addition to the enhanced picture quality offered by the GeChic 1503H, users also benefit from 160° horizontal and vertical viewing angles, allowing the display to be viewed from nearly any perspective.
The GeChic 1503 On-Lap Monitor is slim in size and comes with a dedicated stand that makes it easy to prop the monitor up for easy viewing. Once plugged in, the on-screen color settings allow users to configure the display to suit the content being viewed for an optimal viewing experience. - OSD Color Setting
- The On-Lap 1503 features five patters of color adjustment and six color settings. The flexibility of color settings helps you to calibrate the monitor to suit the content being viewed.
- Rigid Protective Cover
- Outfit the On-Lap 1503 with a proprietary protective cover to protect against external impact that occurs during drops and bumps.
- FHD IPS Panel
- The On-Lap 1503 comes equipped with a Full HD 16:9 display, bringing you vivid pictures and refined colors. Along with enhanced picture quality, this display supports 160° horizontal and vertical viewing angles.

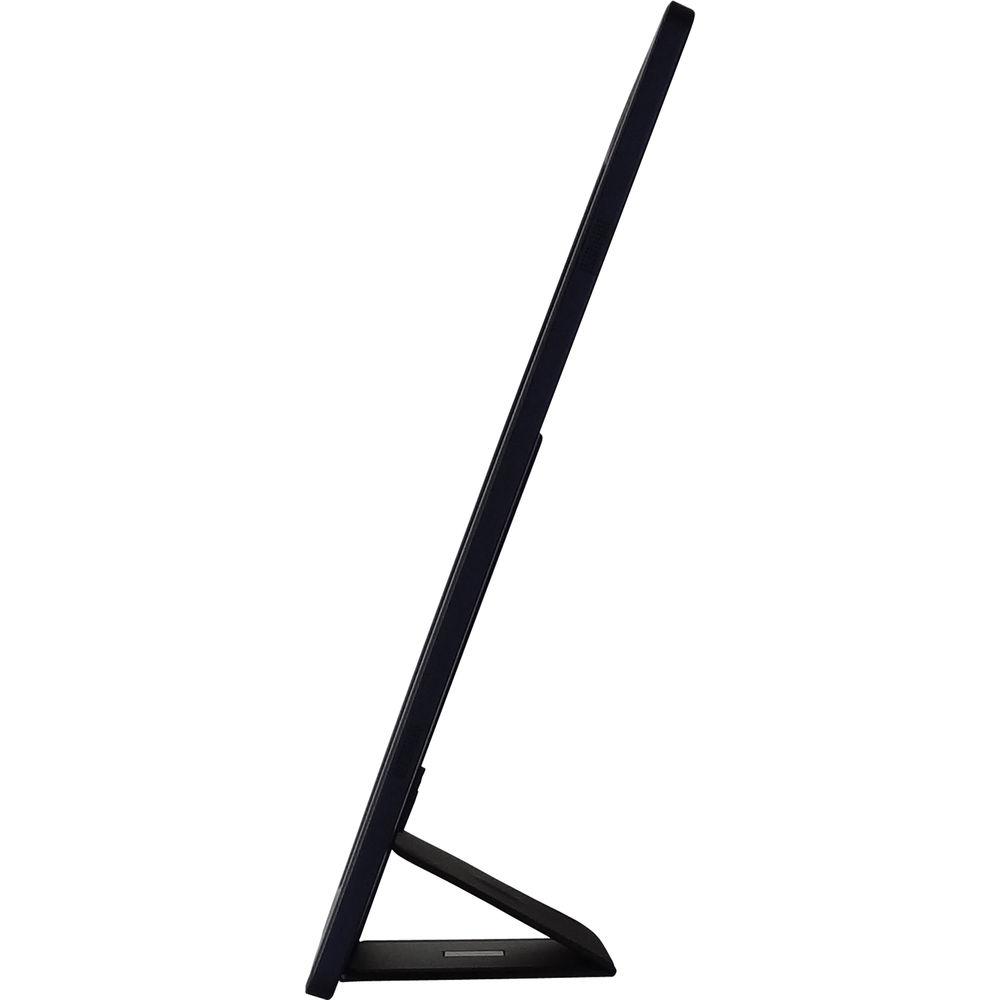

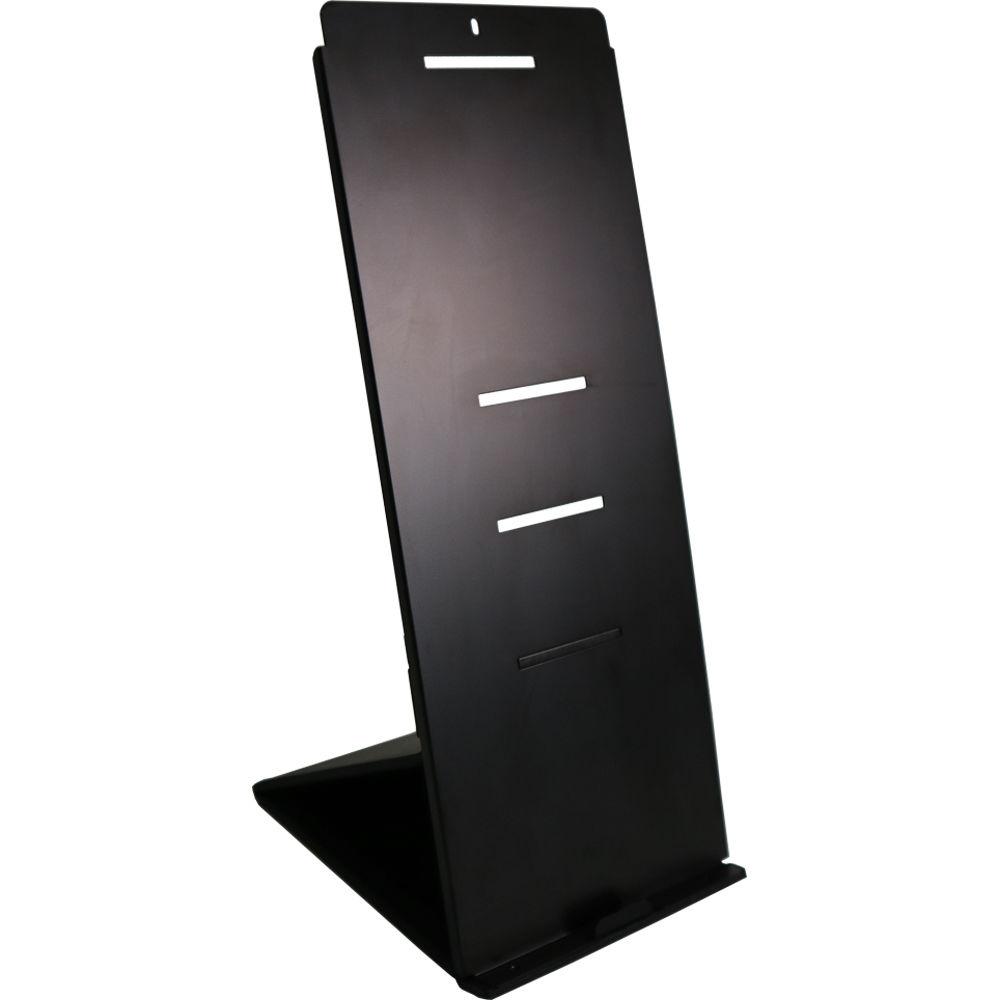

- Vertical & Horizontal Detachable Stand

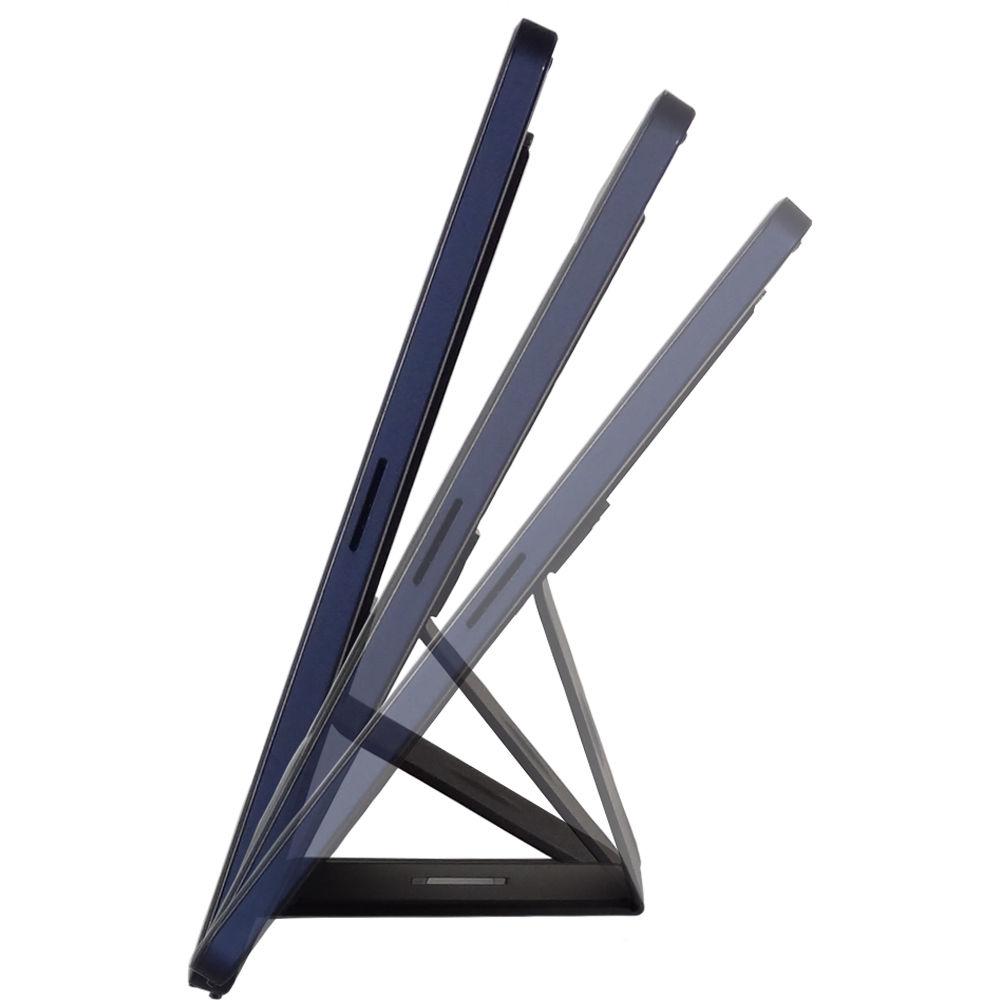

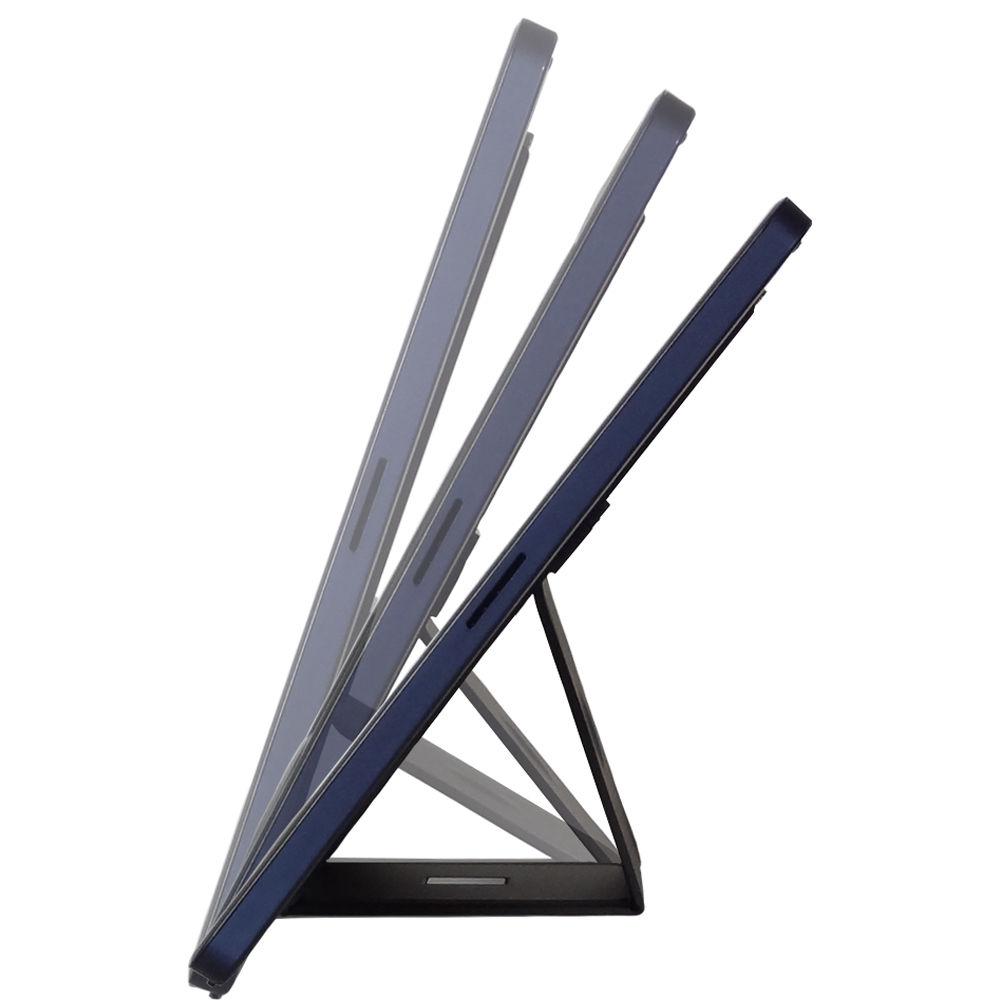

- With the detachable stand users benefit from the ability to maneuver the display into place for an enhanced viewing experience. Place the display in a horizontal or vertical position and tilt it to a variety of angles including 72°, 62°, and 52°.
- Wireless Media Sharing
- Connect the On-Lap 1503 to a variety of content sources including a Chromebox or Microsoft Wireless Display Adapter and stream your multimedia content directly to this portable display.
In the Box GeChic 1503H 15.6" 16:9 Portable On-Lap IPS Monitor USB-A to USB-C Power Cable HDMI-A to Micro-HDMI Video Cable Protective Cover Stand Power Adapter Slotted Screw Silver (M2x7.5mm) 2 x Phillips Screw (M2x3.2mm) Limited 1-Year Warranty User Manual PDF 3.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the GeChic 1503H 15.6" 16:9 Portable On-Lap IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGeChic 1503H Specs | | | Size | 15.6" | | Screen Area | 13.6 x 7.6" / 34.5 x 19.3 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 700:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit (262K Colors) | | Response Time | 12.5 ms | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Dot Pitch | 0.179 x 0.179 mm | | Backlight Lifespan | 15,000 Hours | | | | Connectivity | 1 x 3.5 mm Output
1 x Docking
1 x USB Type-C
1 x HDMI | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1 W | | | | DC Input Power | 5 VDC at 2 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Certifications | RoHS, as per Manufacturer | | | | Dimensions (W x H x D) | 15.0 x 9.6 x 0.5" / 38.2 x 24.5 x 1.2 cm | | Weight | 2.3 lb / 1 kg (Without Stand)
2.9 lb / 1.3 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 18.5 x 12.6 x 2.2" |
