User Manual for GeChic 1503I 15.6" 16:9 Portable IPS Touchscreen Monitor Click to enlarge the picture
Contents of the user manual for the GeChic 1503I 15.6" 16:9 Portable IPS
- Product category: Computer Monitors GeChic
- Brand: GeChic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GeChic Computer Monitors
 |
User manual for the GeChic 1503I 15.6" 16:9 Portable IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GeChic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GeChic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GeChic product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More yxvfuerdtfbu This portable 1503I 15.6" 16:9 Portable IPS Touchscreen Monitor from GeChic features a 10-point capacitive touch display, making it easy to interact with a variety of applications as well as zoom, swipe, and pan around the screen with ease. Besides touchscreen capabilities, this display comes equipped with a Full HD 1920 x 1080 resolution, a 700:1 contrast ratio, a 12.5 ms response time, and a 250 cd/m² brightness rating. In addition to the enhanced picture quality offered by the GeChic 1503I, users also benefit from 160° horizontal and vertical viewing angles, which allow the display to be viewed from nearly any perspective.
The GeChic 1503I Touchscreen Monitor is slim in size and comes with a dedicated stand to prop the monitor up for easy viewing. Once propped up, the rear facing ports allow the display to be plugged in to devices like laptop computers, PCs, and more; and with native Windows 10 support this display allows users to take advantage of all of the touchscreen functionality built-in to the Windows 10 operating system. - Capacitive Touch Display
- With an advanced capacitive touchscreen display, the 1503I offers accurate and prompt touch response. With support for 10-point multi-touch functionality it is possible to interact with a variety of applications as well as swipe, zoom, and pan around the screen with ease.

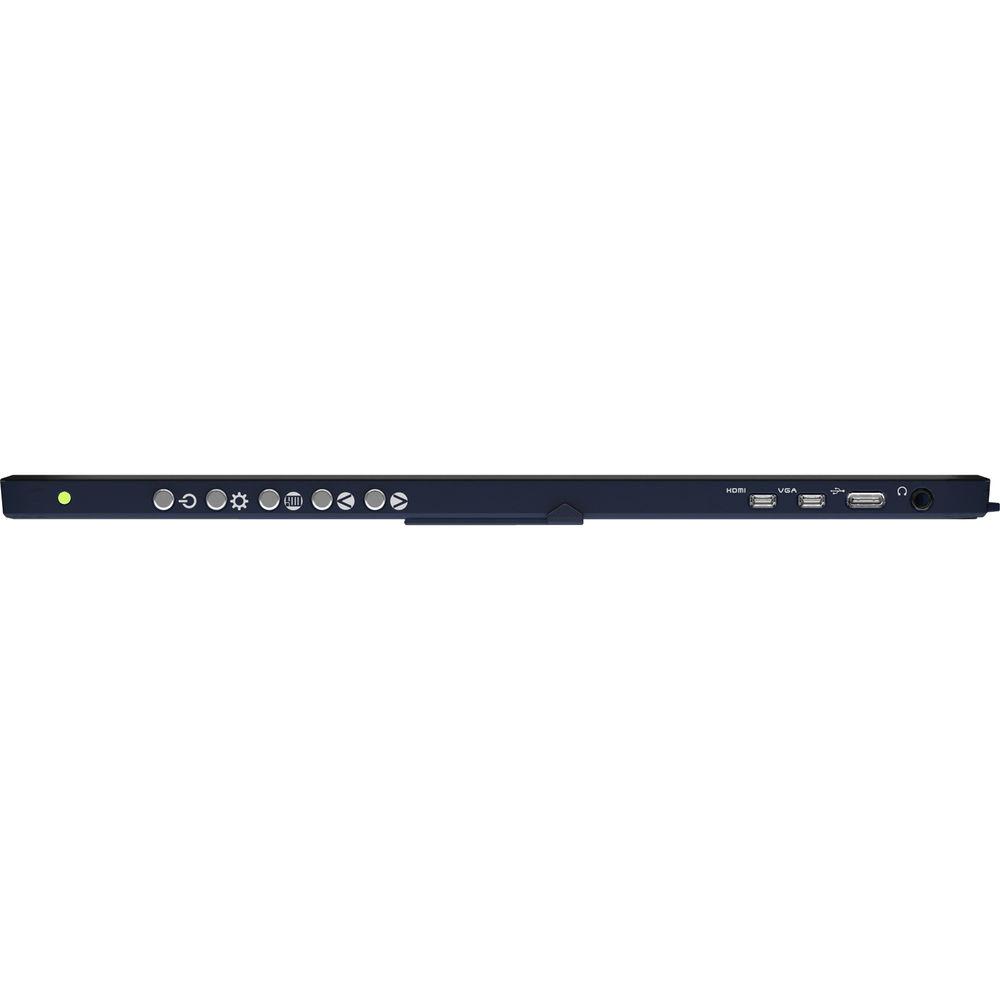

- Rear Dock, Expansion
- The 1503I monitor comes equipped with a unique rear dock configuration combining the power, signal, and system connections together into the rear side of the monitor. The 1503I can be used in conjunction with a variety of HDMI compatible devices including laptops, gaming consoles, mini-PCs, compute sticks, and more.
- OSD Color Setting
- The 1503I features five patters of color adjustment and six color settings. The flexibility of color settings helps you to calibrate the monitor to suit the content being viewed.
- Rigid Protective Cover
- Outfit the 1503I with a proprietary protective cover to protect against external impact that occurs during drops and bumps.

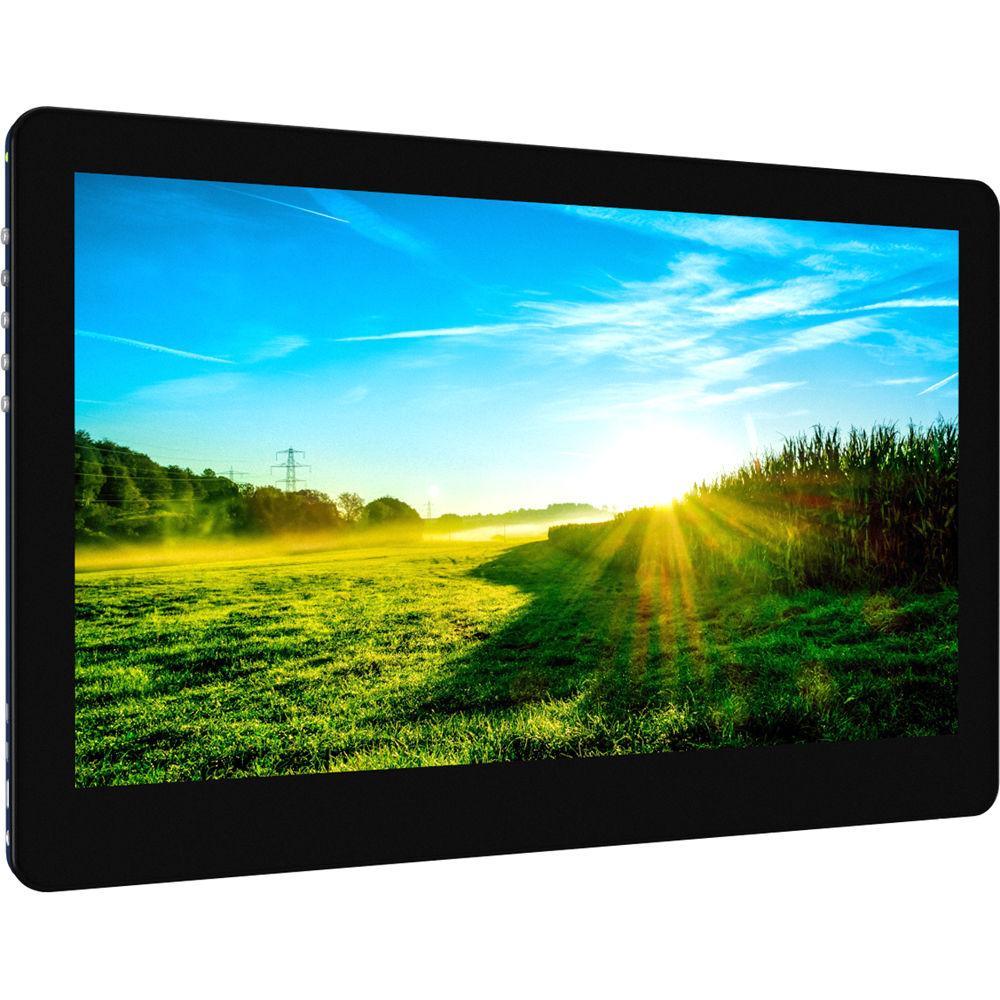

- FHD IPS Panel
- The 1503I comes equipped with a Full HD 16:9 display, bringing you vivid pictures and refined colors. Along with enhanced picture quality, this display supports 160° horizontal and vertical viewing angles.

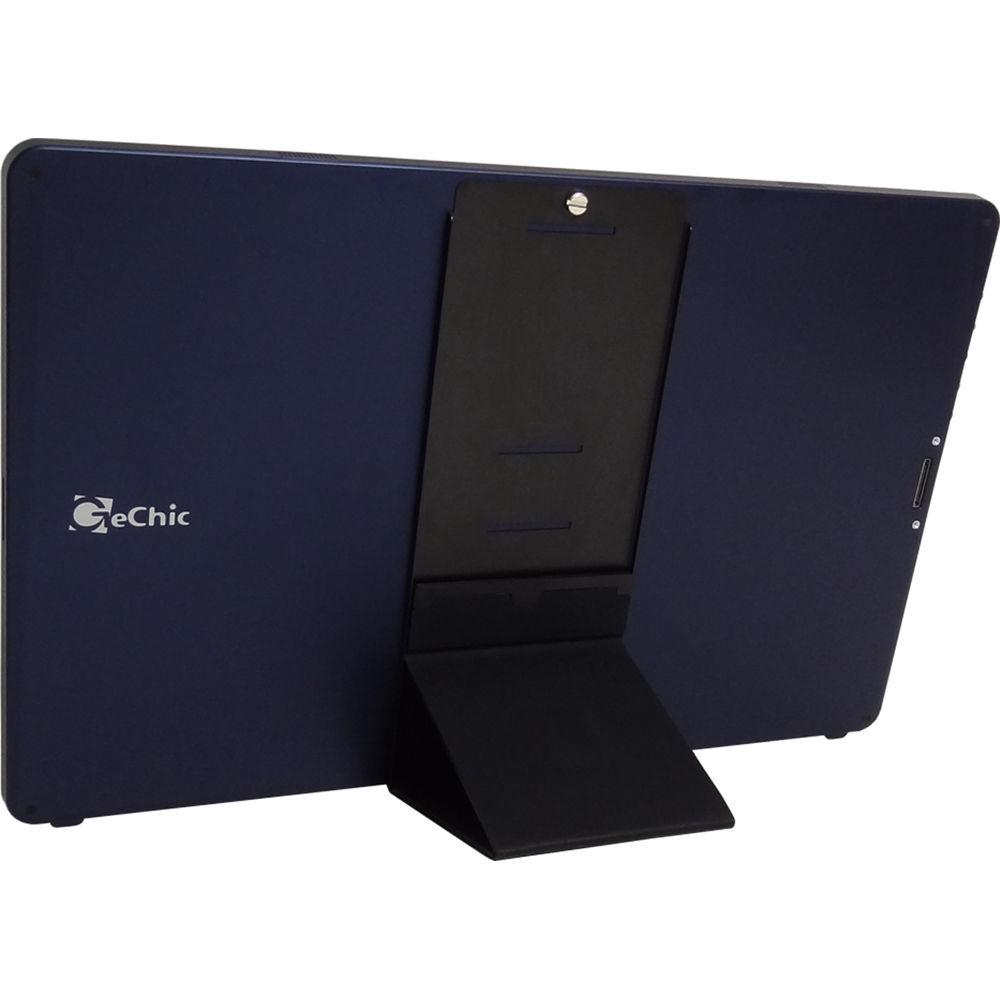

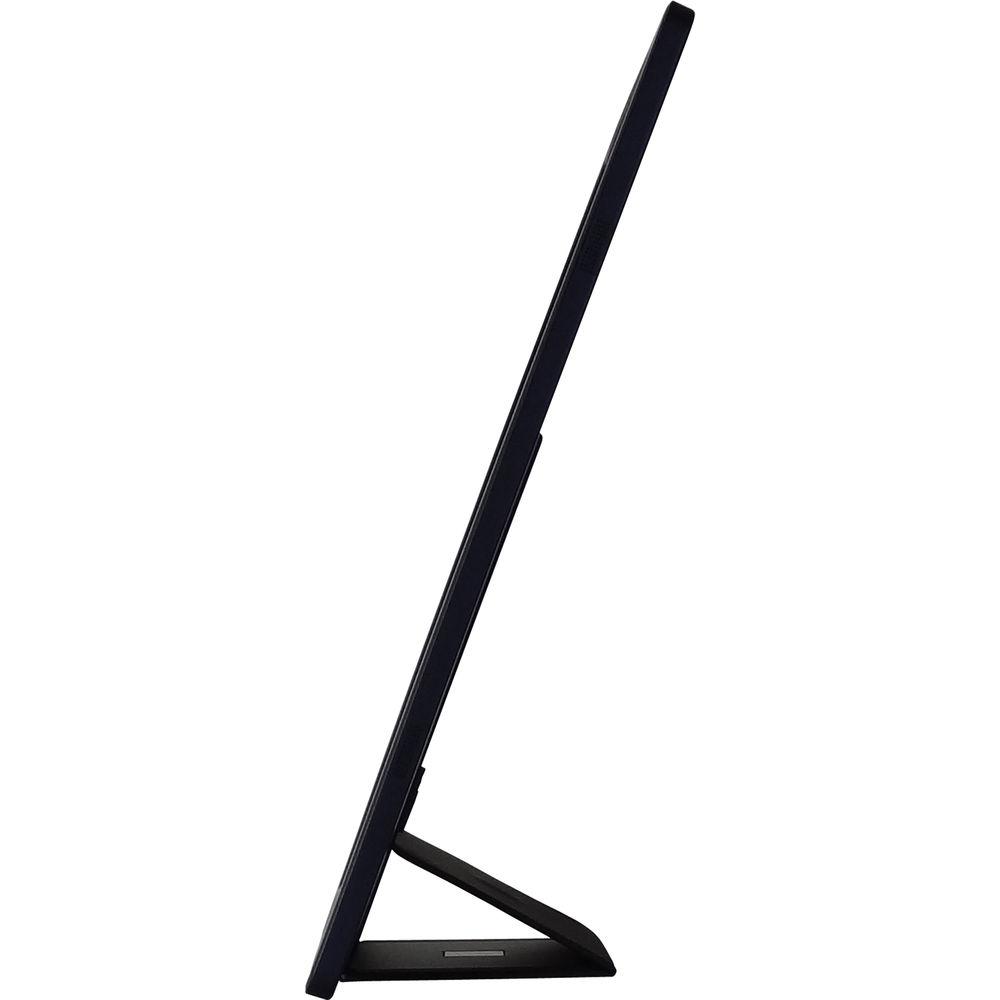

- Vertical & Horizontal Detachable Stand

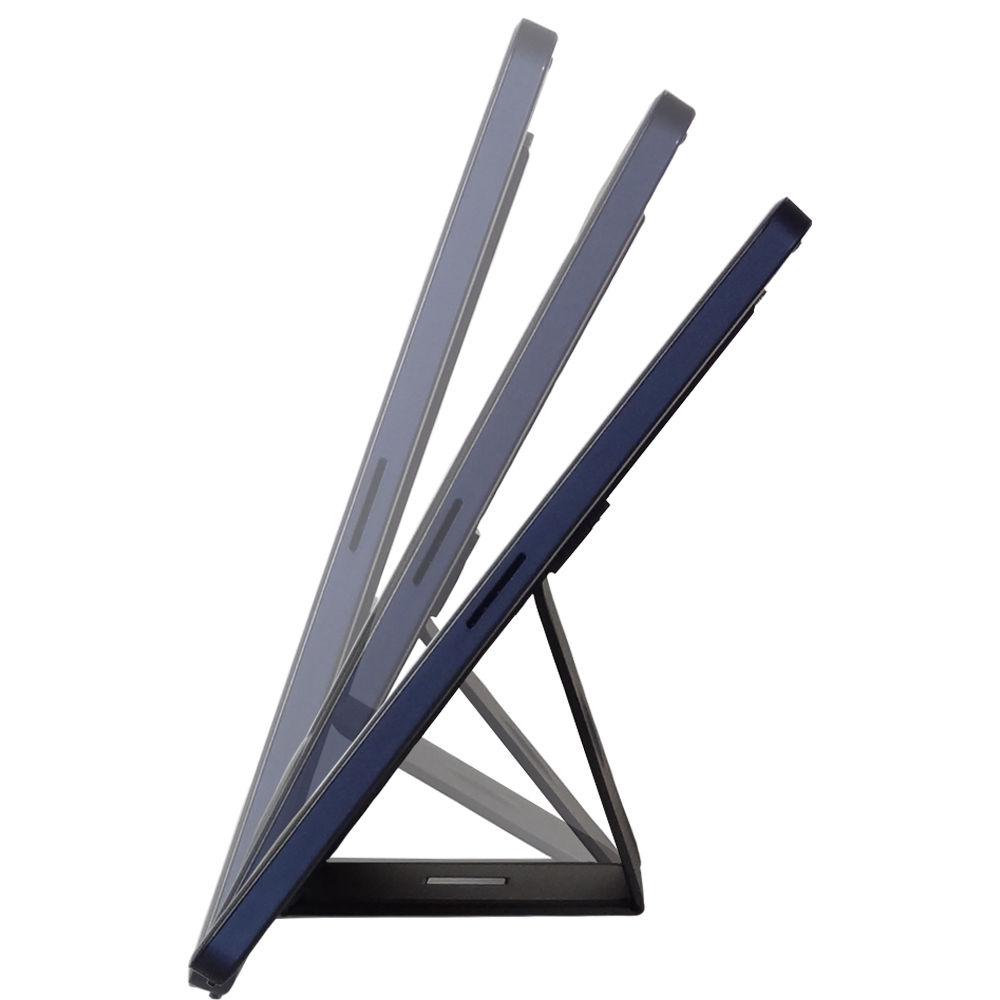

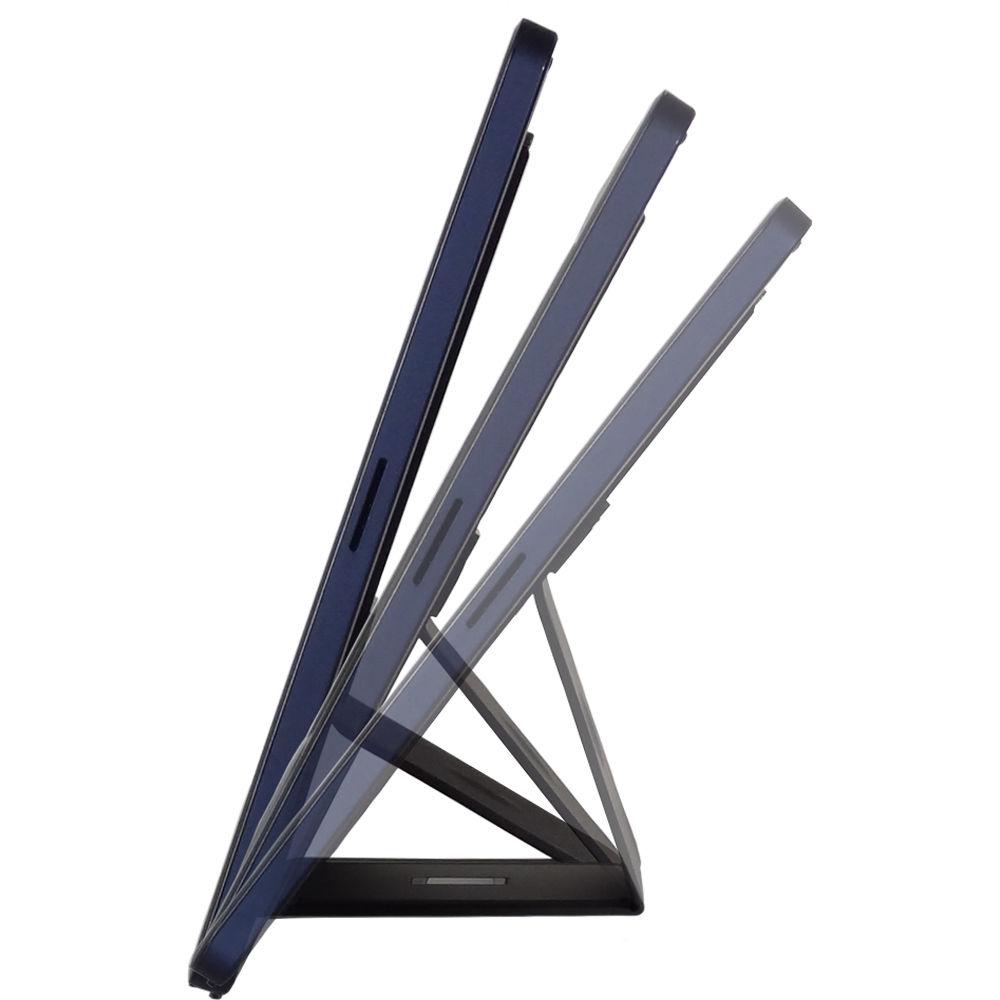

- With the detachable stand, users benefit from the ability to maneuver the display into place for an enhanced viewing experience. Place the display in a horizontal or vertical position and tilt it to a variety of angles including 72°, 62°, and 52°.
- USB Type-C Connectivity
- The 1503I monitor comes equipped with a reversible USB Type-C port to connect this display to a variety of computer configurations.
In the Box GeChic 1503I 15.6" 16:9 Portable IPS Touchscreen Monitor USB-A to USB-C Power Cable HDMI-A to Micro-HDMI Video Cable Protective Cover Stand Power Adapter Slotted Screw Silver (M2x7.5mm) 2 x Phillips Screw (M2x3.2mm) Limited 1-Year Warranty User Manual PDF 3.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the GeChic 1503I 15.6" 16:9 Portable IPS Touchscreen Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGeChic 1503I Specs | | | Size | 15.6" | | Screen Area | 13.6 x 7.6" / 34.5 x 19.3 cm | | Panel Type | IPS-Type LCD | | Touchscreen | Yes | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Hardness Rating | 7H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 700:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit (262K Colors) | | Response Time | 12.5 ms | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Dot Pitch | 0.179 x 0.179 mm | | Backlight Lifespan | 15,000 Hours | | | | Connectivity | 1 x 3.5 mm Output
1 x Docking
1 x USB Type-C
1 x HDMI | | HDCP Support | Yes | | Built-In Speakers | Yes, 2 x 1 W | | | | DC Input Power | 5 VDC at 2 A | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | 14 to 140°F / -10 to 60°C | | Certifications | RoHS, as per Manufacturer | | | | Dimensions (W x H x D) | 15.0 x 9.6 x 0.5" / 38.2 x 24.5 x 1.2 cm | | Weight | 2.3 lb / 1 kg (Without Stand)
2.9 lb / 1.3 kg | | | | Package Weight | 5.35 lb | | Box Dimensions (LxWxH) | 18.5 x 12.6 x 2.2" |
