User Manual for GECKO-CAM Genesis G35 16mm T2.4 Cine Lens Click to enlarge the picture
Contents of the user manual for the GECKO-CAM Genesis G35 16mm T2.4 Cine
- Product category: Digital Cine Lenses GECKO-CAM
- Brand: GECKO-CAM
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for GECKO-CAM Digital Cine Lenses
|
User manual for the GECKO-CAM Genesis G35 16mm T2.4 Cine contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any GECKO-CAM product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official GECKO-CAM user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a GECKO-CAM product will considerably shorten its lifespan!
|

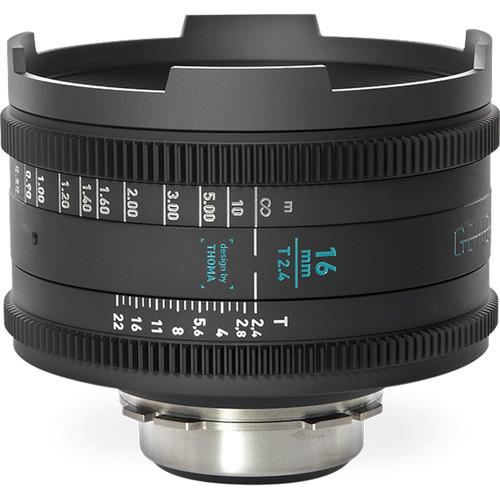

Product description Cinema Lens Care and Maintenance Read More The Genesis G35 16mm T2.4 Cine Lens, in an MFT mount, from GECKO-CAM is a professional cinema lens designed with a modern vintage look. Featuring a 46.3mm image circle, which is larger than 35mm Full Frame, this German-made lens covers the Full Frame format as well as larger sensors, including the RED 8K VV Monstro. The 16mm lens is one of several in the G35 line and shares the same image circle, front diameter, focus rotation, and gear ring position with the rest.
Playing a big part in the design of the G35 line was Georg Thoma, the famed designer of the first fluid head at Sachtler. Thoma's contribution to these Genesis lenses is the cam mechanism, which is the way the focus works.
The 16mm lens comes with coated front elements but supports an optional uncoated front lens. It likewise supports optional metric focus scales, focus and iris motor, and lens mounts, which can be switched out easily by the user. - Key Features
-
- 46.3mm image circle covers 35mm Full Frame and larger sensors, including the RED 8K VV Monstro
- T2.4 - 22 aperture
- 114mm front diameter
- Circular 11-blade iris
- 200mm focus rotation
- 12" minimum focus distance
- 13 lens elements
- Dustproof housing
- Shares the same image circle, front diameter, focus rotation, and gear ring position with other focal length lenses in the G35 line
- Coated front elements; optional uncoated front lens supported
- Supports optional metric focus scales, motor for focus and iris, and lens mounts
- Made in Germany
UPC: 032748606466 In the Box GECKO-CAM Genesis G35 16mm T2.4 Cine Lens (MFT Mount) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the GECKO-CAM Genesis G35 16mm T2.4 Cine Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGECKO-CAM Genesis G35 16mm T2.4 Specs | Focal Length | 16mm | | Lens Mount | Micro Four Thirds | | Format | Full Frame | | Image Circle | 46.3 mm | | Maximum T-Stop | T2.4 | | Minimum T-Stop | T22 | | Minimum Focus Distance from Image Plane | 12" / 30.48 cm | | Iris Blades | 11 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch | | Front Diameter | 114 mm | | Focus Scales | Imperial | | Focus Rotation | 200° | | Electronic Communication | No | | Dimensions (W x H) | 4.63 x 5.04" / 117.5 x 128 mm | | Weight | 2.6 lb / 1.2 kg |
