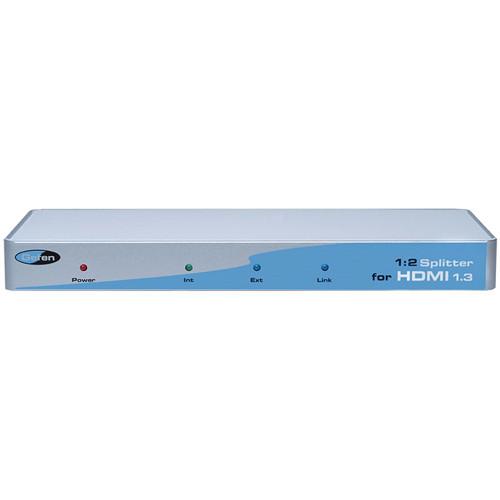

User Manual for Gefen 1:2 Splitter for HDMI 1.3 w Digital Audio Click to enlarge the picture
Contents of the user manual for the Gefen 1:2 Splitter for HDMI 1.3
- Product category: Distribution Amplifiers (DA's) Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Distribution Amplifiers (DA's)
|
User manual for the Gefen 1:2 Splitter for HDMI 1.3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description Gefen's 1:2 Splitter for HDMI 1.3 lets you run two HDTV displays from a single HDMI-compliant source and includes an embedded digital audio signal that can be sent to an external amp or receiver. To add more displays, you can daisy-chain multiple splitters to your set-top box, DVD player, DVR or other HDMI source. DVI input is also possible with an optional DVI-to-HDMI adapter. - Connects up to two HDMI/DVI displays from one HDMI source
- Optionally add more displays by connecting splitters
- Easily attains resolutions up to 1080p, 2k, and 1920 x 1200
- HDMI 1.3 Features Supported:
-
- Lip-Sync Pass-Through
- 225 MHz (up to 12 bit YUV 444 @ 1080p)
- Deep Color (XV Color)
- Color Space Conversion
- Dolby TrueHD & DTS Master Audio
- CEC Pass-Through
- TOSLINK Digital Audio Formats Supported:
-
- Dolby AC3 2-channel and 5.1-ch digital audio
- LPCM 2-ch digital audio (32-192 KHz sampling rate)
- Dolby Digital Plus 5.1-ch digital audio
- DTS 2-ch and 5.1-ch digital audio
UPC: 845344059266 In the Box Gefen 1:2 Splitter for HDMI 1.3 w/Digital Audio 5VDC/2.5A Power Supply 6' (1.8m) HDMI Cable (Male-Male) User's Manual 2 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 1:2 Splitter for HDMI 1.3 w Digital Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HDMI1.3-142D Specs | Video Bandwidth | 225MHz | | Input Signal | Video: 1.2V p-p DDC: 5V p-p (TTL) | | Inputs/Outputs | HDMI: Type A 19-pin (x1 Input, x2 Output)
Audio: TOSLINK Optical Digital Type (x1 Output) | | Power Requirements | 5VDC | | Power Consumption | 10W (max) | | Dimensions (WxHxD) | 10.25 x 1 x 4.25" (26 x 2.54 x 10.8 cm) | | Weight | 5 lbs (2.27kg) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 12.4 x 7.2 x 2.6" |
