User Manual for Gefen 1:4 DVI Dual Link Splitter Click to enlarge the picture
Contents of the user manual for the Gefen 1:4 DVI Dual Link Splitter
- Product category: Distribution Amplifiers (DA's) Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Distribution Amplifiers (DA's)
 |
User manual for the Gefen 1:4 DVI Dual Link Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

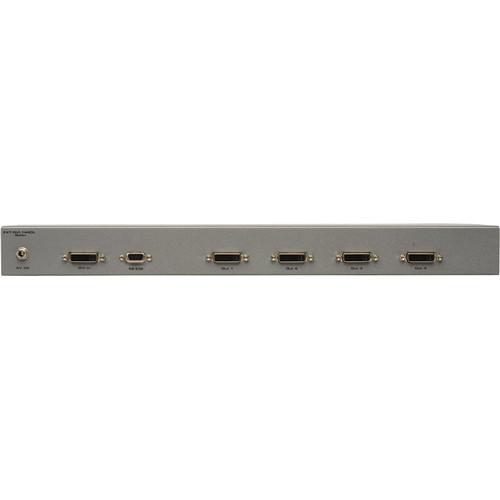

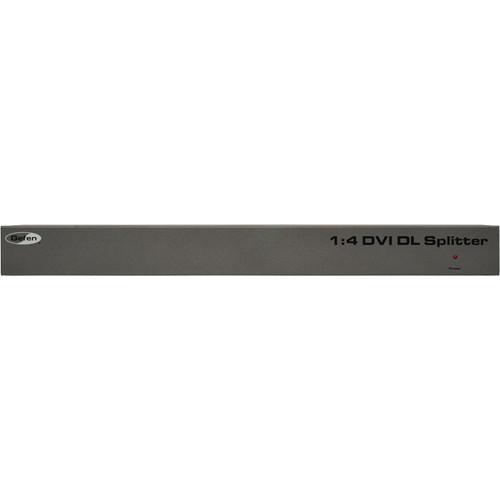

Product description The Gefen 1:4 DVI Dual Link Splitter distributes a dual link DVI source to 4 DVI dual link outputs without losing quality or resolution. It works with any dual link DVI computer supporting resolutions up to 3840 x 2400. The DVI Dual Link Splitter supports internal or pass-through EDID selections, output masking On / Off, and can be placed in standby mode which keeps the unit idle using only 1W of power when the source is inactive. Its RS-232 port allows mode changes for the EDID and output masking in addition to firmware upgrades. - Distributes 1 dual link source to 4 DVI dual link outputs
- Supports resolutions up to 3840 x 2400
- Supports up to 1080p, 2K, and 2560 x 1600 resolutions
- EDID management for rapid integration of source and displays
- Field-upgradeable via RS-232 port
- RS-232 for firmware, masking, and EDID management
UPC: 845344093178 In the Box Gefen 1:4 DVI Dual Link Splitter 6' DB9 Cable (M-F) 6' Dual Link DVI Cable (M-M) 5VDC / 4A Locking Power Supply Set of Rack Ears (Gray) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 1:4 DVI Dual Link Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVI-144DL Specs | Maximum Pixel Clock | 2 x 165 MHz | | Input Video Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp (TTL) | | Video Input Connector | 1 x DVI-D 19-pin, female (digital only) | | Video Output Connector | 4 x DVI-D 19-pin, female (digital only) | | RS-232 connector | 1 x DB-9, female | | Power Supply | 5 VDC, locking | | Power Consumption | 2.5 A (maximum) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Rack Space | 1 U (rack ears included) | | Dimensions (W x D x H) | 17.10 x 4.20 x 1.75" (43.43 x 10.69 x 4.45 cm) | | | | Package Weight | 4.3 lb | | Box Dimensions (LxWxH) | 18.0 x 6.1 x 4.7" |
