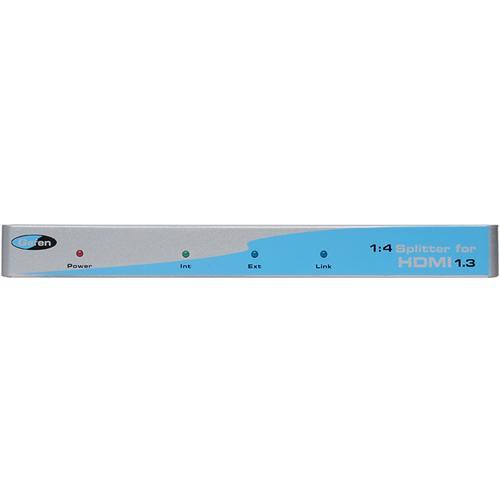

User Manual for Gefen 1:4 Splitter for HDMI 1.3 Click to enlarge the picture
Contents of the user manual for the Gefen 1:4 Splitter for HDMI 1.3
- Product category: Distribution Amplifiers (DA's) Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Distribution Amplifiers (DA's)
|
User manual for the Gefen 1:4 Splitter for HDMI 1.3 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The 1:4 Splitter for HDMI 1.3 from Gefen allows a single HDMI signal to be distributed to up to four displays at the same time. Furthermore, multiple units can be connected together to create greater distribution capacities. This solution is well suited for distributing a signal from set-top boxes, DVD players, or other similar HDMI devices. It can be used in home theaters, retail settings, restaurants, and bars among many other similar settings and applications.This device is HDCP compliant, ensuring that it properly displays copyright-protected material. Resolutions up to 1080p, 2K, and 1920 x 1200 are supported. Other features include support for Deep Color/x.v.Color, color space conversion, Dolby TrueHD & DTS Master, and lip sync pass-through. - 1:4 HDMI Distribution
- Use this device to distribute a single HDMI signal to up to four displays.
- HDCP
- This unit is HDCP compliant, ensuring that copyright-protected material displays properly.
- Resolution
- Resolutions up to 1080p, 2K, and 1920 x 1200 are supported.
- Advanced Features
- It supports Deep Color/x.v. Color, color space conversion, Dolby TrueHD & DTS Master, and lip sync pass-through.
UPC: 845344062631 In the Box Gefen 1:4 Splitter for HDMI 1.3 HDMI Cable (6') 5 VDC External Power Supply Limited Two-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 1:4 Splitter for HDMI 1.3 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HDMI1.3-144 Specs | Input | 1 x HDMI type A, female | | Output | 4 x HDMI type A, female | | Resolution | Single Link Range: 1080p60, 12-bit color depth, 1920 x 1200 | | Input Signal | Input Video Signal: 1.2 Vpp
Input DDC Signal: 5 Vpp (TTL) | | Bandwidth | 225 MHz | | Power | 5 VDC, 10 W maximum | | Dimensions | 1.3 x 12.0 x 4.3" (3.2 x 30.5 x 10.8 cm)
1 RU rack height | | Weight | 5 lb (2.3 kg) | | | | Package Weight | 2.86 lb | | Box Dimensions (LxWxH) | 12.55 x 7.45 x 2.7" |
