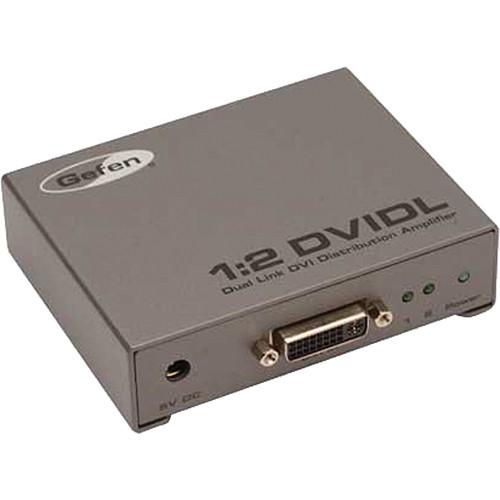

User Manual for Gefen 1 x 2 Dual-Link DVI Distribution Amplifier Click to enlarge the picture
Contents of the user manual for the Gefen 1 x 2 Dual-Link DVI
- Product category: Distribution Amplifiers (DA's) Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Distribution Amplifiers (DA's)
|
User manual for the Gefen 1 x 2 Dual-Link DVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description Display the same DVI feed on two displays simultaneously with the Gefen 1 x 2 Dual-Link DVI Distribution Amplifier. Useful in A/V installation, live presentation, and digital signage applications, this distribution amplifier can reduce reliance on redundant expensive video equipment. Internal image processing includes an automatic EQ to combat signal loss over longer cable runs. Output 1 can pass HDCP content from encrypted sources. This distribution amplifier can also pass high-resolution imagery up to 3840 x 2400 (WQUXGA) in dimension. A power supply and DVI cable are included. - Splits a dual-link DVI signal to two DVI dual-link outputs
- Allows simultaneous display of source on two screens
- Supports single-link DVI resolutions up to 1920 x 1200, and dual-link up to 3840 x 2400
- Auto EQ compensates for any imperfections in the image
- Supports DDWG standard for DVI-compliant monitors
- HDCP pass-through on output #1
UPC: 845344085678 In the Box Gefen 1 x 2 Dual-Link DVI Distribution Amplifier Dual-Link DVI Cable (6') 5V DC 2.6A Power Supply with US, UK, EU Connectors & Long Plug ddbuwrqazbfbdqbcaawsbrfefasf Limited 2-Year Warranty Brochure PDF 896.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 1 x 2 Dual-Link DVI Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-DVI-142DLN Specs | Supported Resolutions | 1920 x 1200 (WUXGA)
3840 x 2400 (WQUXGA) | | Maximum Pixel Clock | 2 x 165 MHz | | Input Video Signal | 1.2 V pp | | Input DDC Signal | 5 VDC pp (TTL) | | LED Indicators | 1 x Power, blue
2 x Link, green | | Connectors | 1 x 29-pin DVI-D video in, female
2 x 29-pin DVI-D video out, female
1 x 3.5 mm DC power barrel | | Power Input | 5 VDC | | Max Power Consumption | 5 W | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Dimensions (W x H x D) | 4.0 x 3.3 x 1.3" (10.2 x 8.3 x 3.2 cm) | | Weight | 0.2 lb (0.1 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.0 x 6.1 x 4.2" |
