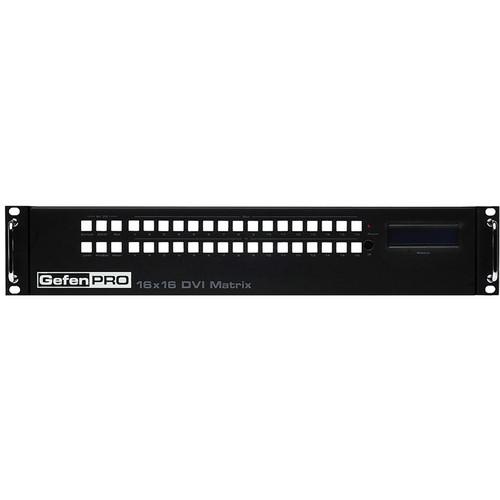

User Manual for Gefen 16x16 DVI Matrix Switcher Click to enlarge the picture
Contents of the user manual for the Gefen 16x16 DVI Matrix Switcher
- Product category: Routers & Switchers Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Routers & Switchers
|
User manual for the Gefen 16x16 DVI Matrix Switcher contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen 16x16 DVI Matrix Switcher routes 16 DVI sources to 16 DVI monitors without losing resolution. Various output configurations can be implemented with the only exception being routing two or more inputs to one monitor. The switcher features 29-pin DVI-I connectors but only accepts the DVI-D signal from them. VGA signals on DVI connectors will not be processed.
Switching can be controlled by front panel push buttons, IR remote, IP commands, or via RS-232. A front panel LCD display helps with local switching. A built-in web server provides the means for IP control and configuration. Sixteen programmable routing presets are available for routine switching, and stand-by mode is accessible for in-between times.
Additional features include advanced EDID management, which provides rapid integration of sources and displays, and output masking control for hiding an output from displaying video. The switcher is equipped with an internal power supply and with rack ears for 2RU mounting. - Route 16 Sources to 16 Monitors
-
- Supports resolutions up to 1920 x 1200
- Switches and routes without losing resolution
- Switch via front panel, IR, IP, or RS-232 controls
- 16 programmable routing presets and standby mode
- Advanced EDID management and output masking control
- Various output configurations with the exception of routing 2 or more inputs to one monitor
UPC: 845344024547 In the Box Gefen 16x16 DVI Matrix Switcher 16 x 6 ft (1.8 m) Dual-Link DVI Cables (M-M) IR Remote Control AC Power Cord User Manual 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 16x16 DVI Matrix Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GEF-DVI-16416-PB Specs | Inputs/Outputs | Inputs:
29-pin female DVI-I x16
DB-9 female RS-232 port
IR extender 3.5 mm jack
Shielded RJ45 IP control port
Outputs:
29-pin female DVI-I x16
Please note: both inputs and outputs support only the DVI-D signal within the DVI-I | | Resolutions Supported | Up to 1920 x 1200 | | Maximum Pixel Clock | 165MHz | | Input Video Signal | 1.2V p-p | | Input DDC Signal | 5V p-p (TTL) | | Power Supply | Internal 100 - 240V AC | | Power Consumption | 90W max | | Rack Size | 2RU | | Dimensions | 17.2 x 12 x 3.5" (43.7 x 30.5 x 8.9 cm) | | Weight | 30 lbs (13.6 kg) | | | | Package Weight | 34.0 lb | | Box Dimensions (LxWxH) | 22.0 x 17.0 x 12.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
