User Manual for Gefen 2x1 DisplayPort KVM Switch Click to enlarge the picture
Contents of the user manual for the Gefen 2x1 DisplayPort KVM Switch
- Product category: KVM Switches Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Switches
 |
User manual for the Gefen 2x1 DisplayPort KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

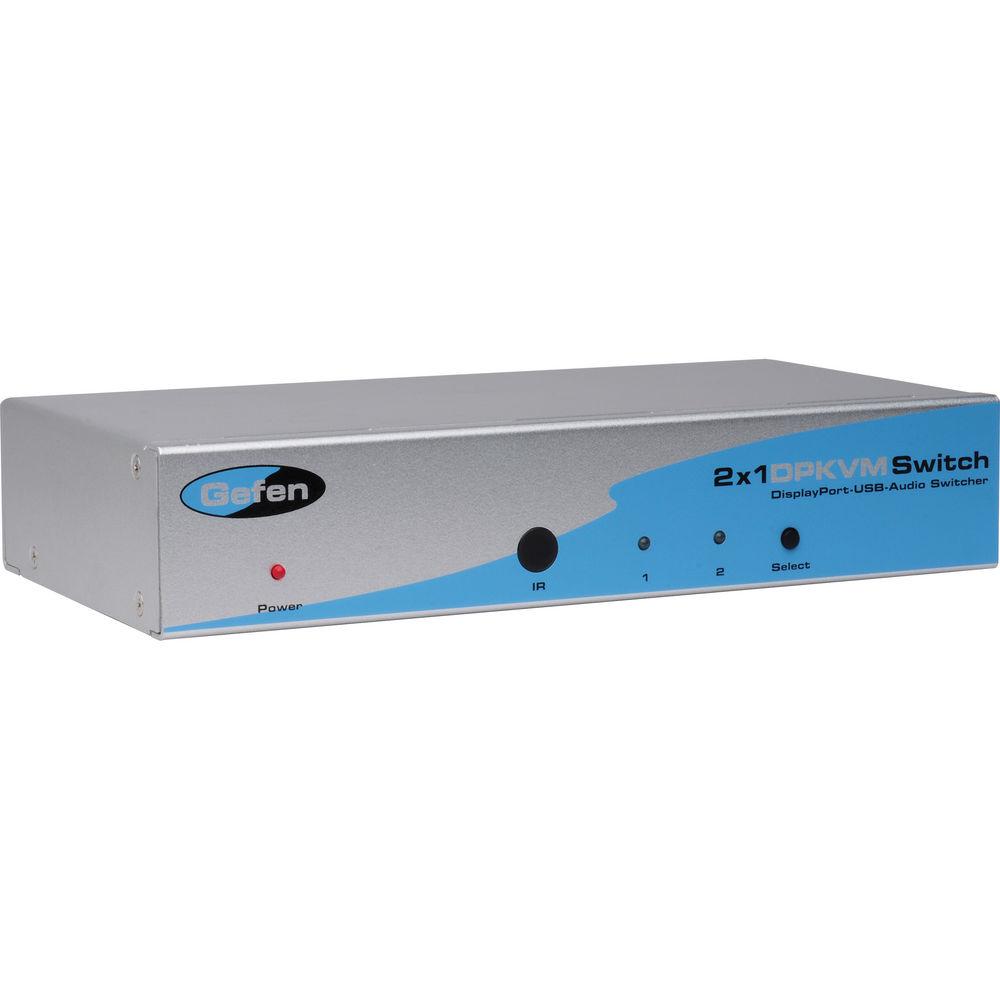

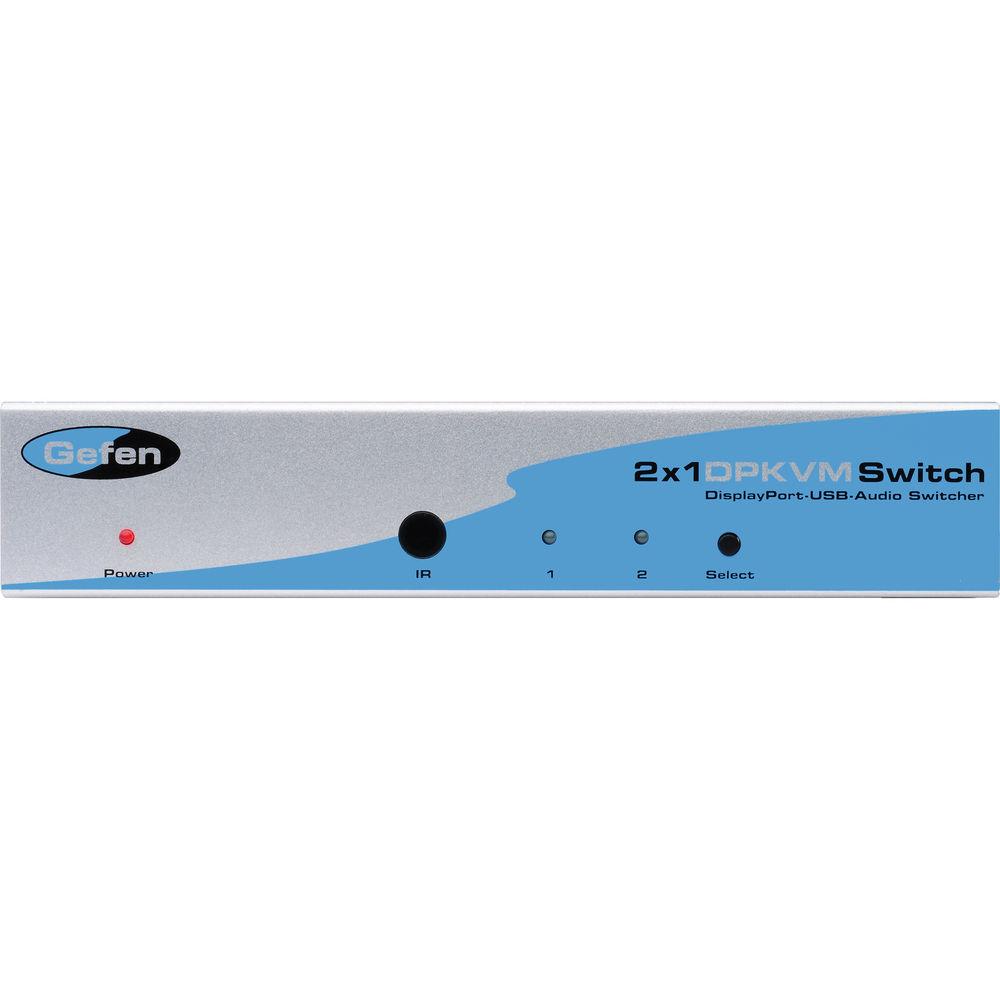

Product description Multi-Monitors: Maximizing Multitasking Read More saatztus The 2x1 DisplayPort KVM Switch from Gefen allows you to control two computers using a single keyboard, monitor, and mouse. It supports displays that use the DisplayPort interface, and keyboards and mice that use USB. It also supports audio switching via standard 1/8" (3.5mm) stereo connectors.
The switch supports digital resolutions of up to 2560 x 1600. It features an RS-232 serial port and an IR port, allowing you to send switching commands via serial or IR communication devices. A wireless remote control is included. As it requires no drivers, it can be used with any computer system with compatible hardware. - Switches one high-resolution display between two DisplayPort-equipped computers with audio/video and USB keyboards
- Compact connector for easier installations
- Switches up to 2560 x 1600 maximum resolution
- Supports RGB and YCbCr color spaces
- Includes IR remote control
UPC: 845344048413 In the Box Gefen 2x1 DisplayPort KVM Switch 2 x 6' (1.8 m) DisplayPort Cables 2 x 6' (1.8 m) USB 2.0 Cables 2 x 6' (1.8 m) 1/8" (3.5mm) Mini-Stereo Cables Universal Power Supply IR Remote Control User's Manual 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 2x1 DisplayPort KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

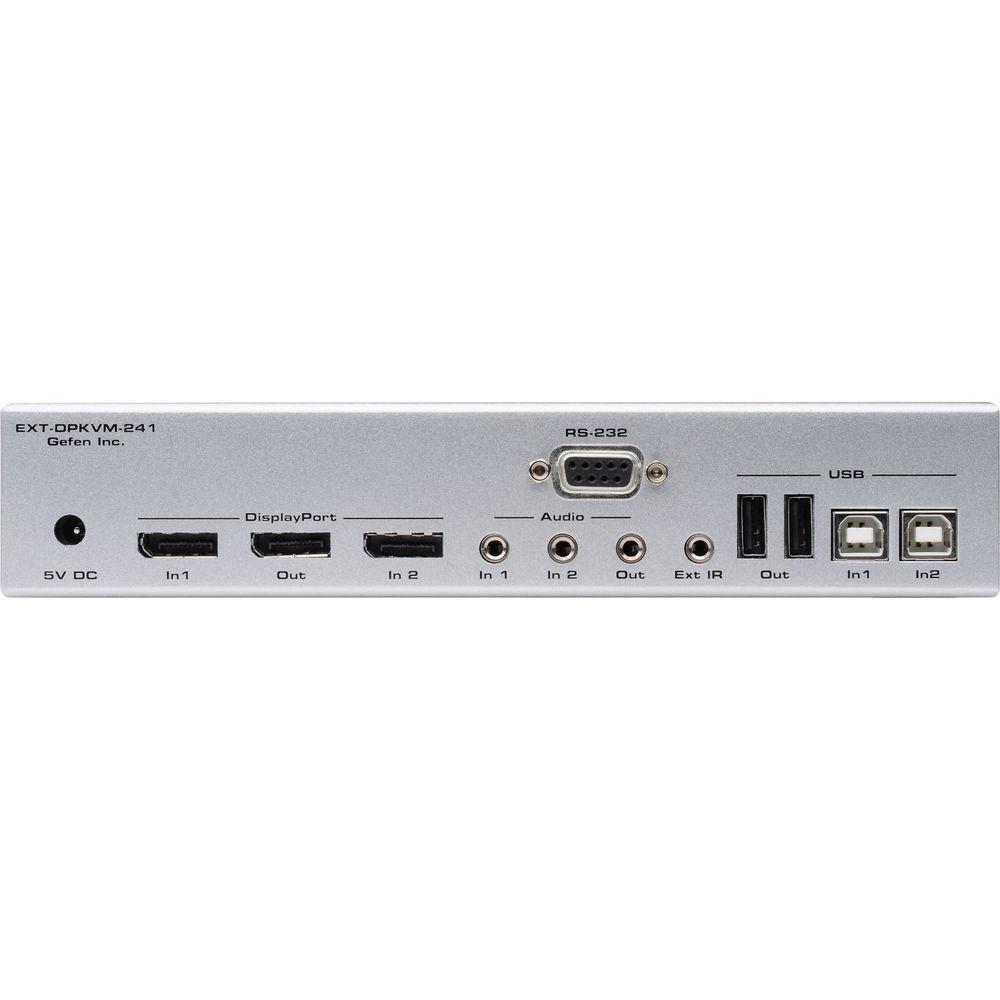

Technical parametersGefen EXT-DPKVM-241 Specs | Max Computer Connections | 2 | | PC Connectors | 2x DisplayPort
2x USB (B)
2x 1/8" (3.5mm) Audio | | Console Connectors | 1x DisplayPort
2x USB (A)
1x 1/8" (3.5mm) Audio
1x RS-232 Serial
1x IR | | Video Resolution | 2560 x 1600 | | Scan Interval | None | | Port Selection | Push Button, Serial, IR Remote Control | | Enclosure | Metal | | System Requirements | DisplayPort display, USB keyboard, USB mouse
Computer with DisplayPort and USB interfaces | | Power Requirements | AC: 100-240VAC
DC: 5VDC | | Dimensions (WxHxD) | 8.4 x 1.6 x 4.2" (21.4 x 4 x 10.7cm) | | Weight | 6 lb (2.7kg) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 16.9 x 6.3 x 5.3" |
