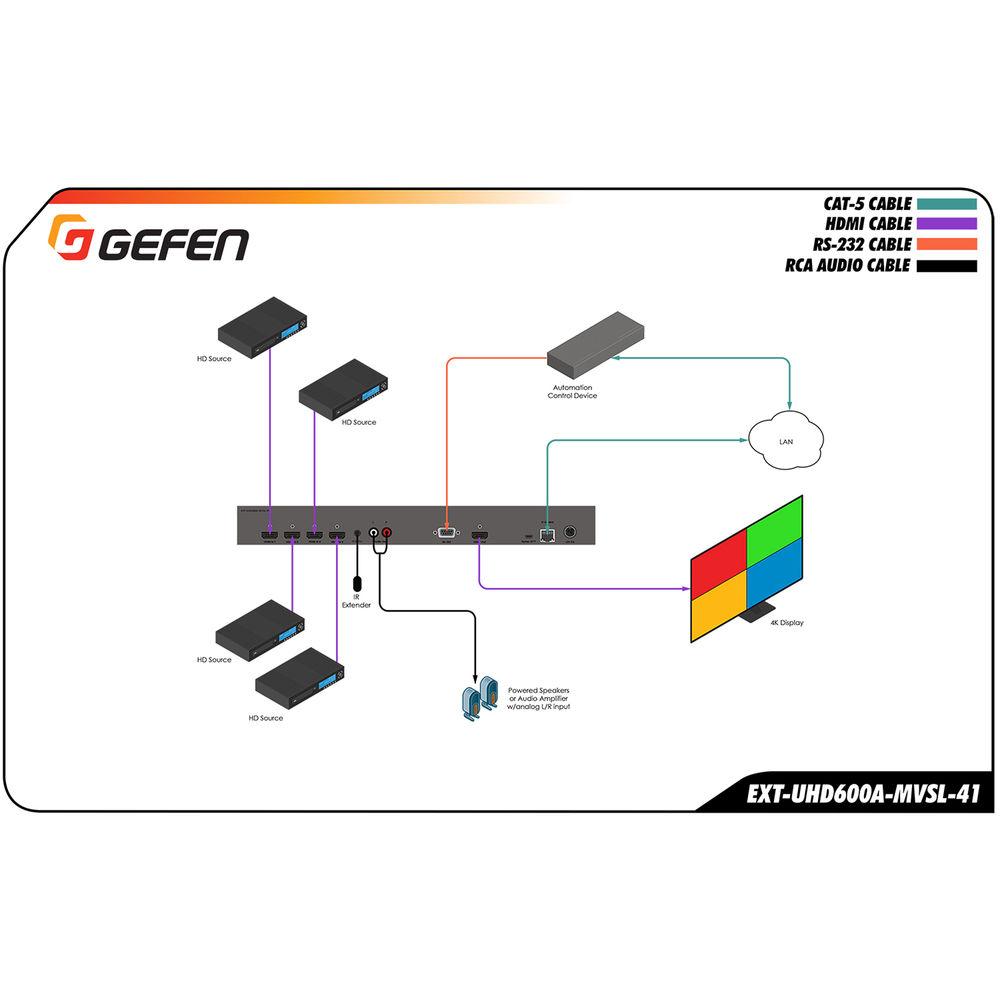

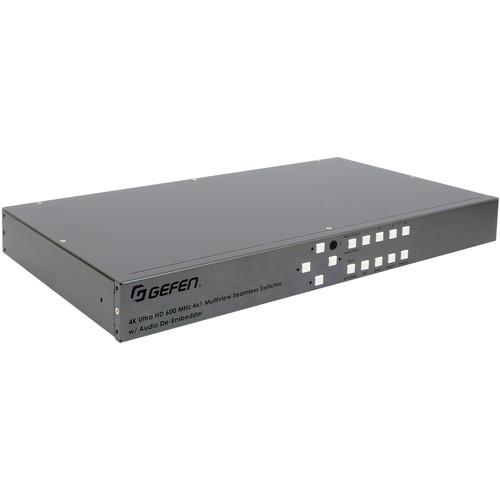

Product description The Gefen 4K 600 MHz 4 x 1 Multiview Seamless Switcher with Audio De-Embedder allows you to switch between four HDMI 1080p60 sources on one 4K display one at a time or as four individual windows. The windows can be scaled and placed on the screen in various preset arrangements or personalized ones that can be stored and later recalled. The switcher can be controlled via the front panel, IR remote control, RS-232, and IP control (Web server interface, Telnet, and UDP). It can be mounted in a 19" rack space or set on a desktop or shelf.
Featuring a 18 Gb/s bandwidth and 600 MHz TMDS clock frequency, the switcher supports up to 4K resolution at 60 Hz 4:4:4 on output. Switching between the inputs is seamless thanks to no frame loss during window and picture transitions. Audio from the four sources can be routed independently via RCA audio outputs. - Key Features
-
- Display four 1080p60 sources on one 4K monitor one at a time or in four scaled windows
- 4K/60 4:4:4 output
- 18 Gb/s bandwidth
- 600 MHz TMDS clock frequency

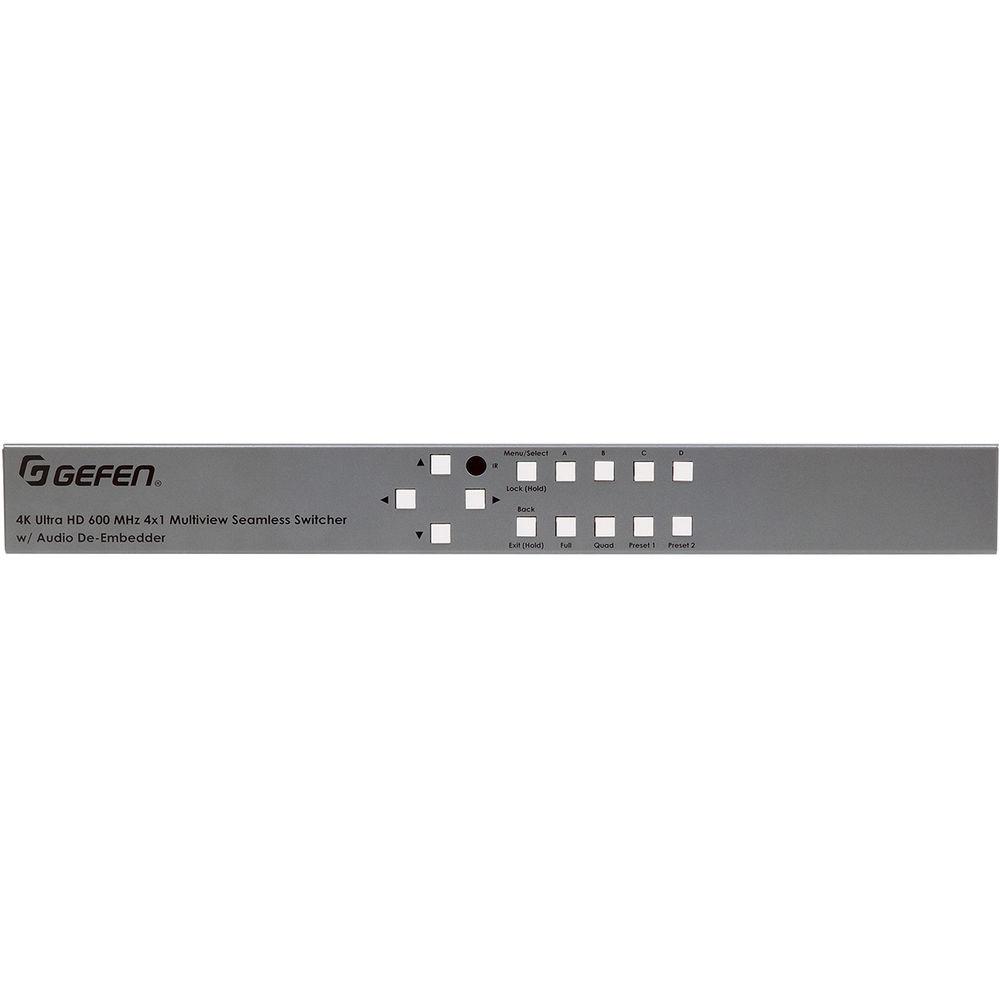

- Control via the front panel, IR remote control, RS-232, and IP control
- RCA audio outputs
- User-selectable playback of HDMI audio content from any of the four inputs
- HDCP compliant
- Field-upgradable firmware using the Gefen Syner-G software
- Locking power supply connector
- 1 RU height
UPC: 888814999860 In the Box Gefen 4K 600 MHz 4 x 1 Multiview Seamless Switcher with Audio De-Embedder 4 x Locking HDMI Cables (6') DB-9 Cable (6') IR Extender Module Set of 2 Rack Ears with Screws IR Remote Control 12 VDC Power Supply with US/EU/UK/AU Plug Adapters Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4K 600 MHz 4 x 1 Multiview Seamless Switcher with Audio De-Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

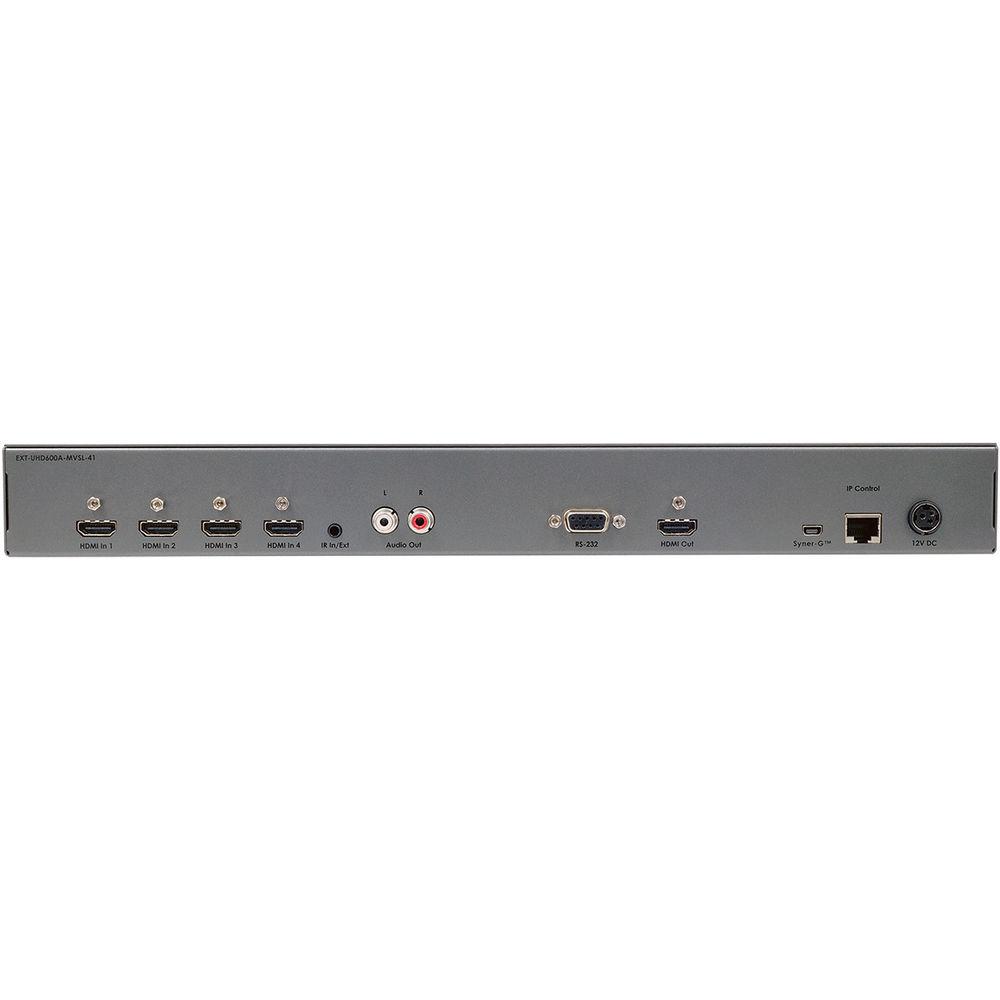

Technical parametersGefen EXT-UHD600A-MVSL-41 Specs | Video Inputs | 4 x HDMI Type A, Locking
| | Video Outputs | 1 x HDMI Type A, Locking
| | Audio Output | 2 x RCA L/R Jacks | | RS-232 | 1 x DB-9 | | IP Control Port | 1 x RJ45, Shielded | | TMDS Clock Frequency | 600 MHz | | Firmware Update Port | 1 x Mini-USB Type B | | IR Input | 1 x 1/8" / 3.5 mm TRS | | Power Input Connector | 3-Pin, Locking | | Power Supply | 1 x 12 VDC | | Power Consumption | 15 W Maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 5 to 90% RH, Non-Condensing | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Storage Humidity | 0 to 95% RH, Non-Condensing | | MTBF | 50,000 Hours | | Rack Height | 1 RU | | Dimensions | 15.3 x 1.7 x 8.9" / 39 x 4.3 x 22.6 cm (Not Including Connectors, Rack Ears)
18.9 x 1.7 x 8.9" / 48 x 4.3 x 22.6 cm (Not Including Connectors, Including Rack Ears) | | Weight | 5.4 lb / 2.4 kg | | | | Package Weight | 9.91 lb | | Box Dimensions (LxWxH) | 20.8 x 12.7 x 6.3" |
