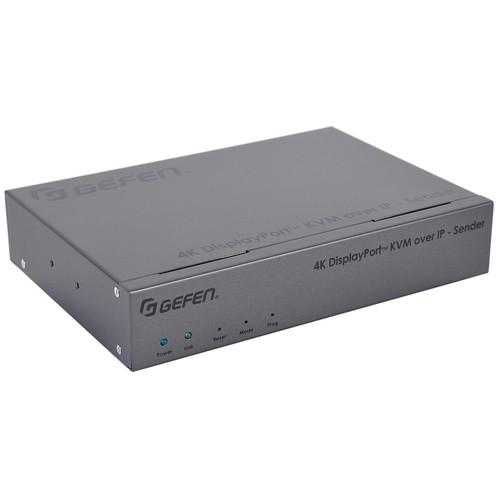

User Manual for Gefen 4K DisplayPort KVM Over IP Transmitter Click to enlarge the picture
Contents of the user manual for the Gefen 4K DisplayPort KVM Over IP
- Product category: KVM Extenders Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen KVM Extenders
|
User manual for the Gefen 4K DisplayPort KVM Over IP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description Provided by third party: The 4K DisplayPort KVM over IP Sender features maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. USB, RS-232 2-way IR, and audio can be routed independently between any Sender and Receiver unit, allowing end users to control any of the sources and the displays within their network. With this greatly expanded array of advanced features and performance, the Gefen AV over IP products fully address the ever-growing needs of systems integrators. - Key Features
-

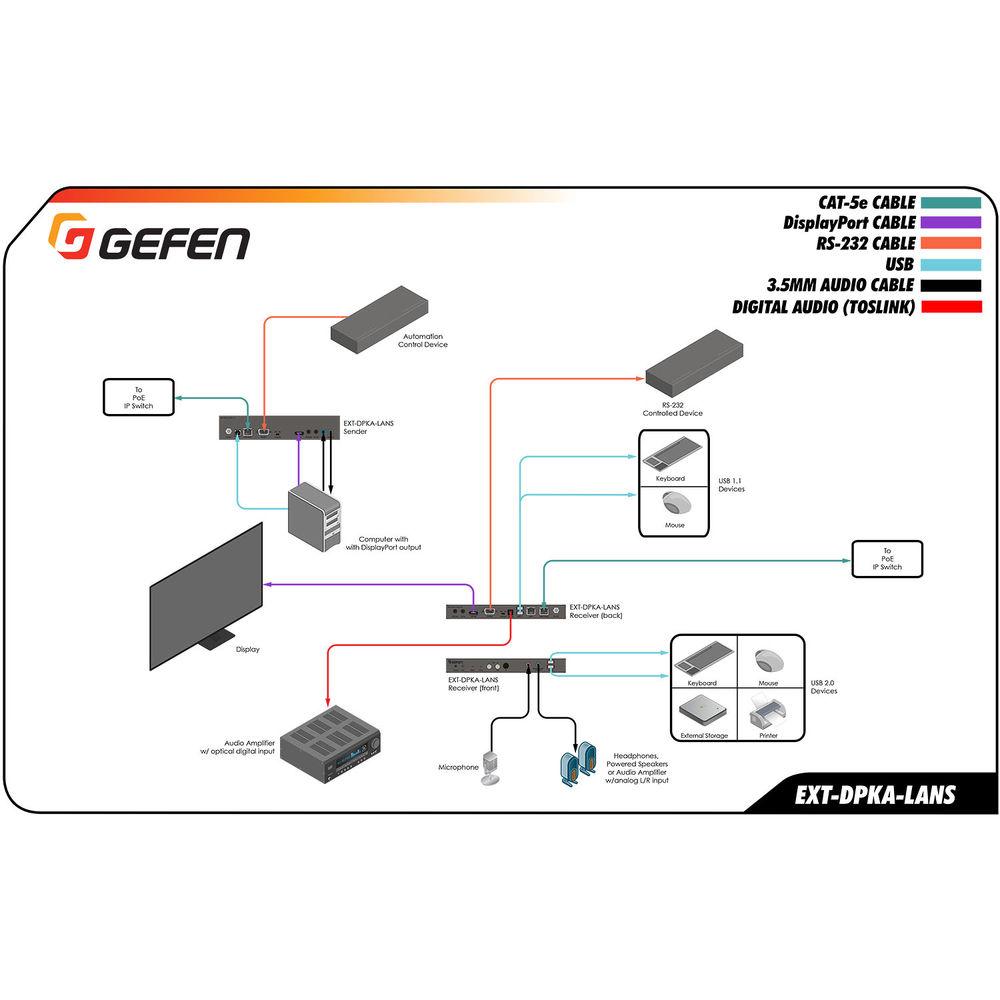

- Extends DisplayPort, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
- Independent video, USB, RS-232, IR, and audio routing
- Supports input resolutions up to 4K 60Hz 4:2:0
- Supports output resolutions up to 4K 30Hz 4:4:4
- Supports HDCP 2.2 and 1.4
- Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
- Enhanced API for added functionality with third-party control systems
- Built-in web interface, Telnet, and UDP
- Two USB 2.0 ports with data rates up to 480 Mbps and backward-compatibility with USB 1.1
- Two USB 1.1 ports with KM Emulation, for use with Human Interface Devices (H.I.D.)
- Mode switch for sharpness or motion-optimization of image
- Locking power supply connectors
UPC: 888814999808 Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4K DisplayPort KVM Over IP Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

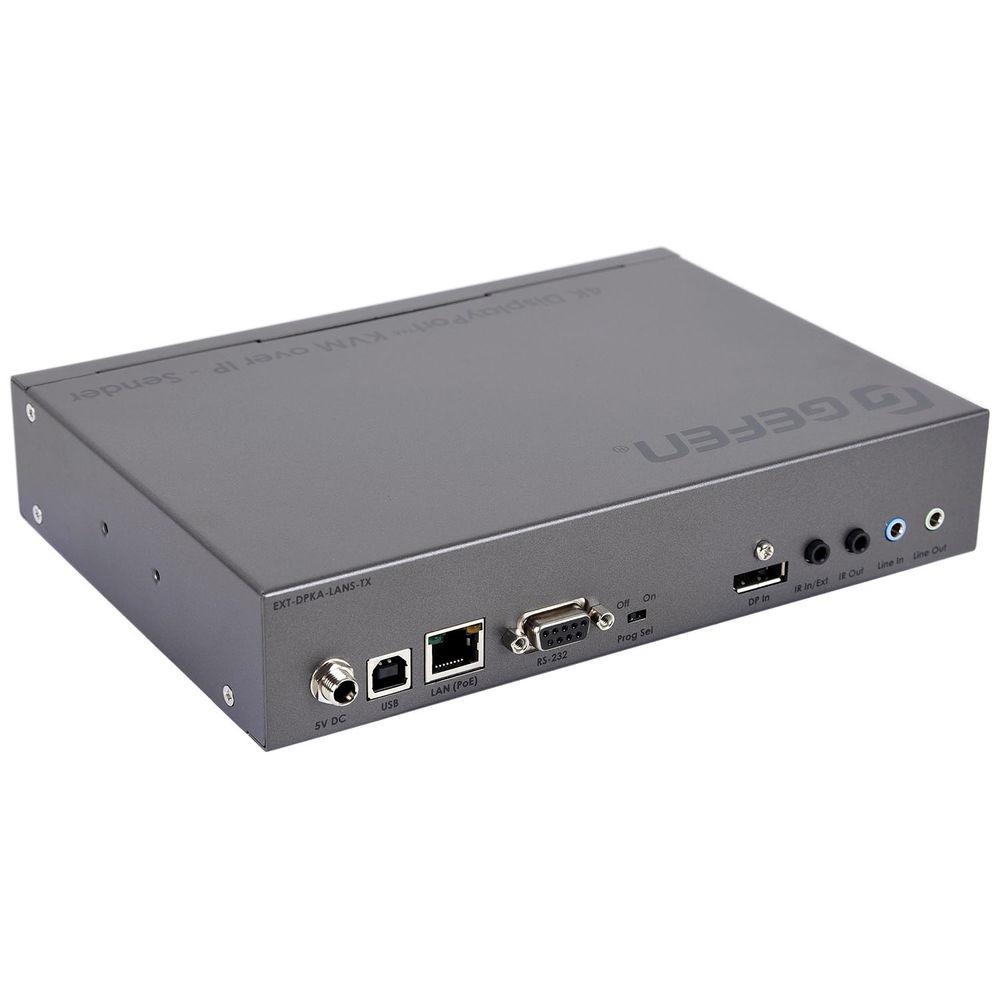

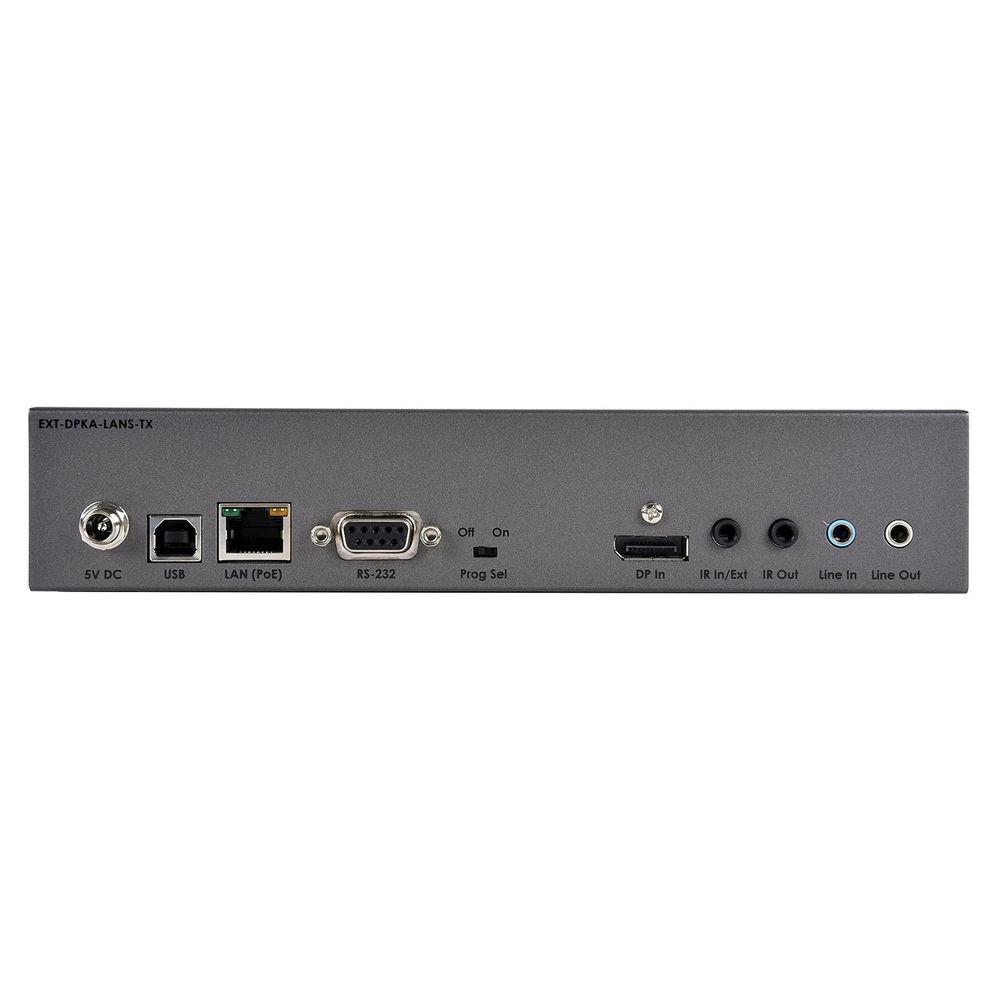

Technical parametersGefen EXT-DPKA-LANS-TX Specs | Device Type | Video/audio/infrared/USB/serial extender | Form Factor | External | | Connectivity Technology | Wired | Data Link Protocol | DisplayPort | Max Resolution | 2160p @ 60 Hz | Features | Firmware upgradable, built-in audio de-embedder | Compliant Standards | HDCP 1.4, HDCP 2.2 | | Interfaces | 1 x DisplayPort (input) 1 x IR (input) - mini jack 1 x IR (output) - mini jack 1 x audio (input) - mini jack 1 x audio (output) - mini jack 1 x RS-232 - DB-9 1 x Ethernet 1000Base-T (PoE) - RJ-45 1 x USB - Type B | | Included Accessories | 4 self-adhesive rubber feet, mounting brackets | | Power Over Ethernet (PoE) | PoE | Power Device | External power adapter | | Service & Support | Limited warranty - 3 years | | Package Weight | 3.25 lb | Box Dimensions (LxWxH) | 13.0 x 13.0 x 3.5" |
