Product description

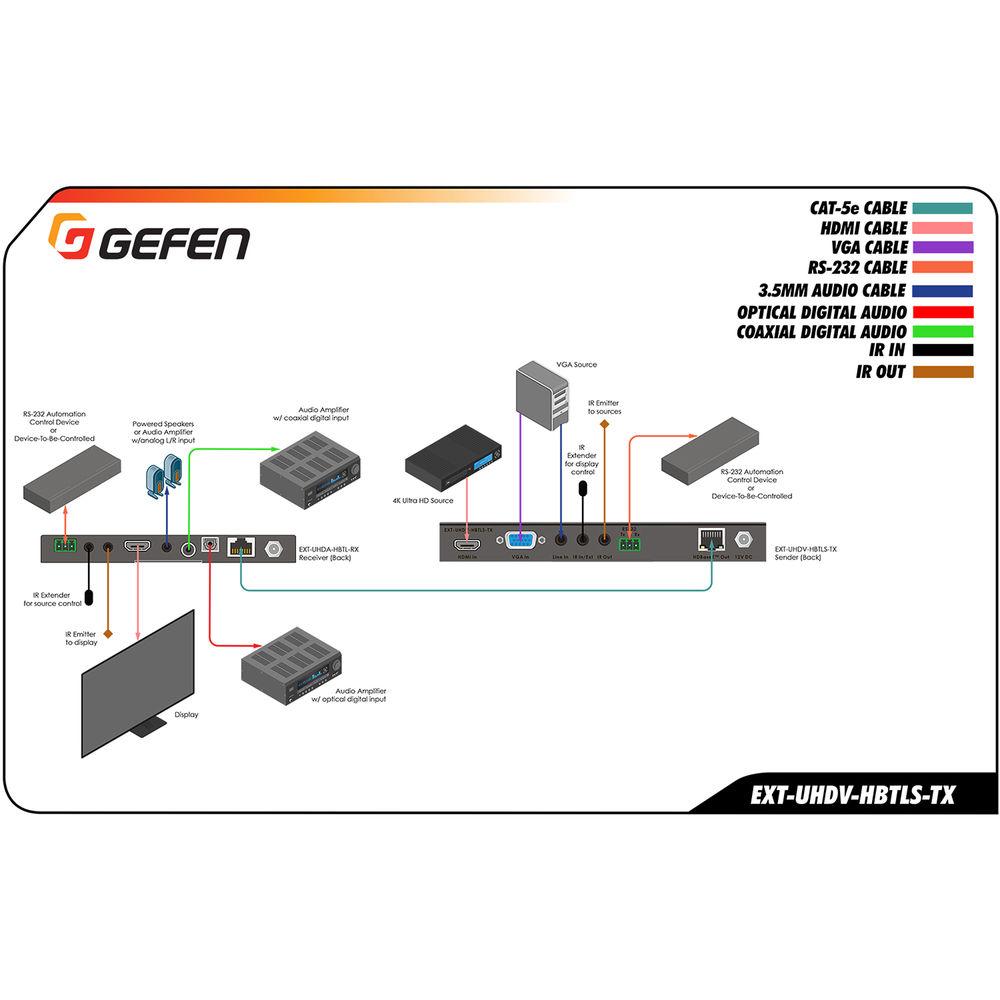

The Gefen 4K Multi-Format 2x1 HDBaseT Sender allows you to transmit UHD or DCI 4K 30 Hz signals up to 130' and 1080p60 signals up to 230' to an optional receiver over a single CAT5e cable, sold separately. It features individual HDMI and VGA inputs and lets you switch between them manually via the front panel or RS-232 or set up automatic switching. An independent 3.5mm audio input is available for running L/R audio with the VGA signal. VGA signals with lower resolutions than WUXGA and a legacy aspect ratio can be scaled to widescreen WUXGA. This allows for higher-resolution output as well as more seamless transitions when switching between HDMI and VGA inputs.

RS-232 and two-way IR signals can also be extended, and 3rd-party RS-232 controllers can be used for switching, scaling, EDID management, and volume and other controls. The transmitter and optional receiver can be powered from only one of the units via bidirectional PoH (Power-over-HDBaseT), over the same CAT5e cable used for signal extension. The transmitter has a compact design and can be surface-mounted or hidden away under a desk via the included mounting brackets. The device uses Gefen's implementation of HDBaseT technology, with enhancements including advanced EDID management. Note: A shielded (STP) CAT5e or better cable is recommended. An unshielded (UTP) cable may be acceptable depending on cable quality.
    Key Features
    • Transmit HDMI, VGA with analog audio, and RS-232 signals over a single CAT5e cable
    • Compatible receiver: EXT-UHDA-HBTL-RX
    • Send UHD 4K (at 30 Hz, 8-bit, 4:4:4) up to 130'
    • DCI 4K transmission (at 24/30 Hz, 8-bit, 4:4:4) up to 130'
    • 1080p60 or WUXGA 60 Hz transmission (up to 12-bit) up to 230'
    • HDMI input: up to 18 Gb/s data throughput and 600 MHz TMDS clock
    • HDBaseT input: up to 10.2 Gb/s data throughput and 300 MHz TMDS clock
    • Automatic switching of 4K HDMI and VGA

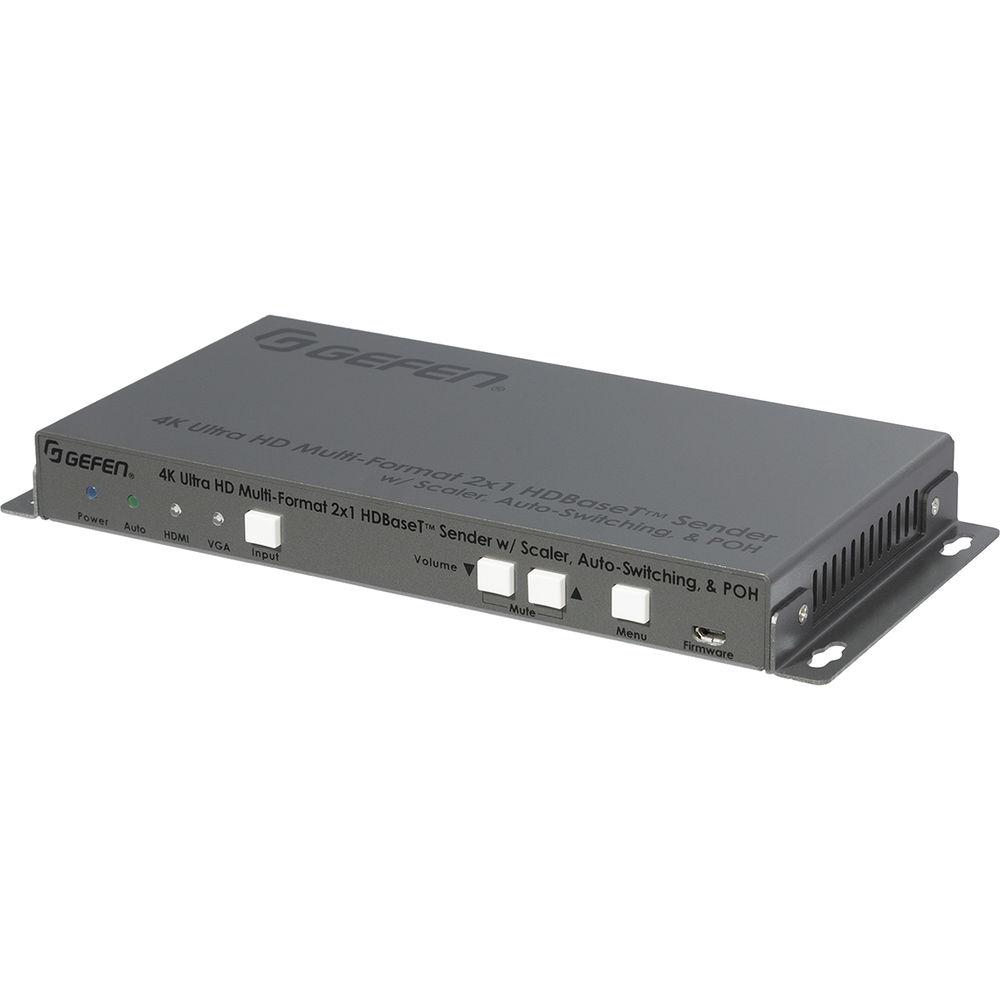

    • Manual switching of 4K HDMI and VGA via front-panel button or RS-232
    • VGA scaling up to 1920 x 1200 with picture adjustments
    • HDMI 2.0
    • HDCP 2.2 and 1.4
    • 12-bit deep color (at 1080p)
    • LPCM 7.1, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio pass-through
    • 3DTV pass-through
    • CEC pass-through
    • Lip Sync pass-through
    • Analog L/R audio input for VGA
    • RS-232 control of switching, scaler, and EDID management functions
    • Bidirectional RS-232 extension / two-way IR extension when used with a compatible receiver
    • Bidirectional Power-over-HDBaseT (PoH)
    • HDBaseT technology with Gefen-enhanced features
    • Advanced EDID management for rapid integration of source and display
    • Field-updateable firmware via mini-USB port, using the Gefen Syner-G software
    • Locking power connector
    • Compact, ultra-low-profile enclosure (can be surface-mounted or installed hidden away)
    • 3-pin Phoenix connector (installed)

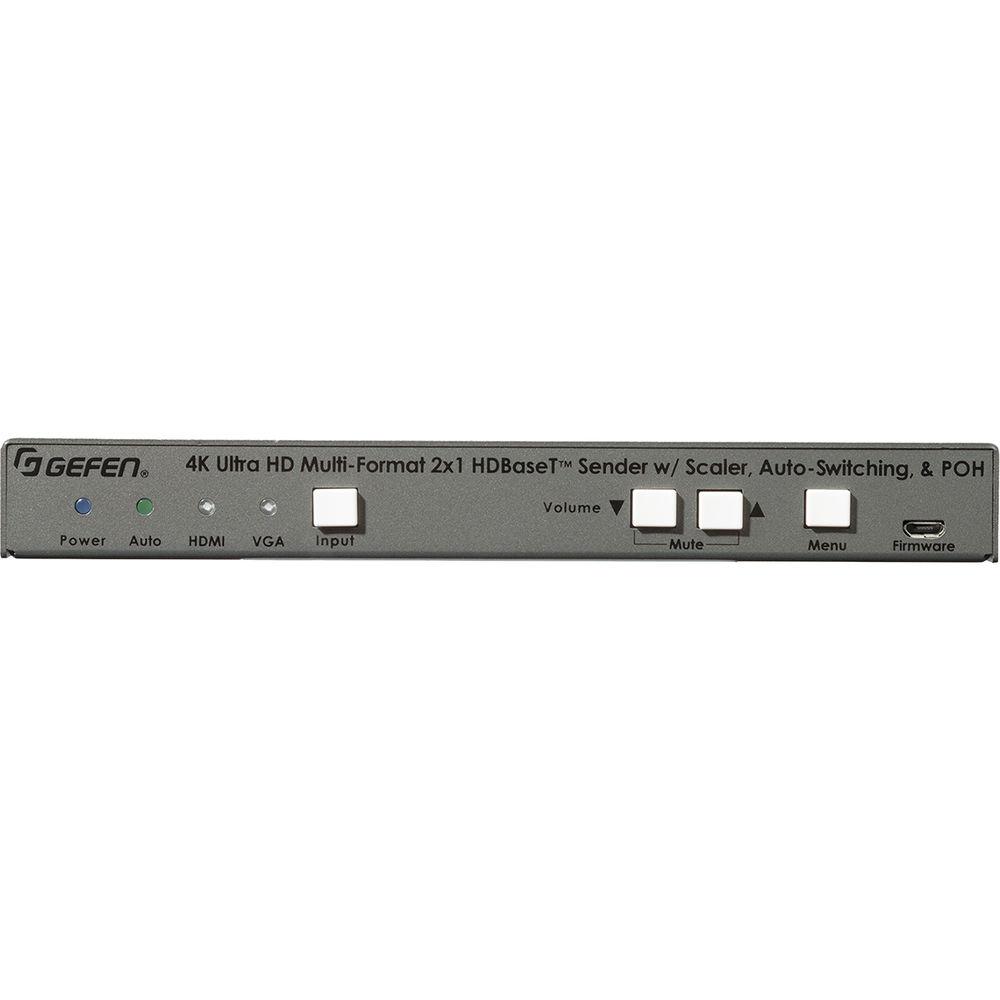

    • LED indicators
UPC: 888814999884 In the Box Gefen 4K Multi-Format 2x1 HDBaseT Sender with Scaler, Auto-Switching, and PoH
  • 12 VDC Power Supply

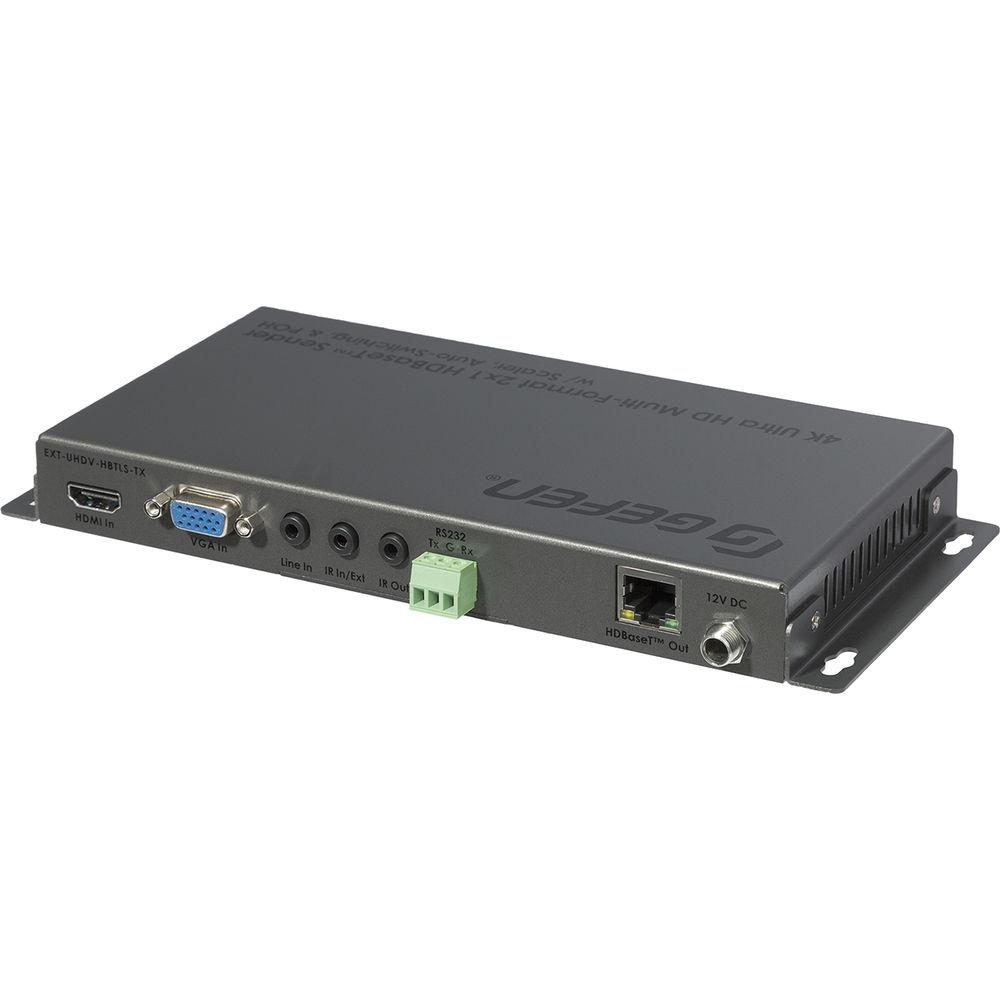

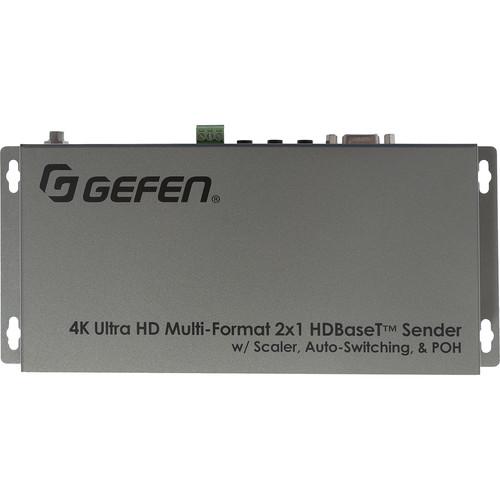

  • Set of 2 Mounting Brackets
  • 4 x Adhesive Rubber Feet
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Gefen 4K Multi-Format 2x1 HDBaseT Sender with Scaler, Auto-Switching, and PoH in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Gefen EXT-UHDV-HBTLS-TX Specs

    TMDS Clock Frequency HDMI Input: 600 MHz
    Extension System: 300 MHz
    Bandwidth HDMI Input: 18 Gb/s
    Extension System: 10.2 Gb/s

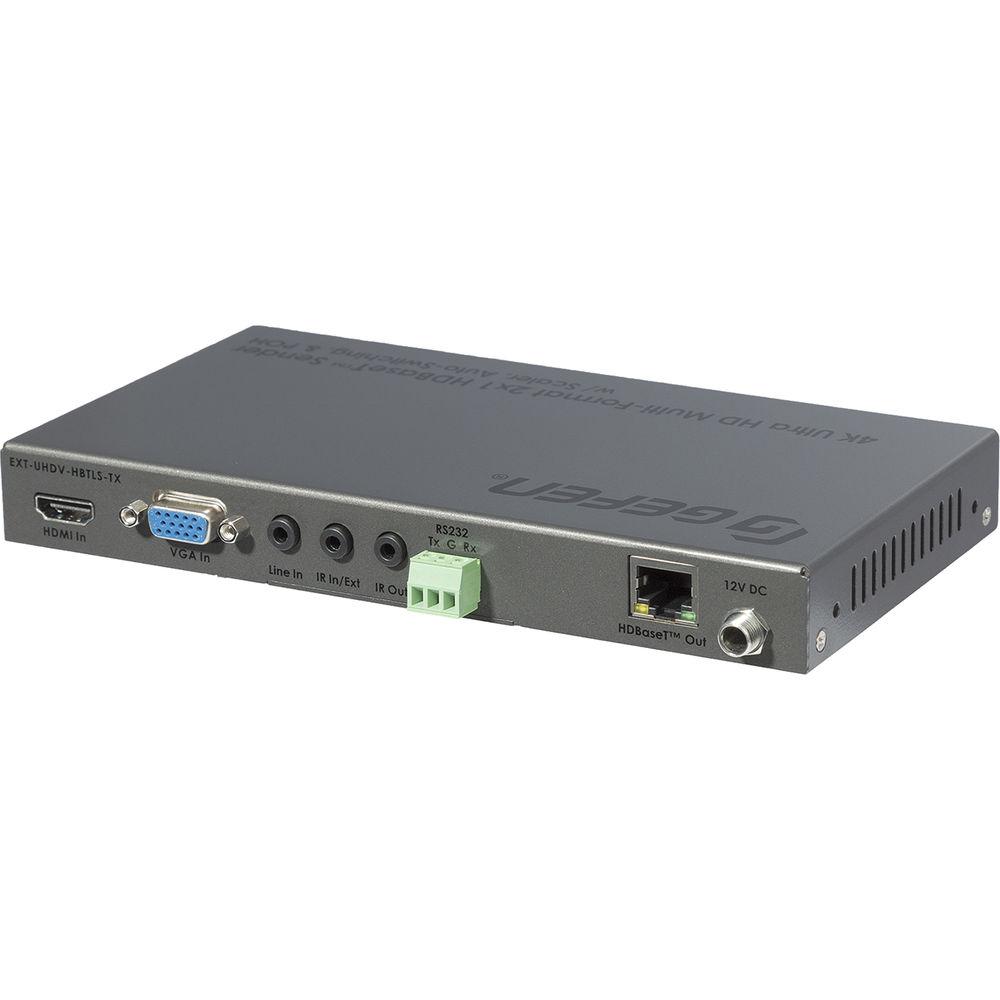

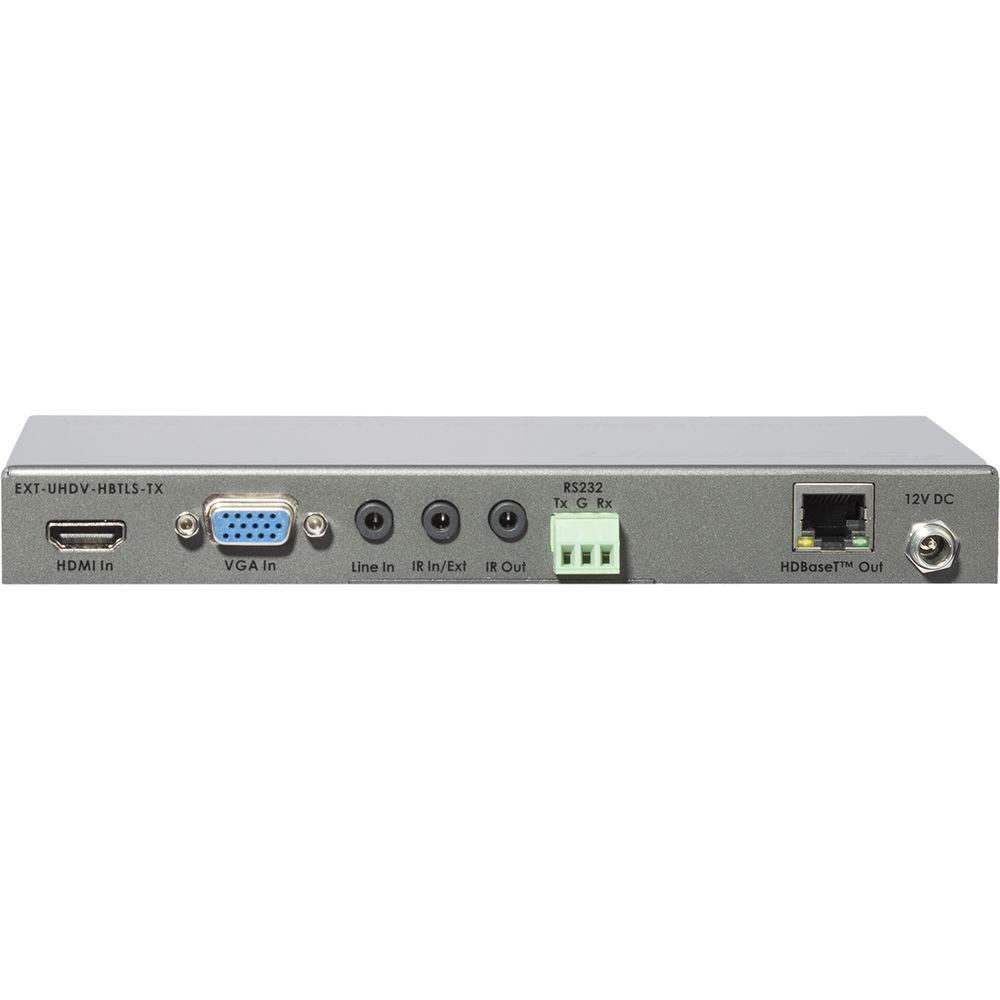

    Video Input 1 x HDMI Type A
    1 x VGA HD-15
    Audio Input 1 x 1/8" / 3.5 mm TRS
    Link Connector 1 x RJ-45, Shielded
    RS-232 1 x 3-Pin Phoenix
    IR Input 1 x 1/8" / 3.5 mm TRS
    IR Output 1 x 1/8" / 3.5 mm TS
    Transmission Distance DCI 4K (at 24/30 Hz, 8-Bit, 4:4:4) up to 130' / 40 m
    UHD 4K (at 30 Hz, 8-Bit, 4:4:4) up to 130' / 40 m
    1080p (at 60 Hz, up to 12-Bit) up to 230' / 70 m
    WUXGA (at 60 Hz, up to 12-Bit) up to 230' / 70 m
    Firmware Update Port Mini-USB Type B
    Power Connector 5.5 mm Barrel/2.1 mm Pin, Locking
    Power Supply Input 12 VDC
    Power Consumption 9 W Maximum without Receiver
    22 W Maximum with Receiver
    Operating Temperature 32 to 122°F / 0 to 50°C
    Storage Temperature -4 to 185°F / -20 to 85°C
    Operating Humidity 5 to 90%, Non-Condensing
    Storage Humidity 0 to 95%, Non-Condensing
    MTBF 50,000 Hours
    Dimensions 7.7 x 0.93 x 4" / 19.5 x 2.4 x 10 cm (without Mounting Brackets or Connectors)
    8.7 x 0.93 x 4" / 22 x 2.4 x 10 cm (with Mounting Brackets, No Connectors)
    Weight 0.8 lb / 350 g
    Package Weight 1.875 lb
    Box Dimensions (LxWxH) 10.4 x 9.2 x 3.1"
