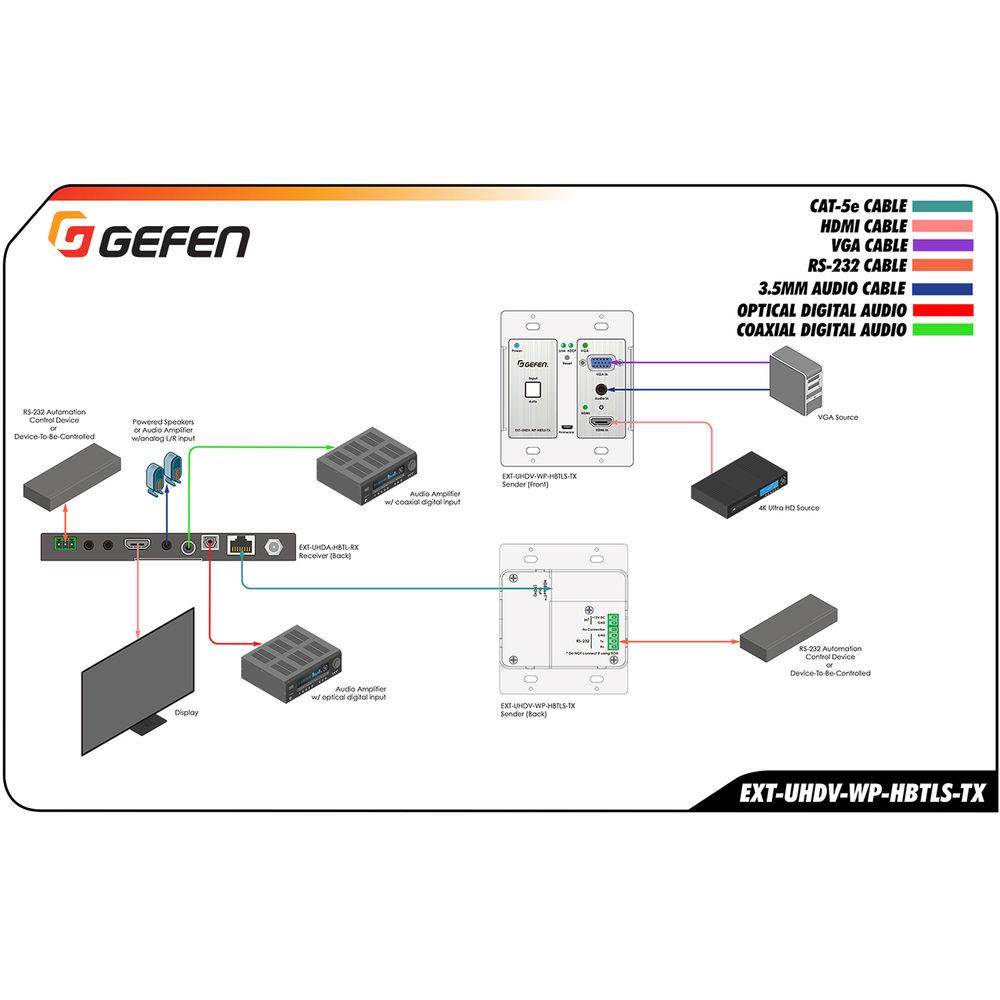

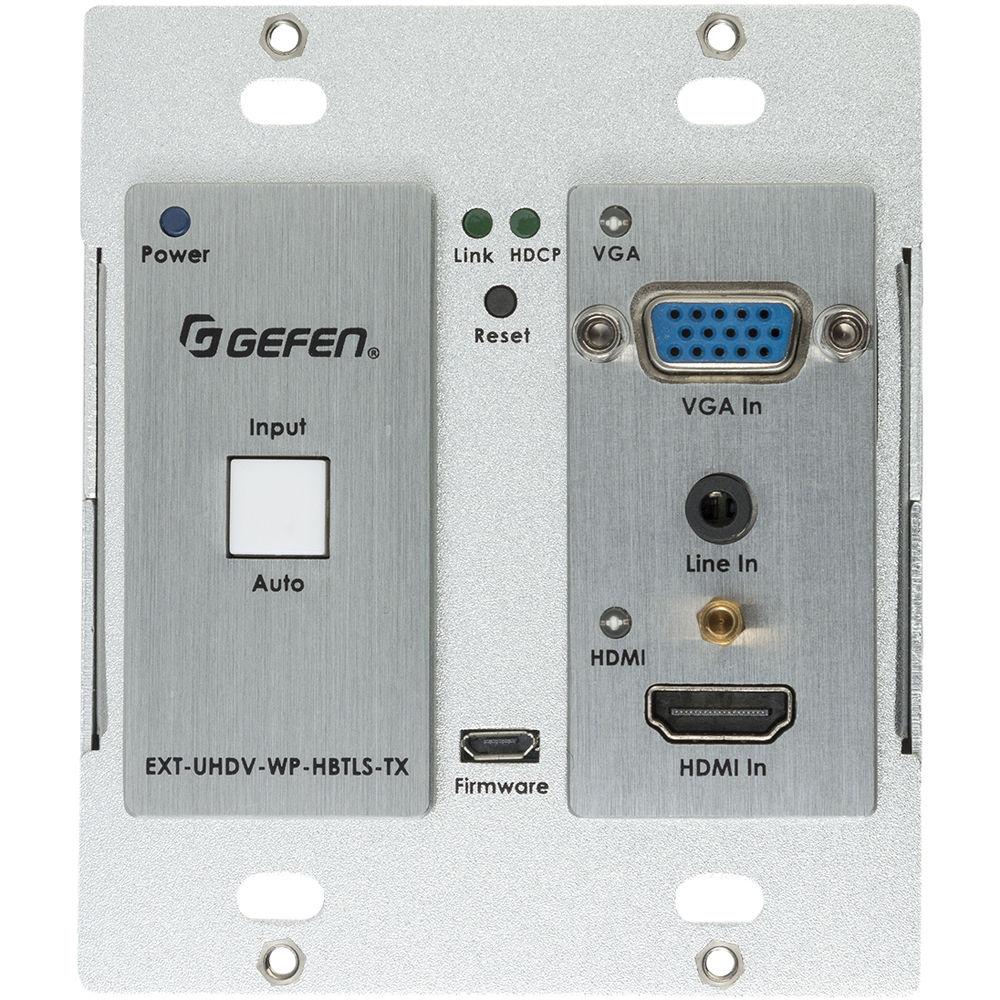

Product description The Gefen 4K Multi-Format 2x1 HDBaseT Wall Plate Sender allows you to transmit UHD or DCI 4K signals up to 130' and 1080p60 signals up to 230' to an optional receiver over a single CAT5e cable, sold separately. It features individual HDMI and VGA inputs and lets you switch between them manually via the front panel or RS-232, or set up automatic switching. An independent 3.5mm audio input is available for running L/R audio with the VGA signal. VGA signals with lower resolutions than WUXGA and a legacy aspect ratio can be scaled to widescreen WUXGA. This allows for higher-resolution output as well as more seamless transitions when switching between HDMI and VGA inputs.
An RS-232 signal can also be extended, and 3rd-party RS-232 controllers can be used for switching, scaling, EDID management, and volume and other controls. The transmitter can be powered using an optional power supply or via PoH (Power-over-HDBaseT) from the corresponding receiver over the same CAT5e cable used for signal extension. The transmitter has a North American standard 2-gang wall-plate form factor and is compatible with most North American 2-gang table boxes and "open-back" low-voltage installation brackets. The device uses Gefen's implementation of HDBaseT technology, with enhancements including advanced EDID management. Note: A shielded (STP) CAT5e or better cable is recommended. An unshielded (UTP) cable may be acceptable depending on cable quality. - Key Features
-
- North American standard 2-gang wall-plate form factor; white wall-plate
- Works with most North American 2-gang table boxes and "open-back" low-voltage installation brackets
- Transmit HDMI, VGA with analog audio, and RS-232 signals over a single CAT5e cable
- Compatible receiver: EXT-UHDA-HBTL-RX
- Send UHD 4K (at 30 Hz, 8-bit, 4:4:4 / 60 Hz, 8-bit, 4:2:0) up to 130'
- DCI 4K transmission (at 24/30 Hz, 8-bit, 4:4:4) up to 130'
- 1080p60 or WUXGA 60 Hz transmission (up to 12-bit) up to 230'
- Supports 300 MHz TMDS clock frequency and data throughput of up to 10.2 Gb/s
- Automatic switching of 4K HDMI and VGA
- Manual switching of 4K HDMI and VGA via front-panel button or RS-232
- VGA scaling up to 1920 x 1200 with picture adjustments
- HDMI 2.0
- HDCP 1.4
- 12-bit deep color (at 1080p)
- LPCM 7.1, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio pass-through
- 3DTV pass-through
- CEC pass-through
- Lip Sync pass-through
- Analog L/R audio input for VGA
- RS-232 control of switching, scaler, and EDID management functions
- Bidirectional RS-232 extension / two-way IR extension when used with a compatible receiver
- Power-over-HDBaseT (PoH) support from receiver

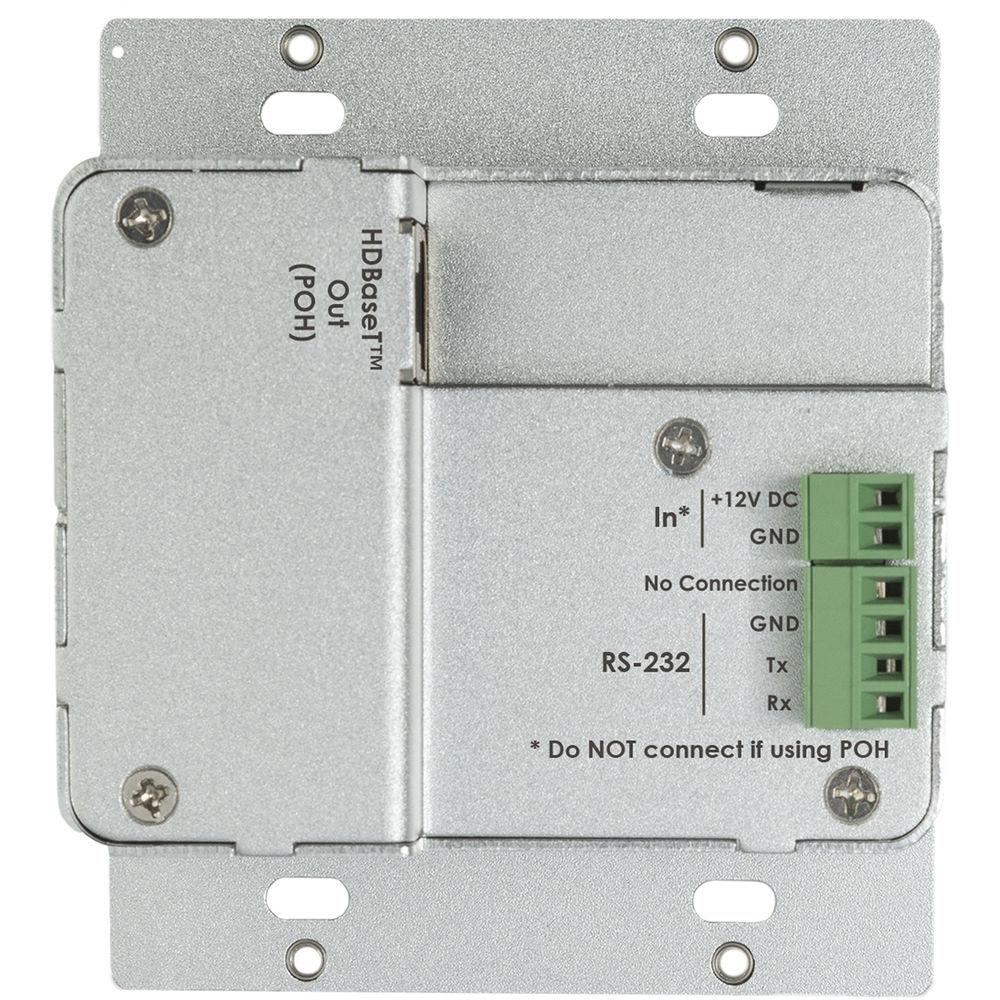

- Can also be locally powered using the 2-pin Phoenix connector on back panel and an optional power supply (EXT-PS121.5AIP-3P-6)
- HDBaseT technology with Gefen-enhanced features
- Advanced EDID management for rapid integration of source and display
- Field-updateable firmware via mini-USB port, using the Gefen Syner-G software
- 2-pin and 4-pin Phoenix connectors (installed)
- LED indicators

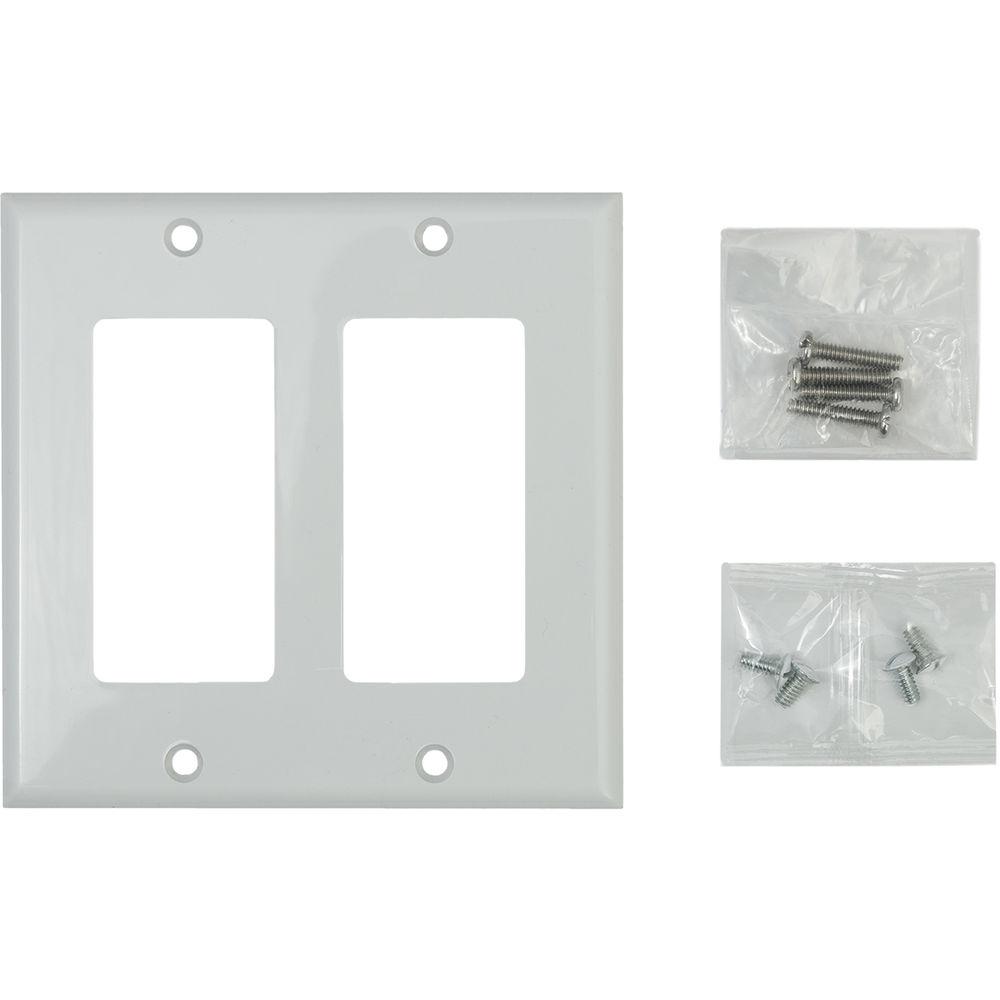

UPC: 888814999891 In the Box Gefen 4K Multi-Format 2x1 HDBaseT Wall Plate Sender with Scaler, Auto-Switching, and PoH White Trim Plate 4 x White Trim-Plate Screw 4 x Mounting Screw Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4K Multi-Format 2x1 HDBaseT Wall Plate Sender with Scaler, Auto-Switching, and PoH in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-UHDV-WP-HBTLS-TX Specs | TMDS Clock Frequency | 300 MHz | | Bandwidth | 10.2 Gb/s | | Video Input | 1 x HDMI Type A
1 x VGA HD-15 | | Audio Input | 1 x 1/8" / 3.5 mm TRS | | Link Connector | 1 x RJ-45, Shielded | | RS-232 | 1 x 4-Pin Phoenix | | DC Input | 1 x 2-Pin Phoenix | | Transmission Distance | DCI 4K (at 24/30 Hz, 8-Bit, 4:4:4) up to 130' / 40 m
UHD 4K (at 30 Hz, 8-Bit, 4:4:4 / 60 Hz, 8-Bit, 4:2:0) up to 130' / 40 m
1080p (at 60 Hz, up to 12-Bit) up to 230' / 70 m
WUXGA (at 60 Hz, up to 12-Bit) up to 230' / 70 m | | Power Requirement | Powered via PoH from a Corresponding Receiver or via Phoenix Connector on Rear Panel Using Optional Hard-Wired 12 VDC, 1-2 A Power Supply (EXT-PS121.5AIP-3P-6) | | Firmware Update Port | Mini-USB Type B | | Power Consumption | 6 W Maximum | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Operating Humidity | 5 to 90%, Non-Condensing | | Storage Humidity | 0 to 95%, Non-Condensing | | MTBF | 50,000 Hours | | Dimensions | Overall:
3.5 x 4.2 x 1.7" / 8.9 x 10.7 x 4.3 cm (Not Including Connectors)
Mounting Cavity:
3.6 x 2.8 x 2" / 9.1 x 7.1 x 5 cm (with Mounting Brackets, No Connectors) | | Weight | 0.6 lb / 270 g | | | | Package Weight | 0.86 lb | | Box Dimensions (LxWxH) | 7.4 x 5.4 x 4.3" |
