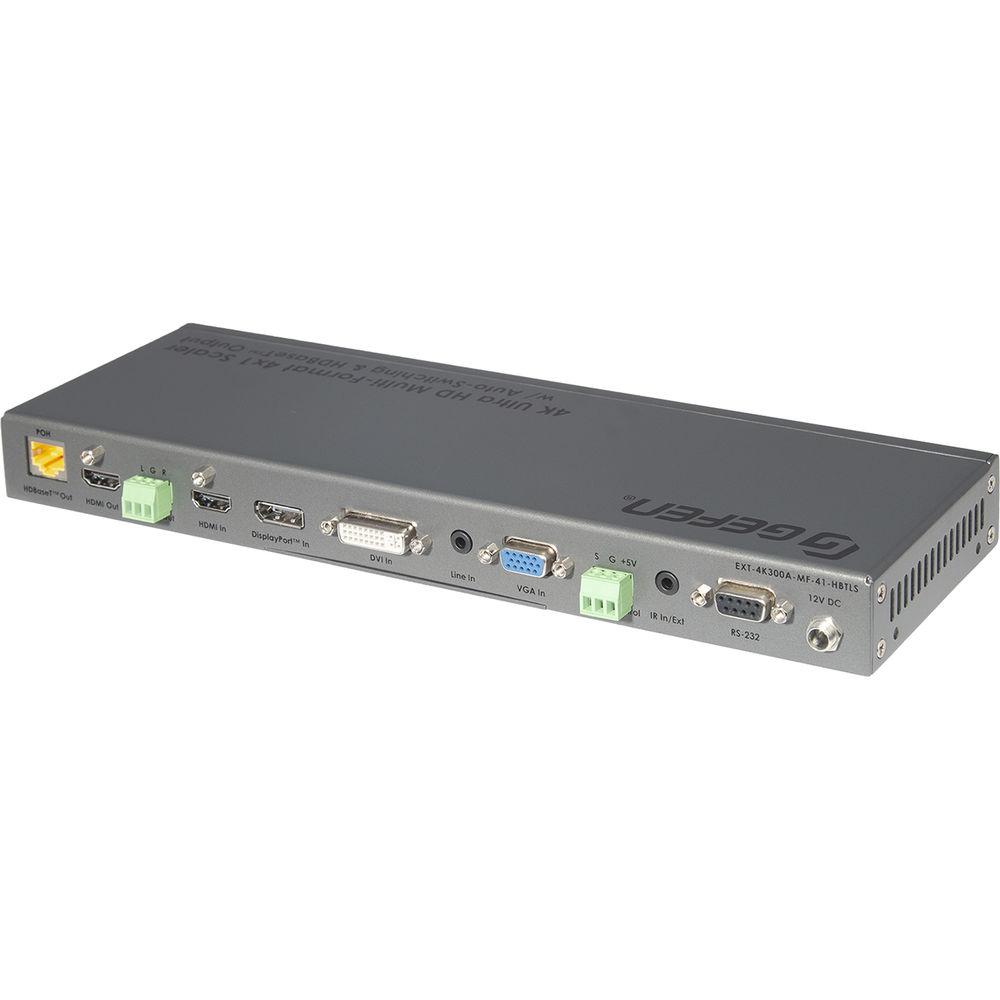

User Manual for Gefen 4K Multi-Format 4 x 1 Scaler with Auto-Switching & HDBaseT Output Click to enlarge the picture
Contents of the user manual for the Gefen 4K Multi-Format 4 x 1
- Product category: Routers & Switchers Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Routers & Switchers
 |
User manual for the Gefen 4K Multi-Format 4 x 1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

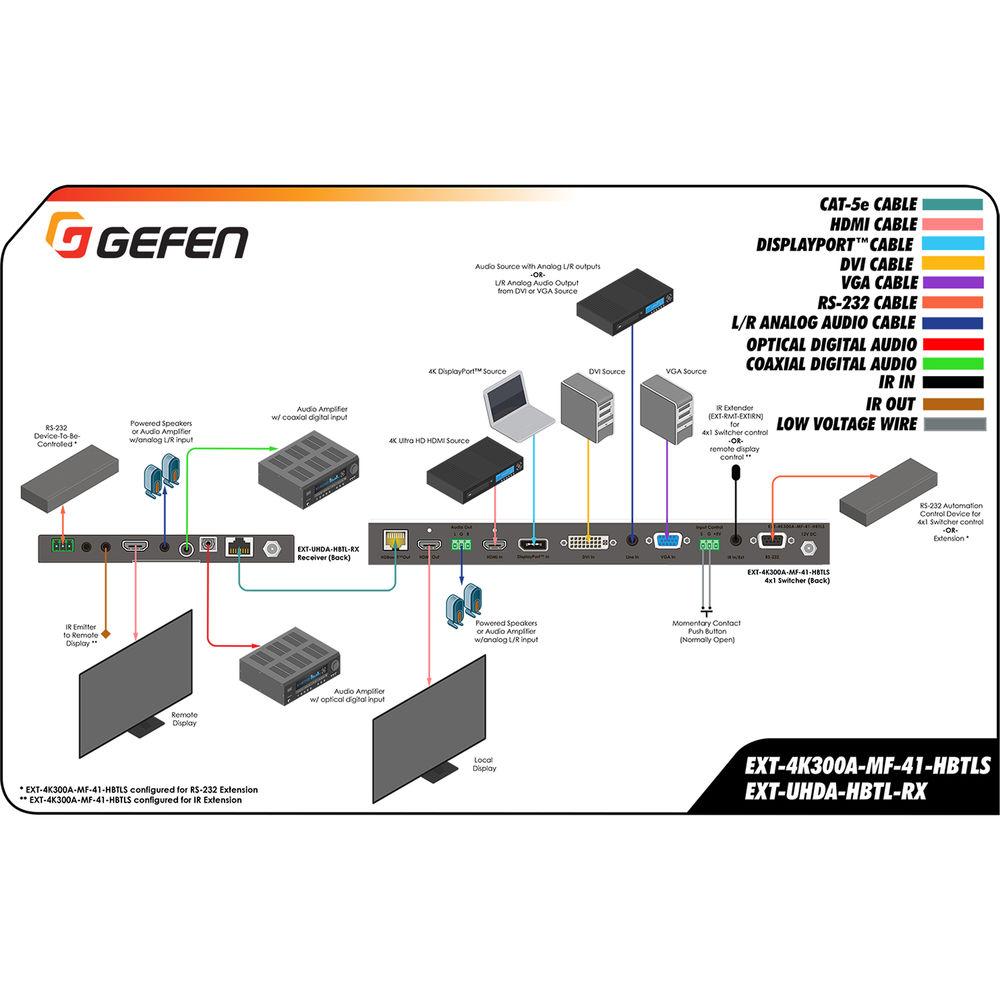

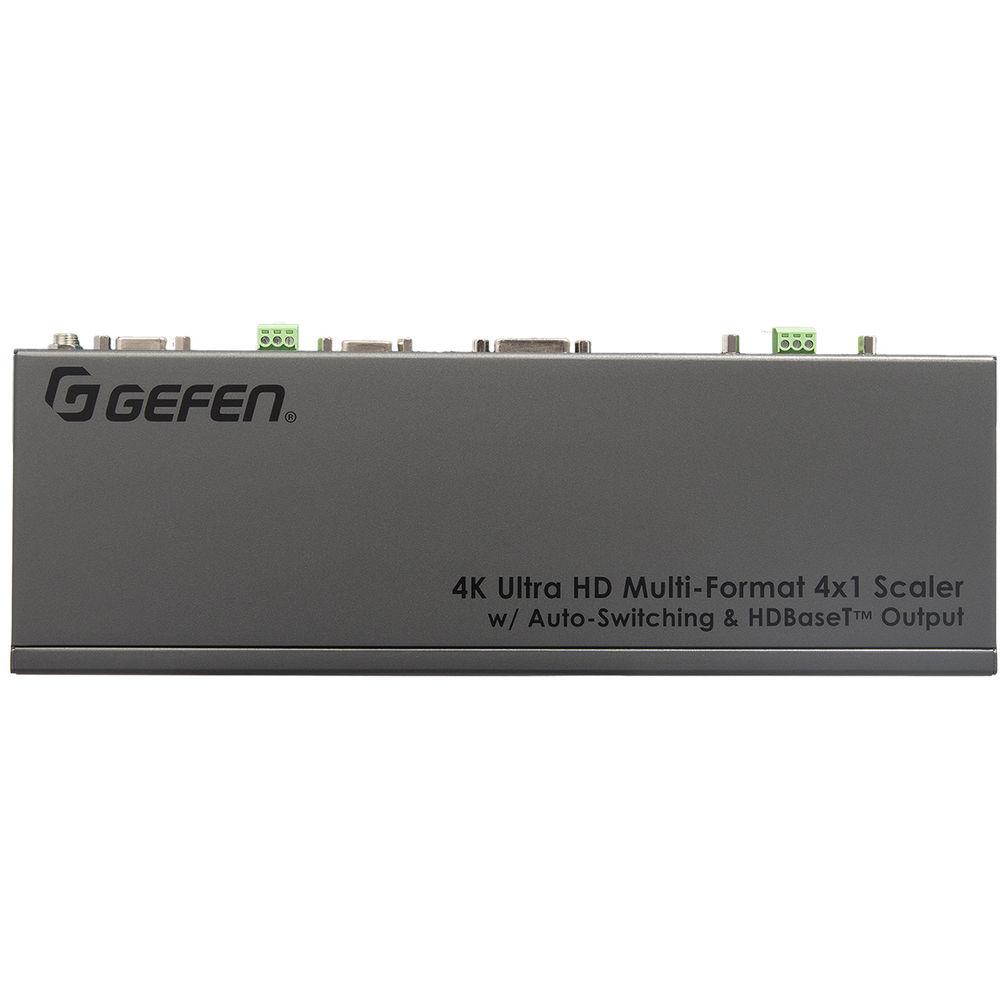

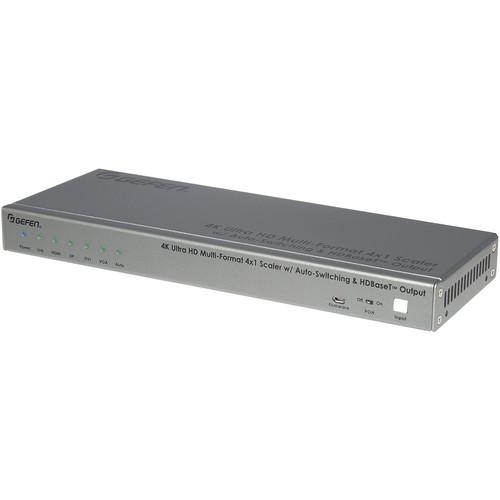

Product description The Gefen 4K Multi-Format 4 x 1 Scaler with Auto-Switching is an HDBaseT presentation switcher featuring HDMI, DisplayPort, DVI, and VGA inputs that can be switched manually or set to switch automatically. On the output end, the 4 x 1 offers split HDMI and HDBaseT outputs, allowing you to send the signal to both a local and remote display at the same time. The HDBaseT output transmits a DCI/UHD 4K signal up to 130' and WUXGA/1080p60 signal up to 230' over a single CAT5e cable to a corresponding receiver, sold separately. The same cable can also carry PoH (Power-over-HDBaseT) to the receiver. For audio, an independent 3.5mm input is linked to the DVI and VGA video inputs, and a 3-pin Phoenix output allows you to de-embed the HDMI or DisplayPort audio. The scaler/switcher can be controlled via the front panel, IR remote control, contact closure, and RS-232 serial control.
The HDMI input supports DCI 4K at 24/30 Hz 4:4:4 and UHD 4K at 60 Hz 4:2:0 and 30 Hz 4:4:4. The DisplayPort input supports up to UHD 4K. The HDMI and HDBaseT ports also support up to 7.1-channel LPCM and HBR (High-Bit Rate) lossless digital audio, such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.
The DVI and VGA inputs support up to WUXGA and 1080p resolution, while a built-in scaler is capable of upscaling lower resolution DVI and VGA signals with legacy aspect ratios to widescreen WUXGA or 1080p 60 Hz signals, allowing for better presentations and more seamless switching transitions between the inputs.

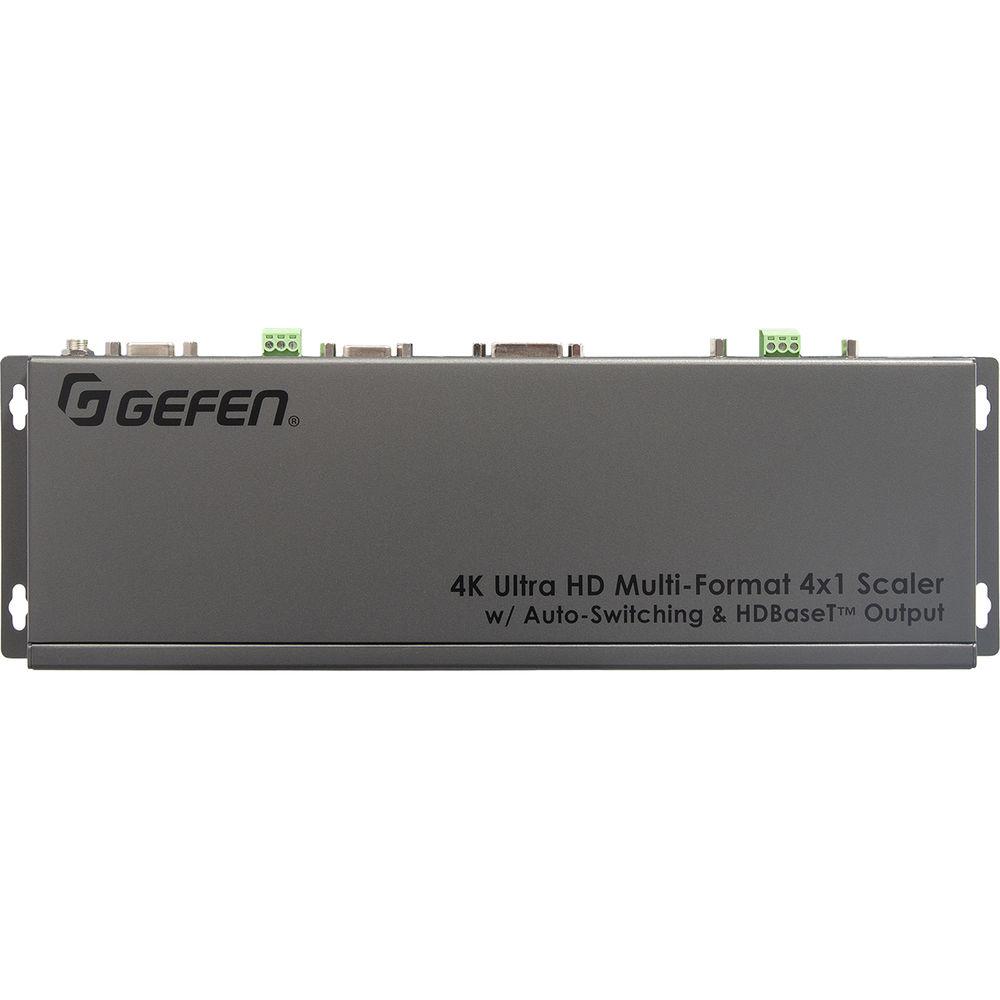

The 4 x 1 has advanced EDID management to ensure that your sources are optimized for the displays being used. Encased in a compact housing, the switcher can be set on a desktop or other surface or mounted hidden away using the included mounting brackets. The HDMI ports, the power port, and all but the DisplayPort inputs feature locking connectors to allow for reliable connections. Note: A shielded (STP) CAT5e or better cable is recommended. Unshielded (UTP) cables may be acceptable depending on cable quality. - Key Features
-
- HDBaseT presentation switcher compatible with the optional EXT-UHDA-HBTL-RX receiver
- HDMI, DisplayPort, DVI, and VGA inputs can be switched manually or automatically
- Split HDMI and HDBaseT outputs send the signal to a local and remote display simultaneously
- Transmits a DCI/UHD 4K signal up to 130' and WUXGA/1080p signal up to 230' over a single CAT5e cable
- 3.5mm audio input
- 3-pin Phoenix de-embedder audio output
- Scales DVI and VGA to widescreen WUXGA/1080p at 60 Hz
- Front panel, IR remote control, contact closure, and RS-232 control
- 340 MHz TMDS clock maximum
- 10.2 Gb/s bandwidth
- HDMI 2.0 with HDCP 2.2 and 1.4
- DisplayPort 1.1 with HDCP 2.2 and 1.4
- DVI with HDCP 1.4
- LPCM 7.1, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio pass-through
- 3DTV pass-through
- CEC pass-through
- Lip sync pass-through
- Advanced EDID management
- Field-updateable firmware via micro-USB port, using the Gefen Syner-G software
- Locking HDMI, DVI, VGA, and power connectors
- Power-over-HDBaseT (PoH)

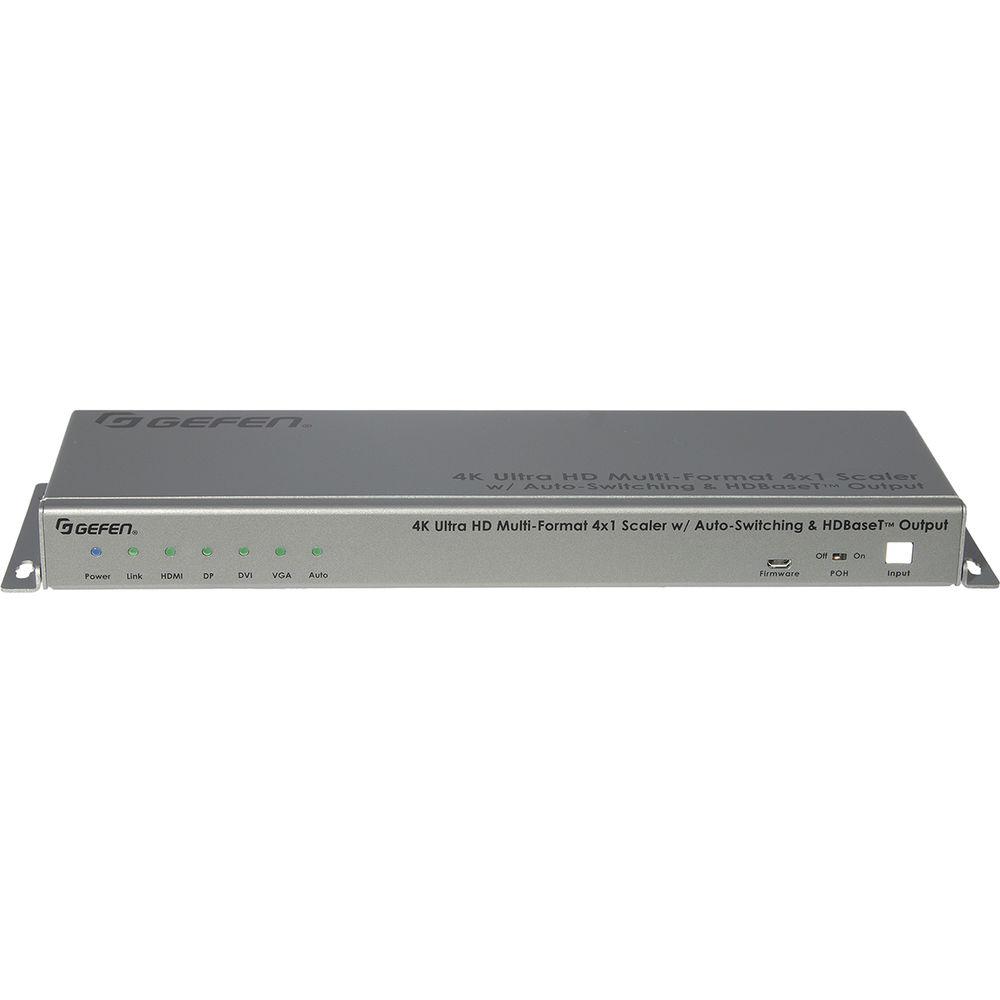

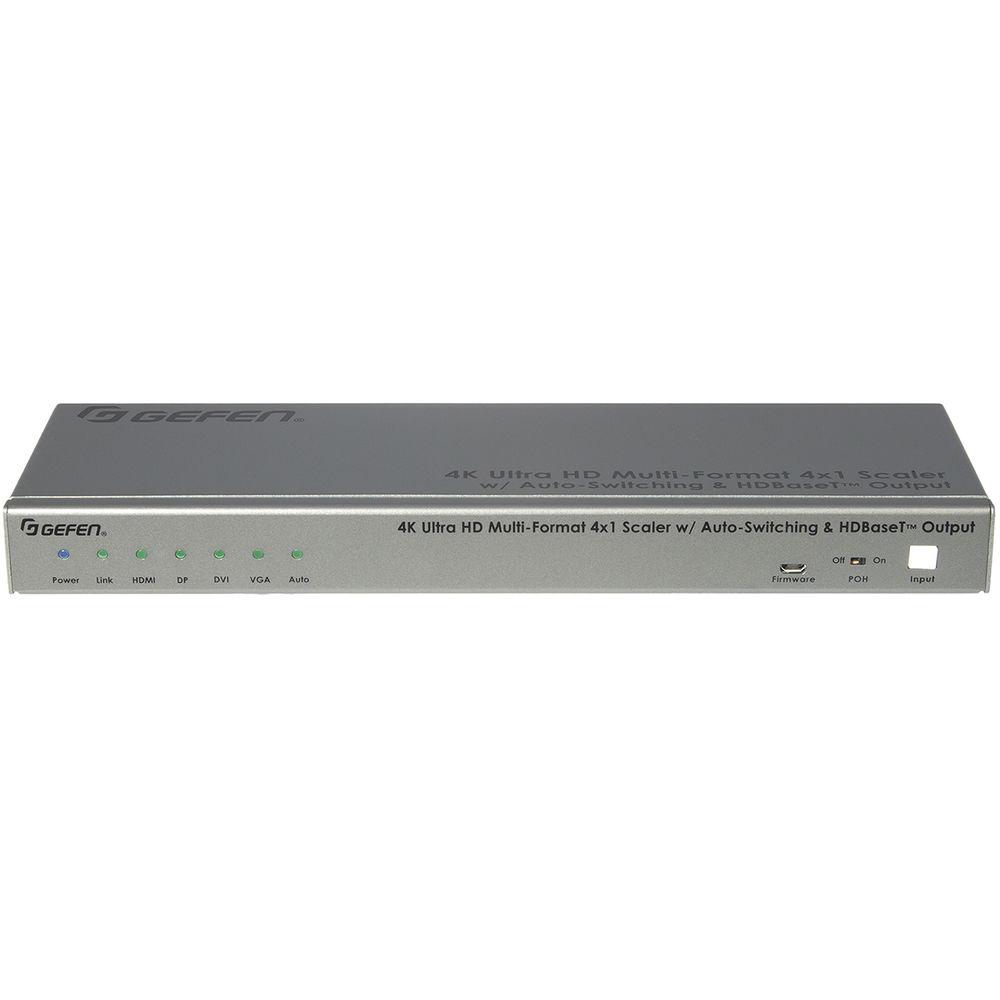

- LED indicators
UPC: 888814999839 In the Box Gefen 4K Multi-Format 4 x 1 Scaler with Auto-Switching & HDBaseT Output 12 VDC Power Supply with Locking Connector and US/EU/UK/AU Plug Adapters IR Extender Module IR Remote with 2 AAA Batteries 2 x Mounting Brackets 4 x Self-Adhesive Rubber Feet Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4K Multi-Format 4 x 1 Scaler with Auto-Switching & HDBaseT Output in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

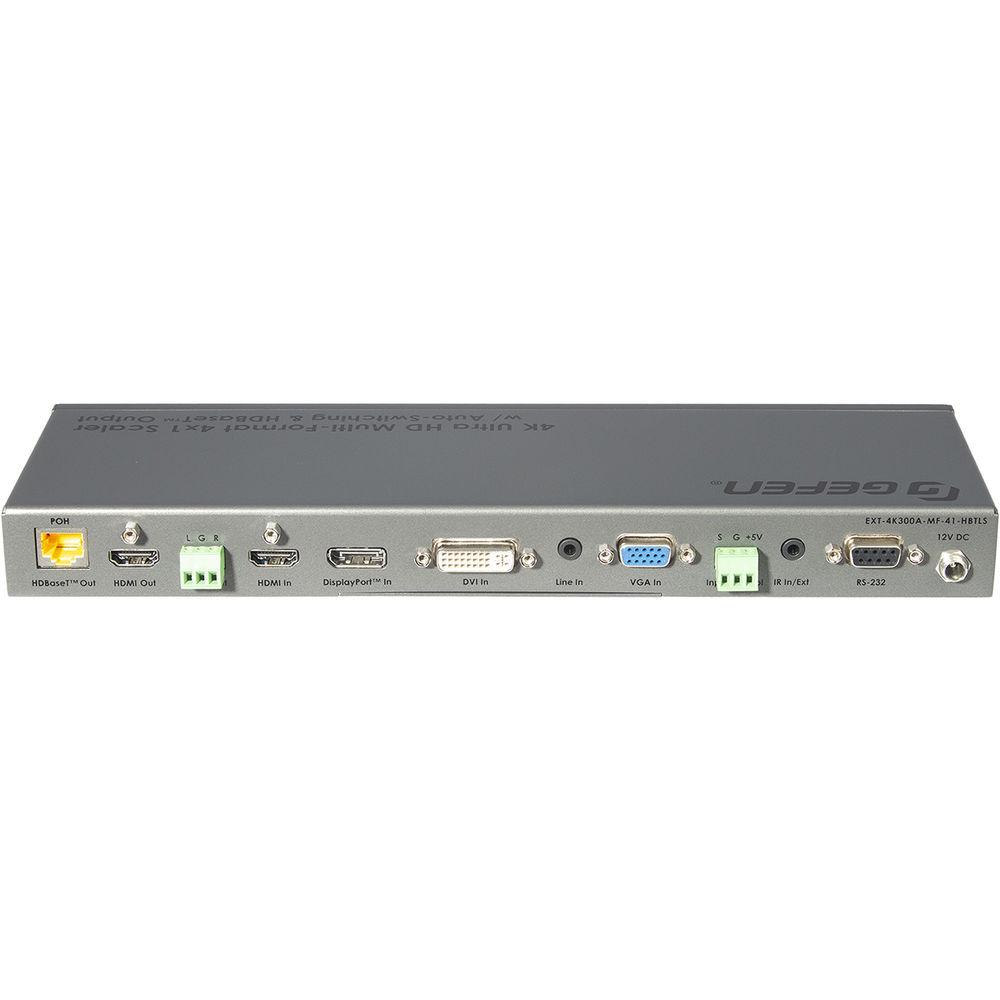

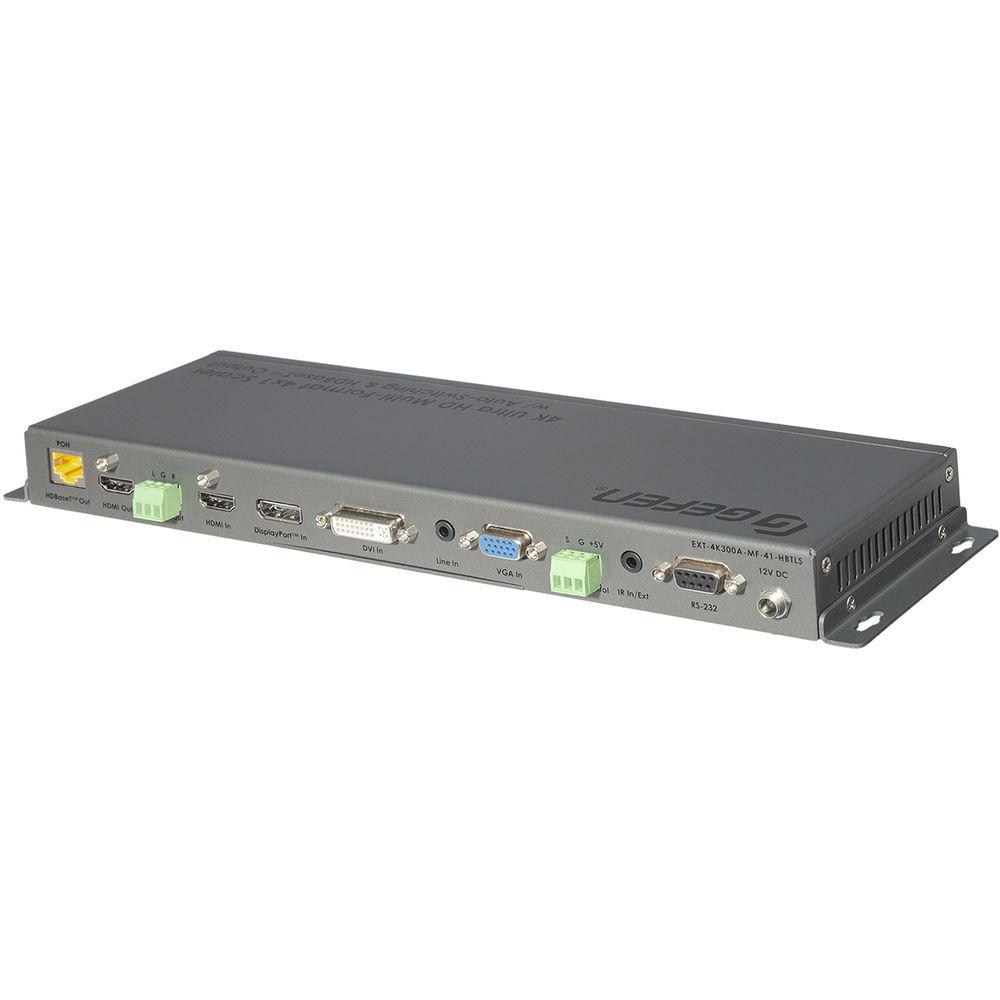

Technical parametersGefen EXT-4K300A-MF-41-HBTLS Specs | TMDS Clock Frequency | 340 MHz | | Bandwidth | 10.2 Gb/s | | Video Inputs | 1 x HDMI Type A, Locking
1 x DisplayPort
1 x DVI 29-Pin
1 x VGA HD-15 | | Video Outputs | 1 x HDMI Type A, Locking
1 x HDBaseT RJ-45, Shielded | | Audio Input | 1 x 1/8" / 3.5 mm Jack | | Audio Output | 1 x 3-Pin Phoenix with Removable Plug | | Transmission Distance | DCI 4K at 24/30 Hz 4:4:4 up to 130' / 40 m (8-Bit Color)
UHD 4K at 60 Hz 4:2:0 up to 130' / 40 m (8-Bit Color)
UHD 4K at 30 Hz 4:4:4 up to 130' / 40 m (8-Bit Color)
WUXGA/1080p at 60 Hz up to 230' / 70 m (12-Bit Deep Color) | | Input Control Port | 1 x 3-Pin Phoenix with Removable Plug | | RS-232 | 1 x DB-9 | | IR Input | 1 x 1/8" / 3.5 mm Jack | | Firmware Update Port | 1 x Micro-USB Type B | | Power Input Connector | 1 x 5.5 mm Barrel, 2.1 mm Pin, Locking | | Power Supply | 1 x 12 VDC, Locking | | Power Consumption | 10 W Maximum (Not Powering a Receiver)
22 W Maximum (Powering a Receiver) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 5 to 90% RH, Non-Condensing | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Storage Humidity | 0 to 95% RH, Non-Condensing | | MTBF | 50,000 Hours | | Dimensions | 12 x 1.2 x 4" / 30.5 x 3 x 10 cm (Not Including Connectors, Mounting Brackets)
13.1 x 1.2 x 4" / 33.3 x 3 x 10 cm (Not Including Connectors, Including Mounting Brackets) | | Weight | 1.3 lb / 0.59 kg | | | | Package Weight | 2.83 lb | | Box Dimensions (LxWxH) | 14.0 x 10.2 x 3.2" |
