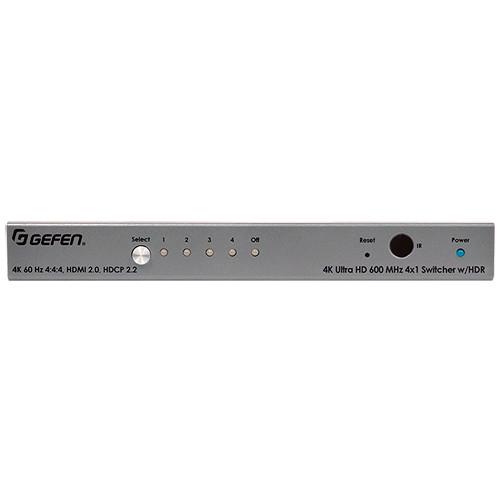

User Manual for Gefen 4K Ultra HD 600 MHz 4x1 HDMI Switcher with HDR Support Click to enlarge the picture
Contents of the user manual for the Gefen 4K Ultra HD 600 MHz
- Product category: Routers & Switchers Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Routers & Switchers
|
User manual for the Gefen 4K Ultra HD 600 MHz contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The 4K Ultra HD 600 MHz 4x1 HDMI Switcher from Gefen is a system that takes HDMI 2.0 up to 4K 60 Hz at 4:4:4 Chroma subsampling, along with HDR (High Dynamic Range) support. This system delivers Ultra HD and DCI/Cinema pictures up to 4096 x 2160 pixels at 60 fps without subsampling color. HDR allows subtle nuanced gradation of each pixel play out across the screen.
Supporting the digital rights management standard for Ultra HD content, HDCP 2.2, and the legacy HDCP 1.4, the EXT-UHD600-41 switcher can handle the signal routing needs for both existing and new components in commercial AV and residential systems. Multichannel digital audio including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio are also supported.
The 4x1 switcher includes control features such as a configurable Automatic Input Switching system. Automatic Input Switching selects the recent connected or powered-up source, therefore minimizing unnecessary end-user interaction. It also features control options including the front-panel, IR, RS-232, Telnet/UDP, and Gefen's intuitive web server interface.
Gefen's LRP (Long Reach Power) feature provides 5V at 500mA on pin 18 of the HDMI output. This current capability enables select extender devices to be powered through their HDMI input port without the need for an external power supply.
The switcher is designed to work with Gefen's Syner-G software suite. Initial IP configuration can be performed using the Gefen Syner-G's Discovery and Show-Me features. It features a low profile, compact, and surface-mountable enclosure that can fit in tight places. The small enclosure and the included IR Extender module allow this switcher to be hidden behind the display or in an equipment closet. This switcher also accommodates Gefen locking HDMI cables for secure connections. - Routes up to four Ultra HD sources to one Ultra HD display
- Supports resolutions up to 4K DCI-cinema (4096 x 2160 at 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 at 60 Hz, 4:4:4), 1080p Full HD, and 1920 x 1200 (WUXGA)
- Supports HDCP 2.2 and 1.4
- Supports HDR (High Dynamic Range) 10-bit deep color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
- Supports 12-bit deep color at 1080p 60 Hz 4:4:4
- Supports EDID and HDCP management via web server interface for rapid integration of sources and display
- Supports uncompressed LPCM digital audio up to 7.1 channels
- Supports up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio
- Supports the use of DVI sources and DVI displays up to 1080p full HD and 1920 x 1200 (WUXGA), with HDMI-to-DVI adapters (sold separately)
- Configurable Automatic Input Switching selects the recent connected or powered-up source
- Front panel push button input selector routes one of the four connected sources to the display or "Blocks" (turns off) the input
- RS-232 serial interface is used along with an automation control system
- IP control via Telnet, UDP, and the built-in web server interface
- Small surface-mountable IR Extender module allows the switcher to be hidden behind the display or in the equipment closet
- Gefen Syner-G software's Discovery and Show-Me features simplify initial IP configuration
- Infield firmware update via web server interface
- LRP (Long Reach Power) provides 500mA at 5V on pin 18 of HDMI output
- Enables selected extender devices to be powered through their HDMI input port
- Locking power connector ensures reliable operation
- Low-profile, surface-mountable enclosure can be surface mounted, placed on a shelf, or hidden behind the display
UPC: 888814689303 In the Box Gefen 4K Ultra HD 600 MHz 4x1 HDMI Switcher with HDR Support 5V Power Supply with US / EU / UK / AU Plugs IR Extender Module Handheld IR Remote 2 x Surface Mounting L-Bracket 4 x Self-Adhesive Rubber Feet Mounting Hardware Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4K Ultra HD 600 MHz 4x1 HDMI Switcher with HDR Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-UHD600-41 Specs | Maximum Pixel Clock | 600 MHz | | HDMI Input Connectors | 4 x Type-A 19-pin female, locking | | HDMI Output Connector | 1 x Type-A 19-pin female, locking
Current Capability: 500 mA @ 5 V on pin 18 | | RS-232 Serial Port | 1 x DB-9, female | | Ethernet Port | 1 x RJ45 (IP control) | | IR Sensor | 1 x Located on front panel | | IR Ports | Internal/External : 1 x 3.5 mm mini-stereo jack | | IR Extender | EXT-RMT-EXTIRN | | Power Indicators | 1 x LED, blue | | LED Indicators | 4 x LEDs, green/amber LED
1 x LED, green | | Switch | Input Selector: 1 x Tact-type | | Reset Switch | 1 x Recessed tact-type | | Power Connector | DC: 1 x Locking type | | Power Supply | 5 VDC | | Power Consumption | 7 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 5 to 90% RH, non-condensing | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Storage Humidity | 0 to 95% RH, non-condensing | | MTBF | 300,000 hours | | Dimensions (W x H x D) | 8.4 x 1 x 3.7" (213 x 25 x 93 mm) (without connectors or feet) | | Net Weight | 0.75 lb (0.3 kg) | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 12.047 x 5.984 x 4.173" |
