Product description The 4K Ultra HD 600 MHz 4x4 Matrix Switcher from Gefen supports 18.2 Gb/s of bandwidth and 600 MHz TMDS clock frequency, under the HDMI 2.0 standard. A full bandwidth support allows the switcher to accommodate resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz 4:4:4), and 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) along with HDR (High Dynamic Range). It also supports HDCP 2.2 and the legacy HDCP 1.4 content protection algorithms.
In addition to its full HDMI 2.0 and HDR compliance, the switcher features analog and digital audio outputs that break out the audio stream (2-channel analog, 2-channel PCM, and up to 5.1-channel Bitstream) from each HDMI source, allowing the de-embedded audio content to be sent to external amplifiers and music distribution systems for added impact in bars, restaurants, clubs, venues, and corporate offices. Furthermore, multichannel digital audio including 7.1-channel LPCM and HBR (High Bit Rate) digital audio formats, such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTSHD Master Audio are passed through.
Thanks to the independent scalers built into each output, two of the outputs on the switcher can downscale a 4K signal to 1080p Full HD, while the other two outputs can upscale an HD signal to 4K Ultra HD, maximizing compatibility in a mixed resolution display system. Two USB ports have been included on the back panel to supply power to sources such as streaming sticks. A comprehensive API facilitates enhanced functionality with third-party control systems, creating interface possibilities. Gefen's LRP (Long Range Power) feature provides extra current through the HDMI connector, and eliminates the need for an external power supply when using a compatible product.

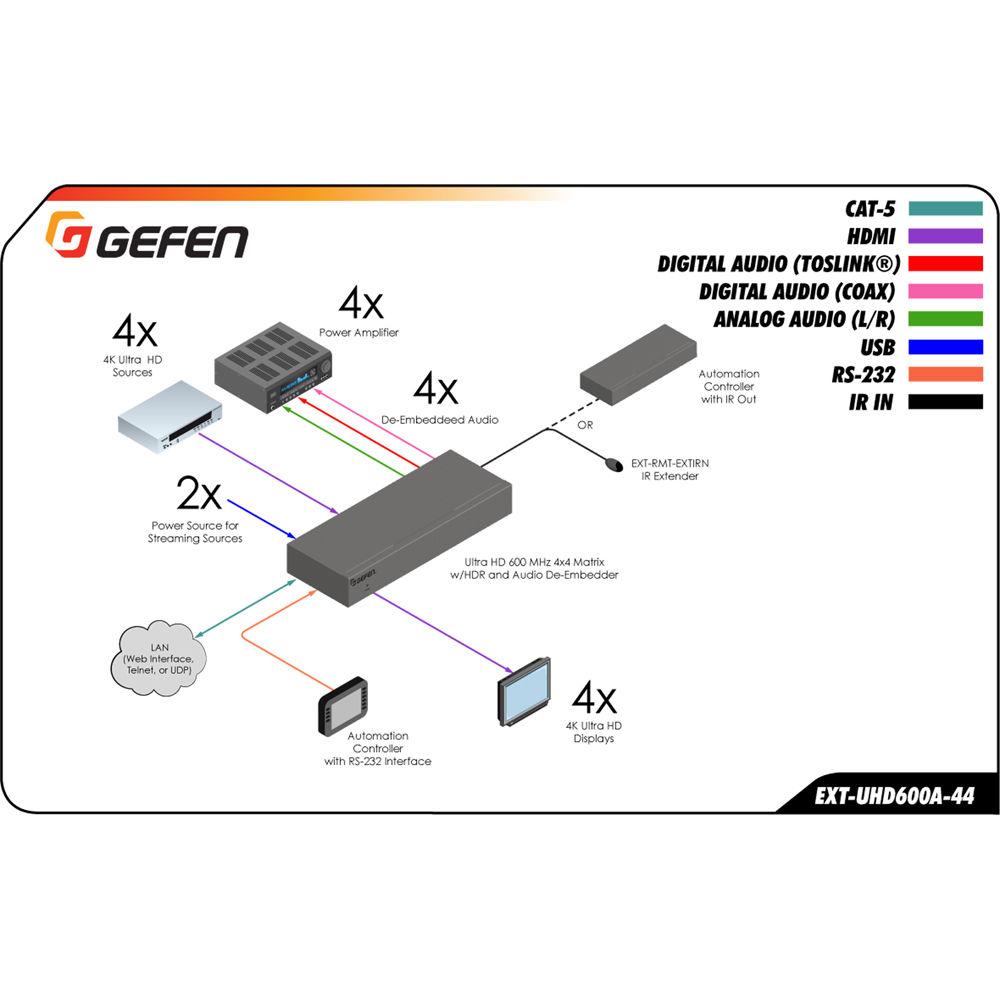

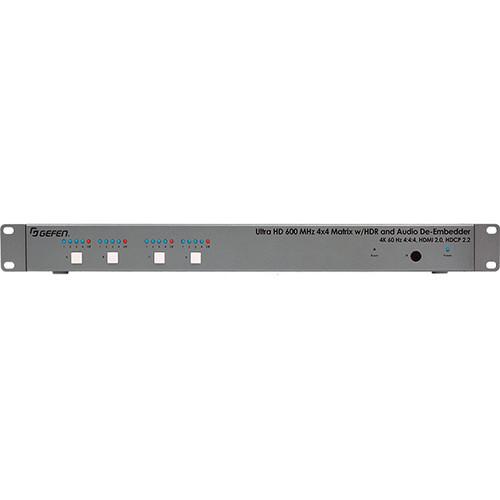

The switcher has been designed to work with the Gefen Syner-G software to simplify initial IP configuration and EDID Management. Each source can be routed to any or all displays, using the front-panel push buttons or the included handheld IR remote control. The matrix can also be controlled via RS-232, Telnet, UDP, and Gefen's intuitive and easy-to-use web server interface. It features a 1 RU tall, rack-mountable enclosure that can also be placed on a shelf and accommodates Gefen locking HDMI cables to ensure secure connections. - Routes four 4K sources to four 4K displays
- Supports resolutions up to 4K Cinema-DCI (4096 x 2160 up to 60 Hz, 4:4:4), 4K Ultra HD (3860 x 2160 up to 60 Hz, 4:4:4) with HDR, 1080p Full HD, and WUXGA (1920 x 1200)
- Supports HDCP 2.2 and 1.4
- Supports HDR (High Dynamic Range) 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
- Supports 12-bit deep color at 1080p (60 Hz 4:4:4)
- EDID management for rapid integration of source and displays
- Supports uncompressed LPCM digital audio up to 7.1 channels
- Supports up to 7.1-channel HBR (High Bit Rate) digital audio including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio
- Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920 x 1200), with Gefen CAB-DVI2-HDMI-LCK DVI-to-HDMI cables (not included)
- Built-in audio de-embedders break out 2-channel analog, 2-channel PCM, and up to 5.1-channel Bitstream audio from each HDMI output, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact.
- Four independent scalers allow upscaling from 1080p to 4K on two outputs and downscaling from 4K to 1080p on the other two, maximizing compatibility in a mixed-resolution display system
- Two USB power ports for use with sources requiring a USB power supply
- Enhanced API facilitates added functionality with third-party control systems
- LRP (Long Reach Power) provides 500 mA at 5V on 18-pin of HDMI outputs 1 and 2
- Enables select extender devices to be powered through their HDMI input port
- RS-232 serial control interface for use with a third-party controller
- IP control via Telnet, UDP, and the built-in web server interface
- Gefen Syner-G software simplifies initial IP configuration and EDID Management
- Field-updatable firmware via web server interface
- 1 RU tall enclosure, rack ears included
- Can be placed on a shelf or mounted in a standard 19" wide rack
UPC: 888814948493 In the Box Gefen 4K Ultra HD 600 MHz 4x4 Matrix Switcher with Audio De-Embedder 24 VDC Power Supply AC Power Cord IR Remote Control 2 x Rack Ears 4 x Self-Adhesive Rubber-Feet IR Extender Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4K Ultra HD 600 MHz 4x4 Matrix Switcher with Audio De-Embedder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

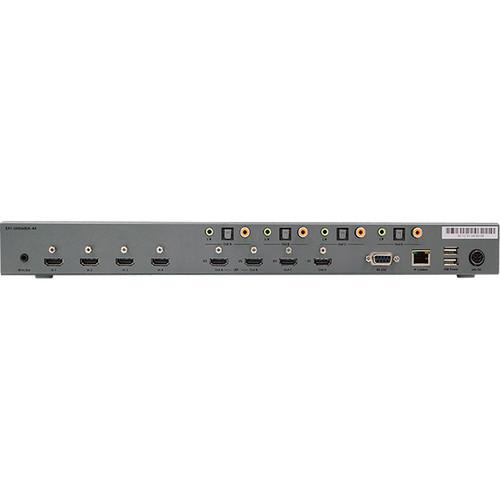

Technical parametersGefen EXT-UHD600A-44 Specs | Clock | Maximum TMDS: 600 MHz | | Data Rate | 18 Gb/s | | HDMI Input Connectors | 4 x Type A 19-pin female, locking | | HDMI Output Connectors | 4 x Type A 19-pin female, locking
Current Capability on Pin 18 of HDMI Outputs 1 and 2: 5 V, 500 mA | | Digital Audio Output Connector | 4 x TOSLINK Optical
4 x RCA Coaxial | | Analog Audio Output Connectors | 4 x 3.5 mm mini-stereo jack | | USB Ports | 2 x Type-A, female
USB Power Ports' Current Capability: 2 A total at 5 VDC (shared) | | RS-232 Serial Port | 1 x DB-9, female | | Ethernet Port | 1 x RJ-45 | | LED Indicators | Power: 1 x LED, Blue
Input: 16 x LEDs, Blue / 4 x LEDs, Red | | Buttons | Input Selector: 4 x tact-type
Reset: 1 x tact-type, recessed | | IR Sensor | 1 x located on front panel | | External Ports | IR Input: 1 x 3.5 mm mini-stereo jack | | Power Connector | DC: 1 x 4-pin, locking | | Power Supply | 24 VDC | | Power Consumption | 40 W (both USB power ports loaded), 30 W (USB power ports not in use) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 5 to 90% RH, non-condensing | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Storage Humidity | 0 to 95% RH, non-condensing | | MTBF | 50,000 hours | | Dimensions | 17.3 x 1.75 x 6.3" (43.9 x 4.44 x 16 cm) excluding rack ears and connectors | | Weight | 3.25 lb (1.47 kg) | | | | Package Weight | 6.05 lb | | Box Dimensions (LxWxH) | 19.2 x 12.1 x 4.6" |
