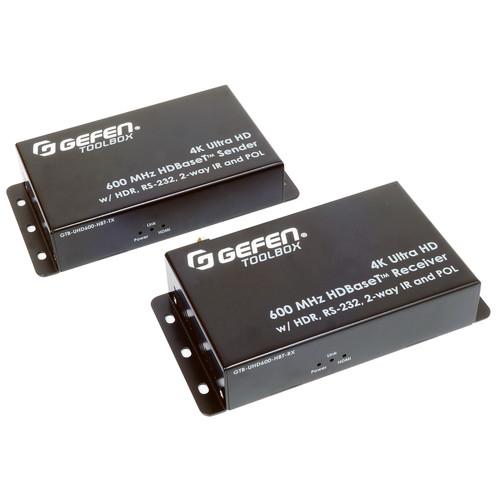

Product description Extend full-bandwidth HDMI 2.0 with HDR up to 264' over a single Cat 5 or better cable with the 4K Ultra-HD 600 MHz HDBaseT Extender Set from Gefen, supporting 18.2 Gb/s of data throughout and 600 MHz TMDS clock frequency. Featuring HDBaseT technology as well as Gefen's compression algorithms with high peak signal-to-noise ratio, this extender set accommodates resolutions up to 4K Cinema-DCI and 4K Ultra-HD with high dynamic range. HDR delivers greater contrast between light and dark areas of a video image, resulting in enhanced picture quality and color depth.

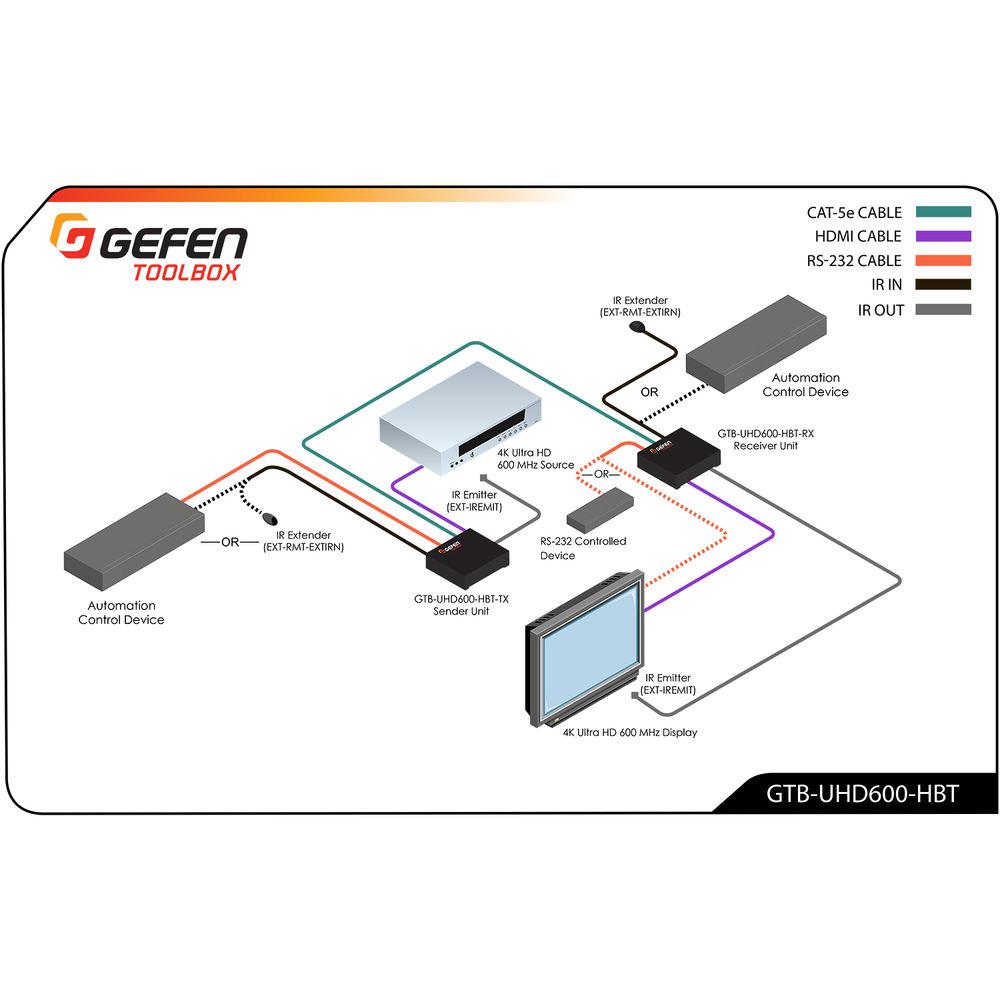

This extender set supports both HDCP 2.2 and HDCP 1.4 encryption, as well as 1080p full HD, WUXGA 1920 x 1200, 3DTV, and Deep Color at up to 1080p resolution. High-performance multichannel digital audio, including 7.1 channels of LPCM and HBR digital audio formats such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio, are passed through to the HDMI outputs. The GTB-UHD600-HBT provides RS-232 and two-way IR extension between sender and receiver, facilitating the control of A/V sources placed near the sender and sending automation commands to the display or another device placed near the receiver.
Gefen's bidirectional PoL technology powers the sender or the receiver unit using the same cable that extends the HDMI signal. Only one of the two units needs to be fed by a power supply. This feature simplifies installation when no electrical outlets are available near the source or the display. Small and low-profile, the sender and receiver enclosures can be securely surface-mounted and hidden away from sight. They accommodate locking HDMI cables (included). - Supports 18.2 Gb/s bandwidth and 600 MHz TMDS clock
- Extends HDMI, RS-232 & bidirectional IR over a single Cat 5e or Cat 6a cable
- HDMI features supported:
- HDMI 2.0, full bandwidth to 18 Gb/s / 600 MHz
- HDR 10-bit Deep Color at 4K 60 Hz 4:2:0 and 4K 24 Hz 4:4:4
- HDCP 2.2 and 1.4
- 12-bit Deep Color at 1080p
- Uncompressed LPCM digital audio up to 7.1 channels
- HBR (High Bit Rate) digital audio up to 7.1 channels, including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio
- 3DTV pass-through
- CEC pass-through
- Lip Sync pass-through
- Supports the use of DVI sources and DVI displays up to 1080p Full HD and WUXGA (1920 x 1200), with Gefen CAB-DVI2HDMI-LCK DVI-to-HDMI cables (available separately)
- RS-232 two-way link between sender and receiver
- IR extension from sender to receiver and from receiver to sender
- Bidirectional PoL provides power to the sender or the receiver unit over the link cable—only one side needs external power
- Uses Gefen's implementation of HDBaseT technology with proprietary algorithms and enhanced features
- Firmware updatable via RS-232
- Plug & play—no configuration or setup required for most applications

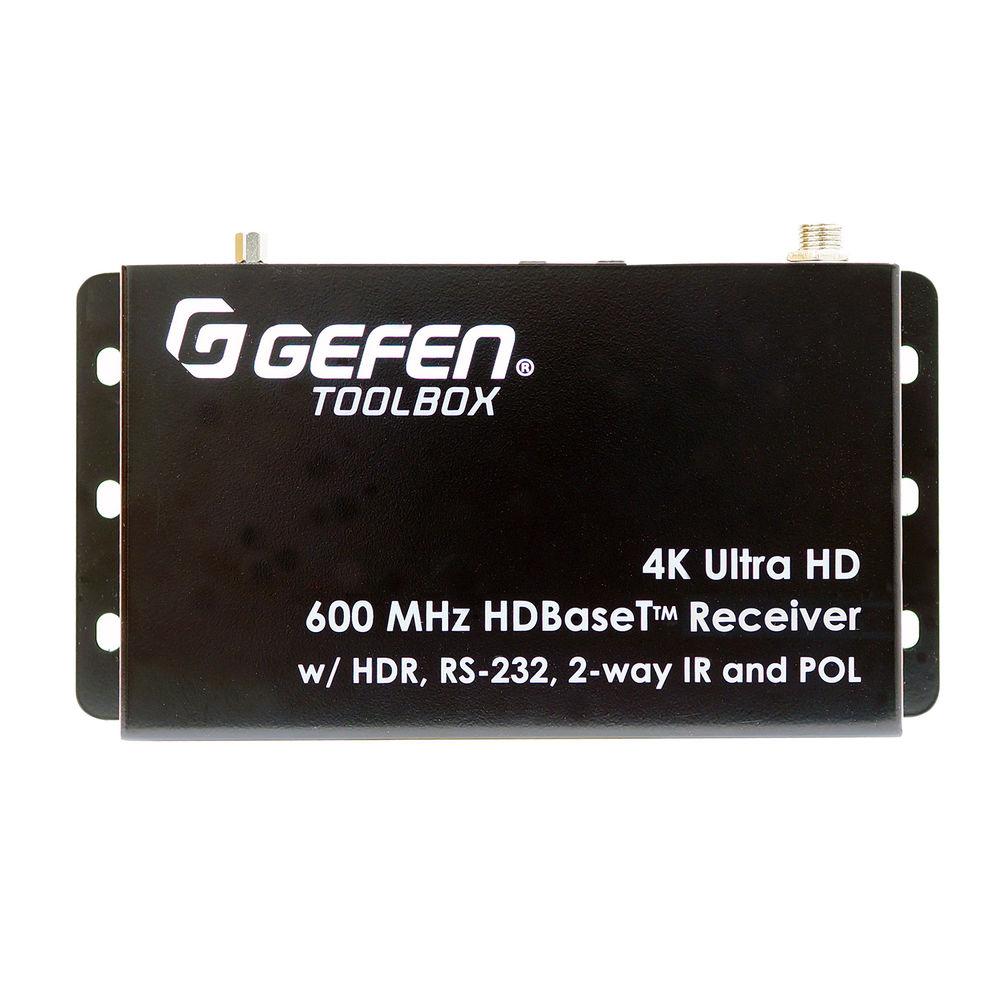

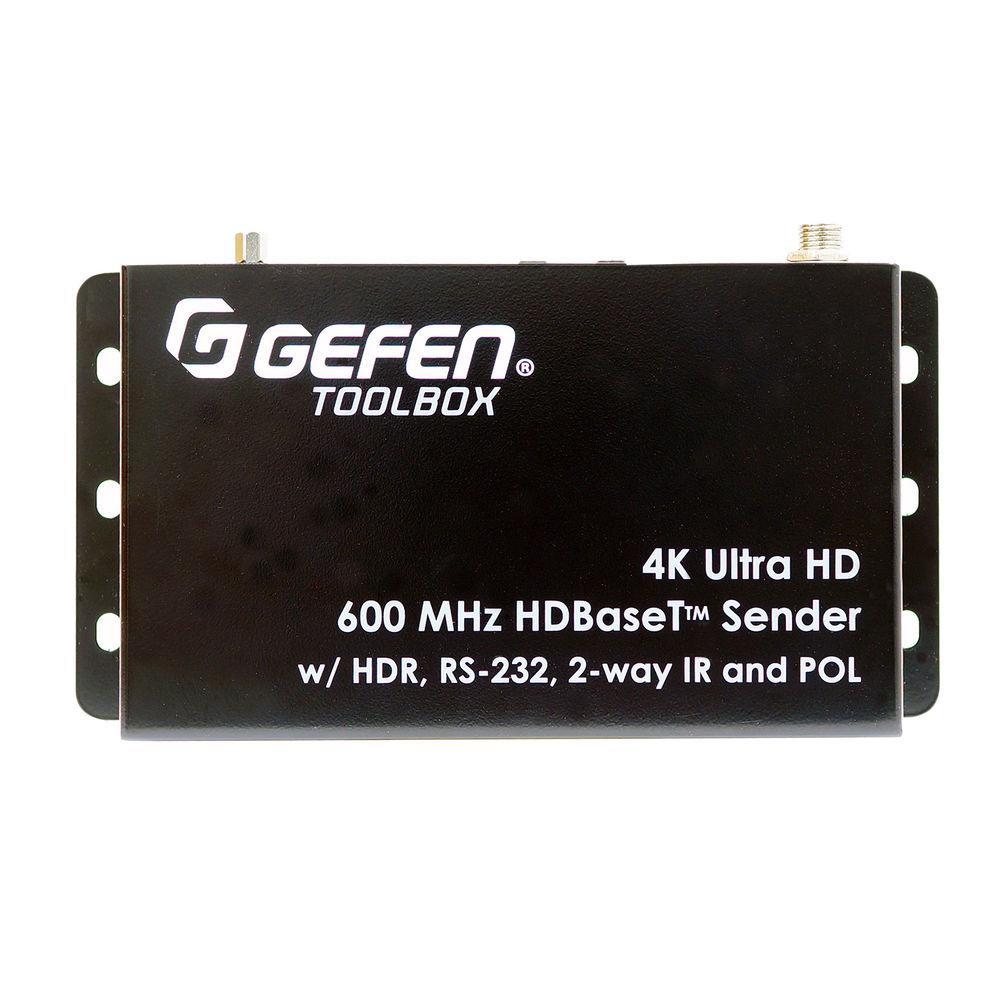

- Compact sender and receiver enclosures are easy to install and can be hidden away
UPC: 888814999921 In the Box Gefen 4K Ultra HD 600 MHz HDBaseT Extender Set with HDR, RS-232, 2-Way IR & PoL (264') HDMI-to-HDMI Male-to-Male Locking Cable (6') Single Infrared Emitter IR Extender Module 12 VDC Power Supply with US/EU/UK/AU AC Plugs & 5.5/2.1mm DC Plug Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4K Ultra HD 600 MHz HDBaseT Extender Set with HDR, RS-232, 2-Way IR & PoL in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen GTB-UHD600-HBT Specs | Resolution and Distance | 4K Ultra HD 3840 x 2160 to 60 Hz, 4:4:4, up to 264' / 80 m, 8-bit color
4K Cinema (DCI) 4096 x 2160 to 60 Hz 4:4:4, up to 264' / 80 m, 8-bit color

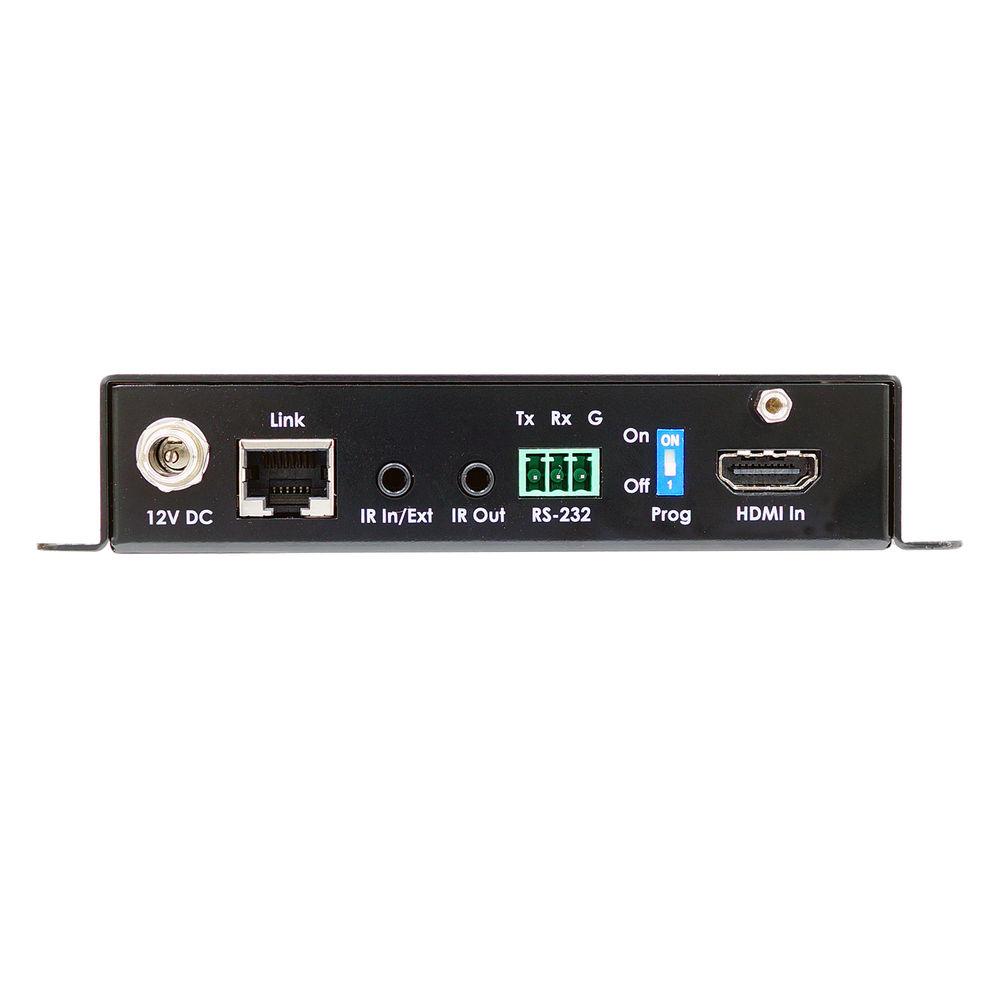

1080p Full HD 60 Hz and WUXGA 1920 x 1200 to 60 Hz, up to 330' / 100 m, up to 12-bit Deep Color | | TMDS Clock Frequency | 600 MHz max | | Bandwidth | 18.2 Gb/s, total | | Video Input Connector | Sender/Receiver: 1 x HDMI Type A 19-pin, female, locking | | Ports | 1 x RJ45 per unit, shielded
1 x RS-232 per unit, 3-pin Phoenix
1 x IR in/ext per unit, 3.5 mm mini-stereo jack

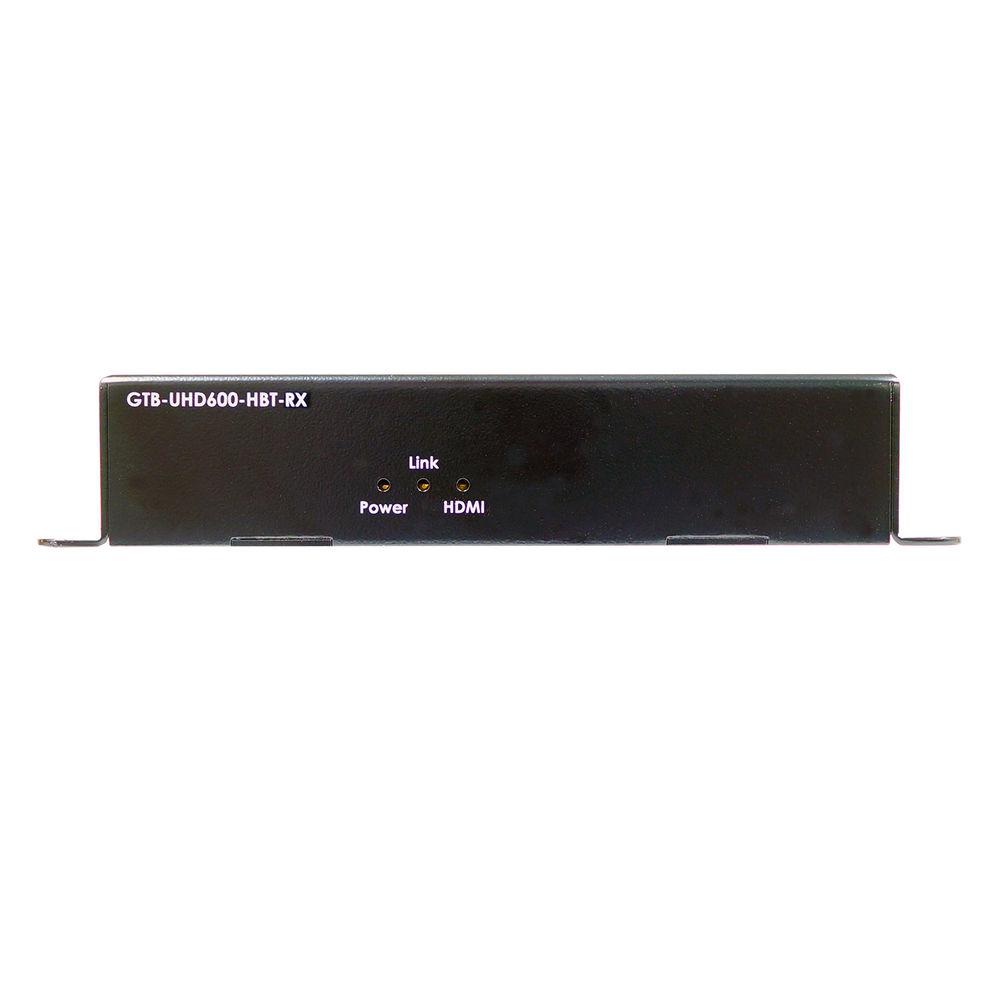

1 x IR out per unit, 3.5 mm mini-mono jack | | IR Extender | EXT-RMT-EXTIRN | | LED Indicators | Power: 1 per unit (blue)
Link: 1 per unit (green)
HDMI-Active: 1 per unit (green) | | Power Supply | Single, 12 VDC, locking, 5.5 mm barrel / 2.1 mm pin | | Power Consumption | 14 W maximum, both units combined | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Operating Humidity | 5 to 90% RH, non-condensing | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Storage Humidity | 0 to 95% RH, non-condensing | | MTBF | 50,000 hours | | Dimensions | Sender/Receiver: 4.7 x 1.0 x 2.9" / 11.9 x 2.6 x 7.3 cm | | Weight | Sender/Receiver: 0.3 lb / 0.14 kg | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 10.45 x 6.95 x 3.9" |
