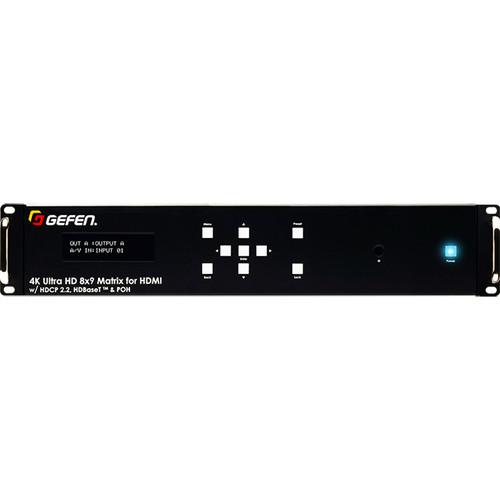

Product description The Gefen 4K Ultra HD 8x9 Matrix for HDMI with HDCP 2.2, HDBaseT 2.0, and POH (Power over HDBaseT) routes eight 4K sources to any combination of nine 4K displays. It features eight HDMI inputs, one HDMI output for local viewing/monitoring, and eight HDBaseT 2.0 outputs that extend AV and controls up to 330’ at 4K to eight receivers installed at remote viewing locations. The HDBaseT 2.0 Colligo platform ensures an even more robust and resilient connection than the industry standard HDBaseT. Resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 or 30 Hz 4:4:4) are supported. It is compliant with the latest HDCP 2.2 protocol, as well as the legacy HDCP 1.4.
The 8x9 matrix also supports 1080p, 1920 x 1200 (WUXGA), 3DTV, and Deep Color (up to 1080p) resolution. Multichannel digital audio, including 7.1 channels of LPCM and HBR (High Bit Rate) digital audio formats such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio, is also passed through. The HDBaseT extension between the matrix and the eight included receivers supports HDMI, two-way IR, RS-232, and Ethernet. IR from viewing locations to the sources can be routed independent from video if need be. POH (Power Over HDBaseT) technology provides power to the receiver units and other POH class-compliant devices, using the same Cat5 cable that extends the HDMI and control signals.
The Gefen Syner-G software’s discovery and show-me features simplify initial IP configuration. This matrix can be controlled via front panel buttons, a handheld IR remote, electrical IR, RS-232, Telnet, UDP, and Gefen’s intuitive and user-friendly web server interface. An easy-to read, super-bright OLED front panel display indicates routing status and IP settings. The matrix comes in a rack-mountable enclosure with detachable rack ears for shelf-top placement. Low-profile, surface-mountable receiver units accommodate Gefen locking HDMI cables for secure connections. - Routes eight 4K sources to nine displays
- Supports resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz), 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 color space), 1080p Full HD, and 1920 x 1200 WUXGA
- HDCP 2.2 and 1.4 compliant
- Extends HDMI, Ethernet, RS-232, and two-way IR up to 330'
- Supports 12-bit Deep Color (up to 1080p Full HD)
- Lip sync and 3D pass-through
- IR from viewing locations to sources can be routed along with, or independent from, video path
- Push-button front panel controls
- Advanced EDID Management for rapid integration of sources and displays
- Pass-through of LPCM 7.1 and HBR (High Bit Rate) audio formats such as Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio
- Supports the use of DVI sources and DVI displays with HDMI-to-DVI adapters (not included)
- RS-232 serial interface for use with an automation control system
- IP control via Telnet, UDP, and the built-in web server interface
- Gefen Syner-G software's discovery and show-me features simplify initial IP configuration
- Field-updatable firmware via web server interface
- Can be placed on a shelf or mounted in a standard 19" wide rack
UPC: 888814402001 In the Box Gefen 4K Ultra HD 8x9 Matrix for HDMI with HDCP 2.2 & HDBaseT 8 x Receivers Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4K Ultra HD 8x9 Matrix for HDMI with HDCP 2.2 & HDBaseT in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

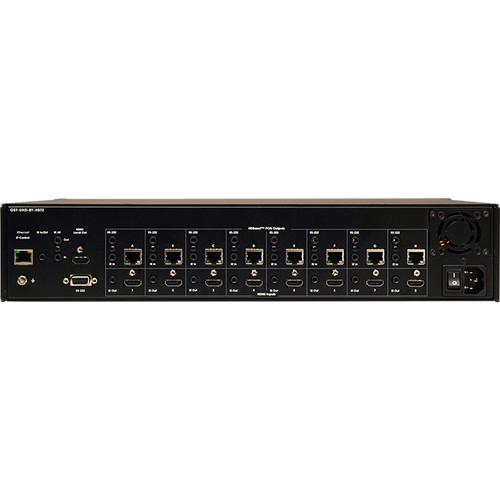

Technical parametersGefen GEF-UHD-89-HBT2 Specs | | | Maximum Pixel Clock | 300 MHz | | Power Consumption | 175 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 5 to 90% RH, Non-condensing | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Storage Humidity | 5 to 95% RH, Non-condensing | | MTBF | 50,000 hours | | | | Ports and Connectors | HDMI Input: 8 x Type A, female, locking
HDMI Output: 1 x Type A, female, locking
HDBaseT 2.0 POH Output: 8 x RJ-45
RS-232 Serial Port Control: 1 x DB-9, female
RS-232 Serial Ports Extension: 8 x 3.5 mm Mini jack, stereo
IR In/Ext Ports Extension: 9 x 3.5 mm Mini jack, stereo
IR In/Ext Port Control: 1 x 3.5 mm Mini jack, stereo
IR Out Ports Extension: 9 x 3.5 mm Mini jack, mono
Ethernet Port IP Control & Extension: 1 x RJ-45
IR Extender Type: EXT-RMT-EXTIRN (not included)

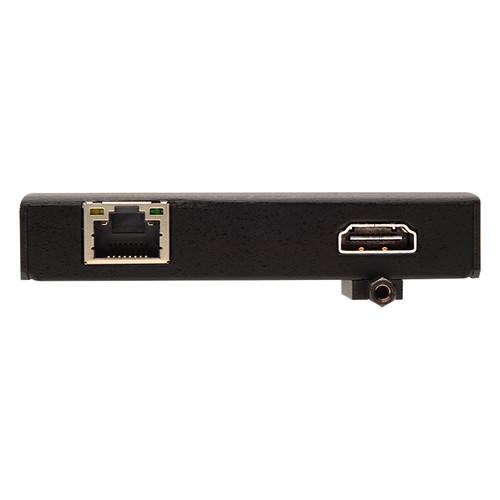

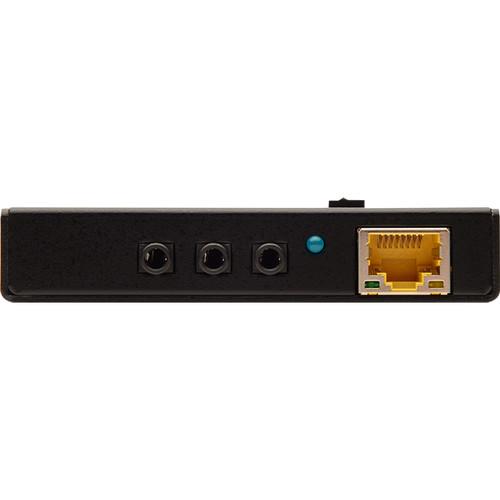

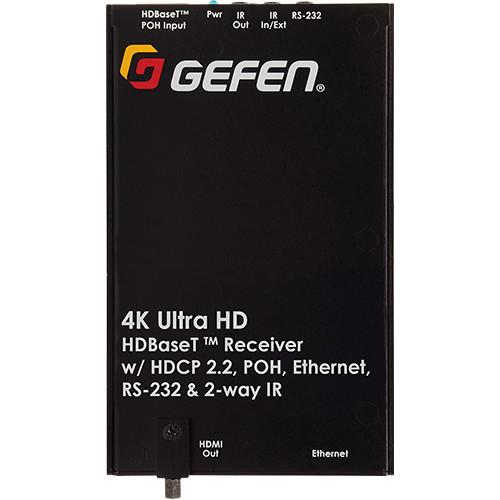

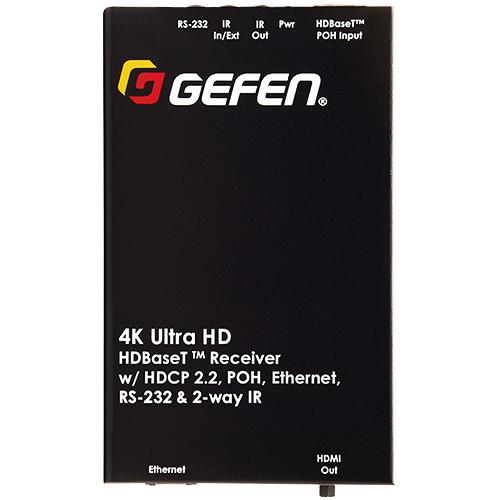

IR Sensor: 1 x Sensor, on front panel | | AC Power Inlets | 1 x IEC type | | Display | OLED, two rows, 20 characters per row | | Indicator LEDs | Power Button: 1 x Bi-color blue/orange backlight
Control Button: 7 x Blue backlight | | Power Supply | 100 to 240 VAC | | Dimensions (W x H x D) | 17.3 x 3.5 x 15.8" (44.0 x 8.8 x 40.1 cm) Excluding rack ears and connectors | | Weight | 22 lb (10 kg) | | | | Ports and Connectors | HDMI Output: 1 x Type A, female, locking
HDBaseT 2.0 POH Input: 1 x RJ-45
RS-232 Serial Port Extension: 1 x 3.5 mm Mini jack, stereo
IR In/Ext Port Extension: 1 x 3.5 mm Mini jack, stereo
IR Out Port Extension: 1 x 3.5 mm Mini jack, mono
Ethernet Port Extension: 1 x RJ-45
IR Extender Type: EXT-RMT-EXTIRN (not included) | | Dimensions (W x H x D) | 3.5 x 0.7 x 5.7" (8.9 x 1.7 x 14.5 cm) Excluding brackets and connectors | | Weight | 0.6 lb (0.3 kg) |
