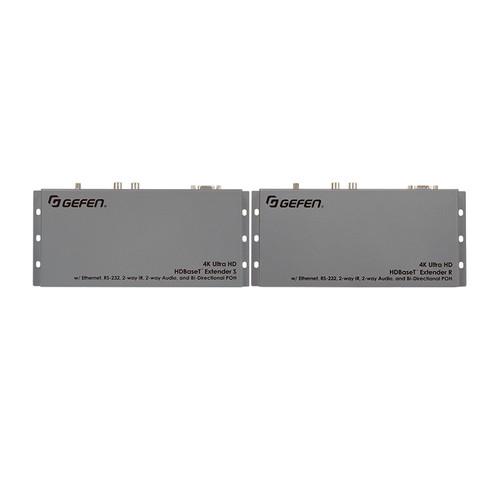

User Manual for Gefen 4K Ultra HD HDBaseT 2.0 Extender with Ethernet Click to enlarge the picture
Contents of the user manual for the Gefen 4K Ultra HD HDBaseT 2.0
- Product category: Video Extenders & Repeaters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Video Extenders & Repeaters
|
User manual for the Gefen 4K Ultra HD HDBaseT 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The Gefen 4K Ultra HD HDBaseT 2.0 Extender uses the HDBaseT 2.0 technology to extend HDMI up to 330' at 4K, using one Cat5e cable. The 1080p Full HD and 1920 x 1200 (WUXGA) 8-bit video can be extended up to 495'. The HDBaseT 2.0 Colligo platform provides additional features such as two-way audio extension, and ensures an even more robust and resilient connection than the industry standard HDBaseT. Resolutions up to 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0), along with 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio, are supported.
Supported HBR formats include Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio. Ethernet connection for a smart TV can be extended from the source side to the viewing location without the need to run a separate cable. RS-232 and two-way IR are transferred between the Sender and the Receiver to control the A/V source and the display. TOSLINK optical digital audio can be sent from the viewing location back to the source, and analog audio can be extended from the source side to the Receiver. Bidirectional POH (Power over HDBaseT) technology provides power from the Sender to the Receiver and vice versa, using the same Cat5 cable that extends the HDMI and control signals. Only one of the two units needs an external power supply. The POH standard ensures compatibility with other POH class-compliant devices.The Gefen Syner-G software, with its powerful EDID management capabilities, speeds up configuration, performs real-time performance audits via Link Monitoring, and simplifies in-field firmware updates. Low profile, surface-mountable Sender and Receiver units accommodate Gefen locking HDMI cables for secure connections. - Extends HDMI, Ethernet, RS-232, two-way IR, and two-way audio over a single Cat5e
- 4K Ultra HD (3840 x 2160 @ 60 Hz, 4:2:0, 8-bit), up to 330'
- 4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4, 8-bit), up to 330'
- 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4, 8-bit), up to 330'
- 1080p Full HD (1920 x 1080 @ 60 Hz, 4:4:4, 12-bit), up to 330'
- 1080p Full HD (1920 x 1080 @ 60 Hz, 4:4:4, 8-bit), up to 495'
- WUXGA (1920 x 1200 @ 60 Hz, 8-bit), up to 495'
- HDMI 2.0 up to 4K 60 Hz, 4:2:0, 8-bit color
- LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio pass-through
- Lip sync, CEC, and 3DTV pass-through
- IR extension from sender to receiver and from receiver to sender
- TOSLINK optical digital audio extension from receiver to sender
- Analog L/R stereo audio extension from sender to receiver
- Bidirectional POH (Power over HDBaseT) feature provides power to the sender or the receiver unit over the link cable – only one side needs external power
- Advanced EDID management via Gefen Syner-G software
- Link Quality Monitoring via Gefen Syner-G software
- In-field firmware update via USB, using Gefen Syner-G software
- Low profile, surface-mountable enclosures
UPC: 888814431964 In the Box Gefen 4K Ultra HD HDBaseT 2.0 Extender with Ethernet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4K Ultra HD HDBaseT 2.0 Extender with Ethernet in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-UHDA-HBT2 Specs | Maximum Pixel Clock | 300 MHz | | Connectors | Video Input (Sender): 1 x HDMI Type A, female, locking
Video Output (Receiver): 1 x HDMI Type A, female, locking
Link (Sender/Receiver): 1 x RJ-45, shielded, female
Ethernet Port (Sender/Receiver): 1 x RJ-45, shielded, female
RS-232 Port (Sender): 1 x DB-9, female
RS-232 Port (Receiver): 1 x DB-9, male
Optical Digital Audio Input (Receiver): 1 x TOSLINK, female
Optical Digital Audio Output (Sender): 1 TOSLINK, female
Analog L/R Stereo Audio Input (Sender): 2 x RCA, female
Analog L/R Stereo Audio Output (Receiver): 2 x RCA, female
IR Ext/In Port (Sender/Receiver): 1 x 3.5 mm Mini-stereo jack
IR Extender Type: EXT-RMT-EXTIRN
IR Out Port (Sender/Receiver): 1 x 3.5 mm Mini-mono jack
USB Port (Sender/Receiver): 1 x Mini-B (for Gefen Syner-G interface)
Power Supply (Sender/Receiver): 1 x 48 VDC, locking | | Indicator LEDs | Power/Video/Link (Sender/Receiver):
1 x Blue
1 x Amber
1 x Green | | Power Consumption | Sender and receiver combined 14 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Operating Humidity | 5 to 90% RH, Non-condensing | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Storage Humidity | 0 to 95% RH, Non-condensing | | MTBF | 50,000 hours | | Dimensions (W x H x D) | 8.4 x 1 x 4" (21.3 x 2.5 x 10 cm) Sender/Receiver, not including connectors | | Weight | 0.8 lb (0.3 kg) Sender/Receiver | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 14.2 x 11.7 x 3.8" |
