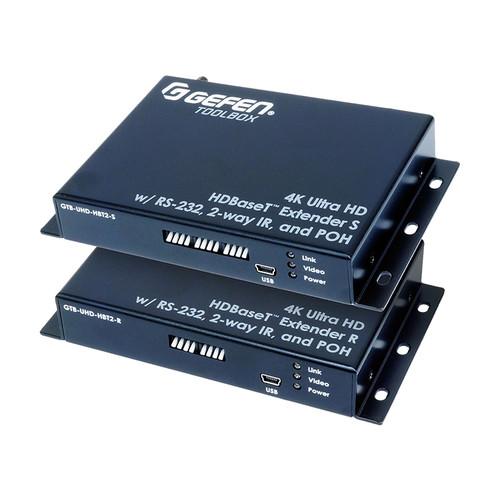

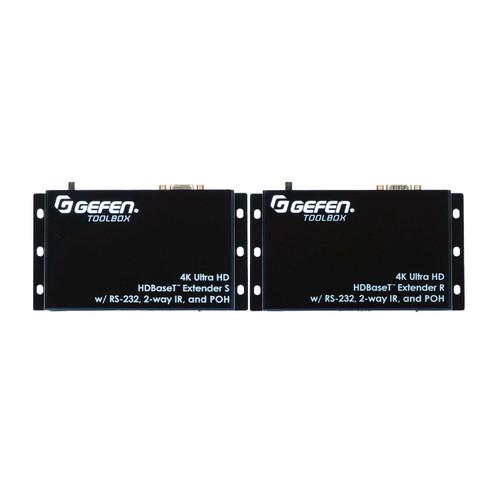

Product description The Gefen 4K Ultra HD HDBaseT 2.0 Extender uses the HDBaseT 2.0 technology to extend HDMI up to 330' at 4K, using one Cat5e cable. The 1080p Full HD and 1920 x 1200 (WUXGA) 8-bit video can be extended up to 495'. The HDBaseT 2.0 Colligo platform ensures an even more robust and resilient connection than the industry standard HDBaseT. Resolutions up to 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0), along with 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio, are supported including Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio.
RS-232 and two-way IR are transferred between the Sender and the Receiver to control the A/V source and the display. POH (Power over HDBaseT) technology provides power from the Sender to the Receiver and vice versa, using the same Cat5 cable that extends the HDMI and control signals. Only the Sender needs an external power supply. The POH standard ensures compatibility with other POH class-compliant devices.The Gefen Syner-G software, with its powerful EDID management capabilities, speeds up configuration, performs real-time performance audits via Link Monitoring, and simplifies in-field firmware updates. Low-profile, surface-mountable Sender and Receiver units accommodate Gefen locking HDMI cables for secure connections. - Extends HDMI, RS-232, and two-way IR over a single Cat5e
- 4K Ultra HD (3840 x 2160 @ 60 Hz, 4:2:0, 8-bit), up to 330'
- 4K Ultra HD (3840 x 2160 @ 30 Hz, 4:4:4, 8-bit), up to 330'
- 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4, 8-bit), up to 330'
- 1080p Full HD (1920 x 1080 @ 60 Hz, 4:4:4, 12-bit), up to 330'
- 1080p Full HD (1920 x 1080 @ 60 Hz, 4:4:4, 8-bit), up to 495'
- WUXGA (1920 x 1200 @ 60 Hz, 8-bit), up to 495'
- HDMI 2.0 up to 4K 60 Hz, 4:2:0, 8-bit color
- LPCM 7.1 audio, Dolby Atmos, Dolby TrueHD, DTS:X, and DTS-HD Master Audio pass-through
- Lip sync, CEC, and 3DTV pass-through
- IR extension from sender to receiver and from receiver to sender
- POH (Power over HDBaseT) feature provides power to the sender or the receiver unit over the link cable – only one side needs external power
- Advanced EDID management via Gefen Syner-G software
- Link Quality Monitoring via Gefen Syner-G software
- In-field firmware update via USB, using Gefen Syner-G software
- Low-profile, surface-mountable enclosures
UPC: 888814912722 In the Box Gefen 4K Ultra HD HDBaseT 2.0 Extender with RS-232 Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4K Ultra HD HDBaseT 2.0 Extender with RS-232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

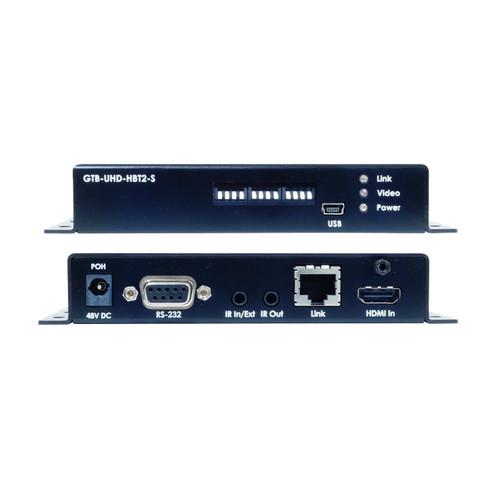

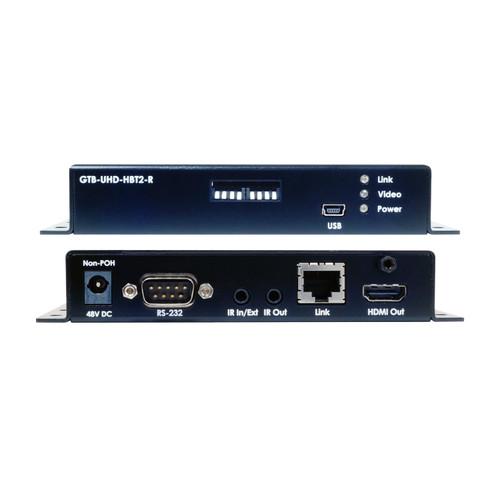

Technical parametersGefen GTB-UHD-HBT2 Specs | Maximum Pixel Clock | 300 MHz | | Connectors | Video Input (Sender): 1 x HDMI Type A, female, locking
Video Output (Receiver): 1 x HDMI Type A, female, locking
Link (Sender/Receiver): 1 x RJ-45, female, shielded
Ethernet Port (Sender/Receiver): 1 x RJ-45, female, shielded
RS-232 Port (Sender): 1 x DB-9, female
RS-232 Port (Receiver): 1 x DB-9, male
IR Ext/In Port (Sender/Receiver): 1 x 3.5 mm Mini jack, stereo
IR Extender Type: EXT-RMT-EXTIRN
IR Out Port (Sender/Receiver): 1 x 3.5 mm Mini jack, mono
USB Port (Sender/Receiver): 1 x Mini-B (for Gefen Syner-G interface)
Power Supply (Sender/Receiver): 1 x 48 VDC, locking | | Indicator LEDs | Power/Video/Link (Sender/Receiver):
1 x Blue
1 x Amber
1 x Green | | Power Consumption | 11 W (Sender and receiver combined) | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Operating Humidity | 5 to 90% RH, Non-condensing | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Storage Humidity | 0 to 95% RH, Non-condensing | | MTBF | 50,000 hours | | Dimensions (W x H x D) | 5.8 x 1.0 x 3.4" / 15.0 x 2.5 x 8.6 cm (Sender/Receiver, not including connectors) | | Weight | 0.5 lb / 0.2 kg (Sender/Receiver) | | | | Package Weight | 3.28 lb | | Box Dimensions (LxWxH) | 13.2 x 8.25 x 3.65" |
