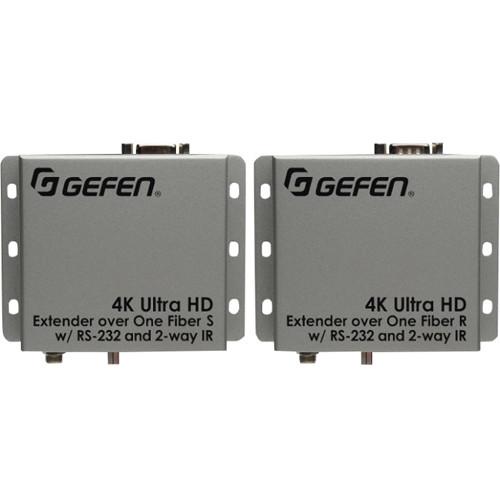

User Manual for Gefen 4K Ultra HD HDMI Serial IR Extender over One Fiber Click to enlarge the picture
Contents of the user manual for the Gefen 4K Ultra HD HDMI Serial
- Product category: Video Extenders & Repeaters Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Video Extenders & Repeaters
|
User manual for the Gefen 4K Ultra HD HDMI Serial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|
Product description The 4K Ultra HD HDMI/Serial/IR Extender over One Fiber from Gefen is a sender (transmitter) and receiver set that extends HDMI, RS-232, and bi-directional IR up to 3,300' at 4K resolution and up to 6600' at Full HD. This HDCP-compliant extender supports resolutions up to 4K Ultra HD (3840 x 2160 @ 30 Hz) and works with any HDMI source. It is ideal for installations in which the HDMI source and display are located apart from each other in an interference-prone operating environment. A single strand of SC-terminated multi-mode fiber optic cable is used for extension, providing protection from electromagnetic interference (EMI), and preserving signal integrity. The Automatic Virtual EDID feature allows automatic copying of the Extended Display Identification Data (EDID) to the sender unit for continuous availability to the source. This allows rapid recovery of picture upon display power up or when used in conjunction with switchers and matrixes. Compared to similar copper-based solutions, optical signal transmission provides inherent galvanic isolation and excellent immunity to electromagnetic interference. These sender and receiver modules are housed in metal enclosures, providing further protection against radiated noise. Locking HDMI and power connectors ensure trouble-free installation and long-lasting, reliable operation. - Extends HDMI, RS-232, and bi-directional IR over a single strand fiber optic cable
- Extends 4K Ultra HD (3840 x 2160 @ 30 Hz) up to 3300' over 50/125μm OM3e/OM4 fiber
- Extends 1080p Full HD (1920 x 1080 @ 60 Hz) up to 6600' over 50/125μm OM3e/OM4 fiber
- LPCM 7.1 audio, Dolby TrueHD, and DTS-HD master audio
- Automatic calibration based on the type and length of fiber optic cable
- Full duplex RS-232 up to 115200 baud
- Firmware upgradable via USB
- Locking power supplies (included)
UPC: 845344068657 In the Box Gefen 4K Ultra HD HDMI/Serial/IR Extender over One Fiber Locking HDMI Cable (6') Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4K Ultra HD HDMI Serial IR Extender over One Fiber in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HDRS2IR-4K2K-1FO Specs | Transmission Range | @ 4K Ultra HD (3840 x 2160 @ 30 Hz):
3300' (1000 m) over 50/125 µm OM3e/OM4 fiber
500' (150 m) over 50/125 µm (OM3) fiber
165' (50 m) over 62.5/125 µm (OM1) fiber
@ 1080p Full HD (1920 x 1080 @ 60 Hz):
6600' (2000 m) over 50/125 µm OM3e/OM4 fiber
1000' (300 m) over 50/125 µm (OM3) fiber
330' (100 m) over 62.5/125 µm (OM1) fiber | | Maximum Resolution | 4K Ultra HD (3840 x 2160 @ 30 Hz) | | Maximum Pixel Clock | 300 MHz | | Connectors | Sender:
1 x 19-pin HDMI Type A female locking
1 x DB-9 female, RS-232
1 x USB Mini-B female
1 x 3.5 mm mini-mono jack female, IR output
1 x 3.5 mm mini-mono jack female, IR input
Receiver:
1 x HDMI Type A, 19-pin, female, locking
1 x RS-232, DB-9, male
1 x USB Mini-B, female
1 x 3.5 mm mini-mono jack female, IR output
1 x 3.5 mm mini-mono jack female, IR input | | Indicators | Each Unit:
1 x LED blue/red, power
1 x LED green/red, link | | Frequency Range | Bi-Directional IR Carrier Pass-Through: 30 to 60 kHz | | Power Supply | Each Unit: 5 VDC | | Power Consumption | Each Unit: 2.5 W maximum | | Operating Temperature | 32 to 113°F (0 to 45°C) | | Operating Humidity | 5 to 90% RH, non-condensing | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Storage Humidity | 0 to 95% RH, non-condensing | | MTBF | 50,000 hours | | Dimensions | 4.3 x 1.0 x 3.4" (11.0 x 2.6 x 8.6 cm) | | Weight | Each Unit: 0.4 lb (0.2 kg) | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 12.0 x 6.0 x 4.3" |
