User Manual for Gefen 4x1 Multiview Seamless Switcher for HDMI Click to enlarge the picture
Contents of the user manual for the Gefen 4x1 Multiview Seamless Switcher for
- Product category: Routers & Switchers Gefen
- Brand: Gefen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Gefen Routers & Switchers
|
User manual for the Gefen 4x1 Multiview Seamless Switcher for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Gefen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Gefen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Gefen product will considerably shorten its lifespan!
|

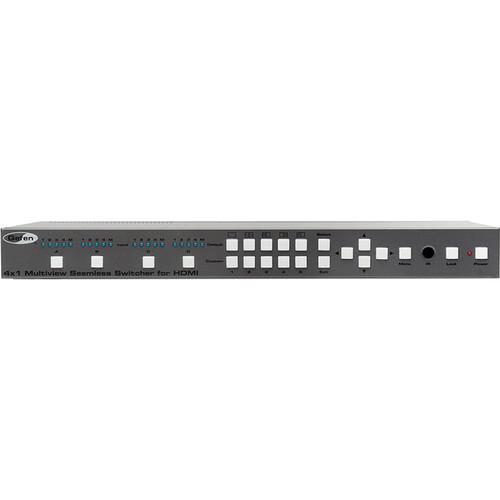

Product description The 4x1 Multiview Seamless Switcher for HDMI from Gefen allows you to display content from up to four HDMI sources on one HDTV display. Each of the source windows can be individually scaled and positioned on the screen. Seamless switching ensures no frame loss during picture transitions. The switcher is HDCP-compliant and supports resolutions up to 1080p Full HD and 1920x1200 WUXGA. The Gefen Seamless Matrix for HDMI is ideal for small and large commercial venues that require content from four sources displayed on four displays instantly and without any loss of picture.
Audio from any of the four HDMI sources can be selected for playback via IR, RS-232, or IP. Five default factory presets provide the most commonly used arrangements of windows on a display, including single window output. Five additional preset buttons allows the user to store and recall custom-configured window arrangements. All ten presets, source selection, power on, lock, and menu navigation control buttons are accessible via the front panel and the handheld IR remote control, as well as RS-232 and IP (web server interface, Telnet, and UDP). An intuitive on-screen Graphical User Interface simplifies system configuration.
The 4x4 Seamless Matrix for HDMI includes four 6' (1.8 m) locking HDMI cables, one 6' (1.8 m) DB-9 cable, an IR extender module, IR remote control, 12 VDC locking power supply, and a set of rack ears for mounting the 1RU unit. -
- Seamless switcher scales and sizes each of the four inputs, and outputs them one at a time or as windows on a single display
- Input and output resolutions up to 1080p Full HD and 1920x1200 (WUXGA)
- HDCP compliant
- Seamless switching ensures no switching delay and no picture loss during transitions
- Default pre-configured Multiview window arrangements can be accessed via five front panel preset push-buttons
- Custom user-configurable Multiview window layouts can be accessed via five front panel preset push-buttons
- User-selectable playback of HDMI audio content from any of the four inputs
- Controllable via front panel controls, IR, IP (web server interface, Telnet, and UDP), and RS-232
- Easy to use on-screen Graphical User Interface (GUI) and web server interface
- Handheld IR remote control and IR Extender input on back panel
- Field-upgradable firmware via web server interface
- USB port (reserved for future product enhancements)
- Locking power supply connector
- 1U tall rack-mountable enclosure, rack ears included
UPC: 845344069494 In the Box Gefen 4x1 Multiview Seamless Switcher for HDMI 6' Locking HDMI Cables DB-9 Serial Cable (M-F, 6') ayxqcfqeyxtttq IR Extender Module IR Remote Control 12 VDC Locking Power Supply Set of Rack Ears Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Gefen 4x1 Multiview Seamless Switcher for HDMI in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersGefen EXT-HD-MVSL-441 Specs | Video Input Connectors | 4 x HDMI Type A, 19-pin, female, locking | | Video Output Connectors | 1 x HDMI Type A, 19-pin, female, locking | | RS-232 Connector | 1 x DB-9, female | | IP Connector | 1 x DB-9, female | | USB Connector | 1 x Mini-B | | IR Extender Connector | 1 x 3.5mm stereo mini-phone jack (for use with Gefen IR Extender Module) | | Buttons | Factory default preset selector buttons:
5 x tact-type, blue backlight
Custom user=preset selector buttons:
5 x tact-type, blue backlight
Input/Window selector buttons:
4 x tact-type, blue backlight
Menu button:
1 x tact-type, blue backlight
Menu navigation buttons:
6 x tact-type
On/Standby button:
1 x tact-type, blue backlight | | Indicator Lights | Input indicators:
20 x LEDs, 5 per window, blue
Standby indicator:
1 x LED, red | | Power Supply | 12 VDC, locking | | Power Consumption | 24 W (maximum) | | Dimensions (W x H x D) | 16.9 x 1.7 x 7.9" (43.0 x 4.2 x 20.0 cm) | | Weight | 7.0 lb (3.2 kg) | | | | Package Weight | 9.7 lb | | Box Dimensions (LxWxH) | 19.9 x 12.7 x 4.8" |
